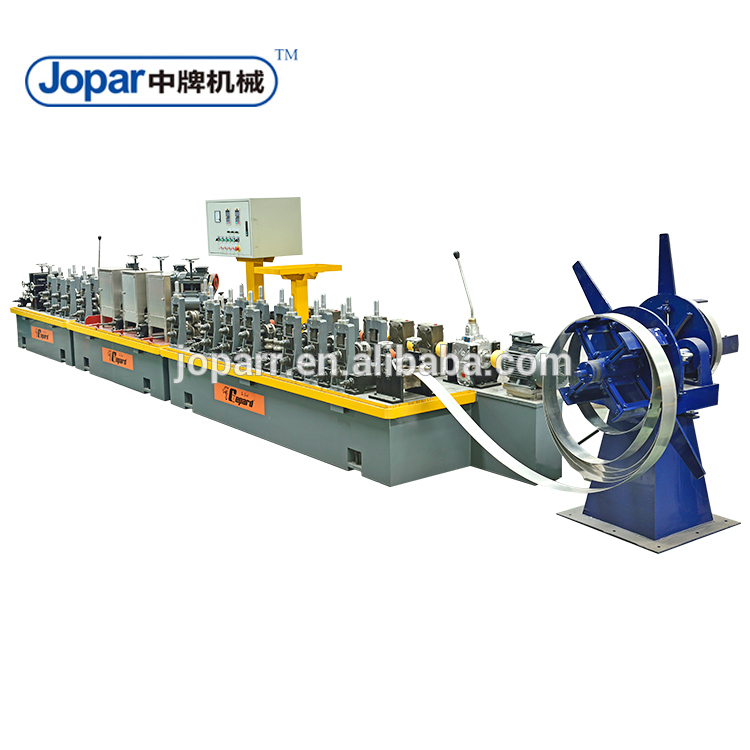

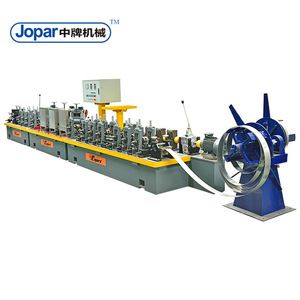

Jopar Brand factory Metal Stainless Steel Pipe Production Line / Tube Making Machine

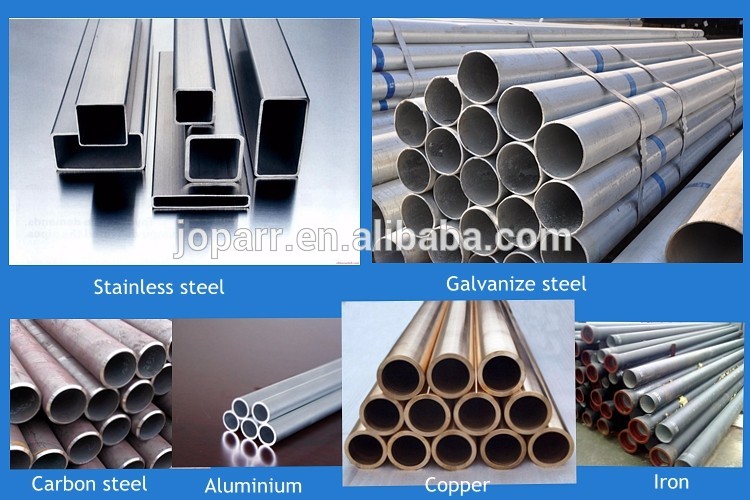

Pipe materials for Jopar Brand factory Metal Stainless Steel Pipe Production Line / Tube Making Machine
Component for Jopar Brand factory Metal Stainless Steel Pipe Production Line / Tube Making Machine
Detailsed forJopar Brand factory Metal Stainless Steel Pipe Production Line / Tube Making Machine
Technical Parameter :
Model | Horizontal axles (mm) | Vertical axles (mm) | Diameter range (mm) | Thickness (mm) | Main motor power | Size of machine (L*W)(M) |
ZP-30 | 30 | 25 | ¢6-¢25 | 0.2-0.8 | 4KW | 19.5*1.0 |
ZP-S40 | 40 | 25 | ¢6-¢32 | 0.2-1.0 | 5.5KW | 20*1.0 |
ZP-40 | 40 | 25 | ¢9-¢51 | 0.2-1.5 | 7.5KW | 21.5*1.1 |
ZP-L40 | 40 | 25 | ¢12-¢64 | 0.3-2.0 | 11KW | 21.5*1.1 |
ZP-50 | 50 | 30 | ¢25-¢76 | 0.3-2.0 | 11KW | 24*1.2 |
ZP-60 | 60 | 40 | ¢38-¢114 | 0.4-2.5 | 15KW | 26*1.4 |
ZP-80 | 80 | 50 | ¢76-¢168 | 1.0-3.5 | 18.5KW | 32*2.3 |
ZP-100 | 100 | 60 | ¢114-¢219 | 1.0-4.0 | 22KW | 23*1.2 |

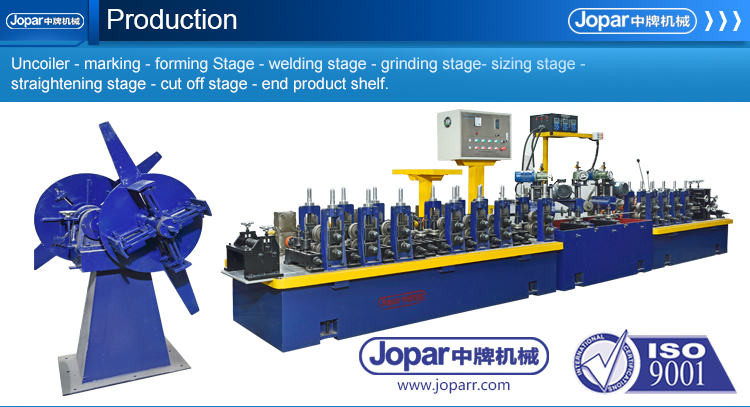

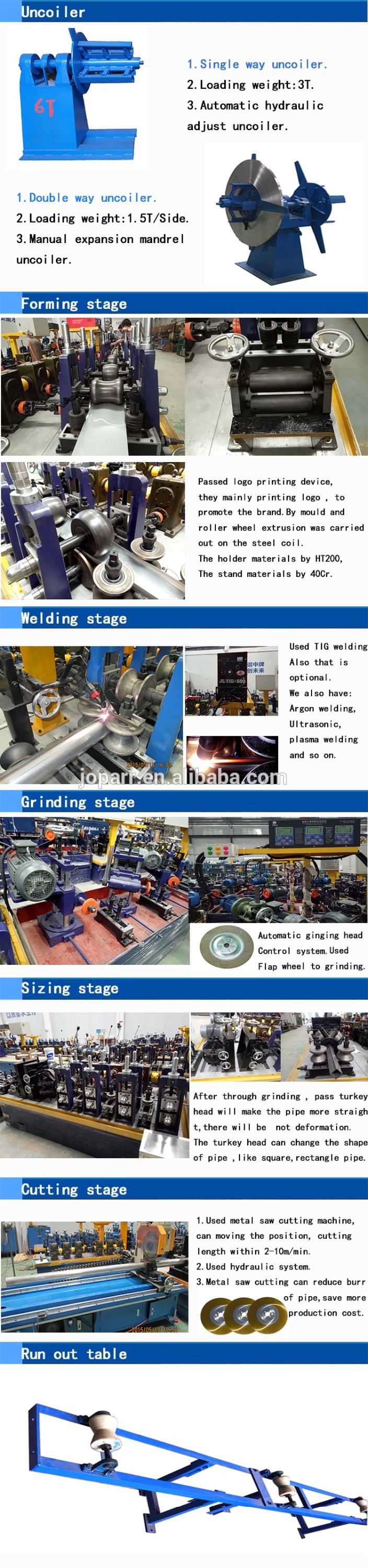

Main components of the production: uncoiler,forming and welding unit,grinding unit,sizing unit,straightening racks,cut off machine, end- product shelf |
Optional type of machine:
Standard configuration:
1. Uncoiler : Mechanical tension bridle manual adjustment .

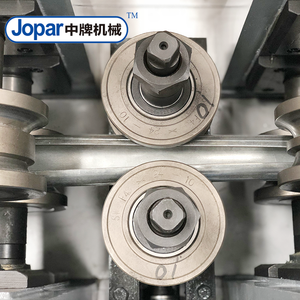

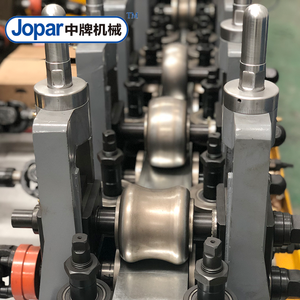

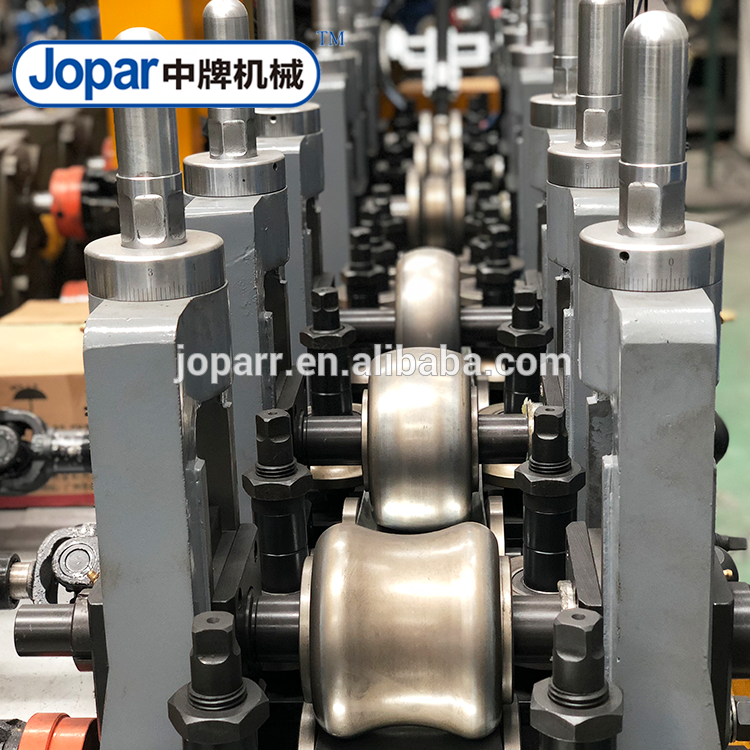

2. Horizontal and vertical holder: Passed heat treatment to make black. The holder will rust protection when used.
3. Bearing : Used deep groove ball bearing
4. Welding : Argon welding machine (500A) .
6. Grinding head: Manual by hand to debugging.
7. Cutting machine: Abrasive cutting machine.
8. Drive motor used Siemens brand, grinding motor used Kaiyuan brand.
High configuration.
1. Uncoiler: Hydraulic tension bridle automatic adjustment.
2. Horizontal and vertical holder: Passed electroplate treatment . Except rust protection, also can make holder more stable and can bear more pressure.
3. Bearing: Used Needle bearing and cone bearing.
4. Welding : High configuration Plasma and Quasi ion welder, can improve welding seam quality also can save more produce cost.
5. Welding equipment: Welding torch protective box, after used ,the welding line will easy to grinding and can protect the welding line , Have fast speed, low cost, easy grinding.
6. Grinding head: Automatic type grinding head (can manual or fully automatic optional)
7. Cutting machine: Metal saw cutting or Band saw cutting machine.
8. All motor in the pipe making machine used Siemens brand.

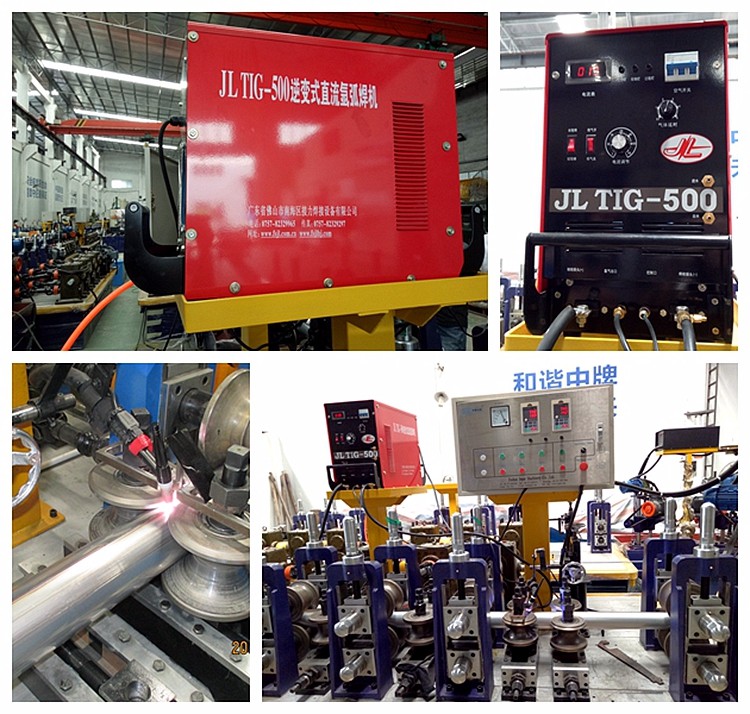

Welding technical for Jopar Brand factory Metal Stainless Steel Pipe Production Line / Tube Making Machine
TIG welder have high stiffness,High penetrating , Welding line of quality more stable for welding , welding capacity 1-10m/min , Mainly used for decorative pipe also depend on the pipe size and thickness.
