High Precision competitive horizontal packing system
Description of horizontal packing system:
Product Application

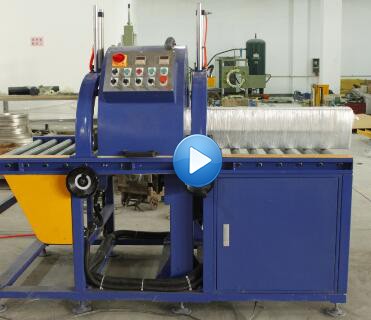

This is semiauto orbital stretch film wrapper and orbital packging machine with automatic material cutting and sealing device specialized for packing horizontal objects such as sheets, aluminum profile, doors, Floor board, window, furniture… the wrapped package is well-protected & sealed & looks more tidy. The machine can be connecting to the packing line for automatically wrapping.
| SPECIFICATIONS FOR ORBITAL SPIRAL STRETCH WRAPPER | |||
| SHGG-200 | SHGG-300 | SHGG-400 | |
| Object size: | Length:>1500mm Package OD: 100-200mm Weight:10-100kg | Length:>1500mm Package OD: 100-300mm Weight:10-300kg | Length:>1500mm Package OD: 100-400mm Weight:10-500kg |
| Air Supply: | 5~8kgf/cm2 | 5~8kgf/cm2 | 5~8kgf/cm2 |
| Wrapping Speed: | 5～18m/min | 5～15m/min | 5～15m/min |
| Packaging machinal | LLDPE stretch film Width: 50-200mm OD: 100-200mm ID: 50mm (Let me know, if you need another material) | LLDPE stretch film Width: 100-200mm OD: 100-200mm ID: 50mm (Let me know, if you need another material) | LLDPE stretch film Width: 100-250mm OD: 100-250mm ID: 50mm (Let me know, if you need another material) |
| Air supply | 5~8kgf/cm2 | 5~8kgf/cm2 | 5~8kgf/cm2 |
| Ring speed | App.10-80r/min | App.10-60r/min | App.10-60r/min |
| In feeding conveyor | 2000mm L×800mmW | 2000mm L×1400mmW | 2000mm L×1800mmW |
| Out feeding conveyor | 2000mm L×800mmW | 2000mm L×1400mmW | 2000mm L×1800mmW |
| Application | Panel, wooden, door, aluminum, profile, board,tube, pipe, tunnel, section | Panel, wooden, door, aluminum, profile, board,tube, pipe, tunnel,bundle | Panel, wooden, door, aluminum, profile, board,tube, pipe, tunnel,bundle |
Operation
a) Place the products onto the orbital stretch wrap machine in-feeding conveyor.
b) Moving the product to wrapping position automatically while sensors detect it
c) Press down device presses the package automatically.
d) Products stop automatically while it at the sealing position.
e) Feeding and cutting packing material automatically.
f) Products go through the wrapper for automatic sealing and wrapping.
g) Place the reinforcing wraps to the tail end of the product.
h) Unloading the packed package.
i) End for circle
Detailed Images of horizontal packing system

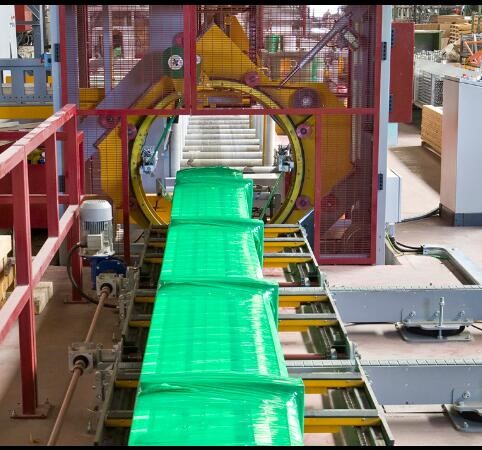

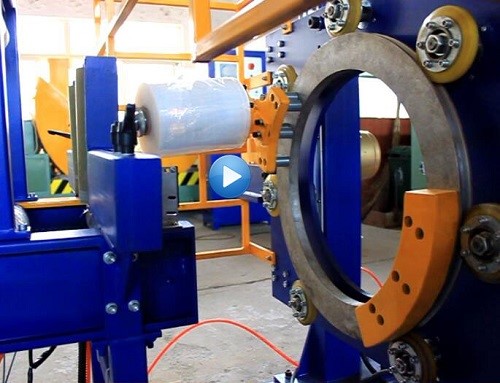

Wrapping Station
1) Reinforce aluminum cast-solid ring with strong structure makes steady in wrapping
2) Four-ring & double-PU wheel devices make working more safe stable & energetic.
3) The higher level main board with stronger structure and frame for wrapping.

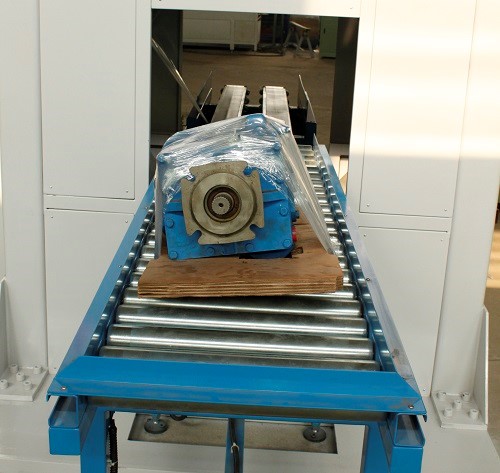

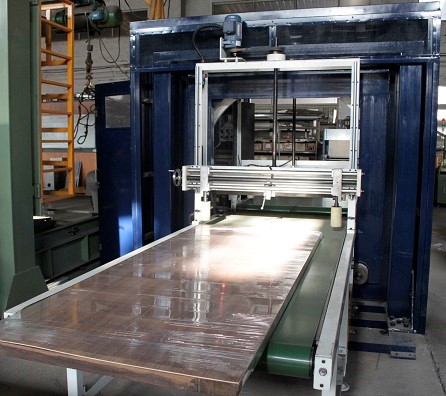

Conveyor
1) Structure of the conveyor will protect the surface of the product.
2) Automatic infeed conveyor system and outfeed conveyor system.
3) Conveyors driven by motor with gear box.
4) Diferent type conveyors available via package

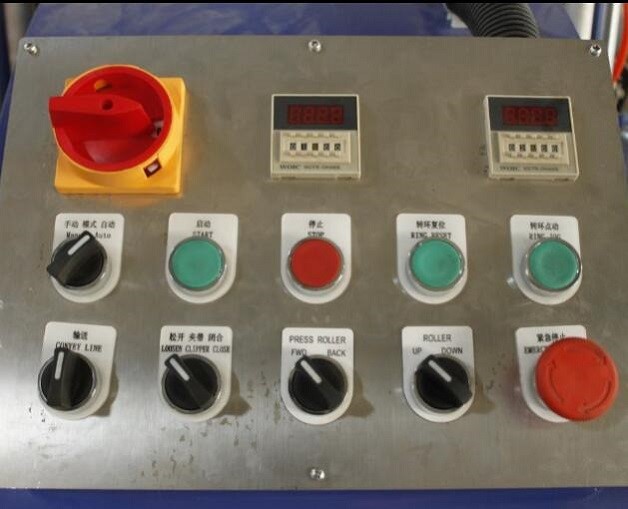

Control System
1) PLC and program makes machine able to do automatic wrapping according packing goal.
2) Interface HMI operation.
3) Photocell sensor is adopted for setting packing position and it is adjustable.
4) Stretch Wrapping position stop automatically and adjustable on touch screen.

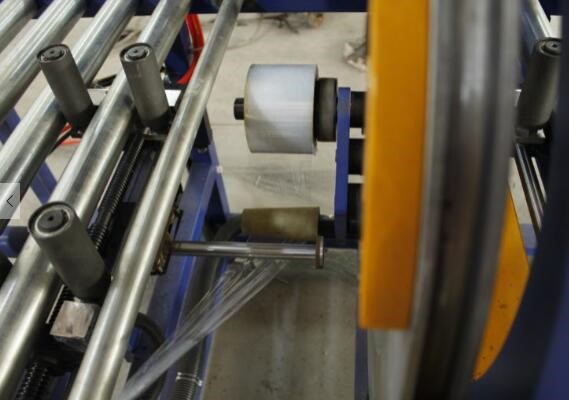

Automatic material cutter
1) Automatic material feeding and cutting device.
2) Automatic material clamping for next wrapping.
3) Sensor and PLC program control.
4) The operation parameter is adjustable.
5)This device makes machine automatically and unmanned operation.
Fhopepack.com provide autoamtic and semiauto orbital stretch wrapper and spiral wrapping machine per your specification and packaging goal. Following are some machinery avaialbel per package size. Customize solution is available too.
APPLICATION:
Following are some applications per client's package and packaging goal. The solution there

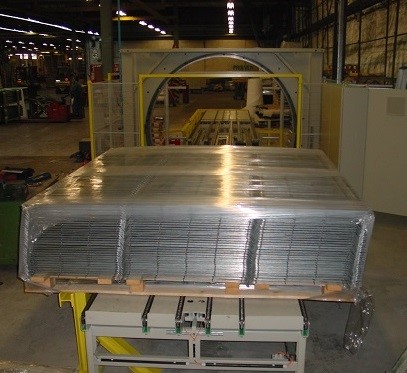

For profile, pallet, load
For wooden, door,windor
For panel and board
For door, panel
For aluminum, profile

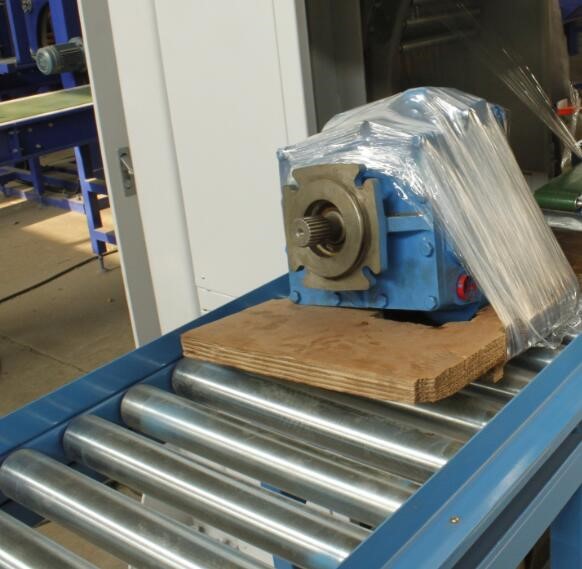

For motor,special package

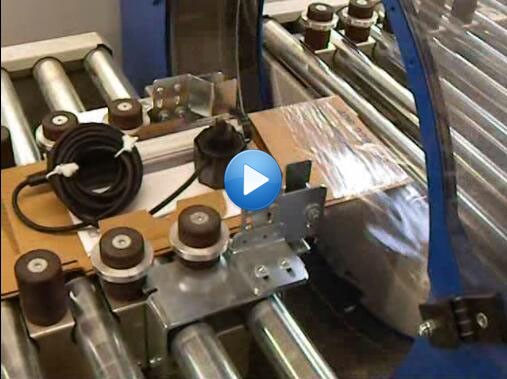

Click following for more video of orbital stretch wrapper
