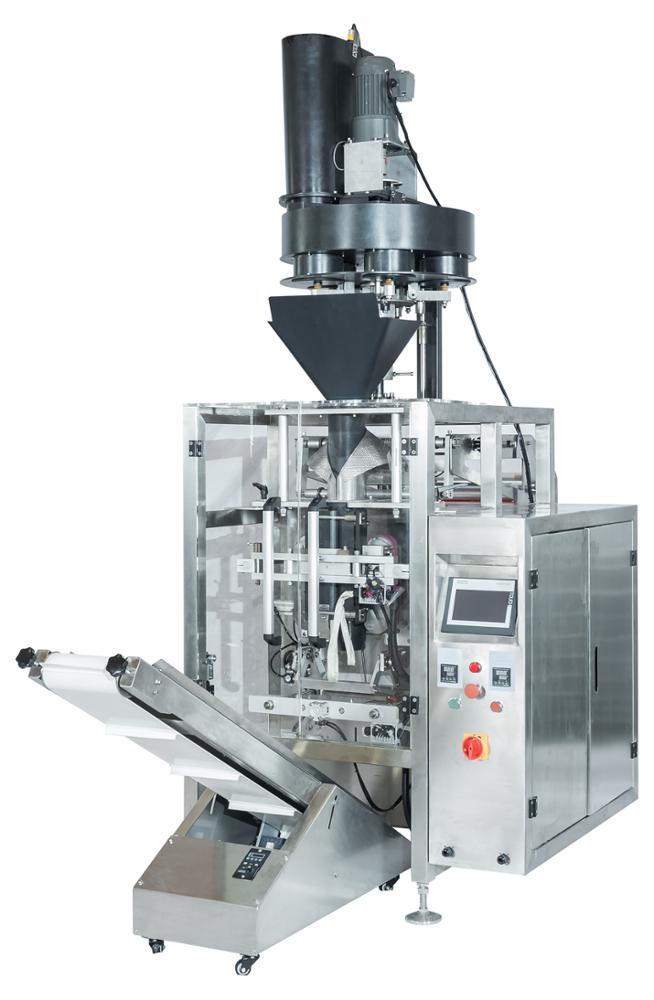

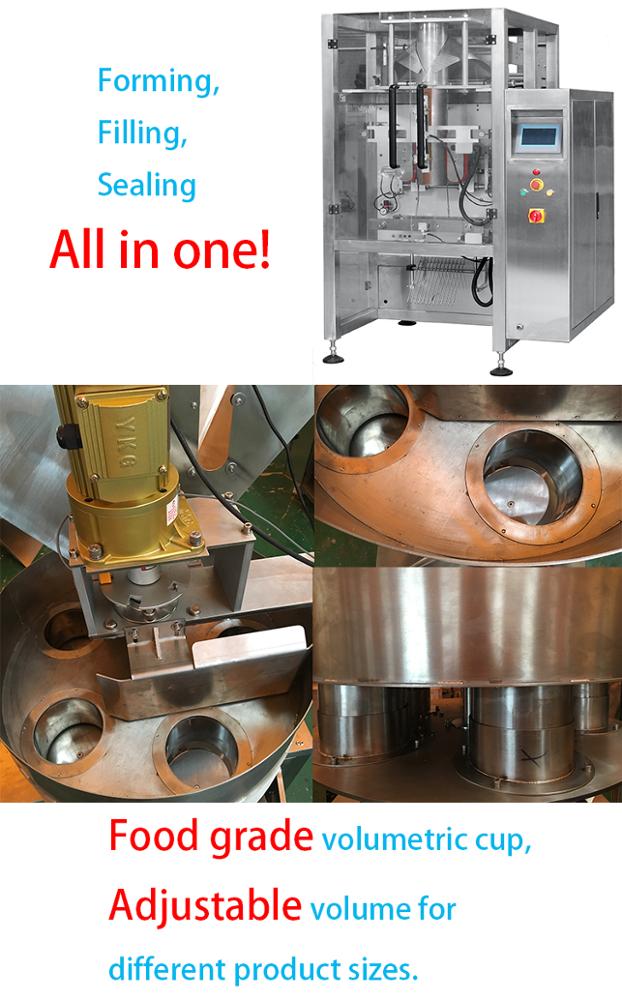

Automatic cup volumetric filler packing system

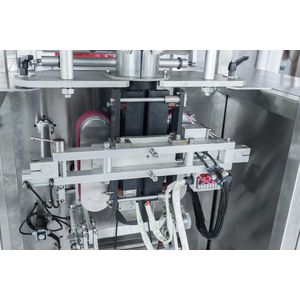

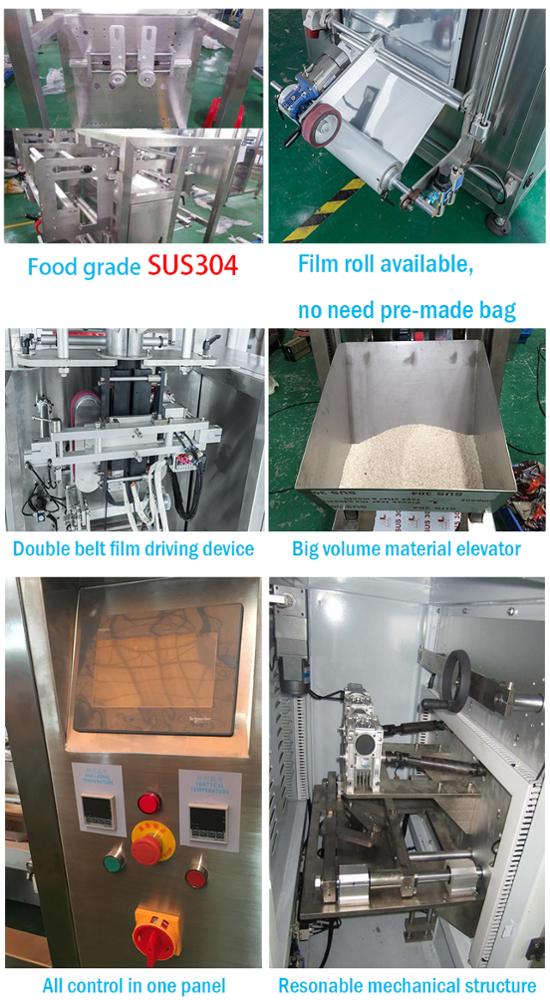

Features: 1. Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use. 2. Use famous brand electric and pneumatic components, stable and long life circle. 3. Use superior mechanical components, reduce the wear out loss. 4. PLC control with stable and high accuracy output. 5. Two color touch screen 7", one for packing machine, another for multihead weigher .
|
| For more information, please click. | CONTACT US > |
| For more information, please click. | CONTACT US > |
Automatic cup volumetric filler packing system
| Model | CBP1-420 |
| Bag size | L(60~300)×W(40~200)mm |
| Packing speed | 5~60 bags/min |
| Mad width of film roll | ≤420mm |
| Driving film type | by a pair of belt controlled by servo |
| Air consumption | 0.6MPa |
| Gas consumption | 0.4m³/min |
| Power requirement | 2.2KW, 220V, 50HZ |
| Machine size | L1320×W920×H1392mm |
| Machine weight | 550Kg |

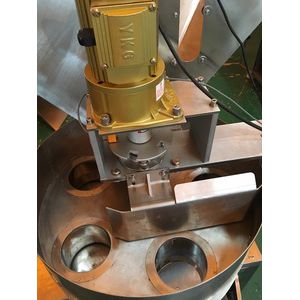

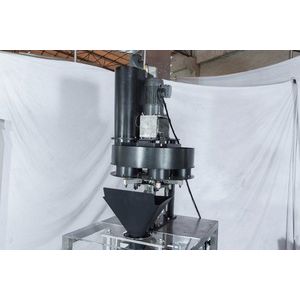

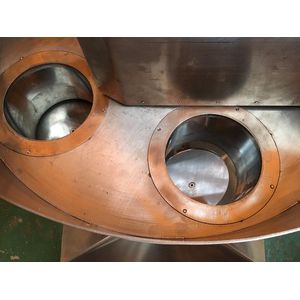

| Model | Volumetric measuring cup |
| Max. Capacity(g) | 500~1000ml |
| Weighing accuracy(g) | ±1% |
| Max. weighing speed | 45 weighs per minute |
| Capacity | 80L |
| Packing dimension(mm) | 1050(L)×900(W)×1200(H) |
| Model | Single hopper material elevator |
| Elevator height | 3750mm |
| Power | 450W |
| Conveying capacity | 3~6m³/H |
| Small block volume | 2.5L(standard) |
| Hopper volume | 50L |
| Weight | 150KG |
| Overall size(mm) | 1200(L)×1100(W)×3750(H) |

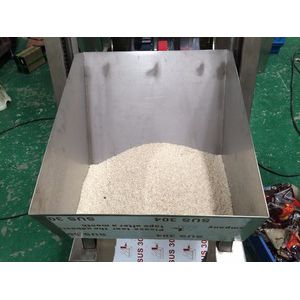

| Remark | Hopper that contact material is made of SUS304, the frame is made carbon steel |
Suit for the quantitative weighing of Popcorn, dry pasta, Macaroni, hamburgers, oats, washing
powder, puffed food, French Fries, rice crust, jelly, candy, pistachio nut, apple flake, dumpling,
rice dumpling, chocolate, hardware and medicine such particle, platy, strip and irregular shape.
| For more information, please click. | CONTACT US > |
Component list:
| A | Control parts | Brand/Origin |
| 1 | Touch screen | SCHNEIDER/FRANCE |
| 2 | PLC | SCHNEIDER/FRANCE |
| 3 | Servo motor | SCHNEIDER/FRANCE |
| 4 | Servo controller | SCHNEIDER/FRANCE |
| 5 | Temperature meter | AISET/CHINA |
| 6 | Eye mark | AUTONICS/KOREA |
| B | Pneumatic parts | Brand/Origin |
| 1 | Horizontal seal cylinder | AIRTAC/TAIWAN |
| 2 | Vertical seal cylinder | AIRTAC/TAIWAN |
| 3 | Drive belt cylinder | AIRTAC/TAIWAN |
| 4 | Cutting cylinder | AIRTAC/TAIWAN |
| 5 | Solenoid valve | AIRTAC/TAIWAN |
| 6 | Triplet | AIRTAC/TAIWAN |
| C | Electronic parts | Brand/Origin |
| 1 | Intermediate realy | SCHNEIDER/FRANCE |
| 2 | Solid state relay | YANGMING/TAIWAN |
| D | Switch parts | Brand/Origin |
| 1 | Proximity switch | SCHNEIDER/FRANCE |
| 2 | Buttons | CHINA |
| 3 | RCD | CHINA |
| 4 | Power switch(3.6A) | CHINA |
| Remark: Above is for reference only. Please refer to actual production. |
