Full automatic packing system for granule combined weighing equipment
Technical Characteristics:
1. The computer weigher ensure the stable and accurate packaging weight.
2. Medium-speed and high-speed machine can be selected, meeting different production requirements.
3. The packaging machine can be equipped with a variety of functional options, such as Alphascope, punching etc.
4. The computer weigher can be installed with hopper as required and suitable for different material.
5. Each machine has stainless steel and carbon steel structures, suitable for all levels of the customers' requirements.
Application:
Suitable for automatic weight packaging requirement of various of material in piece and grains. Such as rice, popcorn, pea, sugar, grains,granule powder, seeds, spice and salt etc.
Technical Parameters:
| No | Name | Photo of machine | Technical Specifications |
| 1 | 420 Packing machine |  | Bag Length:50~300mm Bag Width:50~200mm Packing speed: 5-60 bags/min Max. film width :420mm Air consumption : 0.65Mpa 1m³/min Power: 2.7kw 220v 50hz Dimension :(L)1080*(W)1270*(H)1400mm Weight : 600kg |
| 2 | 4 Heads Weigher |  | Model: LBL-4-2.5L Range of single bag weight: 10-2000g Max weighing speed: 10-60 bags/min Hopper Capacity: 2.5L Control system: PLC Preset Programs: 10 Max. Mix-Products: 4 Operation Panel: 7 inch touch screen Voltage/Power/Frequency/Rating Current: AC220V ±10% 50Hz(60Hz) Packing Dimension (mm): 1010(L)*960(W)*1207(H) Packing Weight: 250KG |
| 3 | Finished product conveyor |  | Conveyor height : 1.2-1.5m Belt width : 800mm Conveyor volume: 1.5-2.9m3/min Size of conveyor : 1830*589*1230mm Power : 0.55kw |
| 4 | Bucket elevator |  | Power :750w Baffle distance : 250mm (adjustable) Speed: 3-7t/h (depend on different material) Machine size: 3000(L)×450(W)×650(H) mm Machine weight : 250kg |

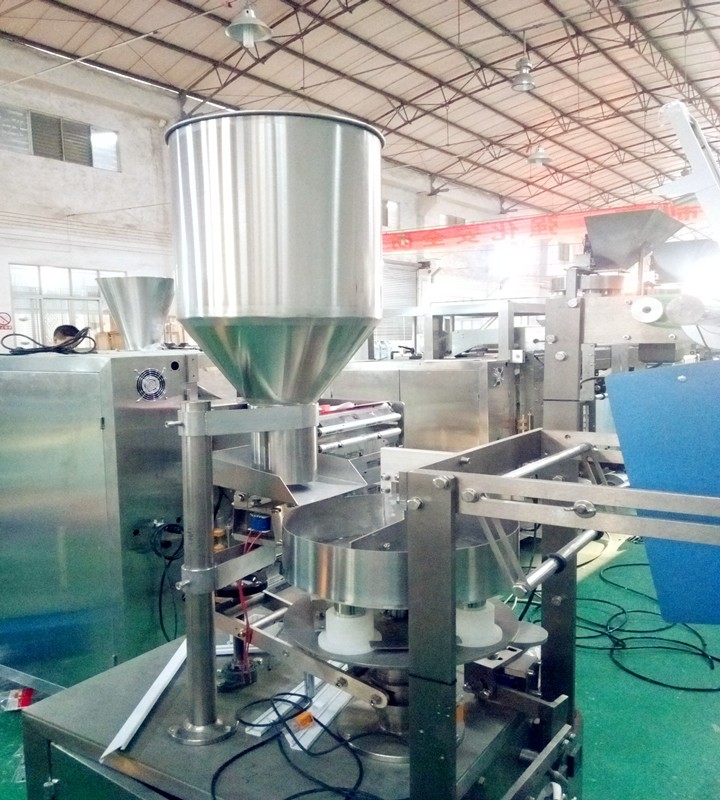

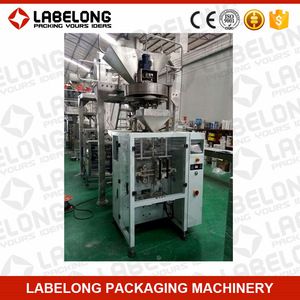

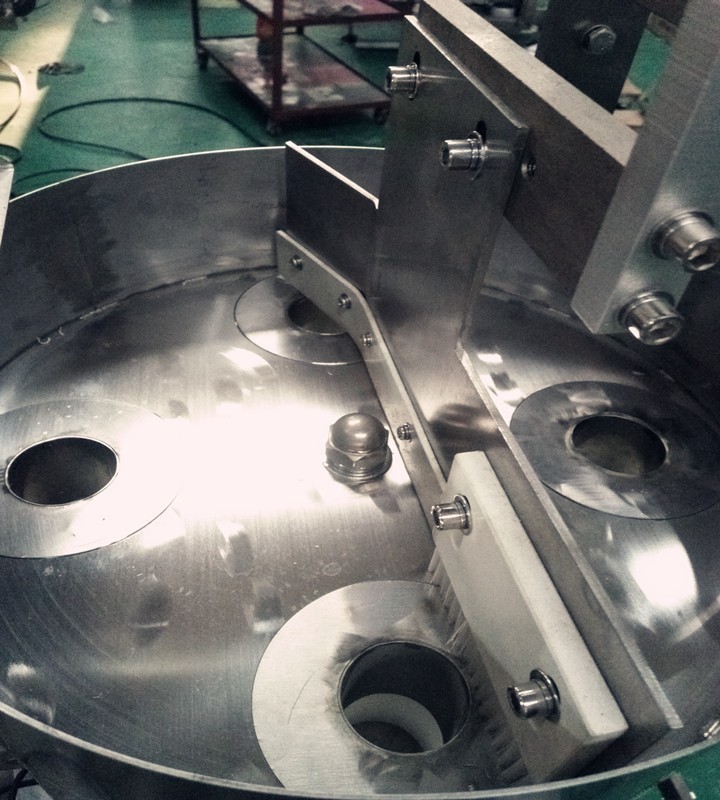

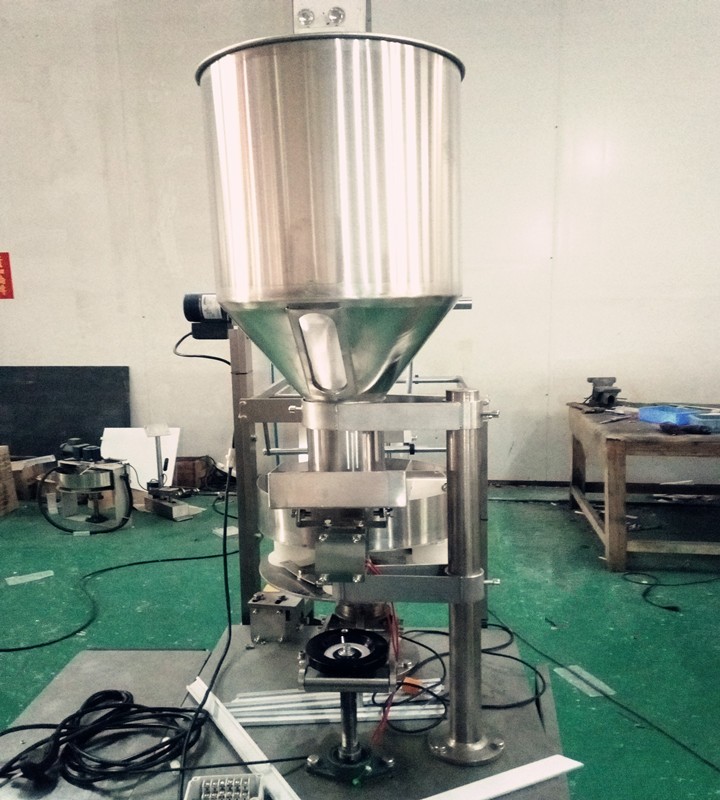

Machine Photo:
Packing&Shipping
About us
Suzhou Labelong Packaging Machinery Co., Ltd. is a professional manufacturer dedicated to all types of packaging machinery. The company covers an area of over 4000 square meters, has a modern standard factory, is a collection development, manufacturing, technical service and marketing in a body specialized manufacturers.
The company has a number of excellent engineers and experienced technical workers, in adhering to the "professional to create extraordinary" experience under the concept, in follow ISO9001: 2000 international quality management system model, the formation of a unique competitive advantage in the establishment of the past within 10 years, the company's products and sales of domestic provinces and serve the United States, Canada, Ghana, Saerduowa, Peru, Russia, South Africa, Vietnam, the Philippines, Pakistan, Malaysia, Congo, Belarus and other national users, with excellent quality of equipment and service benign interaction, to create a good reputation.
