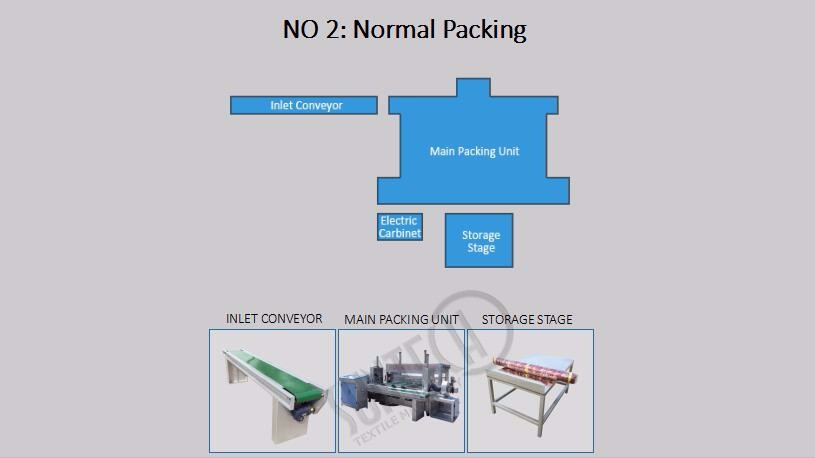

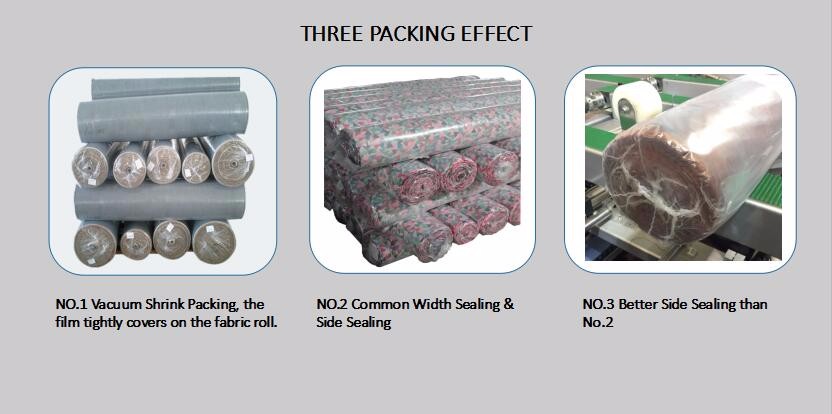

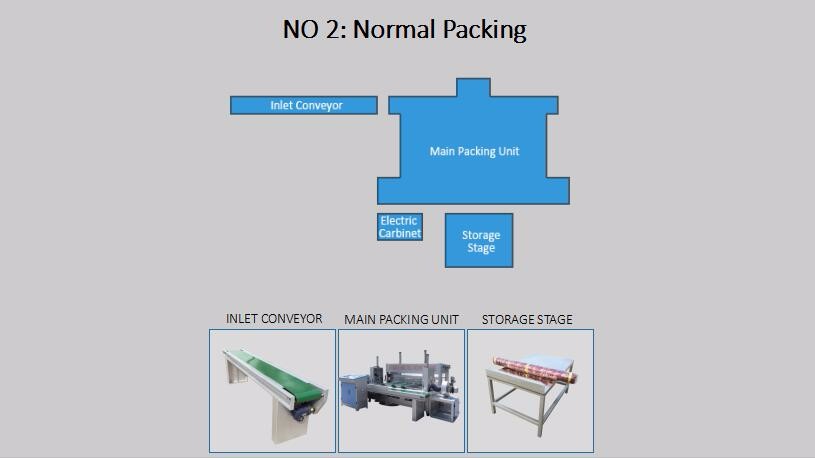

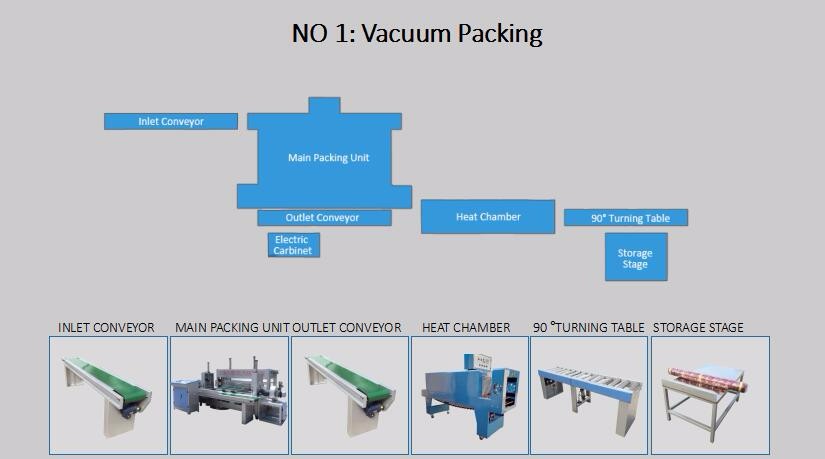

SUNTECH ST-ARPM Automatic Textile Packing Machine System Roll Packaging

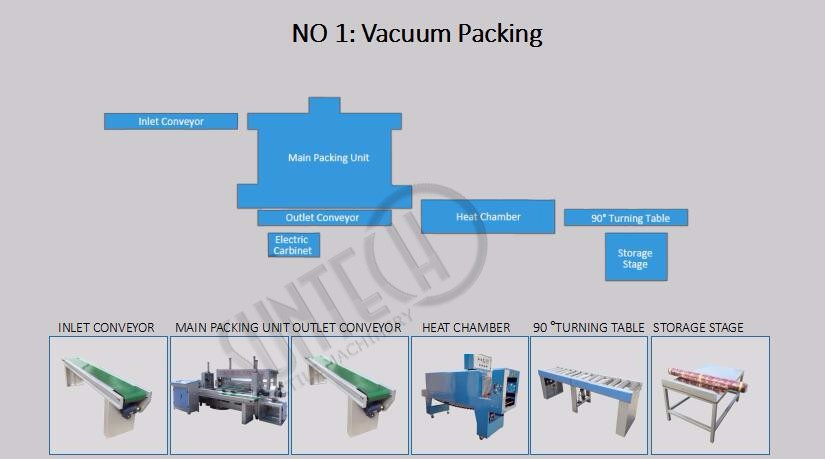

is for packing fabric rolls in vacuum and automatic way. Packing speed up to 7 ROLLS/MIN, PLC controlled, only need one worker per unit, and material saving than traditional plastic bag.
| Technical Specifications:(for standard models only) | ||||
| Model | ST-ARPM-180I | ST-ARPM-180II | ST-ARPM-240I | ST-ARPM-240II |
| Range of Width | 900-1800mm | 900-1800mm | 1200-2400mm | 1200-2400mm |
| Range of Diameter | 100-400mm | 100-600mm | 100-400mm | 100-600mm |
| Packing Capacity | 5-7rolls/min | 4-6rolls/min | 4-6rolls/min | 3-5rolls/min |
| Dimensions(mm) | 4180*2500*2190 | 4450*3220*2590 | 4780*2500*2190 | 5050*3220*2590 |
| Weight | 1500kgs | 1600kgs | 1600kgs | 1700kgs |
| Power | 43kw | 43kw | 43.5kw | 43.5kw |
| Remark | Range of roll width can be designed & manufactured upto 3200mm. |
FAQS:
Q1: What is the packing material? Can we find it in our market?
A1: It is the most common polythene film with 60-80 microns, very easy to get it in your market.
2: What is the packing speed?
A2: Our ST-ARPM-180I can pack 300 to 420 rolls/hr, which means it can pack 2400 to 3360 rolls/eight hour.
Q3: How many Fabric Inspection Machines could link with one Packing Machine at the same time ?
A3: 10sets.
Q4: What is the electrical specs? Can I use the machine directly in my country?
A4: It is 3 Phase, 380V and 50Hz; we could make it suitable for different countries.
Q5: Is the control panel in English?
A5: Yes, it is in English.
Q6: How long is the warranty? If any problems, how to solve it?
A6: 13 months from the date of shipment. If any quality problems within warranty, Suntech will responsible for it, and send new replacements.
Q7: Will you provide free spare parts along with the machine?
A7: Yes, 5% to 10% free spare parts will be sent with the machine.
Over 40 years experience, SUNTECH now has its brand office in HK and International sales office in Hangzhou. In addition, our factory is located in Ningbo city, Zhejiang, China.
Today,with more than 3000 customers and 7000 installations around the world, SUNTECH now has its agent network in Italy, Germany, Russia, Argentina, Colombia, Peru, Ecuador, Guatemala, Indonesia, Thailand, Philippines, India, Pakistan, Bangladesh, Sri Lanka, Uzbekistan, Iran,Egypt, South Africa, Syria, Mauritius, etc.
