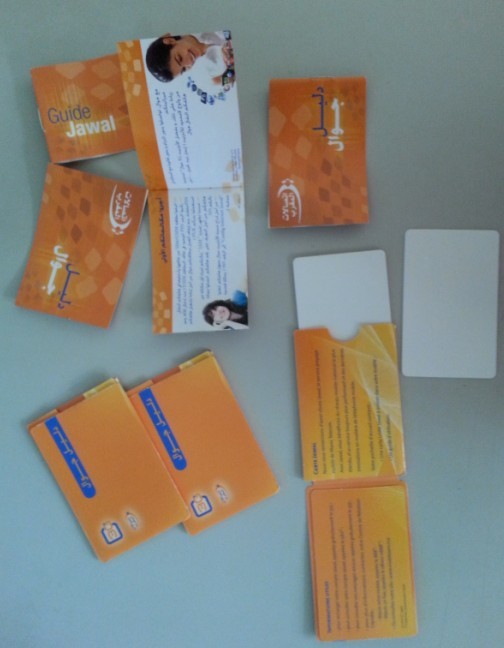

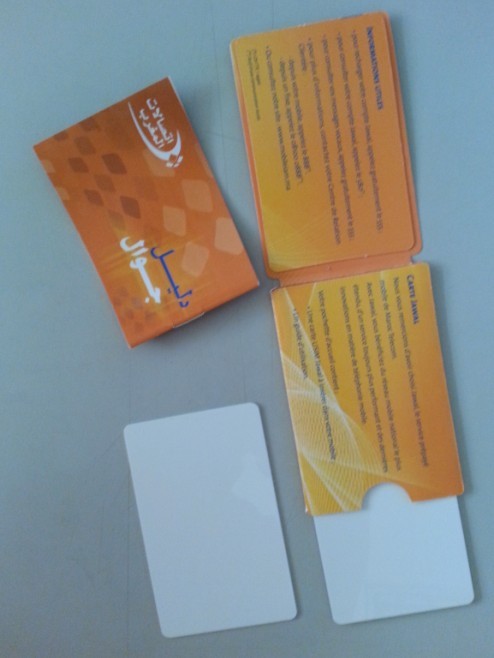

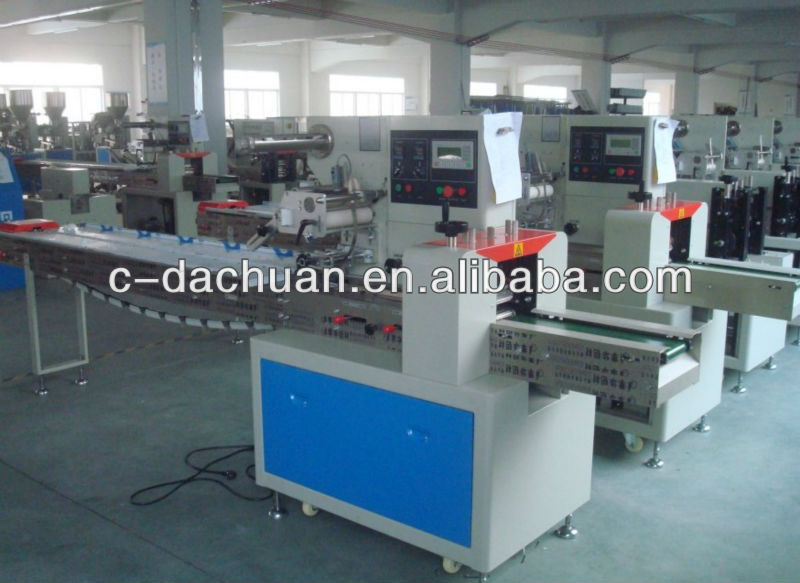

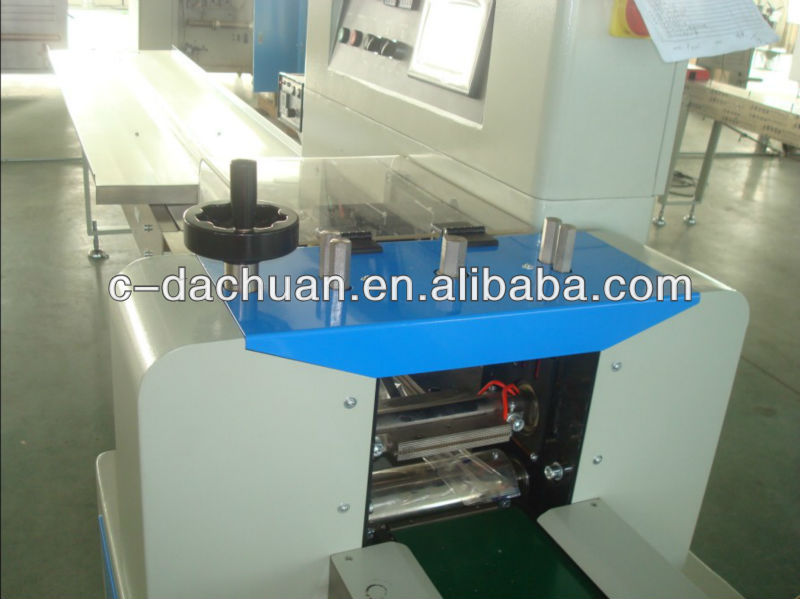

Phone/Credit cards packaging machines/equipments/system DCWB-250B
I. Main performance and structure features
1. Double transducer control, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and saving films.
2. human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking ,digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. .All the controls are achieved by software, convenient for function adjusting and upgrading.
II. Application
Suitable for packing regular objects such as biscuit, bread, instant noodle, moon cakes, industrial parts, paper box or trays.
III. Optional device
1. Code applying machine
2. Extra big screen
IV. Specification
Model | DCWB-250B |
Film width | Max.250mm |
Bag length | 65~190mm Or 120~280mm |
Bag width | 30~110mm |
Product height | Max. 40mm |
Film roll diameter | Max.320mm |
Packing speed | 40~230 pack/minute |
Power supply | 220V,50/60HZ,2.4KVA |
Size | (L)3770X(W)670X(H)1450 |
Weight | 450Kg |

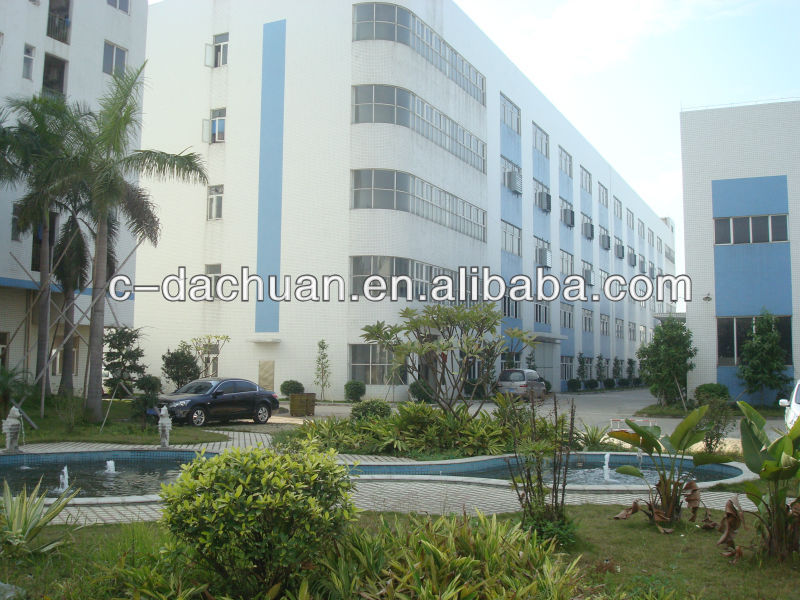

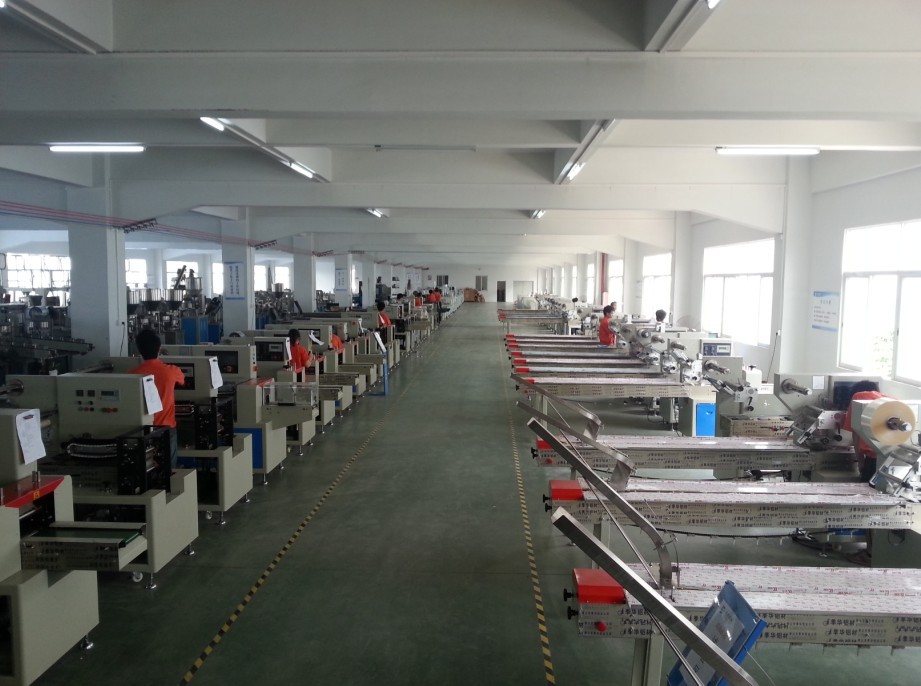

Our factory
China
