Full Automatic Vertical Packing Machine System With Scale Weighing

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Type

Other

Condition

New

Application

Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles, OTHER

Packaging Type

Cartons, Cans, Bottles, Barrel, Bags, Film, Foil, Belt, Pouch, Capsule, Case, bag

Packaging Material

Plastic, Paper, Glass, Wood, wooden case

Automatic Grade

Automatic

Driven Type

Electric

Voltage

220v

Power

2.4kw

Place of Origin

Guangdong, China (Mainland)

Brand Name

NEWKELI

Model Number

KLA serials

Certification

After-sales Service Provided

Engineers available to service machinery overseas

machine materials

carbon steel or S.S 304

application

for goods' outside packing ,such as food, solid goods and so on

Usage

Outer packing

DETAIL DESCRIPTION

Combined Weighing Full Automatic Packaging System

Item No.	KL-720A	KL-520A	KL-420A	KL-350A
Bag length	100-500mm	80-350mm	50-300mm	100-230mm
Bag width	100-350mm	80-250mm	60-200mm	75-165mm
Film width	Max.720mm	Max.520mm	Max.420mm	Max.350mm
Capacity	Max.4000ml	Max.2000ml	150-1400ml	150-700ml
Film Thickness	0.04-0.08m m
Film applied	CPP, OPP, Nylon laminated pe, kop laminated cpp, pe laminated pet, opp laminated pe etc.
Packing speed	Max 10-20bag/min	Max 10-50bag/min	Max 10-55bag/min	Max 10-60bag/min
Outside size	(L)4380(W)1350(H)2800(mm)	(L)4280(W)1300(H)2600(mm)	(L)4180(W)1050(H)2400(mm)	(L)4080(W)1050(H)2300(mm)
Driving system	Pneumatic Note: the film is dragging by servo motor
Sealing method	Standard machine: Pillow bag former Note: other formers with additional charges are pillow bag with hole, pillow bag with gusset etc.
Machine Material	Standard machine: carbon steel for main parts, all areas touching the products are stainless steel or the material in food standard. Note: the whole set can be made of stainless steel with additional charges.
Weight	Main machine (400kg), Heads combined scale (200 kg), Platform (150 kg), Elevator (150 kg), Finished product conveyor (50 kg) Total: 950 kg	Main machine (380kg), Heads combined scale (200 kg), Platform (150 kg), Elevator (150 kg), Finished product conveyor (50 kg) Total: 930 kg	Main machine (360kg), Heads combined scale (200 kg), Platform (150 kg), Elevator (150 kg), Finished product conveyor (50 kg) Total: 910 kg	Main machine (340kg), Heads combined scale (200 kg), Platform (150 kg), Elevator (150 kg), Finished product conveyor (50 kg) Total: 890 kg
Application	Suitable for packing fragile bulk material with irregular shapes and requiring high measuring accuracy, such as :puffed food, shrimp strip, candies, potato chips, banana chips, apple flakes, crispy rice, biscuit, peanut, cooked seeds, sweets etc.
Features:	1. The system can finish automatically all process, ie, feeding and measuring, filling and bag making, printing date and product output. 2. High measuring accuracy, high efficiency, less broken material. 3. Save labor, less waste, easy operate and maintenance.
Complete set	1) KL-350A/420A/520A/720A main machine 2) 4/10/14/16 heads combined scale 3) Supporting platform 4) Z type material conveyor (including vibrate hopper) - if the client don’t need this, it can be removed from the system 5) Finished product conveyor - if the client don’t need this, it can be removed from the system 6) One bag former - if different width of bag is required, additional bag former is required with additional charges
Packaging	1) film wrapped inside 2) Wooden case nailed outside 3) Wooden case can be fumigated or from fumigation

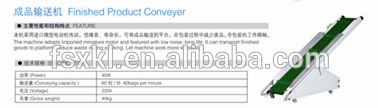

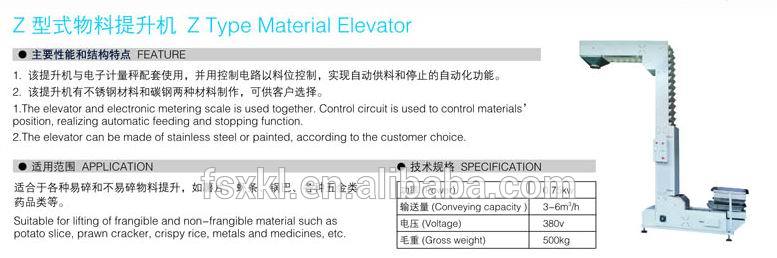

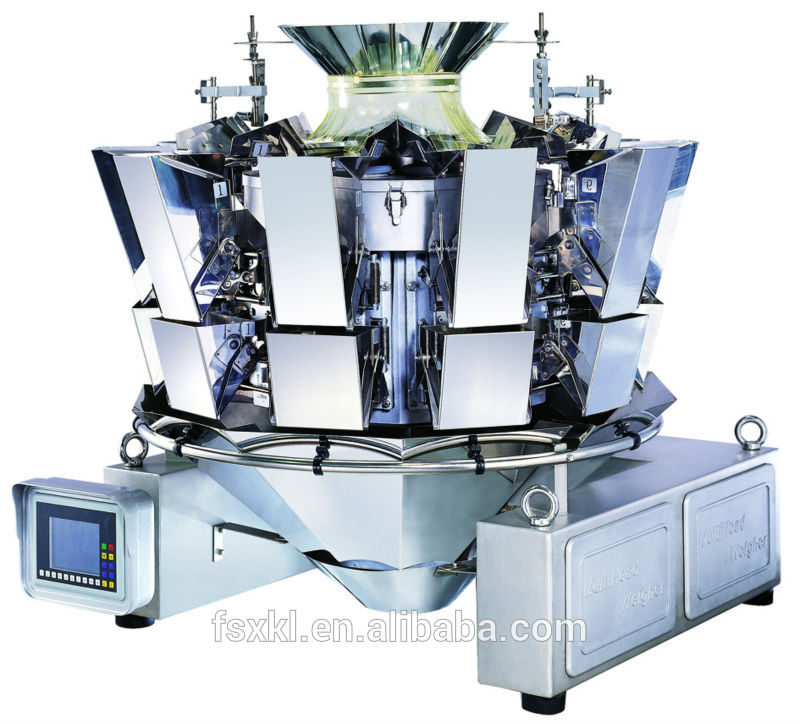

Combined parts photos:
