Usage:

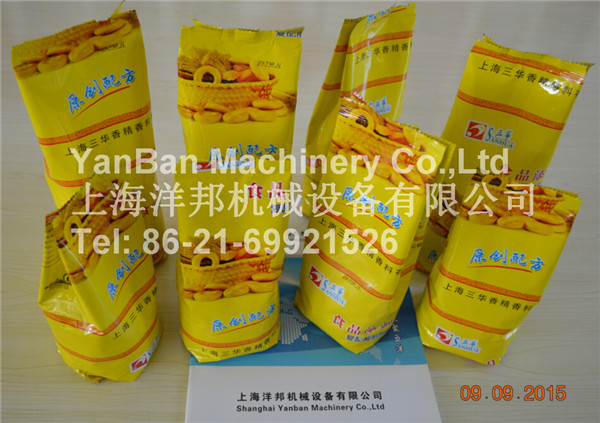

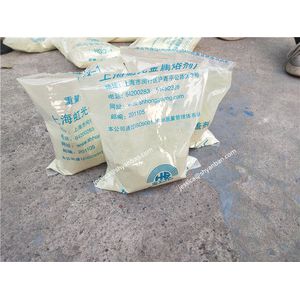

This machine is widely used to pack powder products: such as milk powder, flour, starch, coffee powder, spices, curry powder, protein powder, condiment, herbal powder, chemical and medical powder products.
Function and features:

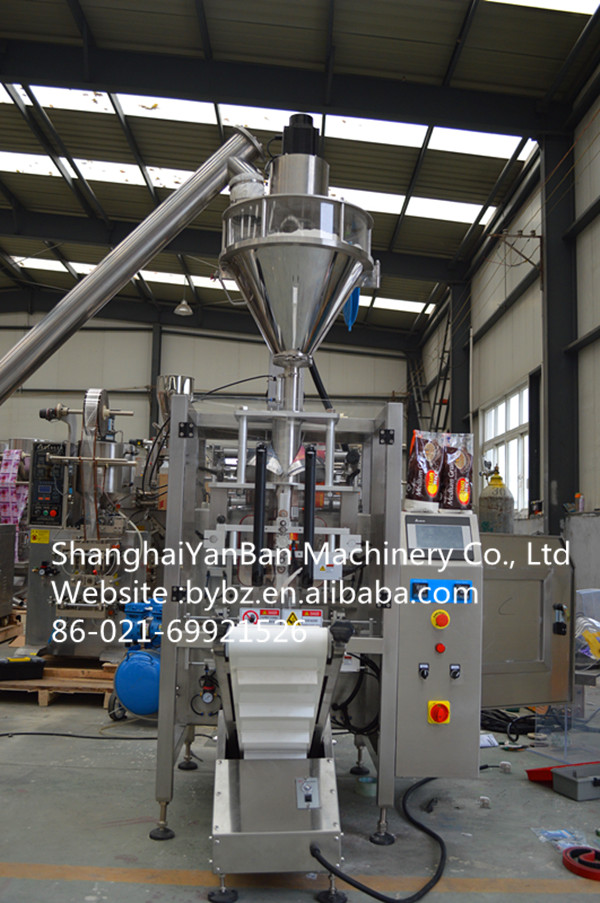

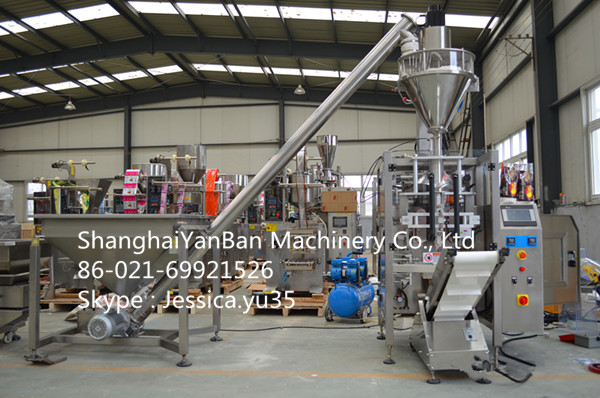

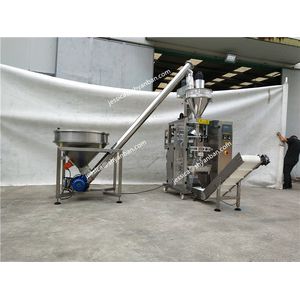

1. This machine can automatically complete material lifting--auger filler measuring--coding--bag making--filling--sealing--counting--conveying finished products--sorting finished products.
2. PLC servo and pneumatic control system, super touch screen forms the drive control center; high reliability and the intellectualized degree, and equipped with safety protection.
3. Touch screen can store a variety of different product packaging process parameters, when replacement product, it can be used at any time without having to reset.
4. Equipped with fault display system, when the fault occurs, be clear at a glance, in order to promptly eliminate.
5. Can make hole punching device after customer’s request.
6. This machine has stainless steel type and carbon steel type for choice.
Model | YB-520F | YB-720F |
Packing speed | 5-60 bags/min | 5-55 bags/min |
Packing volume | 2000ml | 4000ml |
Making bag size | L: 80-400mm, W: 150-250mm | L: 80-450mm, W: 200-350mm |
Film width | ≤ 520mm | ≤ 720mm |
Thickness of film roll | 0.04-0.09mm | 0.04-0.09mm |
Pulling film type | Double belt pull film | Double belt pull film |
Air consumption | 0.8Mpa, 0.4m³/min | 0.8Mpa, 0.4m³/min |
Packing accuracy | ≤ ±1% | ≤ ±1% |
Power | 2.5 KW | 3.0 KW |
Power supply | AC220V, 50/60Hz | AC220V, 50/60Hz |
Seal type | Pillow seal, Gusset bag, Block bottom bag | Pillow seal, Gusset bag, Block bottom bag |
Main machine net weight | 550kg | 700kg |
Main machine dimension | L1500 × W1140 × H1540mm | L1800 × W1250 × H1780mm |

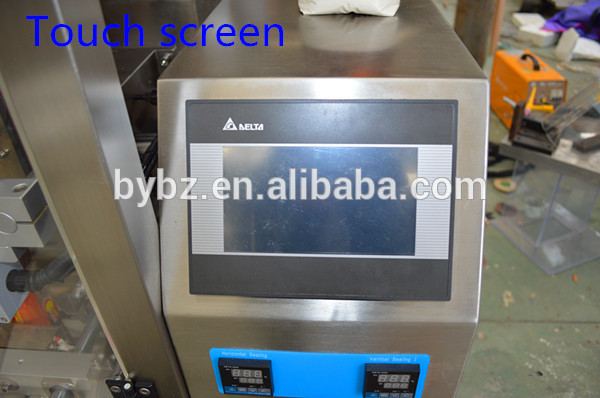

Touch screen

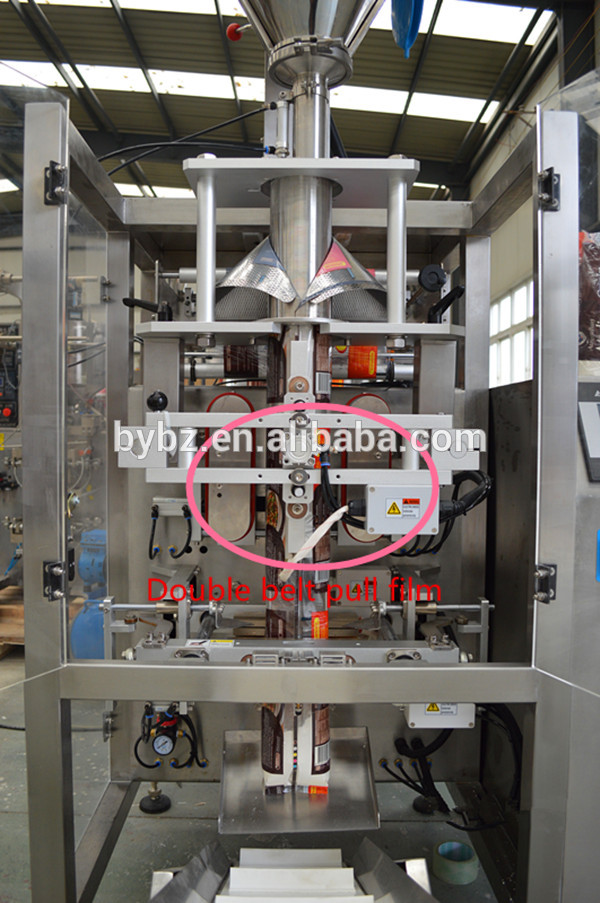

Pulling film type: Double belt pull film

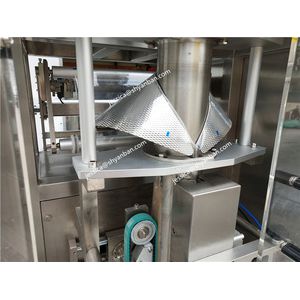

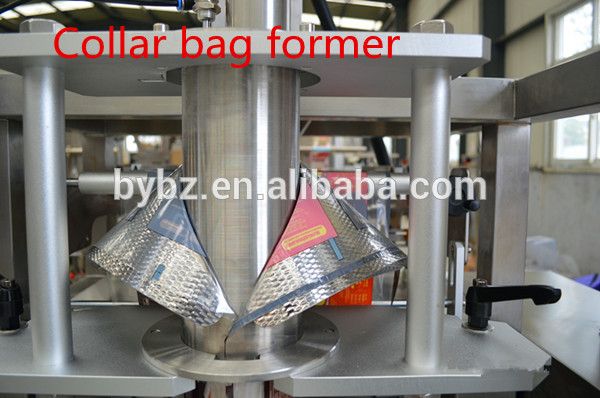

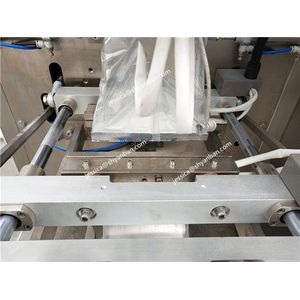

Collar bag former

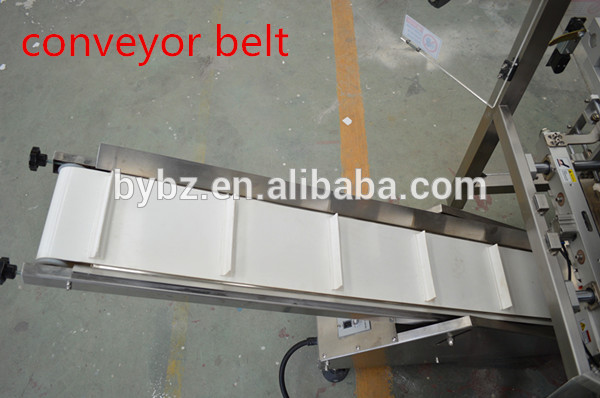

Conveyor belt

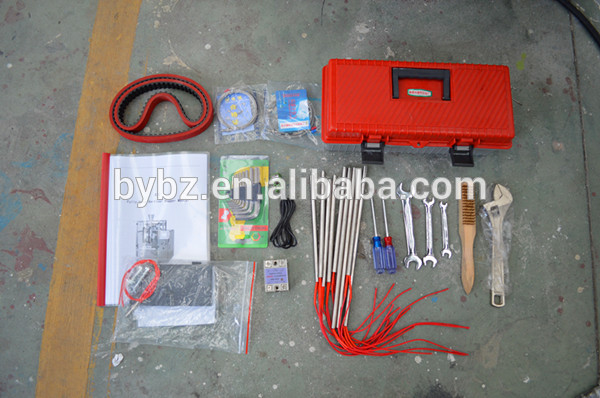

Sapre parts for free
Our machine passed CE certificate
