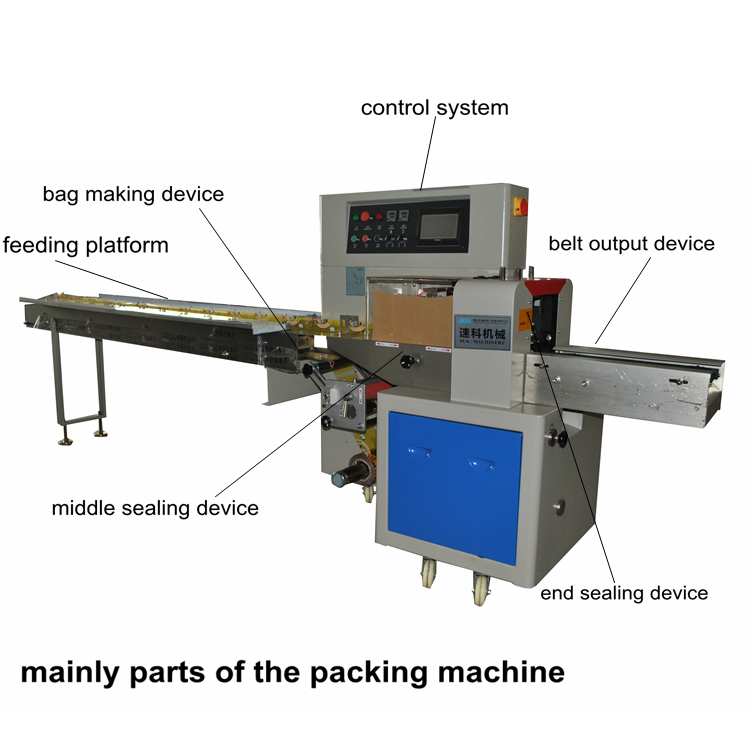

Disposable Plastic Spoon Knife Fork Packing Machine System
1. Double transducer control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and saving films.

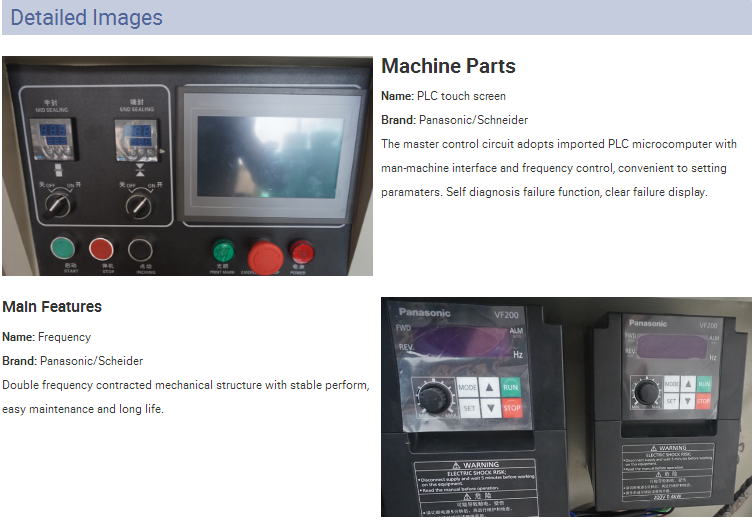

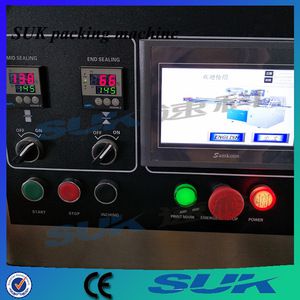

2. human-machine operation, convenient and quick parameter setting.
3. Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking &digital input cut position which makes
the sealing & cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. All the controls are achieved by software, convenient for function adjusting and upgrading.
Application
Towels. Tissues, noodles, preserved fruit, haw slice, sausage, etc.
Specification
| Type | SK-250X | SK-350X | SK-450X | SK-600X | SK-700X |
| Film width(mm) | 250mm | 350mm | 450mm | 600mm | 700mm |
| Bag length(mm) | 65-190/120-280 | 65-190/120-280 | 120-450 | 120-500 | 120-600 |
| Bag width(mm) | 30-110mm | 50-160mm | 50-180mm | 100-280mm | 100-330mm |
| Products height | max. 45mm | max. 65mm | max. 80mm | max.110mm | max.110mm |
| Packing speed | 40-230bag/min | 40-230bag/min | 40-150bag/min | 20-150bag/min | 20-130bag/min |
| Power | 220V 2.4kw | 220V 2.8KW | 220V 2.8KW | 220V 2.8KW | 220V 2.8KW |
| Size(mm) | 3920*670*1320 | 4020*720*1320 | 4020*820*1450 | 4020*920*1460 | 4020*980*1480 |
| Weight(kg) | 500 | 550 | 580 | 610 | 680 |
Optional device
1. date coder 2. Automatic punching device 3. Sealing patterns and notch
4. Touchable screen 5. Air filling device Air release device 6. Material empty stop function 7. Full stainless steel 8. automatic feeder 9. automatic feeding device

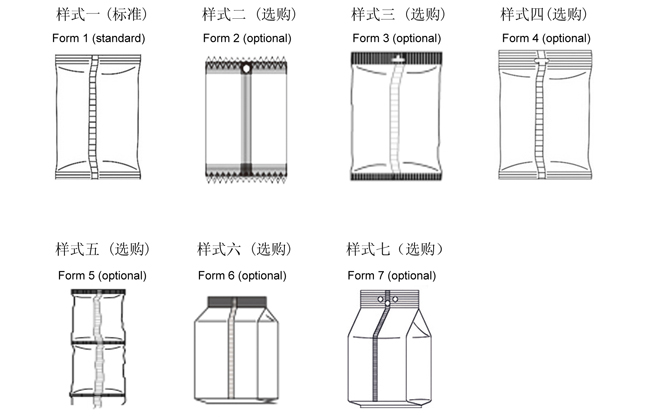

Packing Bag Optional
1.Installation & adjustment
After the equipment are arrived at the customer’s site, the customer is responsible for unpacking and arranging the equipment according to the placement drawing; and does under our install-adjust technicians’ guidance. Costs of the staff are decided at last.
2.Training
We are responsible for offering the technical training to user. The training content includes the structure and maintenance of the equipment, control and operation of the equipment. Through training, users' technical staff can grasp and the skill of operation and maintenance proficiently, and deal with the general troubles in time. We will appoint qualified technical staff for the guidance.
3.Quality assurance
A. We guarantee the line achieve product technical performance indicators within 5 days after feeding operation through the correct guidance of the installation and commissioning.
B. We are responsible for the fault and damage of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc. that all belong to our responsibility.
C. The warranty period is 12 months after acceptance check of the production line. If there is any different between the furnished equipment in the customer’s factory and the equipment concerned in the contract, the users have the right to pass the inspection book to the legal department to claim for compensation to our company within goods warranty period.
4.Warranty
Offer 12 months maintenance period to the problem that caused by our design, manufacture and the material quality, and offer the relevant parts and effective service for free for above reason. We will offer a widely and favorable technical support, after service all the time after guarantee period.
Foshan SUK Precision Machinery Co., Ltd. (former Foshan City Huaxinyi Machinery Factory) was founded in 2008. Through years of development, our company has developed more than ten series of products which are widely used in food, chemical, pharmaceutical, hardware and daily necessities. We have realized automatic measurement, feeding, filling, bag making and all other work. We have greatly improved the production efficiency, and save labor cost.
Q:Do you have any installation services?
A: Installation Services are available in any time.
We will provide the instruction and videos to you, and we provide pre-sales and after sales service, to help and direct you to use the machines well.
Q:How long is the guarantee?
A:1 year.All machine part can be replaced for free within 1year if broken cause of quality problem, and the buyers should be afford if broken by operate in wrong.
Q:How about the after-sale service?
(1)Online service time: 8:30am to 11:30pm.
(2) Oversea service is avaliable.The service fee, accommodation fee and board expenses, round trip ticket should be afford by the customers.
Q: What is your spare parts?
A: Generally, different type machinery comes with different spare parts, we would like to provide you a list to help you know them well.
Q: And requirements of the material about the wrapping film?
A: OPP single layer heat sealing film, and composite flim.
Q: Are you manufacturer? Do you accept the ODM?
A: Yes, we are factory and we accept the ODM for sure. We have Experienced mechanical designer to accept customization.
Q: Whether your factory would help for test the packing products?
A: Yes. We will send you a similar product packing video to you for reference first, as well as the programme, and you also can send us your products we will take a video and send back the finished packing products by return.
