MAIN DATA :
Model | JN10-VF400 |
Display | 10.4 inches touch screen |
Language | English & Chinese |
Quantity of the weighing scale | 10 |
Weighing hopper volume(litre) | 0.8 L |
weighing hopper’s material | 304 stainless steel,plain hopper |
One-time weighing range(g) | 5~500g |
Maximum weighing weight(g) | 1000g |
Weighing precision(g) | About 0.3g~1.5g |
Material to pack | Granule |
Maximum film width(mm) | 400mm |
Bag width/length | 60~190mm /50~230mm |
Film pulling system | By servo motor |
Horizontal sealing system | By cylinder |
Air consume | 0.3 m3/min, 0.6 MPa |
Maximum packing speed(bag/min) | Max 60 bag/min |
Total power | 4KW |
Operating voltage | 220AC |
Frequency | 50 HZ or 60 HZ optional |
Packing material | Complex film |
Automatic level | Full-automatic |
Total weight | 540kg |

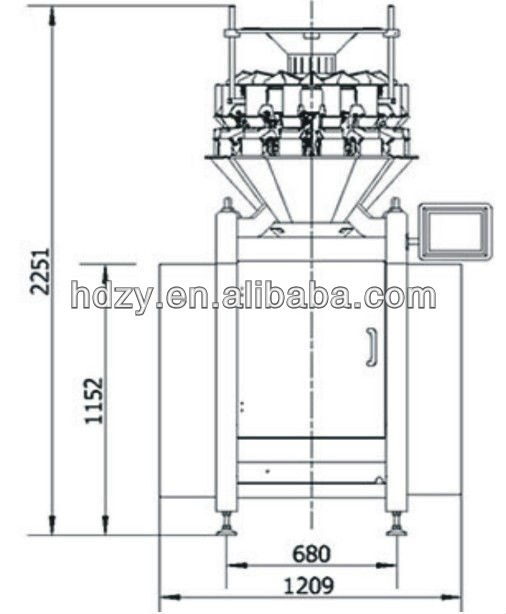

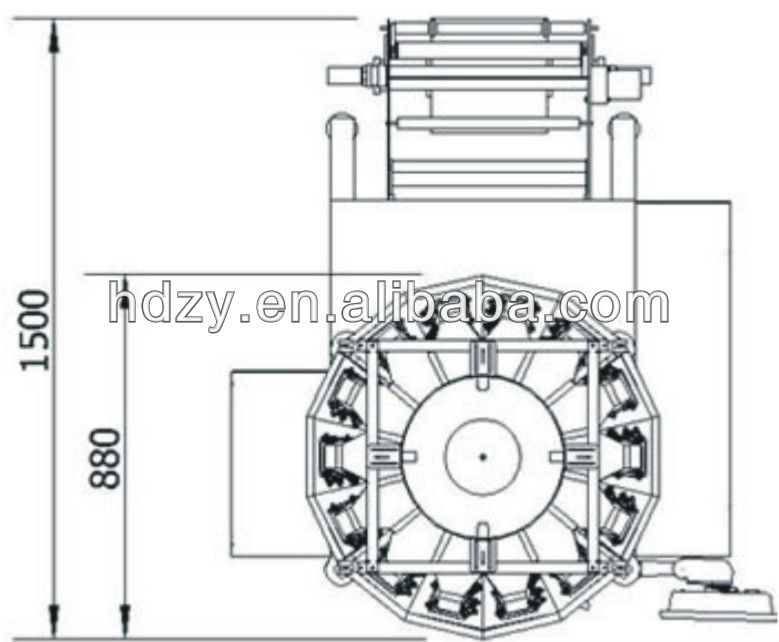

Machine overall size | 1500*1209*2251mm |
Packed size | 1556*1366*2078mm |
Main characteristics:
1. Design of the integral packing machine: it allows an integrate operation of the microcomputer controlling weighing scale and the packing machine which increase the packing speed.
2. High precision, little material weighing: choosing the best combination, a combination of the high precision and high speed.
3. Ease and high speed operation: microcomputer controlling, touch screen monitor, easy to operate and maintain.
4. Simple space: the design of the specific integral weighing packing machine, has vastly reduce the height of the machine, and has save much space.
5. Accurate positioning: the orientation of the carrying film of is more accurate with the control of the servo motor; the orientation of the trademark is more accurate with the detection of the electric eye.
6. Rapid return on investment: Largely save the cost of material and labor force.
