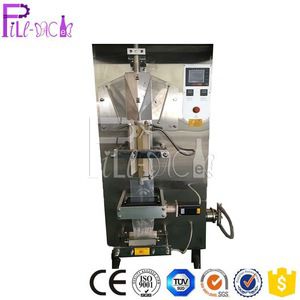

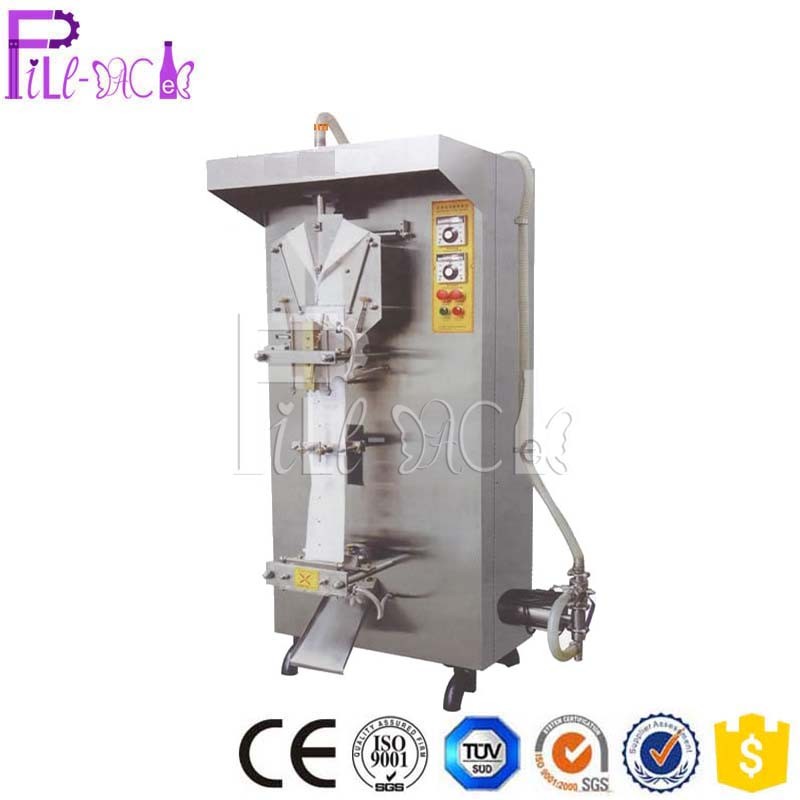

500ml PE Sachet water packing machine / equipment / line / plant with 2000 BAGS/H Capacity
1, Application: all kinds of liquid without gas, especially soy, wine, vinegar, juice, fruit pulp, soybean milk, peanut oil, vegetable oil, plant oil, mineral water, and liquid chemical products.
2, Sealing style: three side sealing and intermittent
3, Function: auto complete Bag-making, filling, sealing, printing, cutting and counting
4, Control system: microprocessor and automatic photocell
5, whole machine with stainless steel covering, With foot wheels for easy transportation;
Features:
1.The whole process is completed automatically and highly efficient.
2. Either under set length control or photoelectric color tracing, bag length is set and cut in one step.

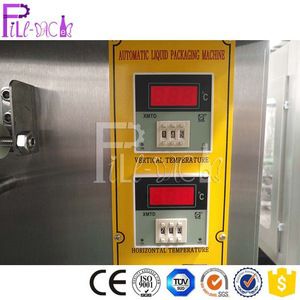

3. The temperature is under independent PID control, more suitable for different packing materials, the tolerance is ±1%.
4. Equip easy tear-off gap device, so there is an easy tear-off gap on each finished product.
5. The driving system is simple and reliable, and maintenance is easy.
6. Main parts are made of stainless steel, meet the GMP standard.
7. Automatic self support lubricating system, the machine can continuous more than 24 hours.
8. Applicable material should be composite film like: PET/PE, Paper/PE, PET/AL (PET-AL), PE, OPP/PE etc.
parameter：
| MODEL | 500A1/500B1 |
| Production Capacity | 1500-2200BAGS/H |
| Filling Range | 200-500ML |
| Bag Width | 40-150mm |
| Bag length | 50-150mm |
| Film-offering Motor | 250W/220V |
| Power of Hot Sealing Filling pump | 1.5KW |
| Power of Hot Sealing vertical sealing | 300w |
| horizontal sealing | 500w |
| Main Motor Power | 370W/380V/220V |
| Overall Dimension | 820×780×1900MM |
| Weight | 350KG |
500ml PE Sachet water packing machine / equipment / line / plant with 2000 BAGS/H Capacity

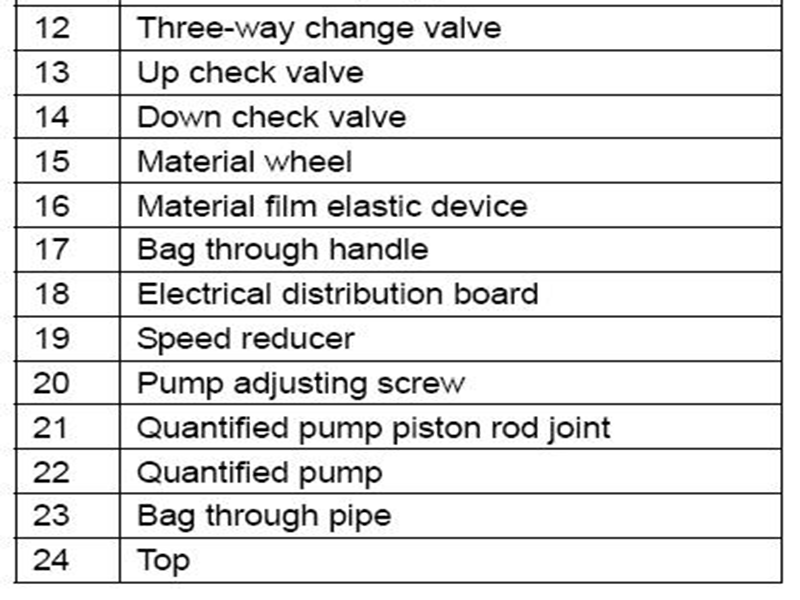

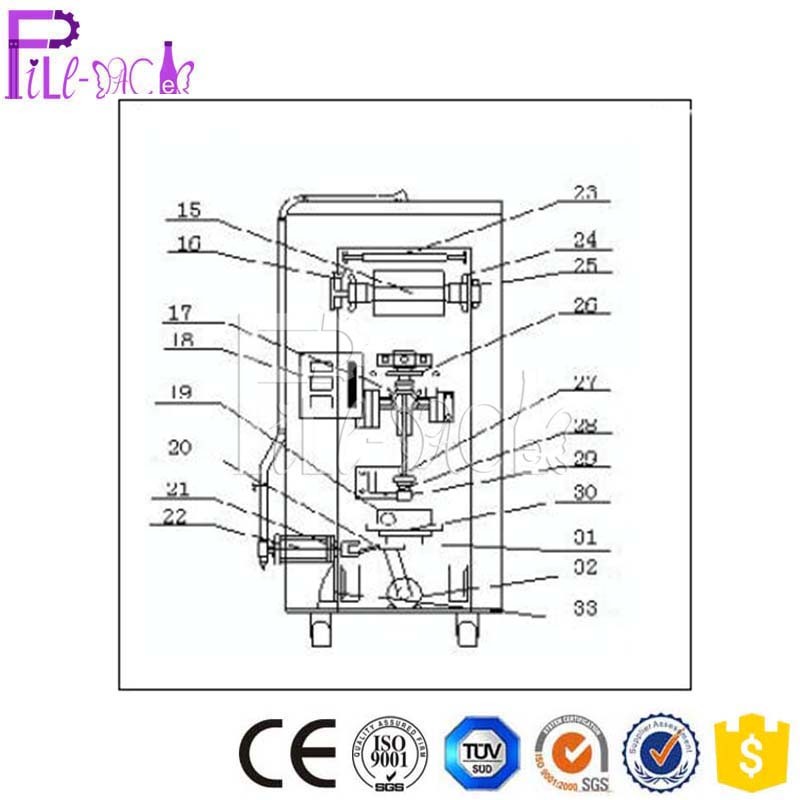

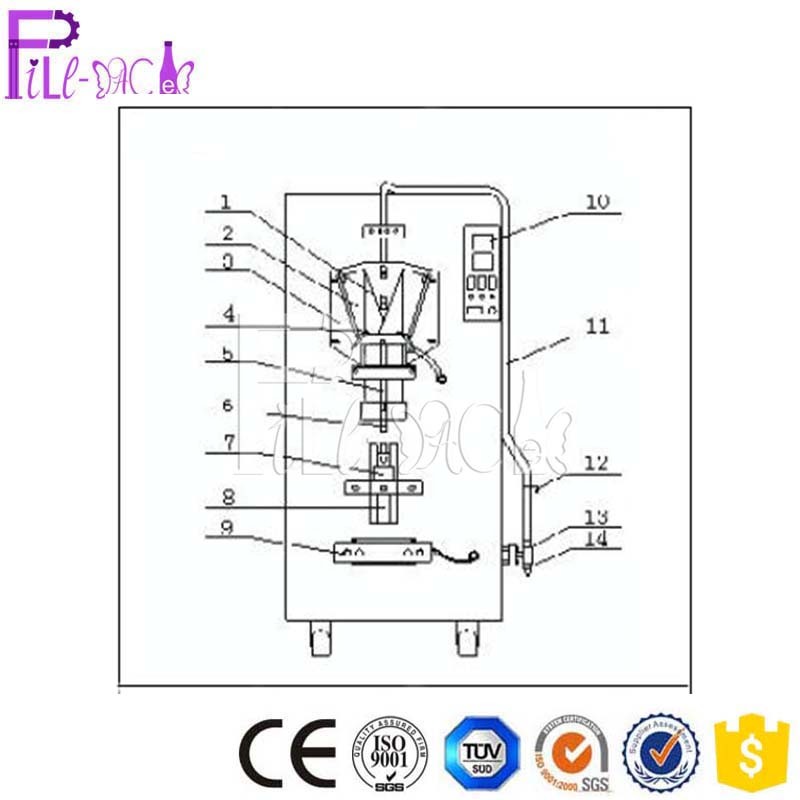

Machine design：

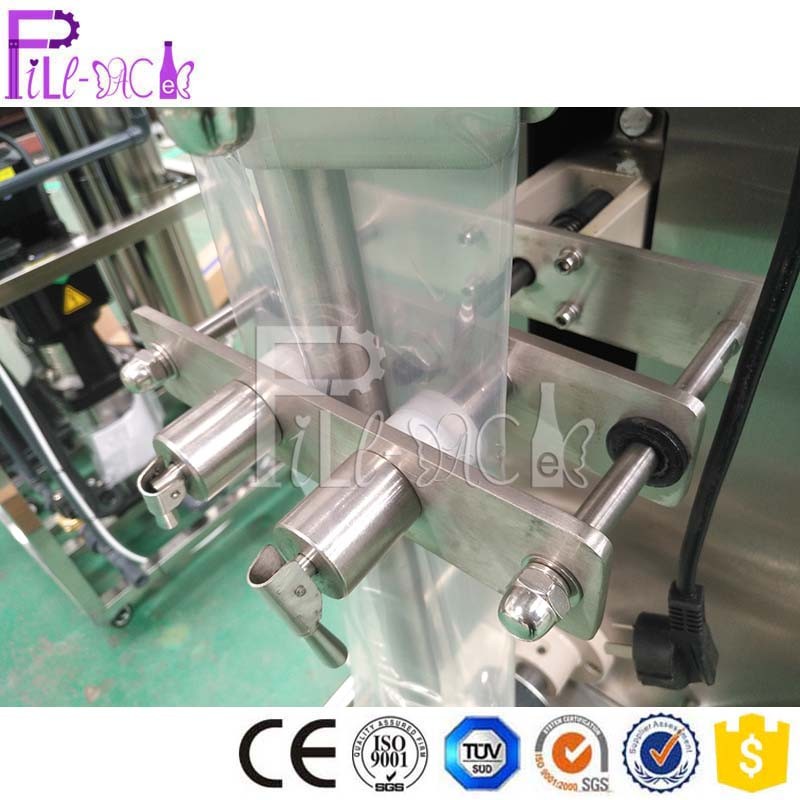

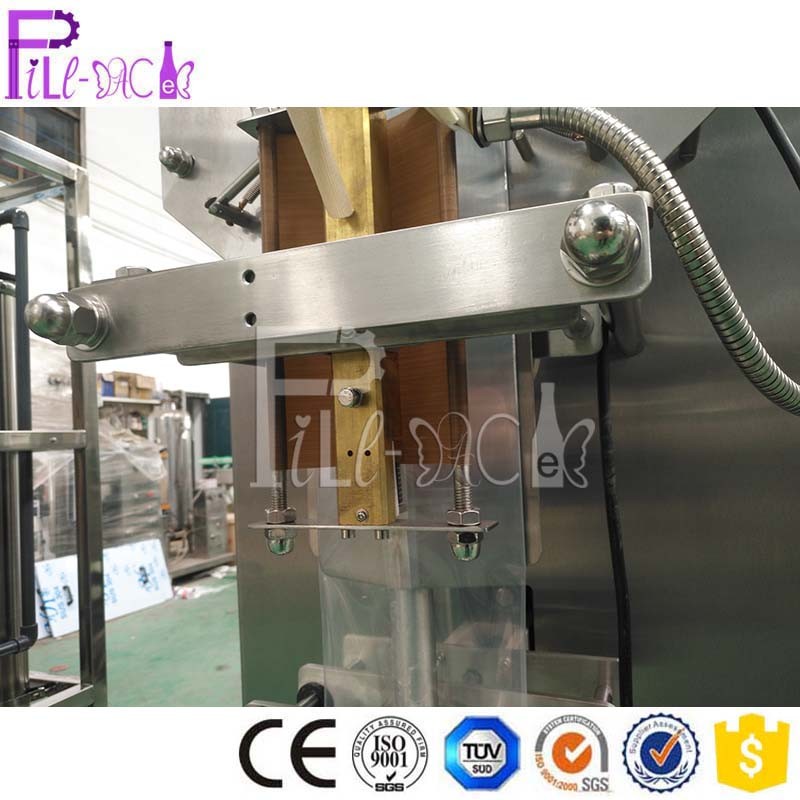

Part of filling and sealing：

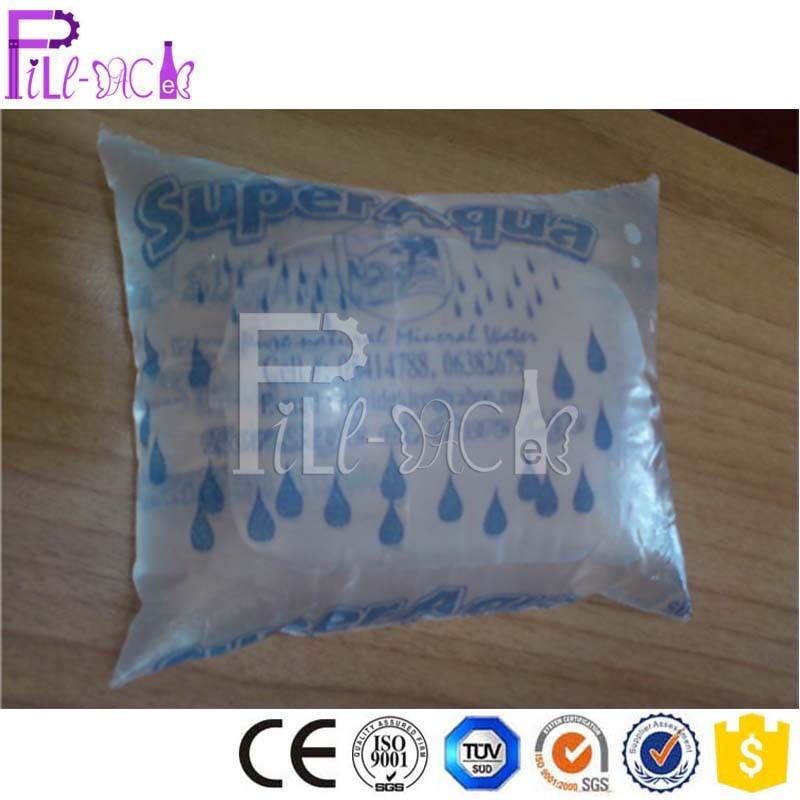

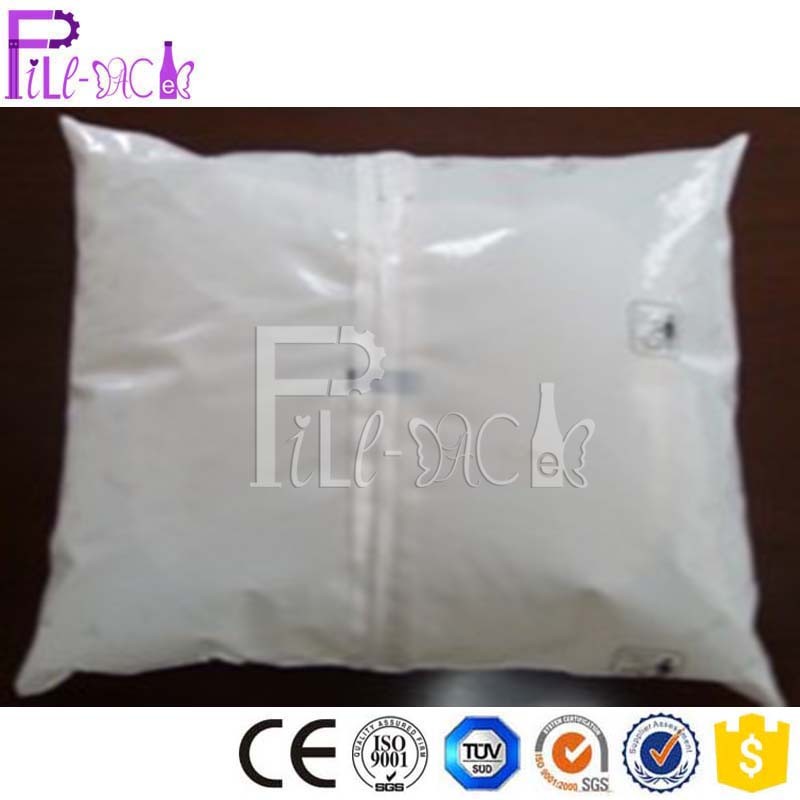

200-500ml bag：

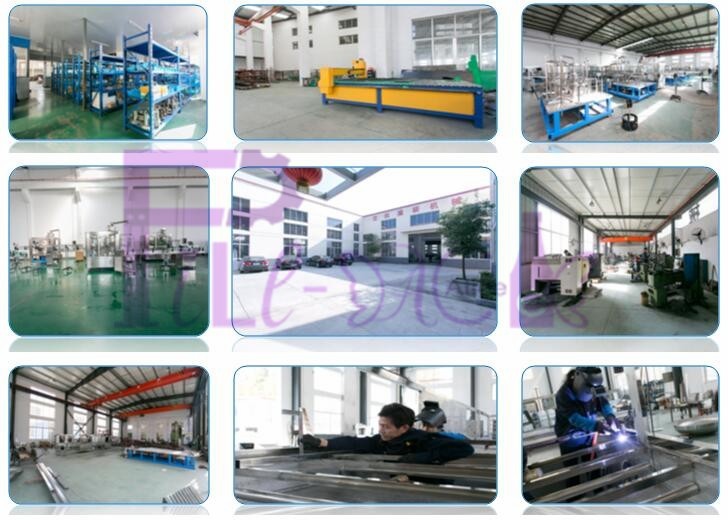

ZhangJiaGang City FILL-PACK Machinery Co.,Ltd. is loacated in Zhangjiagang city which is famous for beverage machinery producer collection. Intergrated the industry advantange and its own development in R&D, production, sales, after sales service, FILL-PACK is ready to serve more and more customers with our full range products and satified service.
FILL-PACK product is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.
At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour; production lines for vinegar, soy sauce and wine 1000-20000bottles/hour; 3-5 gallon barreled water with capacity 80-1200 barrels per hour and various water treatment plants; We provide separate machinery or turnkey project.
Our product pass quality inspection executed by Bureau of Quality and Technical Supervision every year. Our factory is in accordance with ISO9001: 2000 certification system standards and we gain CE certificate for exportation to Euro countries. Our machineries are sold to more than 30 cities in China and over cross to American, Spanish, Hungary, middle east and African countries.
We help to set up your factory as our own home with our pure heart, we do to service, we learn to support!
Delivery: 10 days after deposit receipt
Packing: Wooden case
Installation & Adjustment
After the inkjet printing equipment are arrived at the customer's site, the customer is responsible for unpacking and arranging the equipment according to the placement drawing; and does under our install-adjust technicians' guidance. Costs of the staff are decided at last.
2. Training
1). We are responsible for offering the technical training to user. The training content includes the structure and maintenance of the equipment, control and operation of the equipment. Through training, users'technical staff can grasp and the skill of operation and maintenance proficiently, and deal with the general troubles in time. We will appoint qualified technical staff for the guidance.
2). The buyer can send staff to our company for learning.
3. Quality assurance
1). We guarantee the inkjet printing equipment offered are brand-new, not used, with latest design and suitable material made, and we guarantee the specification of the equipment is consonance with the contract.
2). We guarantee the line achieve product technical performance indicators within 5 days after feeding operation through the correct guidance of the installation and commissioning.
3). We are responsible for the fault and damage of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc. that all belong to our responsibility.
4). The warranty period is 12 months after acceptance check of the production line. If there is any different between the furnished equipment in the customer's factory and the equipment concerned in the contract, the users have the right to pass the inspection book to the legal department to claim for compensation to our company within goods warranty period.
4. Warranty
Offer 12 months maintenance period to the problem that caused by our design, manufacture and the material quality, and offer the relevant parts and effective service for free for above reason. We will offer a widely and favorable technical support, after service all the time after guarantee period.
1.Why do you choose our factory?
There are many foreign guests cooperate with our company.We have enough experience and fund to provide you the high-quality products with the best price.
2.How long can you delivery?
10 days after deposit receipt（Payment Terms：30% as deposit, 70% before shipment.）
3.How about your after-sale service?
One year repair for free Seller responsible for arrange engineer for installation and guide the workers of buyer how to operate and necessary repair,and give buyer a turnkey project.
4.How long can you finished the installation?
About 10 days.
