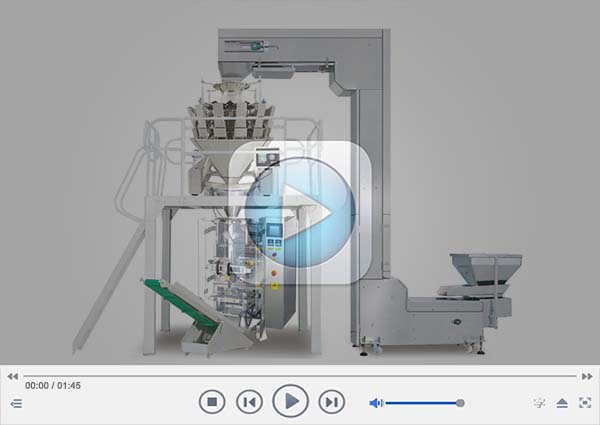

Product VIDEO

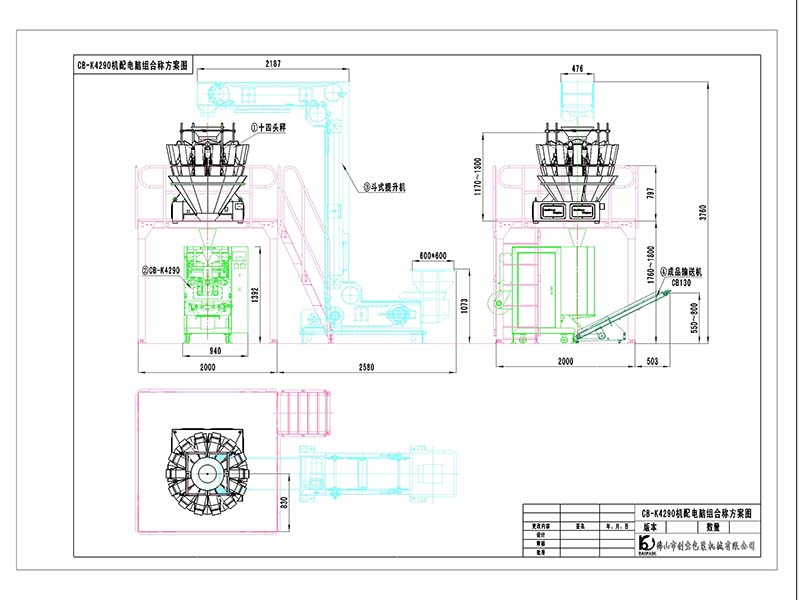

Product List
NO. | Model | Products name | Quantity |

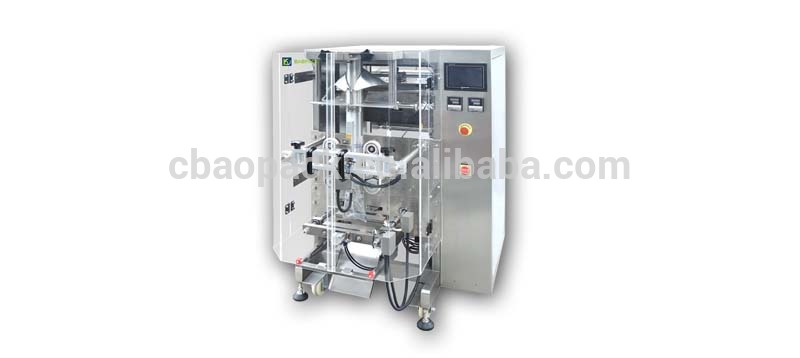

1 | CB-VP42II | Basic machine | 1 set |
2 | CB-MD14 | 14 heads combination weigher | 1 set |
3 | CB-TK9 | Z type bucket elevator(vibration) | 1 set |
4 | CB-P1.7-1.8) | Supporting platform | 1 set |
5 | CB-TP200 | Finished product conveyor | 1 set |
6 | Stochastic forming | 1 set | |
7 | Wooden case packing charge | 1 set |
Item | Content |
Capacity | 70-100 bag/min,it is according to quality of wrapping and supplies |
Accuracy | ≤±1.5% |
Bag size | (L)60-300mm (W)90-200 mm |
Film width | 420mm |
Bag type | Pack with film, upper seal, lower seal and back seal by automatic bag making machine. |
Filling range | 150-1300ml |
Film thickness | 0.04-0.09mm |
Package material | Thermal composite material., likeBOPP/CPP, PET/AL/PE etc |
Air consumption | 0.8Mpa 0.5m3/min |
Total powder | 5.75KW |
Voltage | Four wire three phase 380V 50HZ |
Air compressor | Not less than 1 CBM |
Total height | 3.760m |

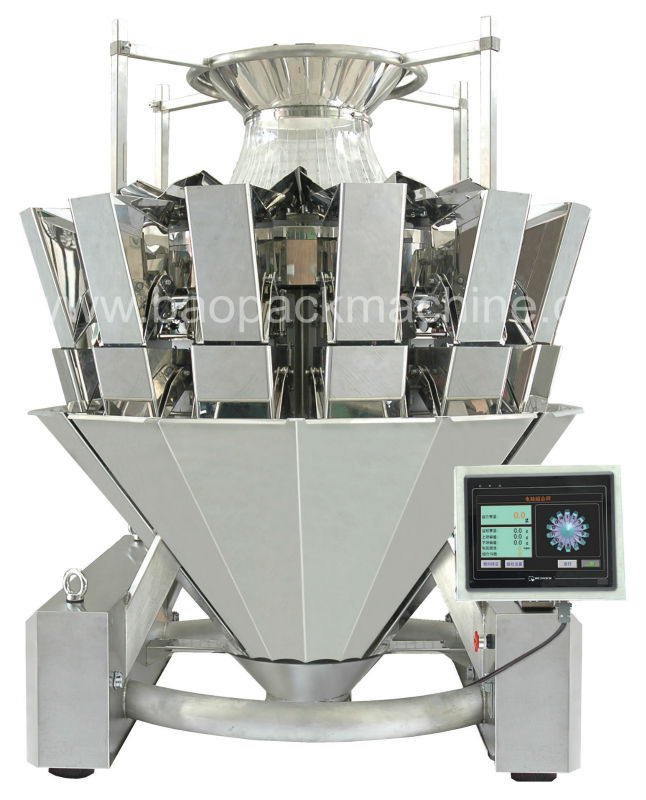

Main feature
Load cell infeed detection, more compatible for harsh working environment (dusty).
Automatic frequency control function to improve the passing rate.
Independently adjustable amplitude,more user friendly.
Staggered dumping mechanism to prevent material blockage.
Multi-language operating interface.
Mouse, USB and SD card compatible 10” touch screen
High grade (IP65) waterproof and dustproof design, more durable in wet and dusty working environment.
Instant display of the weight inside each hopper.
Application Range:
Cereal, pasta, pet food, frozen food (frozen dumping), all type of granular products (peanuts, pistachio), confectionary, fresh products (lettuce leaf), bakery food (biscuits). Non-food applications (screws, bolts).
Weigh range | 10-1500g |
Accuracy | 0.5-1.5g |
Max speed | 130wpm |
Weigh volume | 4.0L |
Hopper No. | 14 |
Control panel | 10inch touch screen |
Driving Device | Stepper motor |
Power supply | AC 110/220±5V, 50/60 Hz |
Power | 1 .3KW |
Size | 1246×1238×1388(mm) |
Weight | 400kg |

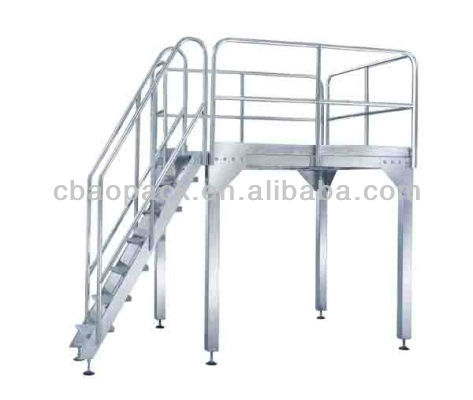

The supporting platform is solid will not affect the measurement accuracy of the combination weigher.
In addition, the table board is to use the dimple plate, it is more secure, and it can avoid slipping.
Specification
The size of the supporting platform is according to the type of the machines.

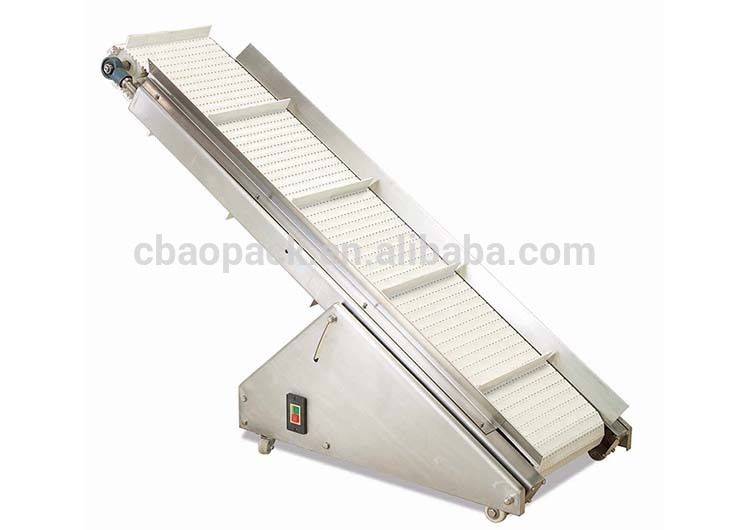

TP200
Features
The machine can send the packed finished bag to after-package detecting device or packing platform.
Lifting height | 0.6m-0.8m |
Lifting capacity | 1 cmb/hour |
Feeding speed | 30mminute |
Dimension | 2110×340×500mm |
Voltage | 220V/45W |
