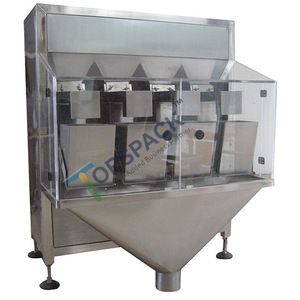

TP-GF series Semiauto Granular Filling machine mainly contain feeding equipment,weighing hoppers and electronic controller. This machine can do feeding, weighingwork independentlly. The electronic control system controls its work fluentlly,suitablefor variety packaging containers with various size,the filling weight can vary from in its amount.
With good quality of high accuracy,high speed and long lifetime. PLC control system is designedin colored screen, you can store 10 parameters for later use.The machine is made of stainless steel 304 and plexiglass, easily cleanup.Specific design with vibrational feed-in, electronic feedback system better guarantee its higher accuracy,for the dusty workplace,also add a vacuum equipment for you.
Weighing hopper
Two-independence of the weighing cabinet to weigh: less vulnerable by outside influence, with separate bags, work fast.
Independent single weight sensor: stable performance, high sensitive.
Vibrating feeder Feeder-adjust automatically according the proportion of the material to ensure high-precision and high fast.
Weighing cabinet is sealed by glass, equipped with the dust collector, easy to collect the dust and protect the environment of the workshop.
Hopper
With calibration procedures: equipped with poise and calibration hooks, adjusted at anytime, it’s very useful the weight drift in long time no using.
The weighing cabinet use the linked way, it can be disassembled directly and easy to clean.
| Model | TP-GF-A11 |
| Packaging weight | 10~5000g |
| Packaging accuracy | ≤±1g |
| Packaging speed | 5~30tims/min |
| Power supply | 1P22OV/3P380V |
| Total power | 0.5KW |
| Hopper volume | 60L |
| Total weight | 190kgs |
| Total power | 0.55KW |
| Operating interface | PLC control, colored touch screen |
