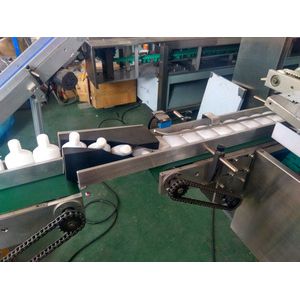

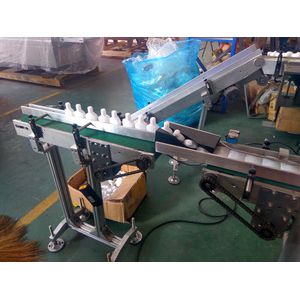

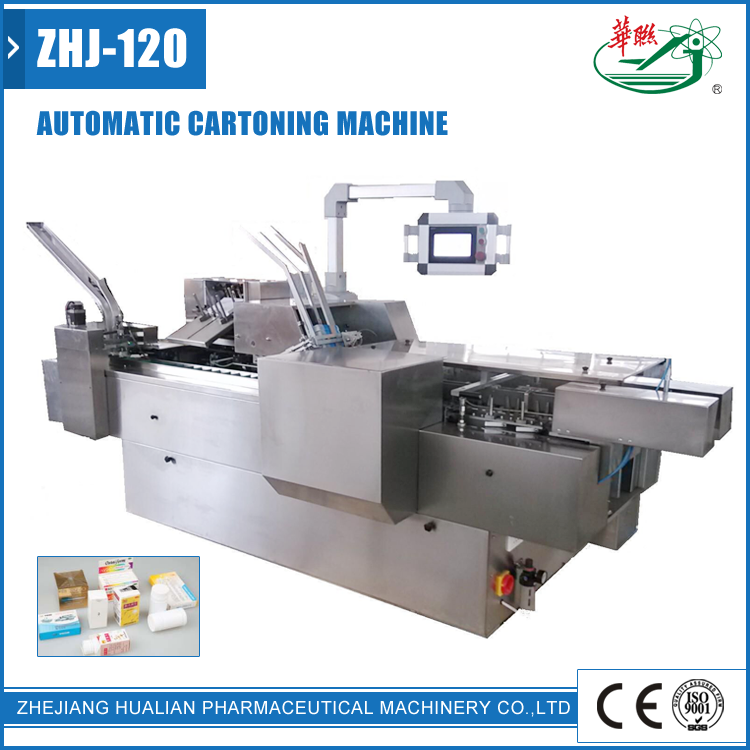

Automatic Cartoning packing machine for pet bottle in oval shape with indeed system
This machine is suitable for packing blisters, tubes ampoules and other related objeces into boxes intermittently. The higjest speed can up to 150boxes/min.
It has advantage of high packing efficiency and good quality. This machine can fold leafIet, open box, insert blister into box, emboss batch number and close
box automatically. It adopts inverter to adjust speed, human machine interface to operate, PLC to control. and photoelectric to monitor and control each
station automatically, so that once something unexpected happen, it will stop and display the reasons automatically, which can solve the troubules in time.
This machine can be used separately andalso can be linked together machine to be a Production line. Note: this machine canalso equip with hot meltgluedevice
to do hot melt glus sealing for box.
| Product | Automatic Cartoning Machine |
| Total Power | 380V 50HZ 1.5kw |
| Production capacity | ≤120 boxes/min |
| Size of box(L×W×H) | (50-190)×(25-120)×(12-70)mm |
| Specification of box | 250-300g/m 2 |
| Size of leaflet(L×W) | (110-260)×(100-180)mm |
| Specification of leaflet | 55-70g/m 2 |
| Air consumption | 10m 3 /h |
| Overall Dimension | 3300×1200×1700mm(L×H×W) |
| Weight | 1500Kg |
| Certificate | CE ISO |
| Warranty | 1 Year |
Q:Are You A Factory or A Trading Company
A:We Are Factory Manufacturing Packing machines and We Provided Perfect OEM and After-sale Service.
Q:Where is Your Factory? How Can I Visit Your Factory?
A:Our Factory is Located on Ruian Zhejiang Province. We Are Warmly Welcom You Visit Our Factory if You Have a Travel Plan
Q:Can You Send Me the Video To Show The Machine Works?
A:Certainly, We Have Made Video of Every Machine
Q:How Can I Know Your Machine Is Designed For My Product
A:You Can Send Us Samples of Your Product and We Test It On Machine
Q:How Can I Pay My Order?
A:Usually We Accept T/T L/C Paying Methods
Q:Do you Have a Ce Certificate?
A:For Every Model of Machine, It Has a CE Certificated
