Hot Sale 30000PSI Process Flowlines Testing Pneumatic Control Surfaces Cleaning System

the company plays a crucial role in developing high pressure water jet technology.

Technical Feature

  • High Pressure Cleaner
  • New
  • Tianjin, China (Mainland)
  • Tongjie
  • Surfaces Cleaning System
  • Critical Cleaning / Residue Free, Non-Ionic, Non-Toxic, Rust / Corrosion Inhibitor, Sudsing / Foaming, Surfaces Cleaning System
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Machine Type
High Pressure Cleaner
Condition
New
Place of Origin
Tianjin, China (Mainland)
Brand Name
Tongjie
Model Number
Surfaces Cleaning System
Feature
Critical Cleaning / Residue Free, Non-Ionic, Non-Toxic, Rust / Corrosion Inhibitor, Sudsing / Foaming, Surfaces Cleaning System
Fuel
Diesel
Certification
CB, CE, CSA, ETL, GS, RoHS, UL, UR, Surfaces Cleaning System, CE, ICA, CNAS, IAF, WJTA, IMCA, ISO9001
Use
Container / Bottle Cleaning
Cleaning Process
Cold Water Cleaning
Cleaning Type
High Pressure Cleaner
Industry Used
Electronic Industry
Material
Metal / Coil
Power(W)
200 kw
Dimension(L*W*H)
730*545*620mm
After-sales Service Provided
Engineers available to service machinery overseas
Product Name
Surfaces Cleaning System
Working Pressure
Customized
About Us
6 Workshops 5000+m2, R&D center 2000+m2
Product Experience
Since 1990
Technology
International Advanced Water Jetting Technology
QA / QC Testing
Equipment Inspection
Processing Machinery
CNC Center, Digital Controlled Lathe, Three Tagging Detection, etc
OEM Service
Customed
Warranty
1 Year

DETAIL DESCRIPTION

2016 Hot Sale  30000PSI Process Flowlines Testing Pneumatic Control Surfaces Cleaning System

  • The only Chinese member of Water Jet Technology Association(WJTA) manufacturing UHP pumps.
  • 15 years of experience in production and sales
  • Long working hours, the efficiency is higher
  • Responsible after-sale system, more popular with the customers
  • Able to customize according to customer requirements, OEM parts available.
Product Description

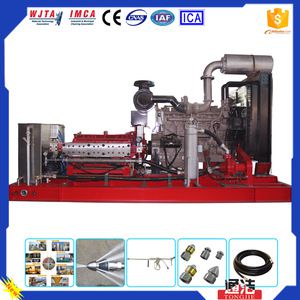

High Pressure Water Blaster Detail:

No.

Power (KW)

Stroke (MM)

Weight(KG)

Power End

Gear Type

Speed Ratio

Lube (L)

Lube Oil

90TJ3

90

 75

227

Internal Deacceleration

Helical Gear

2.83:1

4

SAE 80W-90

130TJ3

150

 110

620

Internal Deacceleration

Helical Gear

3.92:1

12

SAE 80W-90

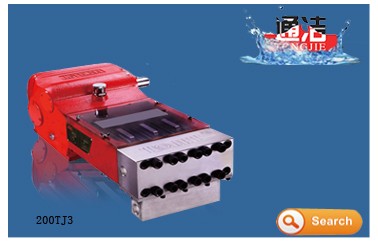

200TJ3

200

 120

680

Internal Deacceleration

Helical Gear

4.04:1 4.62:1

13

SAE 80W-90

250TJ3

267

 130

820

Internal Deacceleration

Helical Gear

3.5:1 4.62:1

16

SAE 80W-90

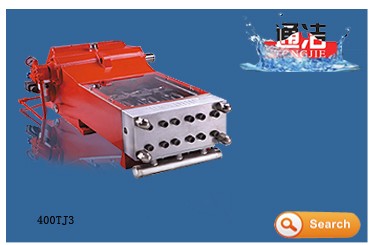

400TJ3

400

 140

1950

Internal Deacceleration

Helical Gear

4.09:1 3.52:1

36

SAE 80W-90

500TJ5

500

 100

2500

Extraposition Deacceleration

Helical Gear

3.5:1

40

SAE 80W-90

Series No.

Plunger Size

Plunger Diameter(in)

Plunger Diameter(MM)

Max operating Pressure (psi)

Max operating Pressure (bar)

Max Flow (GPM)

Max Flow (L/min)

Max Power (kw)

90TJ3

#17.5

1.18

30

8000

550

18.26

83

90

130TJ3

#20.6

1.42

36

10000

1380

34.32

156

130

200TJ3

#22.2

1.57

40

15000

1720

43.99

200

200

250TJ3

#23.8

1.73

44

20000

2070

65.11

296

250

400TJ3

#30

2.13

54

30000

2480

93.05

423

400

500TJ5

#28.6

2.05

52

40000

2760

116.59

530

500

Applications of these High Pressure Water Blaster includes:

  • Hydro demolition production rate
  • Investment casting cleaning
  • High pressure water removal at 40,000 psi
  • Chloride removal from concrete
  • Asbestos removal
  • Corrosion removal from pilings
  • Historic cobblestone restoration
  • Pool refurbishing
  • Marine surface prep
  • Prep for highway overlay
  • Paint removal from ships
  • Water jet cutting
  • Concrete surface preparation
  • Surface preparation
  • Tank cleaning
  • Heat exchanger tube cleaning & pipe cleaning
  • Descaling
  • Deburring
  • Oil field cleaning applications
  • Sewer cleaning
  • Ship hull cleaning
Company Information

High Pressure Water Blaster Manufacturer in China

Proudly wining the name of "National R&D Center for High Pressure Pump of China", the company plays a crucial role in developing high pressure water jet technology.

With rich experience and good reputation, with strong technical team and reliable service, is well known in China. Welcome your visit!

Certification On the internation

Our enterprise is established in 2003, has been specialized in developing High pressure water Blasters machins and providing global customers with the best cleaning solution and technical support. Ownning many national patents and passing both ISO9001 and CECNAS and IAF certifications, its world-class high pressure water jet equipment has reached all over the world. Proudly wining the name of "National R&D Center for High Pressure Pump of China", the company plays a crucial role in developing high pressure water jet technology.

Our Services

  OEM service is provided according to customized requirements and specific demands. Equipped with world-class machining units and technicians, we are able to supply customers with the most suitable products with the best quality. With successful OEM service experience provided to well known enterprise in USA and Canada, our products are guaranteed to perfectly meet customers' best expectation, and Farm Tools Gasoline High Pressure Pump researching institution will be built to enhance our OEM ability.

After-Sales Service & Quality Guarantee for High Pressure Water Blaster

  • One-year warranty: free on-site maintenance and training (except wearing parts replacement and quality problems resulted from improper use by users).
  • Repairing and maintaining service is provided timely once received the inquiry, taking the customer satisfaction as first priority.
  • Quality-related problem will be dealt with by professional staff at the first time getting the feedback from customers.
  • Service hotline & hotmail is provided for customers real time consulting.
  • On-site technical service including guide for installation, commissioning, training will be provided based strictly on customers request after products arrived at the working site.
  • After warranty service is guaranteed for performance failure happened in normal operation condition, which will be implemented according to relevant laws and regulations.
  • Noted: for all the service above, labor cost is for free (transportation and accommodation expense is not included).
Packaging & Shipping

Packaging requirements to ensure that High Pressure Water Blaster is not abrased:

  • The inner packing is Bubble wrap.
  • The outer packing is Wooden case or in pallet.
  • Fixed bracket.The steel plate on the bottom of the support.
  • As customized requirement.



FAQ



Q: How do I pay for my purchase order?
     T/T, L/C at sight, Escrow, Paypal.

Q: How can I get sample and how long will it takes?
     Sample fee will be doubled, but we will refund the extra money after you place an order to us It usually takes 15-25 days to

     produce a sample.
Q: What's about MOQ?
     Our MOQ is one set.

Q: What's the delivery time in your factory?
     It will take about 45 days to finish an order. But the exact time is according to actual situation.

Q: Can I have my own customized product?
     Yes, We have OEM service, your customized requirements for color, logo, design, package, carton mark, etc. are very

     welcome.
Q: Do you have quality control?
     Yes, we attach great importance to quality control.
Q: How about the warranty?
     One year warranty. If quality problem occurs , please feel free to contact us.

Q: What is the working principle of your pump?

     Our high-pressure plunger pump adopt the high pressure water jet flow to remove dirt, grease.

Q: What is your driven system?

     Electric, diesel engine.

Q: What kind of pump do you have in your company?

     As long as you provide us with your role object, the flow and pressure. We can recommend to you.
