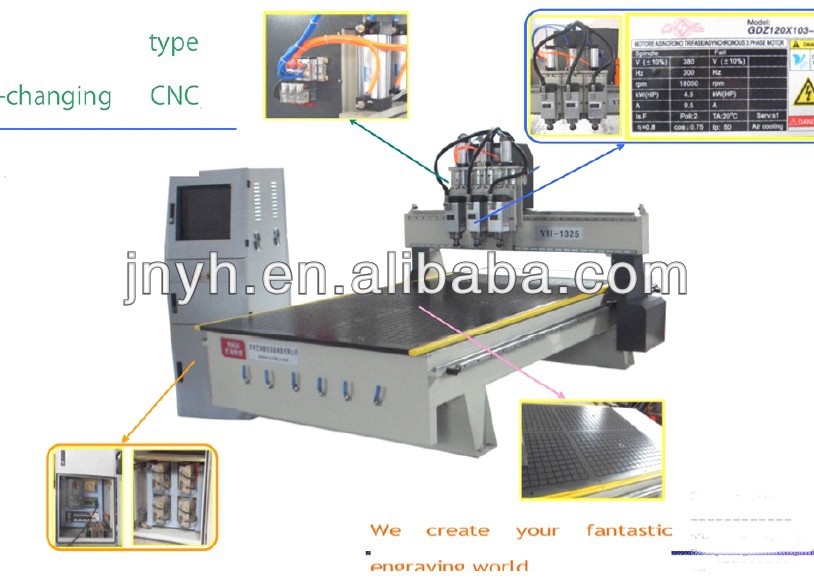

Pneumatic Three Head CNC Wood Engraving Machine
1.Three 4.5KW Air-cooling spindles,heavy Hard Steel Lath Body, keep the machine's working High stability.Whole machine is welded with seamless steel structure,dealing with Time-treatment, the stability is excellent, never to be deformed.
2. Three spindles can use three different tools for your three different designs' processing at the same time,
which is similar with Auto-tool changer CNC Machine Center with three tools.
3. Optional Control system:
(1) auto-tool changing function;
(2) Original Weihong Computer Control System, with Handle controller;
(3)Taiwan Syntec Control System, with vernier Handle controller
4. Vacuum System with : vacuum table with suction block, vacuum pump and tubes
5. Bigger gantry width can make sure every spindle's effective working area.
6. Heavy bistratal Side plates, which can keep large supporting power for the gantry's moving perfectly.
7. Independently PC Electric Control Box , with perfect wiring and free moving pulleys
8. Highprecision and bigger ball screw. Original Bigger Taiwan HIWIN Straight Square Guide Rail.
To make sure the machine’s working high-speed and high-efficiency
Technical parameter :
Description | Parameter | |||
YH1325 | YH1525 | YH2040 | Option | |
Working Area (X*Y*Zmm) | 1300*2500*200mm | 1500*2500*200mm | 2000*4000*200mm | Sizes customized |
Body structure | 8mm thicken steel made | |||
X, Y Structure | rack and Taiwan HIWIN/PMI 20 square rail | |||
Z Structure | Germany ball screw | |||
X, Y Resolution | <0.01mm | |||
Max Moving Speed | 35000mm/min | |||
Max Engraving Speed | 18000mm/min | |||
XYZ traveling positioning accuracy | ±0.03/300mm | |||
XYZ repositioning accuracy | ±0.03mm | |||
Spindle power | Three 3.5KW Air cooling | |||
Spindle Speed | 0-18,000rpm | |||
Voltage | AC220V/50HZ | |||
Drive type | Stepper | |||
Working Dictate | G Code | |||
Operating system | ORIGINAL NC-Studio as standard | |||
Interface | USB | |||
Flash memory | 128M(U Disk) | |||
Running Environment | Temperature: 0°C~45°C | |||
Optional parts(choose or not,depend on work needed) |

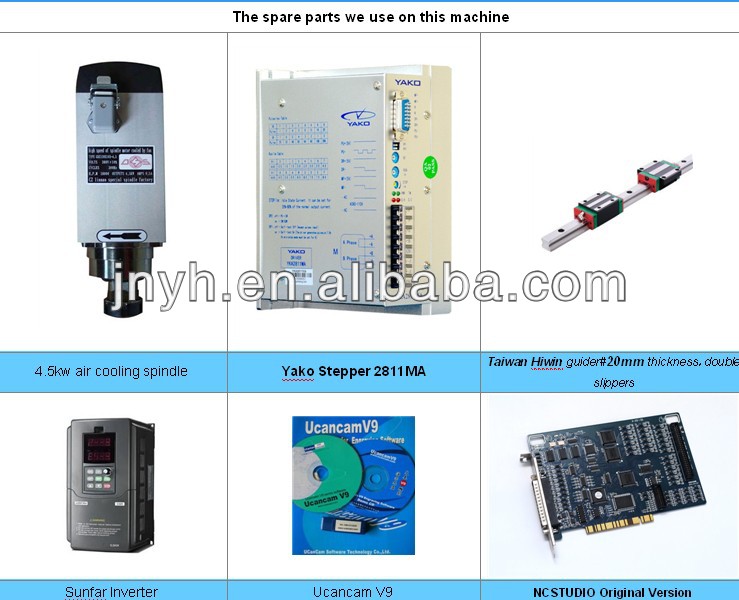

DSP control Dust collection Japan servo motors&drivers Rotary device(used for round materials) Yako 2811 drivers Others customized etc |
Applications:
Density board, solid wood, composite board, laminated, shaver, gypsum board, cork, native wood, PVC, double-color board, aluminum-plastic plate, lotus plate, organic glass, acrylic, ABS, brahman, stone, sandstone, marble, granite, artificial stone, light box, guide plate, horn, all kinds of metal, all kinds of hard plastic, and so on.
Samples:
1.One year quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happened during the warranty period.
2.Free training course at our plant.
3.We will provide the consumable parts at an agency price when you need replacement.
4.12 hours on line service each day, free technical support.

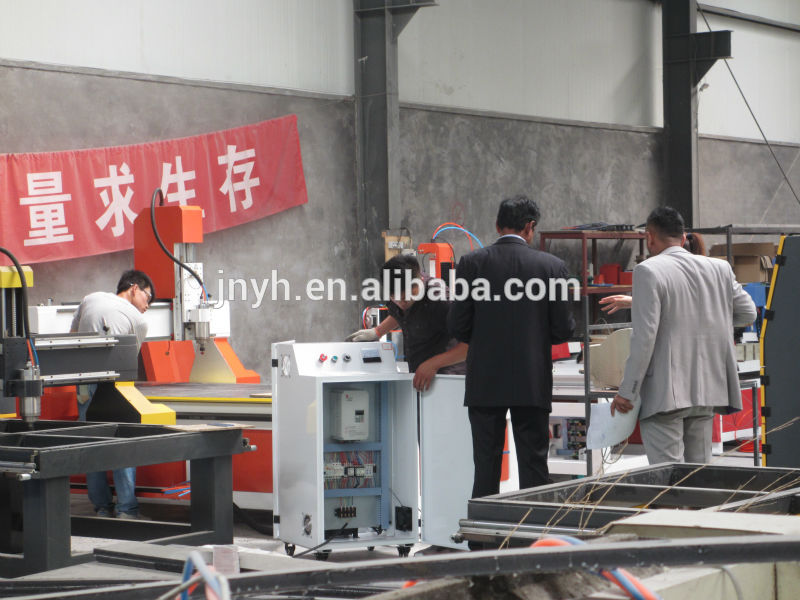

5.Machine has been adjusted before delivery , operation disk was included. manufactureing process:
Now Sinmic design and manufacture CNC routers and laser machine for many industries, enabling our customers to efficiently produce a wide range of products.
In order to help you choose the most suitable machine, please try to reply my questions as below, thanks for your cooperation.
Q1: What about your material , wood or acrylic or?
Q2: The size of your processing material, length? Width and engraving/cutting thickness?
Q3: Do you want to cut or engrave your material? Or both cutting and engraving?
Q4: What machining effect do you want to get ? It would be better if you can send sample pictures to me .
Q5: The machine choose 220v or 110v or 380v?
Q6: What about your nearest sea port?
Any questions about our machines, prices,technical support, configurations, please do not hesistate to contact us!
