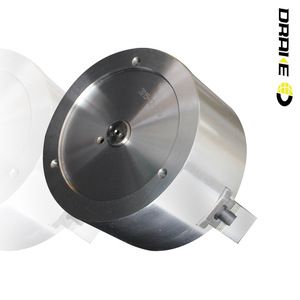

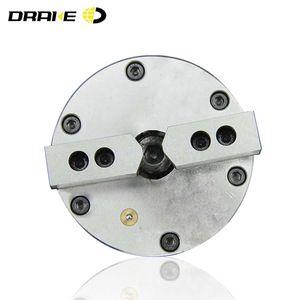

QS2-06" Non through-hole CNC control system two jaw pneumatic chuck

CNC control system two jaw pneumatic chuck Product Description fixtures for lathefixtures for lathefixtures for lathefixtures for lathefixtures for lathefixtures for lathefixtures for lathefixtures for lathe Technical features: 1. The chuck is a b

Technical Feature

  • Jiangsu, China (Mainland)
  • DRAKE
  • QS2-06"
  • Pneumatic
  • 2
  • QS2-06" Non through-hole CNC control system two jaw pneumatic chuck
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

DETAIL DESCRIPTION

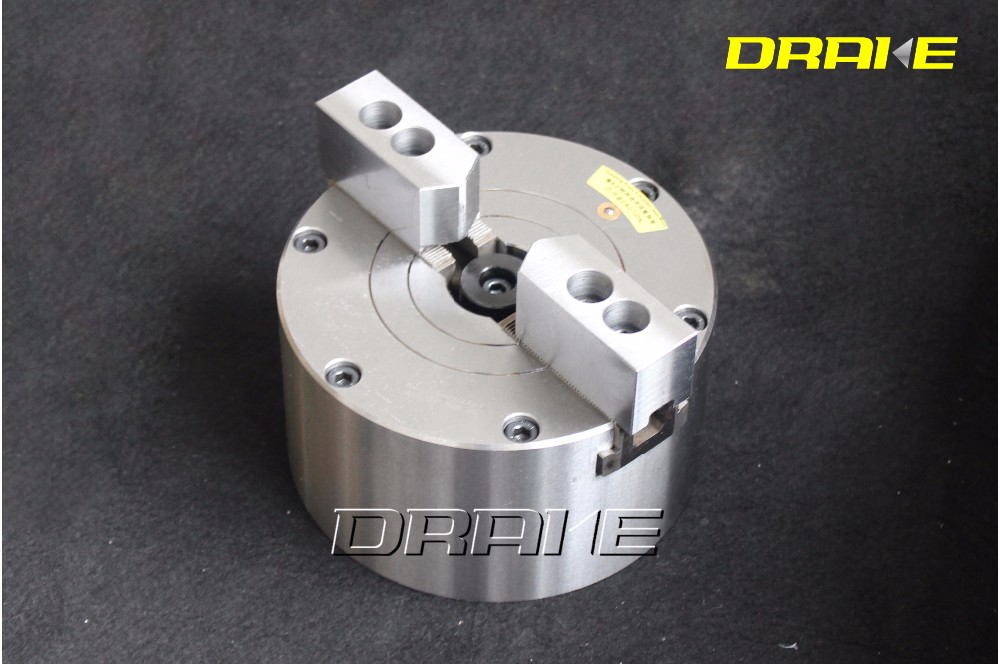

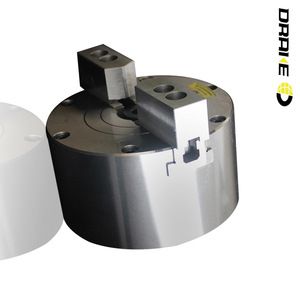

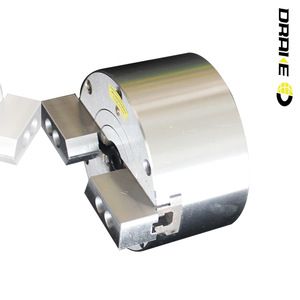

CNC control system two jaw pneumatic chuck

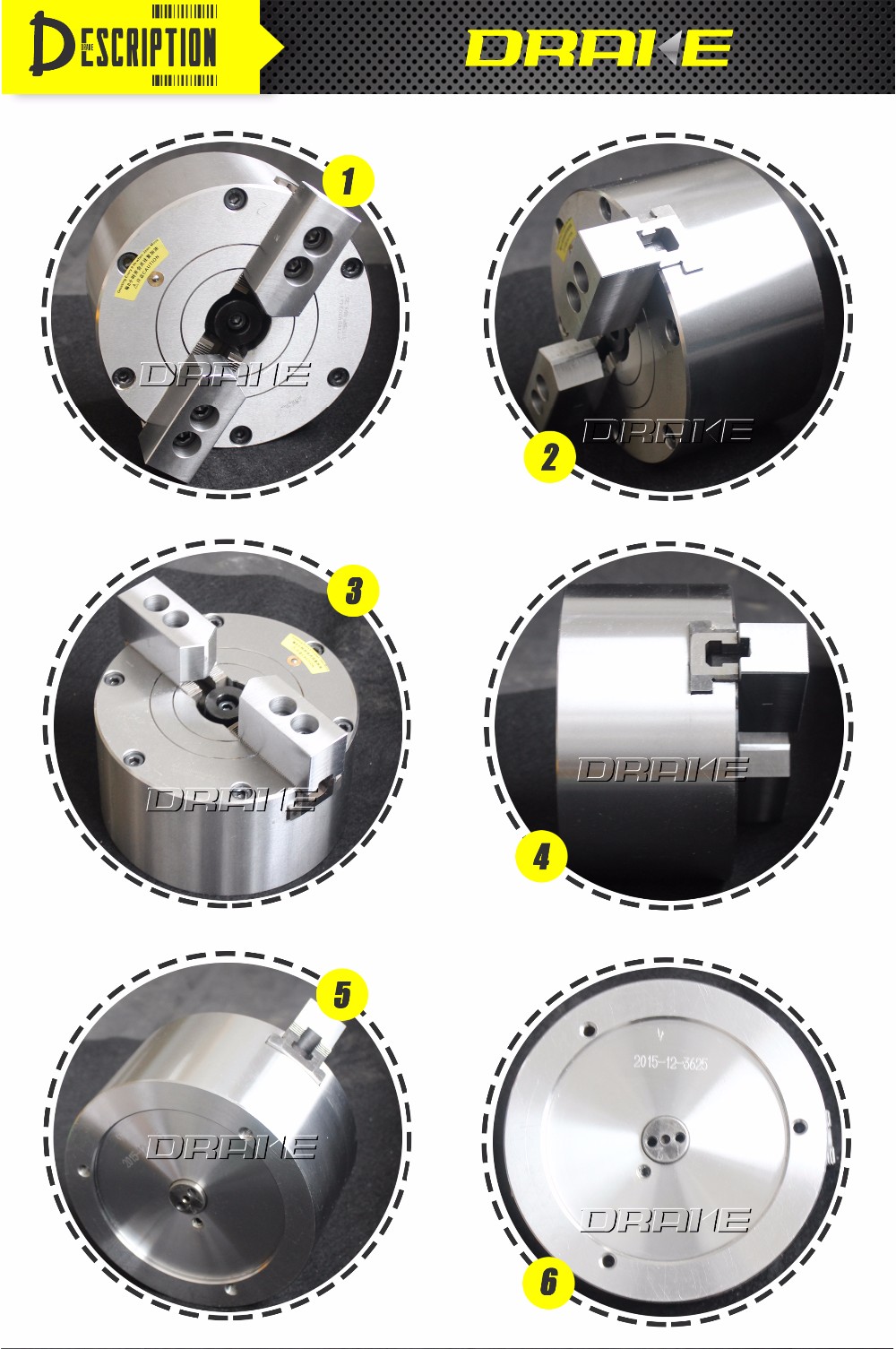

Product Description

 fixtures for lathefixtures for lathefixtures for lathefixtures for lathefixtures for lathefixtures for lathefixtures for lathefixtures for lathe



Technical features:

1. The chuck is a built-in cylinder with large clamping force, good sealing, high

    precision, safety and reliability, nice economical and pracitical applicability

    and long service life, and it  can clamp siphon, three-way.

2. Applicable to all kinds of CNC lathes.





Parameters







There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?





Size Parameters



Model/Spec.DD1D2HH1hPz-d
QS2-04"1157210096723163-M8
QS2-05"13595108118854183-M8
QS2-06"172130142130934203-M8
QS2-08"2081651801361005253-M10
QS2-10"2522062261431025303-M10
QS2-12"3222702901601156306-M12
QS2-15"400340368168118643

6-M16



It is recommended to grease chucks at least twice a day in order to maximize longevity



Performance Parameters







Model/Spec.

Jaw Stroke

(Diameter) (mm)

Maximum static

clamping force(kgf)

Maximum static

holding force(kgf)



Permissible

pressure(mm)

Limit speed

(r/min)

Clamping

range

Holding

range

Net weight

(Kg)

QS2-04"3.2204011700.4-0.845002-12015-1204.8
QS2-05"3.7285618360.4-0.840003-14015-1407.6
QS2-06"4.2489626520.4-0.836004-18020-18013
QS2-08"5714042840.4-0.833005-21520-24021
QS2-10"6.5928261200.4-0.8300010-26030-28033
QS2-12"8.51407694800.4-0.8250010-35040-36066.5
QS2-15"1219788150960.4-0.8200020-42060-440112

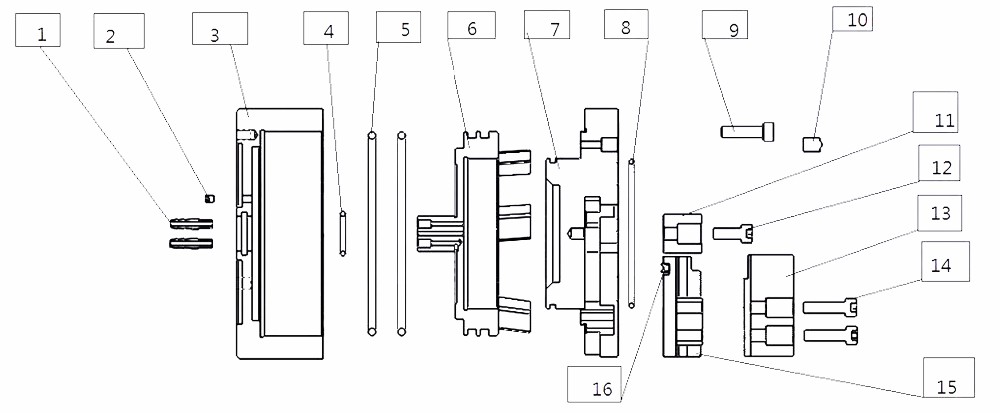

No.NameNo.Name
1Hose fitting M69

Hex.socket head bolt

2

Hex.socket head bolt

10

Grease nipple

3

Body

11

Center fixed cap

4

O-type sealing ring

12

Center fixed cap connection screw

5

Cylinder O-type sealing ring

13

Soft jaw

6

Plunger

14

Soft jaw connection screw

7

Cover plate

15

Master jaw

8

Cover plate O-type sealing ring

16

Y-type sealing ring





Matching products





The matching products including:

1. Soft jaws.

2. Oil-water separator, manual solenoid valve.

3. Air hose, foot-switch, Hex. socket head bolt, axle sleeve.

4. Pneumatic controller.



Certifications



Work Flow & Packing

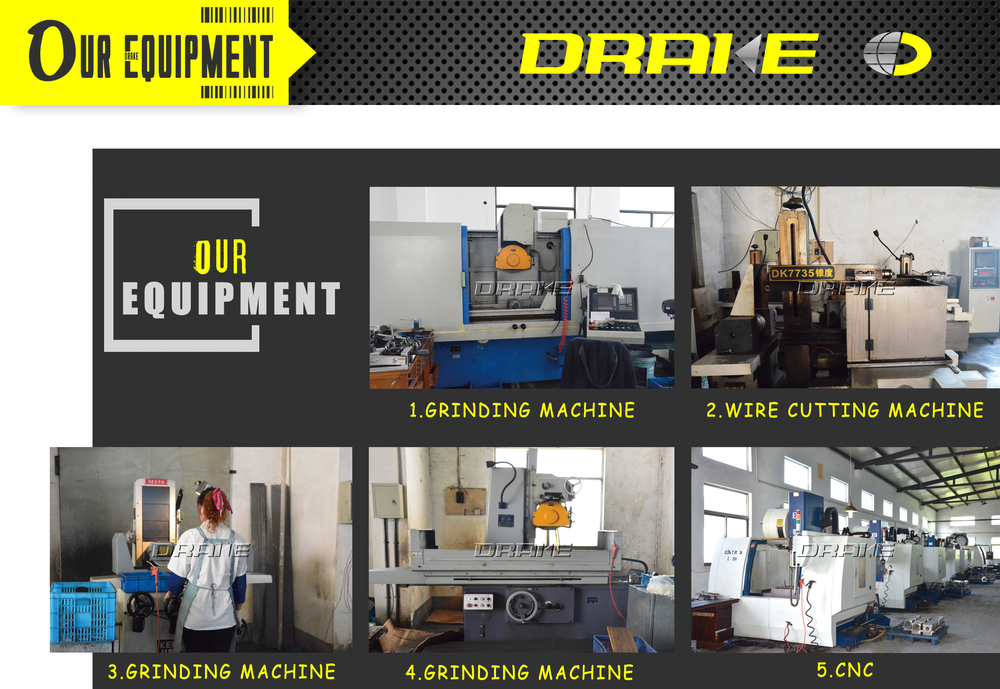

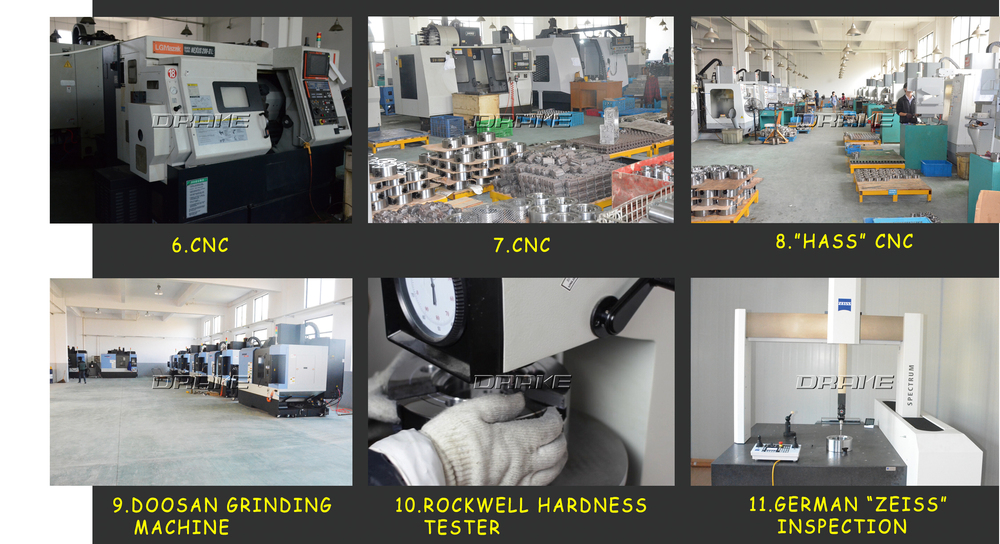

Equipments
