WHY CHOOSE OUR PUMP SYSTEM?
This brochure introduces pneumatic driven Liquid /Hydraulic boosters and Complete booster system.
These air liquid pump offer a flexible and efficient source for delivering high pressure liquids ,oil
1. Costing savings: An alternative to the purchase of High Pressure compressor ,our air driven liquid are
Compact and Require no electrical or mechnical drive connections ,Are powered by the same air that they amplify
and can mounted in any position
2. High Flow rates at High pressure: When High flow rates at high pressure are needed ,the Air Liquid pump
can charge a receiver to an even higher pressure level ,thus storing a volume of air aviable for rapid release at a constant
pressure through a pressure reducing valve
3.Safety Operation : Safe Pneumatic Operation-No Heat, Flame or Spark Rish and No need electricity .
Model:US-AH80-1 640 Bar output Handheld Manual control Hydro pneumatic system for burst testing

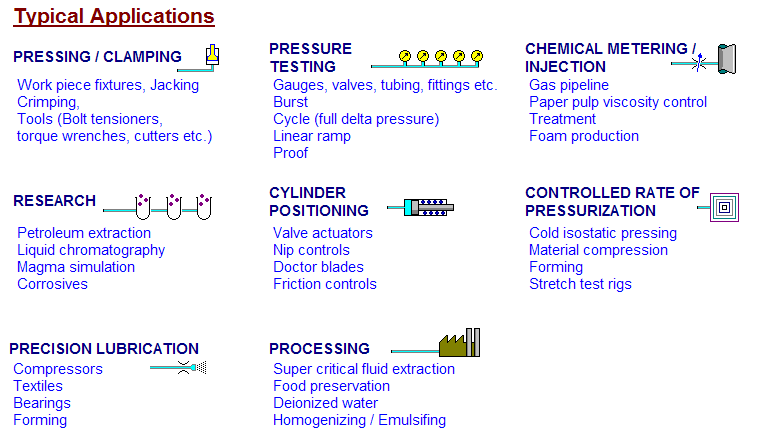

It Can be used for pressure testing ,cylinder positiong for valves ,super critical fluid extraction for food
preservation .Chemical metering /Injection ,hydrostatic testing for liquid pump .

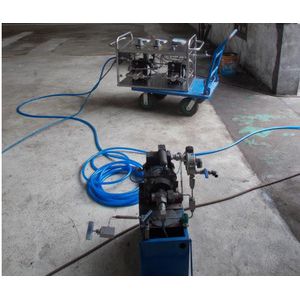

Air operate Hydrostatic pipeline testing pump machine
| Item number | US-AH80-1 Portable and easy to carry manual control Hydro Pneumatic system for burst testing |  |
Air driven Pressure | 3-8 Bar | |
| Dealing with air source | G1/2 ''size air regulator | |
| lubrication | Non-lubricated | |
| Theory of operation | The Air liquid pump consist of a large reciprcating air driven piston directly and coupled by a connecting rod to small area Air piston.The Air piston operatesin a high pressure air barrel section .Each barrel end contains high pressure inlet and outlet check valves | |
| Air consumption | 0.9-1.2 M3/Min | |
| Installation | Any |

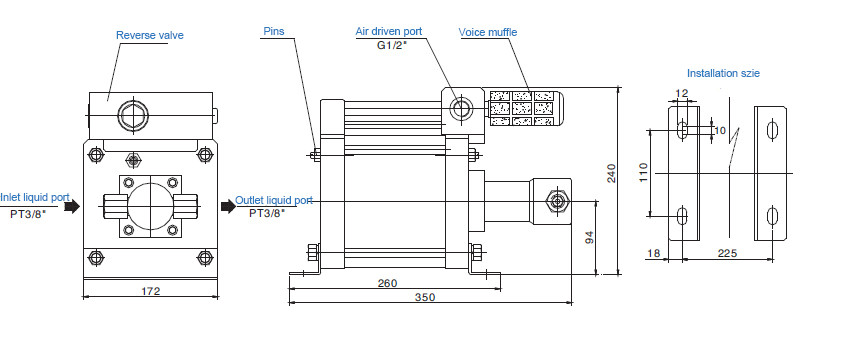

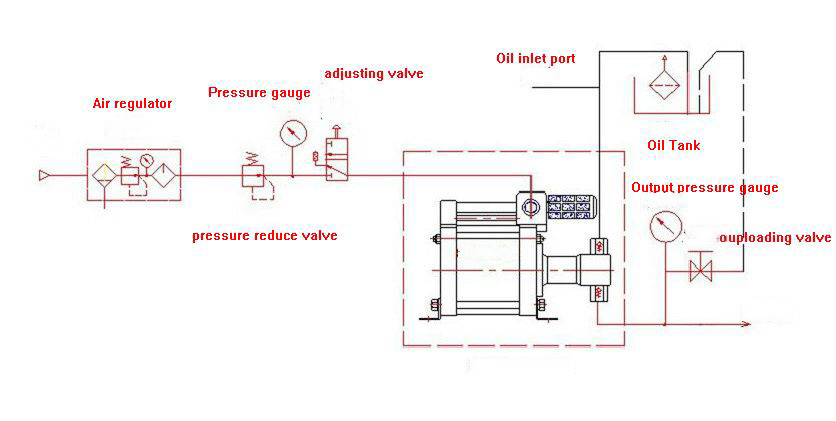

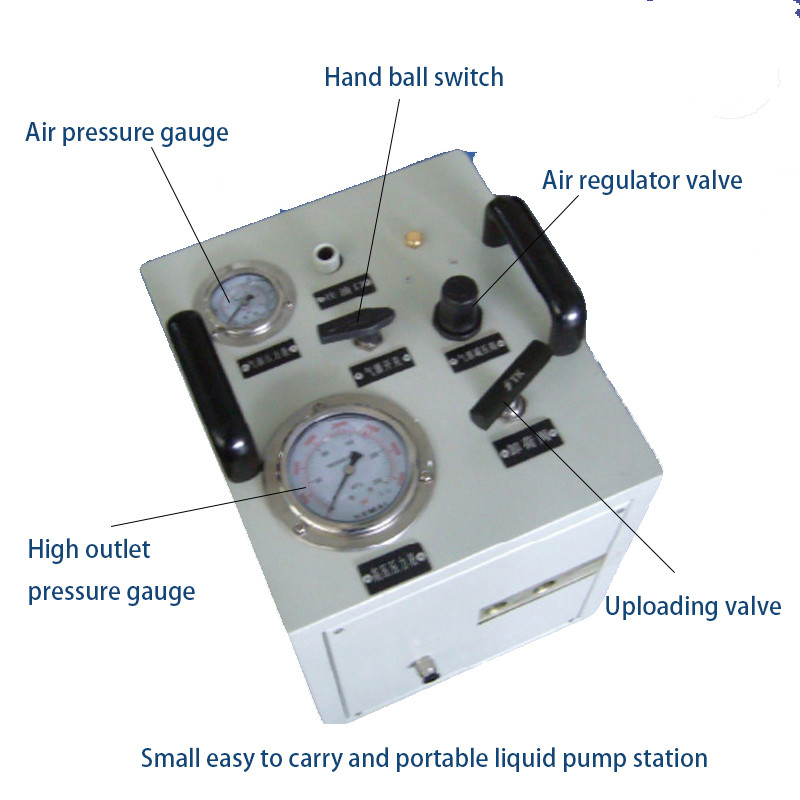

| List items | Function |
| 1) Air regulator valve | Adjustable air regulator used to adjust the air driven pressure ( 3-10 bar) |
| 2) Air pressure gauge | Indicates the air driven pressure |
| 3) liquid outlet pressure gauge | Indicates the outlet Liquid boosted pressure |
| 4) Hand drive switch | Used to adjust the system on/off |
| 5) Uploading needle valve | Used to protect the booster and other components over pressurization and release the high pressure |

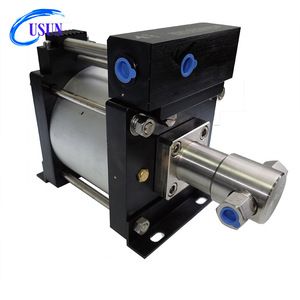

| 6) AH type single action booster | Used to increase the pressure from low pressure to high pressure |
| 7) Liquid filter | Our standard system does not include such part ,if you need ,should inform in advance |
| 8) Hydraulic tank | 4Liters /13 liters hydraulic tank for standard liquid pump system |

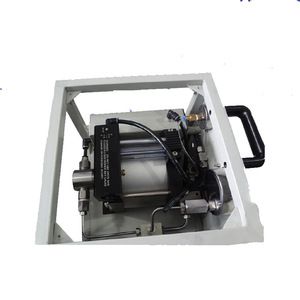

| 9) Closed Cabinet type | Closed cabinet with hand Bar ,easy to Carry |
Product features
1. Realiable ,Easy to Maintain ,compact and robust
2. No heat,flame or spark risk
3. Infinitely variable output pressure and flow capability
4. Air driven Models do not require electrical connection ,easy to apply automatic controls
5. Wide range of models and controls and options
6.Seals system designed for long working life,No airline lubricated required
7. Wide range of standard and customized liquid pump systems
Main technical parameter
| Air driven pressure 7 Bar Pump working performance | |||||||||||||||||||
| Model | Maximum output Pressure (Bar ) | Maximum output liquid pressure 1Mpa=10 Bar=10kg/CM2 | |||||||||||||||||
| 0 | 20 | 40 | 70 | 100 | 150 | 200 | 300 | 400 | 450 | 500 | 550 | 600 | 700 | 900 | 1200 | 1700 | 2350 | ||
| Liquid flow Maximum L/Min | |||||||||||||||||||
| AH16 | 132 | 24.84 | 18.5 | 14.7 | 11.2 | 9.05 | 0 | ||||||||||||
| AH20 | 160 | 16.2 | 13.9 | 12.8 | 10.09 | 8.63 | 0 | ||||||||||||
| AH28 | 232 | 12.8 | 11.9 | 9.4 | 8.9 | 7.1 | 6.4 | 0 | |||||||||||
| AH40 | 531.2 | 10.7 | 9.37 | 8.03 | 6.53 | 5.22 | 4.98 | 4.12 | 0 | ||||||||||
| AH64 | 498 | 5.51 | 5.17 | 4.74 | 3.53 | 3.34 | 2.82 | 2.51 | 2.10 | 1.29 | |||||||||
| AH80 | 640 | 4.44 | 3.95 | 3.26 | 3.23 | 2.82 | 2.62 | 2.32 | 2.13 | 1.63 | 1.43 | 1.23 | 1.04 | 0 | |||||
| AH100 | 830 | 3.93 | 3.47 | 3.01 | 2.73 | 2.65 | 2.51 | 2.37 | 2.01 | 1.75 | 1.62 | 1.51 | 1.37 | 1.25 | 0 | ||||
| AH130 | 1079 | 2.48 | 2.44 | 2.41 | 2.36 | 2.31 | 2.18 | 2.04 | 1.90 | 1.7 | 1.6 | 1.53 | 1.45 | 1.31 | 1.12 | 0 | |||
| AH170 | 1411 | 1.82 | 1.8 | 1.78 | 1.76 | 1.73 | 1.71 | 1.66 | 1.61 | 1.50 | 1.46 | 1.35 | 1.20 | 0.97 | 0.85 | 0.79 | 0 | ||
| AH240 | 1992 | 1.57 | 1.55 | 1.54 | 1.51 | 1.48 | 1.45 | 1.43 | 1.42 | 1.38 | 1.37 | 1.14 | 0.92 | 0.81 | 0.76 | 0.57 | 0.34 | 0 | |
| AH300 | 2490 | 1.23 | 1.12 | 1.05 | 0.98 | 0.85 | 0.76 | 0.64 | 0.61 | 0.58 | 0.55 | 0.52 | 0.48 | 0.45 | 0.41 | 0.37 | 0.22 | 0.18 | 0 |
| AH400 | 3200 | 0.98 | 0.85 | 0.63 | 0.62 | 0.52 | 0.41 | 0.3 | 0.29 | 0.28 | 0.27 | 0.26 | 0.25 | 0.24 | 0.23 | 0.21 | 0.18 | 0.1 | 0.05 |
Shipping
| By sea | Cheapest but longest option 18~30 days by sea delivery for mass shipment |
| By air | More expensive than sea delivery, But cheaper than express 5~7 days by air to airport. |
| By express | door to door service,the fastest and most expensive one, 3~5 day for DHL /Fedex /UPS/TNT express |
1. 24-hour technical support by email
2. calling or door-to-door service
3.Whatsapp or Wechat are avaiable for 24 Hours
Dongguan Usun Fluid Equipment Co Ltd Ltd, its a machinery factory, was founded in DongGuan,GuangDong
Province in 2007 which Specializing in making Hydro-Pneumatic product such as Air driven gas booster
,hydro-pneumatic pump ,air hydro pump ,High pressure stainless needle valve ,high pressure complete
gas/hydraulic booster system for many hydro-pneumatic machinery and automatical
Having worked in numerous industries for years, our various experiences benefit us by knowing how to
provide customers with the most efficient solutions.
Having worked in numerous industries for years, our various experiences benefit us by knowing how to
provide customers with the most efficient solutions.We have also already exported for many countries
for our High pressure pump and high pressure system to USA ,North America ,Europe ,Middle east
and south America and so on .
How do I select a correct model
1. Free to inform us that your Inlet liquid Pressure range
2. Kindly advise your needed output pressure for connecting machine
3. Should be kindly informed the liquid flow at the rated pressure for calculating the suitable pressure
ratio base on customer"s requirement
4.Feel kindly advise us the avaible air driven pressure
5.Then we can suggest a suitable model base on above Technical data
What is the warranty for product
1.We have 1 Year Warranty for product and can send some easy wear out repairing parts for fixing
the pump such as important seal kits
2.Customer should cover the to-and fro shipping cost for repairing if goods is out of warranty peroid
