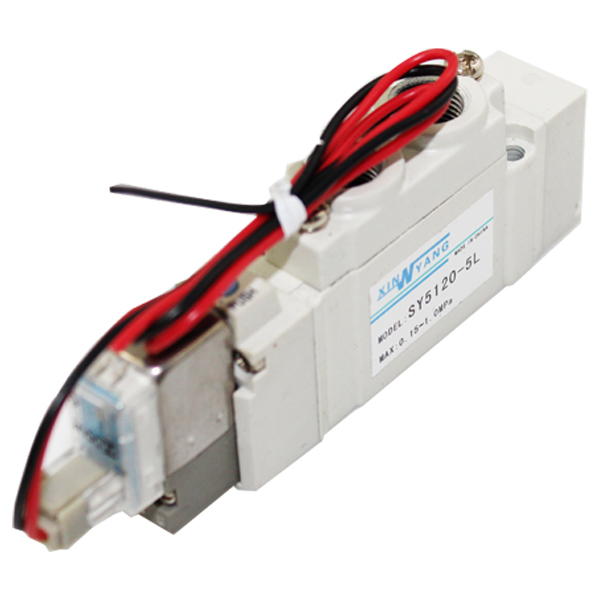

SY Series Solenoid Valve/ Electromagnetic Valve for Pneumatic Control System
Product description
1) SY solenoid valve has small size, large flow capacity. Due to small size, the air port is small, it requires high-quality air.
2) Stroke of magnetic head of SY solenoid valve solenoids is short, so starting current is smaller, heating is less and power is lower. For DC24V, current is only 21mA. Due to low power consumption, miniaturization of the switching element, so the cost is low.
3) SY solenoid adopts pilot valve structure to improve commutation performance of main valve. So restoring force is increased. And the valve's life can reach 50 million times.
4)Short response time.
5) Good water resistance.
6) Pilot valve and main valve use centralized exhaust structure to avoid the discharge of oil mist and noise from the pilot valve exhaust port.
7) Plug-in connection. Diverse wiring ways.
8) Beautiful appearance, soft white.
9) Direct-piping type and Cartridge type.

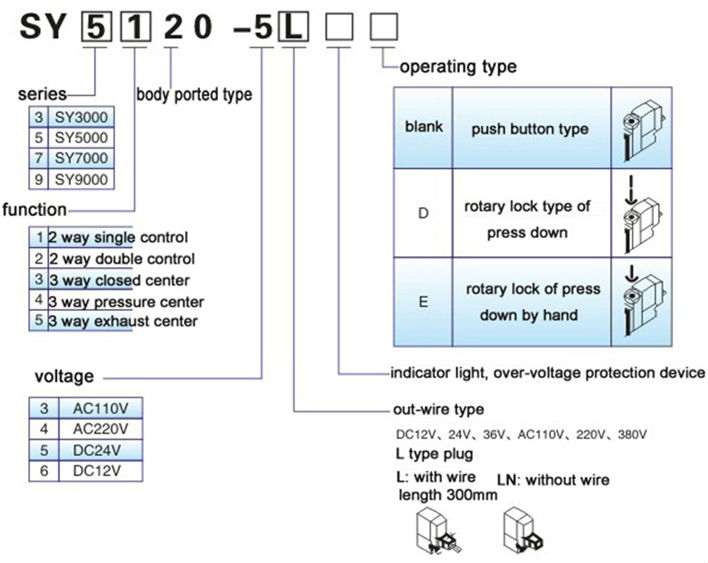

Ordering code
Parameter
| Medium | Air | |
| Acting type | Internal pilot | |
| Port size | M5*0.8 | |
| Lubrication | No need | |
| Working pressure | 1.5-8.0kgf/cm2 | |
| Working temperature | 5-60°c | |
| Available valtage | ±10% | |
| Power consumption | AC:4.5W, DC:3.0W | |
| Insulation class | F | |
| Protect class | IP65(DIN 40050) | |
| Wire connecting form | junction box and direct suction line type | |
| Max motion frequency | 5 times/s | |
| Shortest excitation time | 0.05 sec | |
| Material | body | aluminum |
| sealing | NBR |

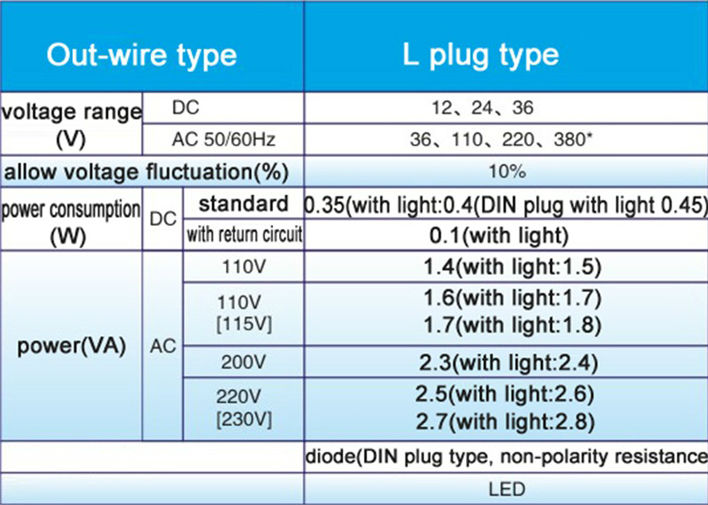

Solenoid wire specification

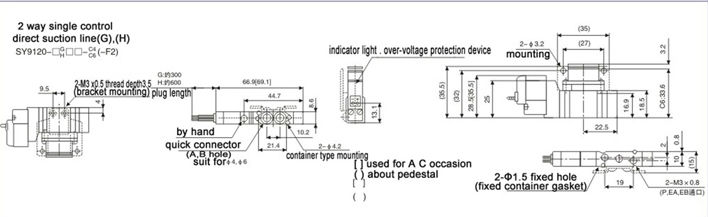

Outline size
Workshop
