PLC Control Conveyor Cement Dust Handling System
4 Key Reasons to choose pneumatic conveying system:
1. Pneumatic conveying system are relatively economical to install and operate
2. Pneumatic conveying system are totally enclosed and if required can operate entirely without moving parts coming into contact with the conveyed material. Being enclosed there are hygiene & cleanlinesss benefits
3. A pneumatic conveying system can convey a product to any place with a pipeline. its flexible.
4. Pneumatic conveying system offer greatly reduced capital cost for long distance conveying.
Application:

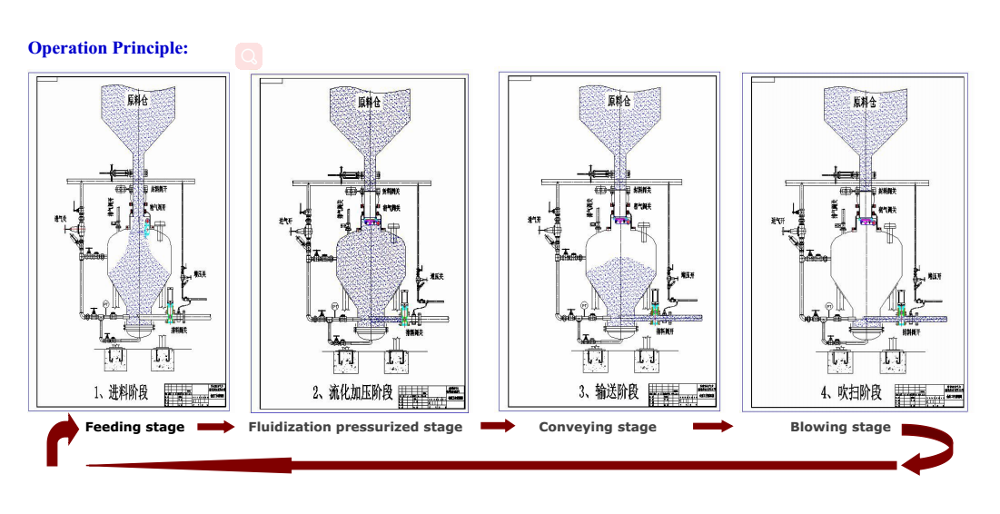

Dense Phase Pneumatic Conveying System uses compressed air or gas as the medium to transfer the bulk materials with pipe from position A to position B. It is helpful to production and environmental protection.
These materials are dry pulverized or free flowing or light powdery materials like cement, fly ash / aluminium / zinc / calcine / clinker dust / sand / bentonite / sinter dust, etc. for industries like Cement / Steel / Paper / Foundry / Chemical / Process, etc.
Suitable for the material conveying from enclosed device to another enclosed device because the high pressure in pipe, eg., from silo to silo, hopper to silo....
The conveying pipe is flexible arrangement according to the different topographical, it is easy to convey in the way of centralized, high-height and long-distance, the distance can reach 800meters.
LD type pneumatic conveyor data:
|
| LD0.6 | LD1.0 | LD1.5 | LD2.0 |
Body Inner Diam.(mm) | 800 | 1000 | 1200 | 1400 |
Total volume(M^3) | 0.6 | 1.0 | 1.5 | 2.0 |
Body material | ||||
Operation Temp.(℃) | ≤120 | |||
Max. design pressure(Mpa) | 0.78 | |||
Operation Pressure(Mpa) | 0.2-0.5(Basis on the conveying distance) | |||
Max. conveying distance(m) | <1000 | |||
Outlet conveying Dia. | DN80 | DN100 | ||
Air consumption (m^3/min) | 3.5-7 | 5-10 |

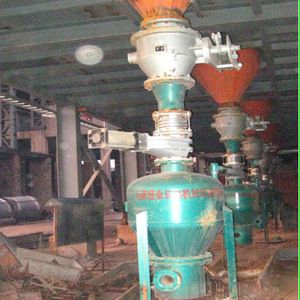

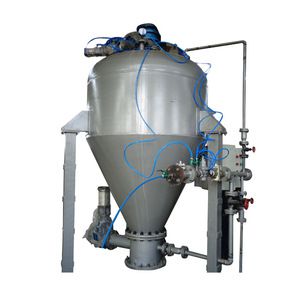

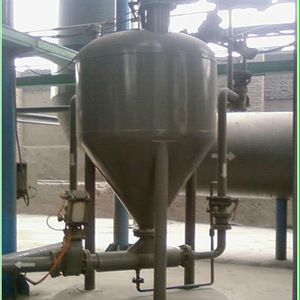

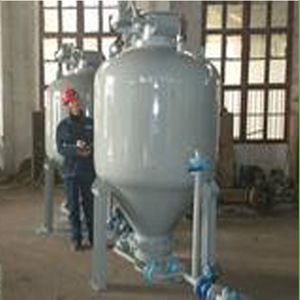

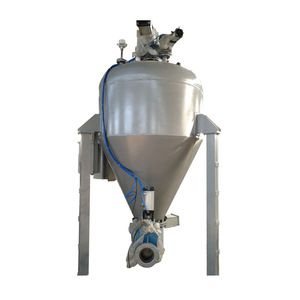

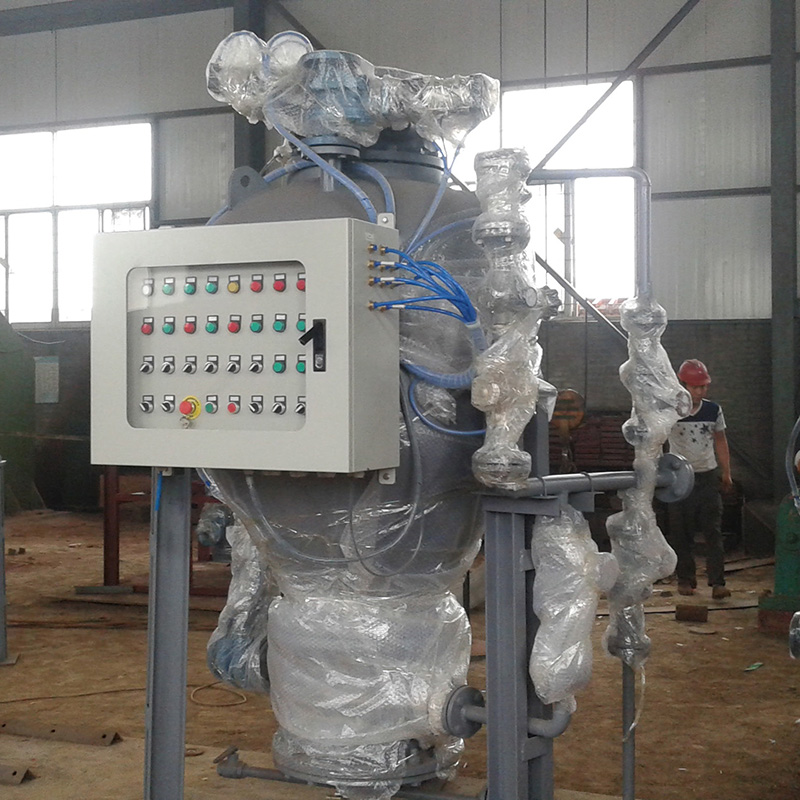

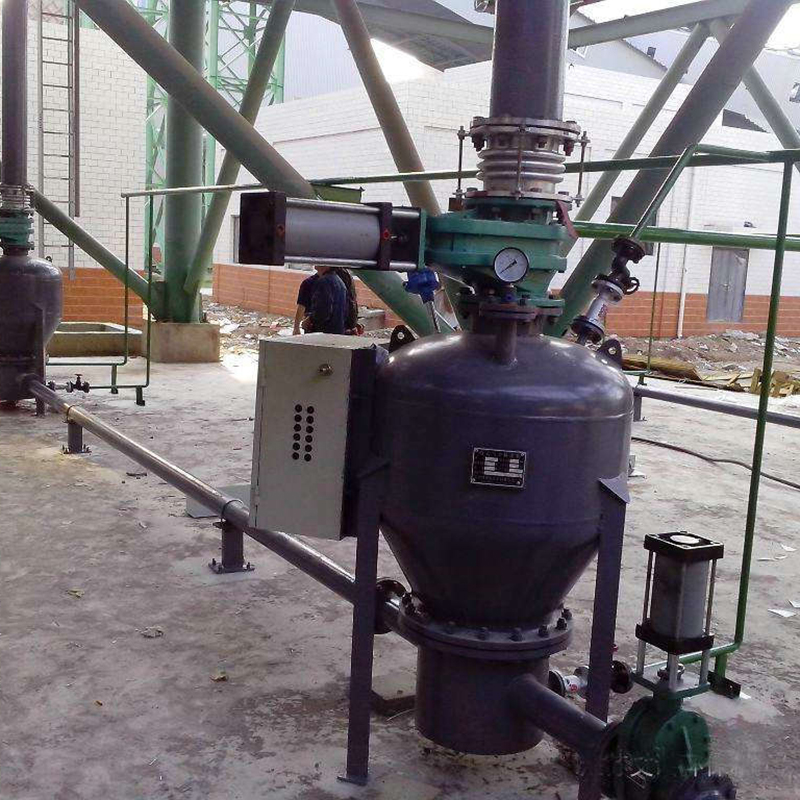

Photos of PLC Control Conveyor Cement Dust Handling System for reference:
1.Pneumatic conveyors are much better suited to powder handling than mechanical conveyors because the conveyance channels used in pneumatic conveyors are completely enclosed.
2.Pneumatic conveyors are used for materials handling and transportation in a wide range of industries. Unlike many mechanical conveyor designs, pneumatic conveyors can be designed to move products between floor levels and around difficult angles.
3. The whole system is composed of compressed air source,storage pump,control cabinet,conveying pipe and ash storage.
4.This system are suit for variety material transportation ,eg:fly ash,kiln dust, cement, etc dry powder material(moisture content <5%).

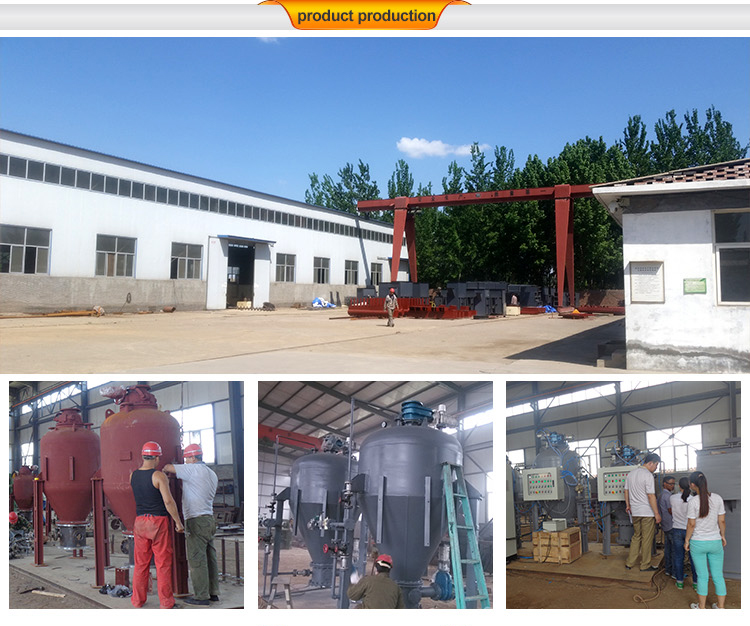

Hebei Taizhe Machinery Trading Co., Ltd. is one specialized manufacturer / trader. Both our quality and technology are in the leading position in domestic level.
There are 1 factory, we exported to Columbia, Russia, India, Indonesia, Malaysia., etc. With the developing, we have been a professional company with research and development, design, sale, installation, after-service and technical guidance.
Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers.
 |  |  |  |

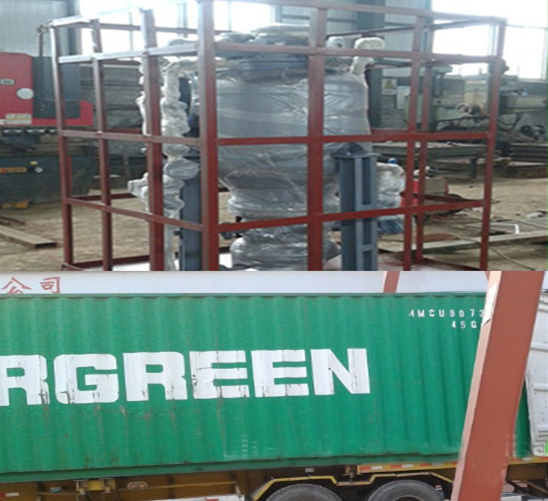

We test PLC Control Conveyor Cement Dust Handling System before it is packaged and transported:
Main part and relative valves, instrument: composite material box packed, rain-proof.
Will be marked on per part with the regulations on goods.
Steel parts will be loaded into container directly
12months Quality warranty period (after put into operation formally).
Provide technical guide for dust collector forever.
After Quality Warranty period of pneumatic conveyor, will provide the spare parts with cost price.
All the machines provided by our factory will be tested before ship.
1. Q: Are you a factory or trading company?
A: We own 1 factory and have 2 cooperated factories, hebei taizhe machinery trading Co.,ltd is a trading company.
We have the improvement teams from design, manufacture....to installation, commissioning and staff training
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Shijiazhuang City, the capital of Hebei Province, 1.5 hours way by high-speed rail from beijing to shijiazhuang
It’s near the airport and train station.
3. Q: How does your factory do regarding quality control?
A: We test our machine before shipping. Our factory has gained ISO9001:2008 authentication.
4.Q: How long is the warranty?
one year warranty and free cunsultaion during the period of use.
5.Q: how to pay for the product?
L/C, T/T is available.
