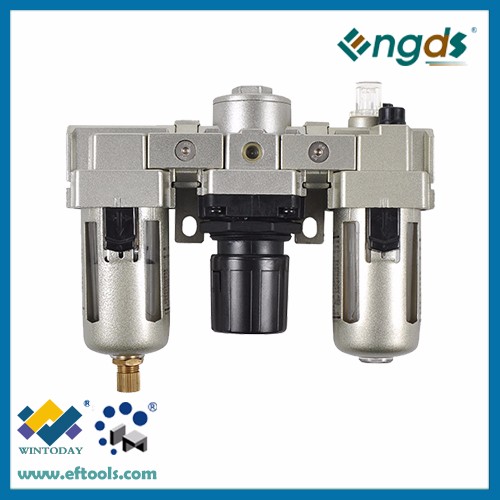

Air filter combination pneumatic control system components
| Specification | |
| Ensured Pressure Resistance | 1.5MPa |
| Hightest Working Pressure | 1.0MPa |
| Recommended Oil Use | Turbine NO.1 Oil ISOVG32 |
| Valve Type | With Overflow |
| Warking Temperature Range | 5~60℃ |
| Grade of Filtration | 25µm/5μm/50μm |
| SKU | Rated Flow(L/Min) | Port Size(G)(NPT/RC) | Weight(kg) | Pressure Guage Size(G) |
| 355123 | 90 | M5 | 0.31 | 1/16" |
| 355124 | 500 | 1/8" | 0.70 | 1/8" |
| 355125 | 1/4" | |||
| 355126 | 1500 | 1/4" | 1.10 | |
| 355127 | 3/8" | |||
| 355128 | 2000 | 1/4" | 1.18 | |
| 355129 | 3/8" | |||
| 355130 | 4000 | 3/8" | 2.30 | 1/4" |
| 355131 | 1/2" | 2.30 | ||
| 355132 | 4500 | 3/4" | 2.40 | |
| 355133 | 5000 | 3/4" | 4.00 | |
| 355134 | 1" |
Air filter combination pneumatic control system components
1. Using modular connection, it can be used in combination or alone, high efficiency.
2. High-quality filter so its filter effect is better and it also has a longer lifetime.
3. Pneumatic control system components,Stainless steel bracket, so more stable and more relieved to use.
4. Exquisite appearance, surface oxidation spray treatment, more durable and corrosion resistant.
5. The use of air compression can store energy so as to achieve centralized gas supply.
6. Fully sealed connection, no leakage phenomenon and not easy to be loosed.
Air filter combination pneumatic control system components
Air filter combination pneumatic control system components
1. Item location: Ningbo, China
2. Pneumatic control system components Shipping to: Worldwide
3. Pneumatic system components shipping method: By sea, By air, By expressing
4. Estimated delivery dates depend on the specific order,
shipping service selected and reciept of cleared payment and the time of delivery may vary.
| Common pressure unit conversion | |||||
| unit | kgf/cm2 | psi | Mpa | Kpa | Bar |
| 1 kgf/cm2 | 1 | 14.22 | 0.09807 | 98.7 | 0.9807 |
| 100 psi | 7.031 | 100 | 0.6895 | 689.5 | 6.895 |
| 1 Mpa | 10.2 | 145 | 1 | 1000 | 10 |
| 1 Kpa | 0.0102 | 0.145 | 0.001 | 1 | 0.01 |
| 1 Bar | 1.02 | 14.5 | 0.1 | 100 | 1 |
