Waist height Access Control Systems & Products automatic flap gate for library and subway, office building

can dispatch our engineer to the spot to help you.

Technical Feature

  • Guangdong, China (Mainland)
  • Yuan
  • YAT6823
  • Waist height Access Control Systems & Products automatic flap gate
  • SUS304
  • Acrylic glass/Resin/PVC
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Guangdong, China (Mainland)
Brand Name
Yuan
Model Number
YAT6823
Product name
Waist height Access Control Systems & Products automatic flap gate
housing material
SUS304
wing material
Acrylic glass/Resin/PVC
weight
80kg/set
size
1400*300*1000(mm)
power
DC24V
mechanism
full-auto/semi-auto
transit direction
single or bi-direction
Flap arm length
260mm
Transit speed
30-40 persons/min

DETAIL DESCRIPTION

Waist height Access Control Systems & Products automatic flap gate for library and subway, office building



Flap turnstile , Security Turnstile

1.size:1200*300*1000mm

2.packing size:127*37*107cm

3.material:304 stainless steel

4.MOQ:1 pcs

5.Shape size is customized,support OEM/ODM

6.Certification:CE certification

7.After sales service: 1 year warranty and lifelong maintenance





Technical Parameters

Structure

304 stainless steel(thickness:1.5mm)

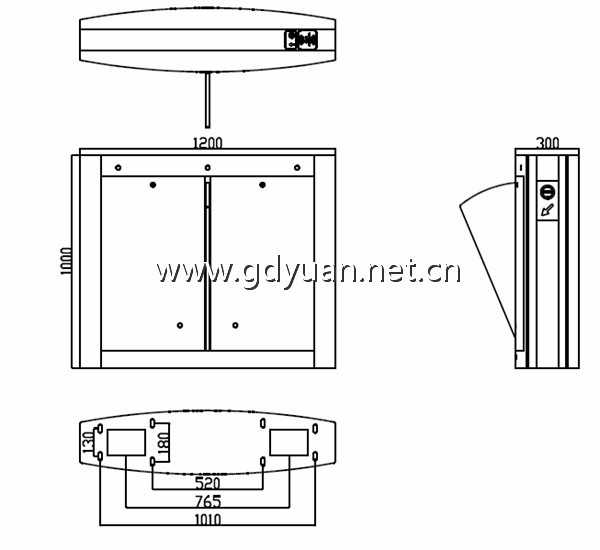

Framework Size

L:1200 W:300 H:1000(mm)

Length of the pole

285(mm)

The direction of rotation

Single or bi-direction

Power supply input

AC220+/-10%V/50+(-)10%Hz

Passage Width

550-600mm

Transit speed

30-40 persons/min

Communication interface

Standard RS485 interface(Distance: <=1200m)

Working temperature

-10-55 deg C

Working environment

indoor, outdoor(with a tent over)





Functions And Characteristics

Main structure and configuration

2 standard caseworks



2 stretchable flaps (transparent acrylic plate, colors are optional)

2 main control boards



2 electric motor



2 transformers



2 sets of core and transmission parts



6 infrared devices(Standard)



2 direction indicators(at top)

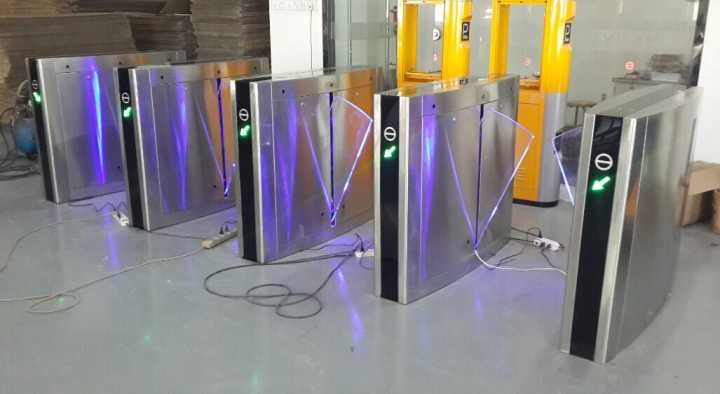

 Flap turnstile YAT6823 in factory

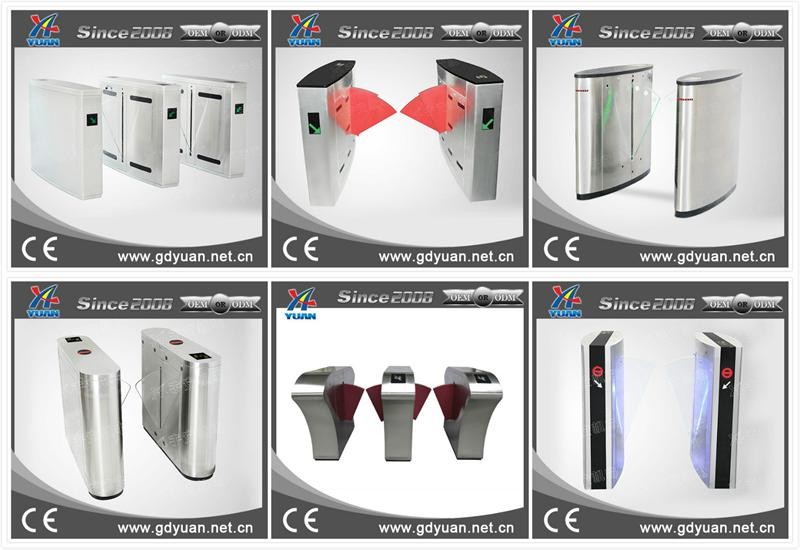

 Fap turnstile series

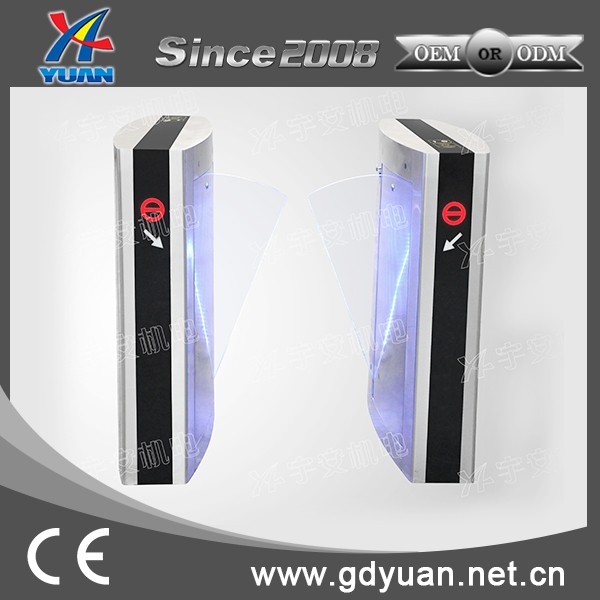

 Newest Flap turnstile YAT6829

Packaging & Shipping











FAQ
About our services
1,about the OEM and ODM
Our turnstile can label your logo to meet your needs
3.About the warranty and after-sales services
We provide one year warranty and all life after-sale service, if requirement, we can dispatch our engineer to the spot to help you.
4.About the installation
We can provide the manual to help you to install our turnstile, as for the software, we can provide Team viewer to install the software. Any help will be provided to meet your needs.
5.About the term of delivery
We support EXW, FOB, CIF, CIP, etc. We support you with the most suitable way.


About our turnstile
1.What`s the difference between manual type turnstile and automatic type turnstile?
First, for manual turnstile, it hasn't electric control device, For automatic type, it can compatible with access control system
Second, For manual turnstile, it is single direction, For automatic type, it is bi-direction,
2.What`s the difference between full auto turnstile and semi-auto turnstile?
First, for full-auto type, it is motorized. For semi-auto, it is solenoid.
Second, for full-auto type, after card reading, the arm will rotate 10-15 degree. Passengers push it to pass. For semi-auto type, after card reading, passengers push the arm to pass.
Third, for full-auto type, when power failure, the middle arm will drop automatically, and when power on again, the arm will up automatically. For semi-auto type, when power failure, the middle arm will drop automatically, and when power on again, it needs people to lift it
3.What`s the MOQ?
The MOQ of our tripod turnstile is ONE pcs/pair
4.Whether the size and shape of turnstile can be changed?
Yes,we can redesign the size and shape of the turnstile, or we can produce the non-standard turnstile if customer offer drawing or if customer need us to design a new turnstile
5. Whether can purchase the Mechanism only? or Parts of Turnstile?
Yes.we can offer the mechanism,and we have mechanism is stock,The MOQ of mechanism is one pcs.Also,if order our turnstile,our turnstile parts can be offered

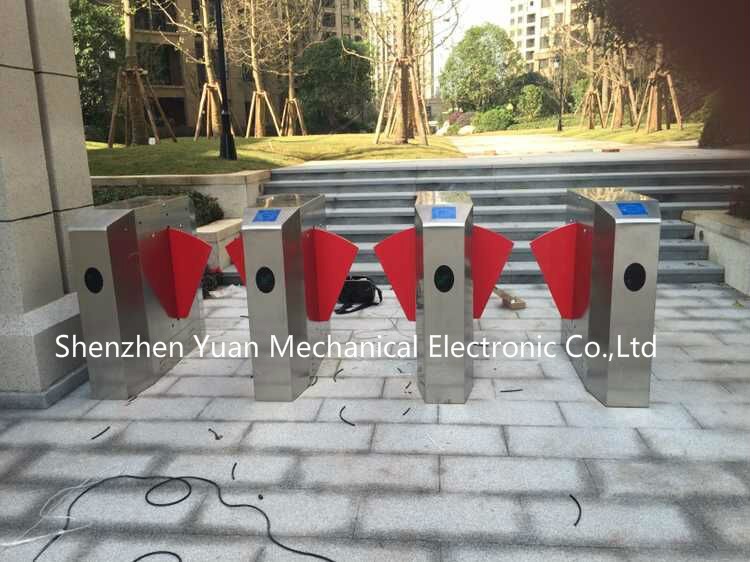

 Flap turnstile YAT6811 project

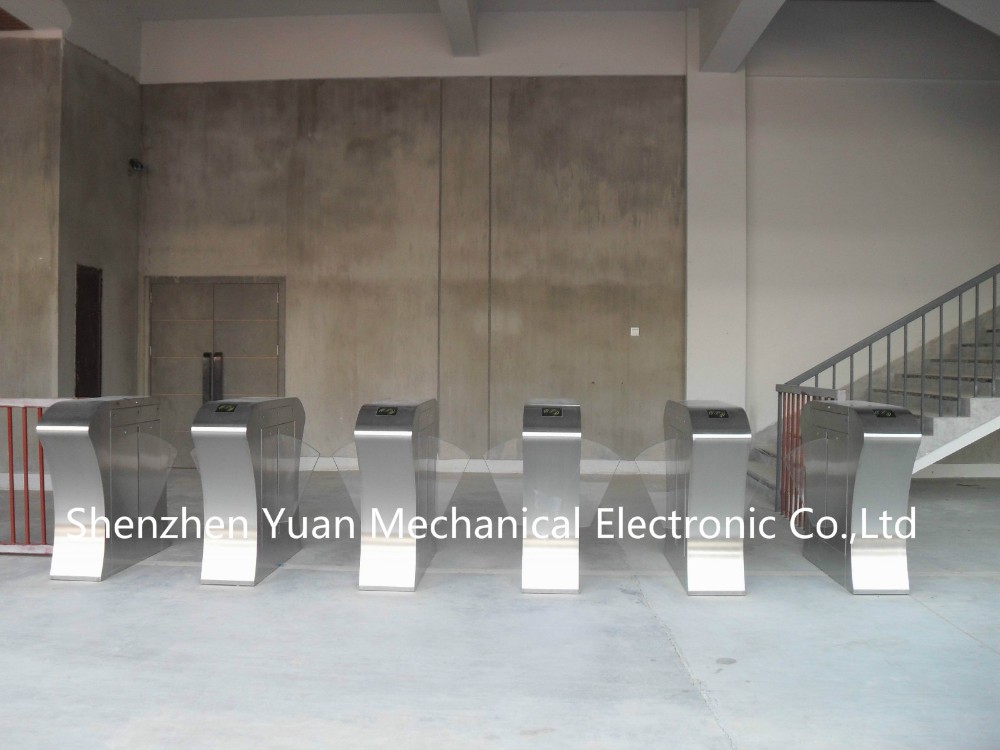

Flap turnstile YAT6810 project

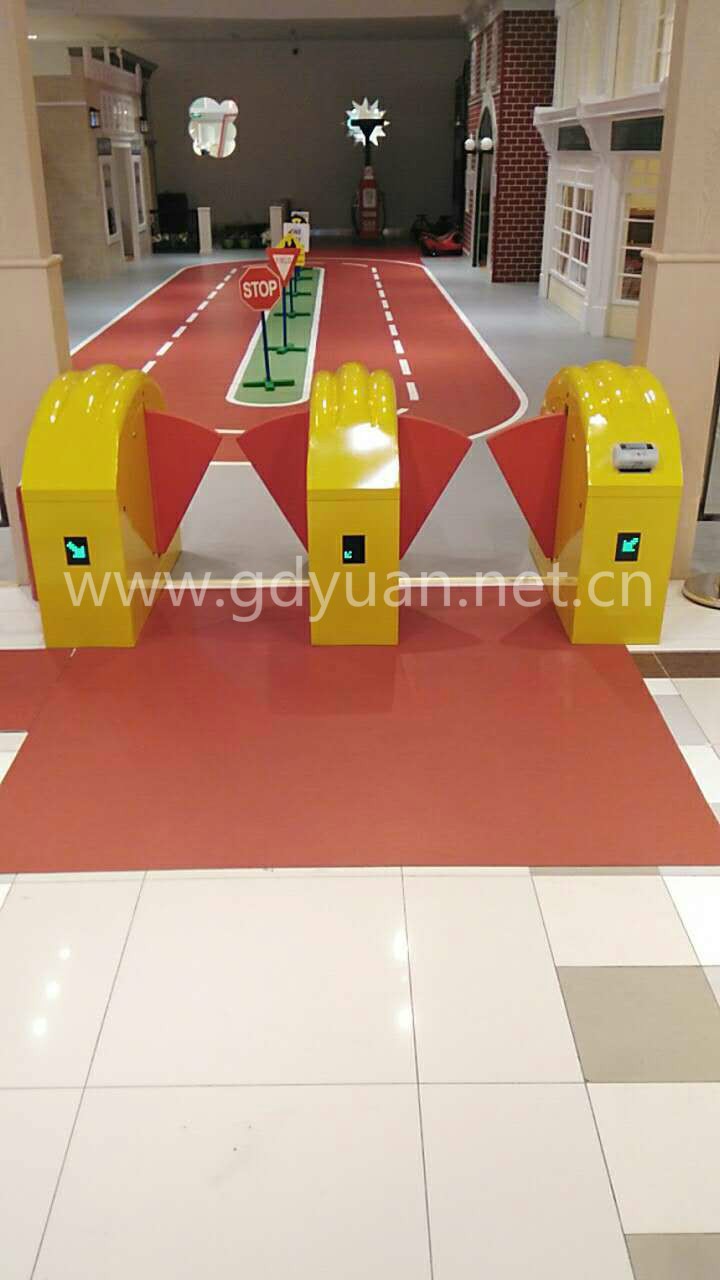

Children Flap turnstile
