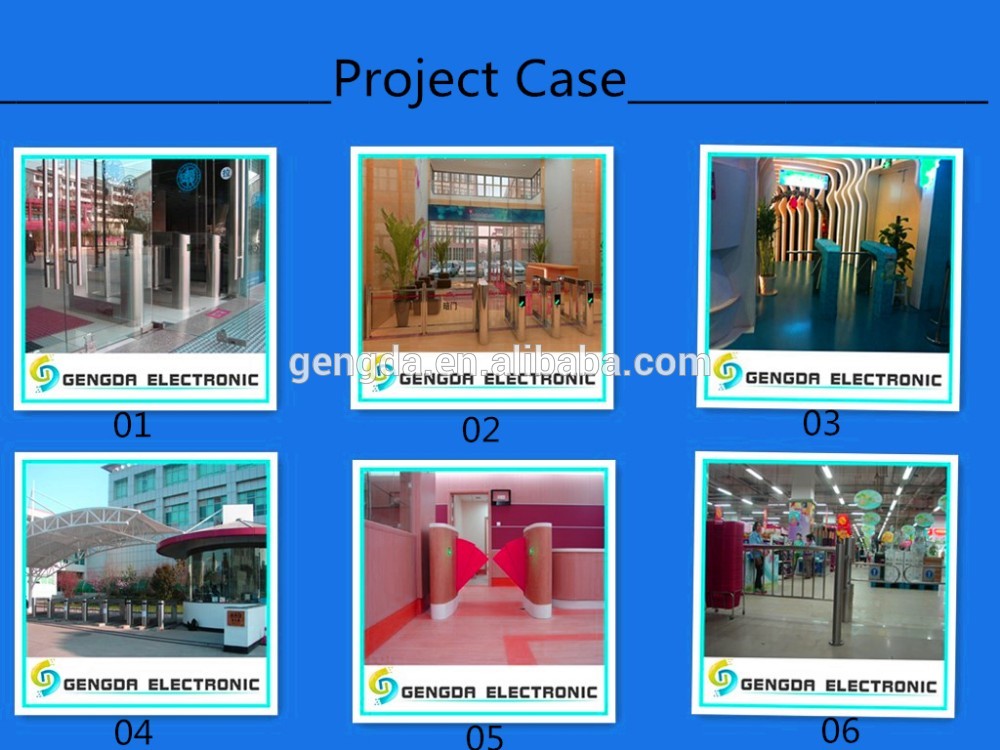

01:Shanghai University 02:Company in Korea
03:Aquarium in Shanghai 04:Company in Zhejiang
05:Company in Singapore 06:Supermarket in Jiangsu

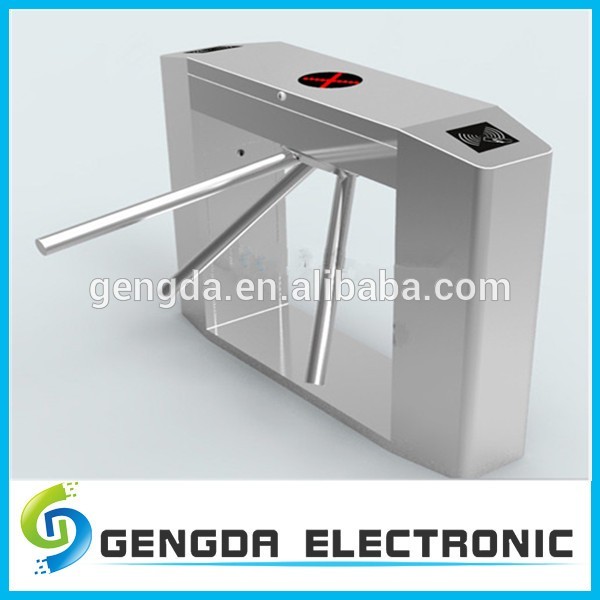

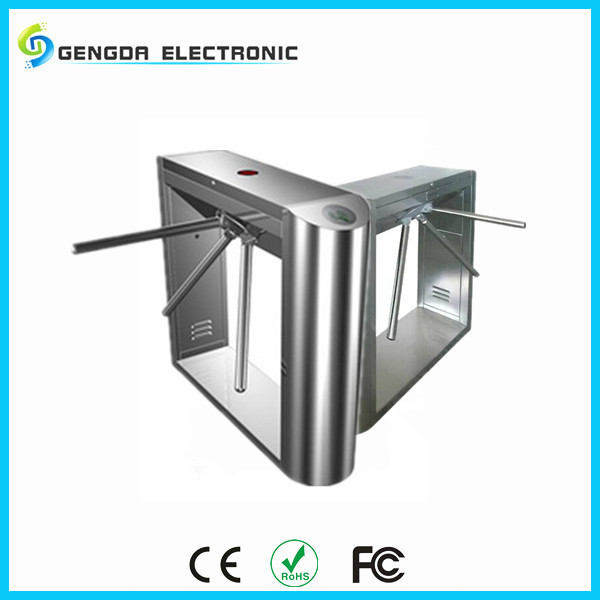

Gate access control turnstile main features:
1 Stainless steel housing
2 Bi-direction pass
3 Arms auto drop when power off
4 Arms auto rise up when power on and auto stop on abstacle
5 Traffic light indicator
6 RFID interface
7 Photoelectric inspection
8 Passenger counter (optional)
9 If the passenger does not pass in the valid time, the passenger will be locked up again.. the valid passing time can be set up by operator
Gate access control turnstile specifications: .
Brand name |
Gate access control turnstile |
Housing material | 304# stainless steel, corosion resistant |

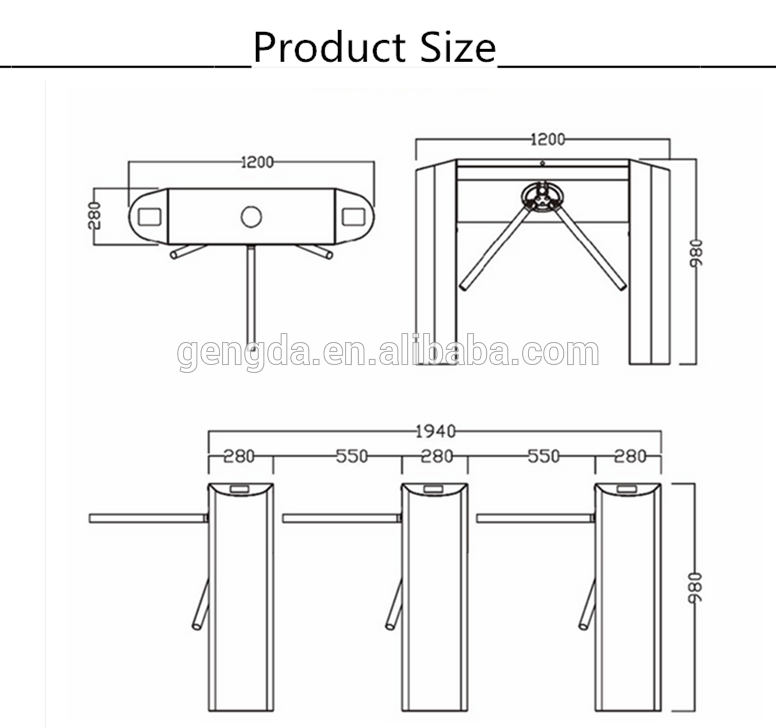

Dimension | 1200*280*1000mm |
Channel width | 600 mm |
Lifetime | 6,000,000 times |
Control mode | semi-automatic / hand movement |
Passage way | one-way / bothway |
Working environments | indoor / outdoor |
Power source | AC220V |
Frequency | 50 Hz |
Working temperature | -15°C—75°C |
Working humidity | 0~95%RH coagulation free |
Pass speed | 30 ≤ 40 persons/min |
Input interface | COM switch signal |
Communication Connection | RS485 |
railing-off against power off | Yes |
Waterproof and Dustproof | above IP32 |
Working noise | less than 65 db |
Application:
Gate access control turnstile is your ideal choice for entrance control and widely applied in:Community, school, bank, seabeach, shopping center and so on.
Other place:
1. Industrial zones
2. Administrative buildings
3. Recreation centers
4. Amusement parks
5. Financial institutions
6.Government agencies
7. Airports
8. Bus and railway stations
9. Offices.
1.Q:Why choose us?
High quality and good services.We are not only doing business, we are making friends also! We can offer you best buying experience.
We are professional.We are manufacturer .Any question will be solved in few minutes, 24 hours online!
2.Q:How can you install it?
We will offer you software for free and teach you by video or by picture in person.
3.Q:You want special type
We can offer custom made within 10 days.
4.Q:How about after sales service?
1~2 years warranty.24 hours service .
Paper box inside
Wooden box outside
Thanks for viewing and looking forward your inquiry!
