access control counter turnstile

Suitable for one-way or two-way people flow control, such as the government, school, hospital, bank, club, club, station, wharf, enterprises and institutions, industrial parks, residential area, etc.

Technical Feature

  • Guangdong, China (Mainland)
  • GOS SYSTEM
  • GS/T020205
  • Tripod Turnstile
  • access control counter turnstile
  • 1200 * 280 * 980mm
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Guangdong, China (Mainland)
Brand Name
GOS SYSTEM
Model Number
GS/T020205
Product name
Tripod Turnstile
Type
access control counter turnstile
Dimension
1200 * 280 * 980mm
Material
304 Stainless Steel
Application
School
Length of pod
500mm
Communication
TCP IP
control
semi-automatic

DETAIL DESCRIPTION

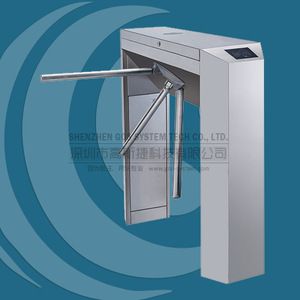

access control counter turnstile

Suitable for one-way or two-way people flow control, such as the government, school, hospital, bank, club, club, station, wharf, enterprises and institutions, industrial parks, residential area, etc.

Technical Data

SPECIFICATION  FOR
Dimension
L1200*W280*H980mm
Material
304 stainless steel
Width of channel
550 mm
Length of rod
standard 500mm
Type
Power off rod fall down automatically. Manual lift up rod when power on
Control direction
Single way or both ways (optional)
Alarm
violence entry and following
Pass speed
30 person/ min
Voltage
AC110V~AC220V
Working temperature
-30℃ to 60℃
Working humidity
<95%RH. No condensation
Communication
TCPIP or RS485



Feature

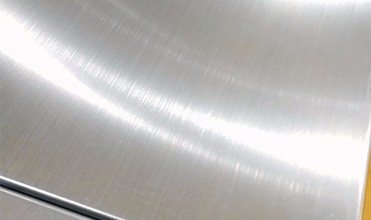

Housing use SUS 304 stainless steel

Corrosion resistance, wear resistance, high temperature resistance, good corrosion resistance

Exquisite technology, excellent materials

Housing use 1.2mm stainless steel, top cover use 1.5mm stainless steel.More strong. With high brightness LED direction indicate light and reader.

Special chrome processing

Chrome plating process on the surface smooth, corrosion protection is stronger, chromium coating has high hardness, good heat resistance and abrasion resistance. In electroplating processes, electroplating processing parts difficult to deformation, do not affect later plating process, mature and stable technology.

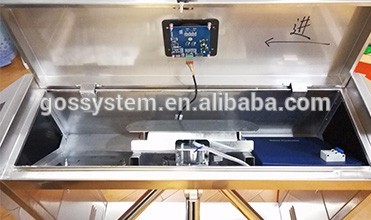

Smart Controller

Secondary development of the two-dimensional code, card reading, attendance, and other functions. Capacitor and filter elements for each section provides good power support, powerful power smart boards, use life has been greatly enhanced.

Details

Our Services

Pre-sale service

  • Respond to inquiries within 24 hours.
  • Professional pre-sales service technology to provide a full range of solutions.
  • Welcome to visit our company and factory.

After sale service

  • Could offer professional use, installation and adjustment training.
  • The technician give technical support by remote or to on site.
  • One year warranty. Any quality problem, we give free replacement.
