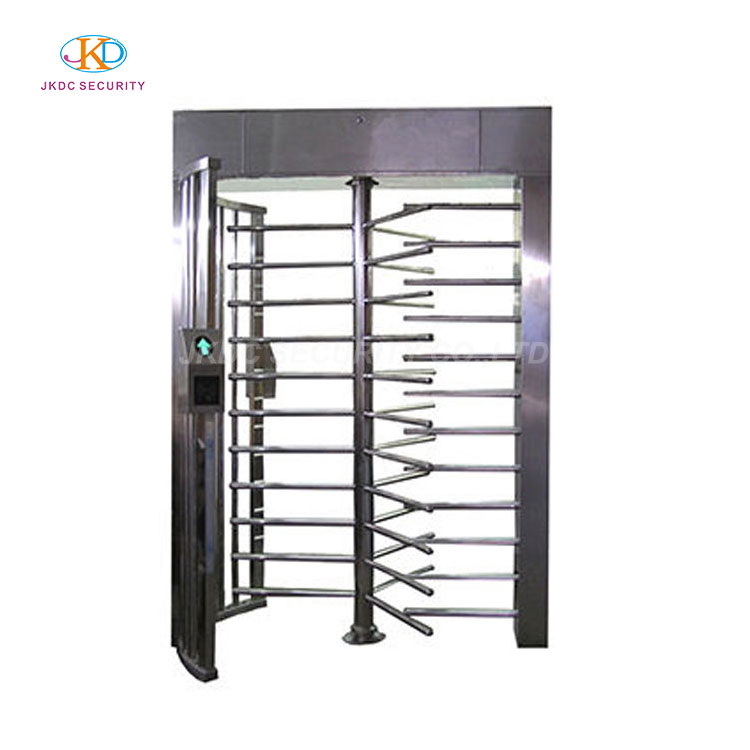

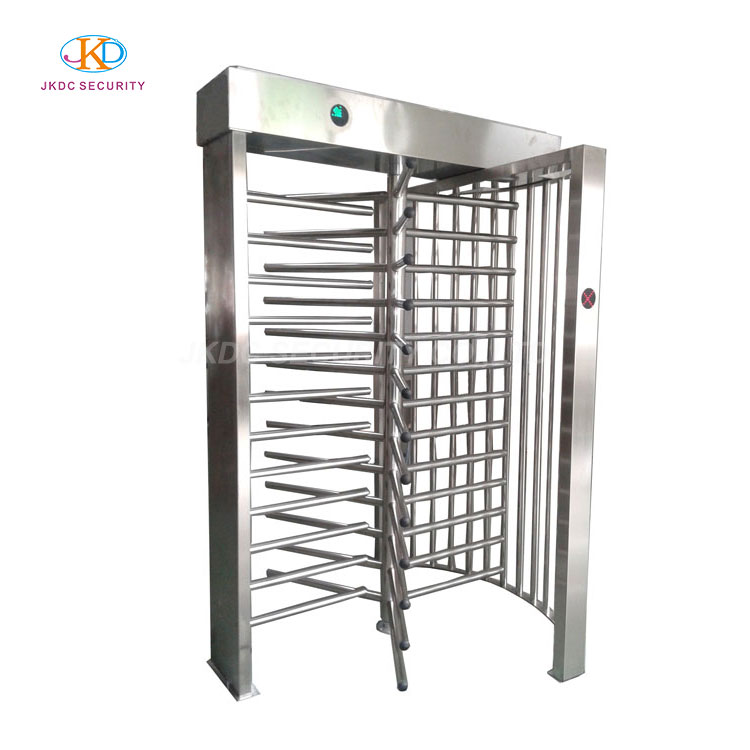

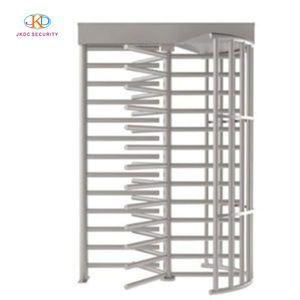

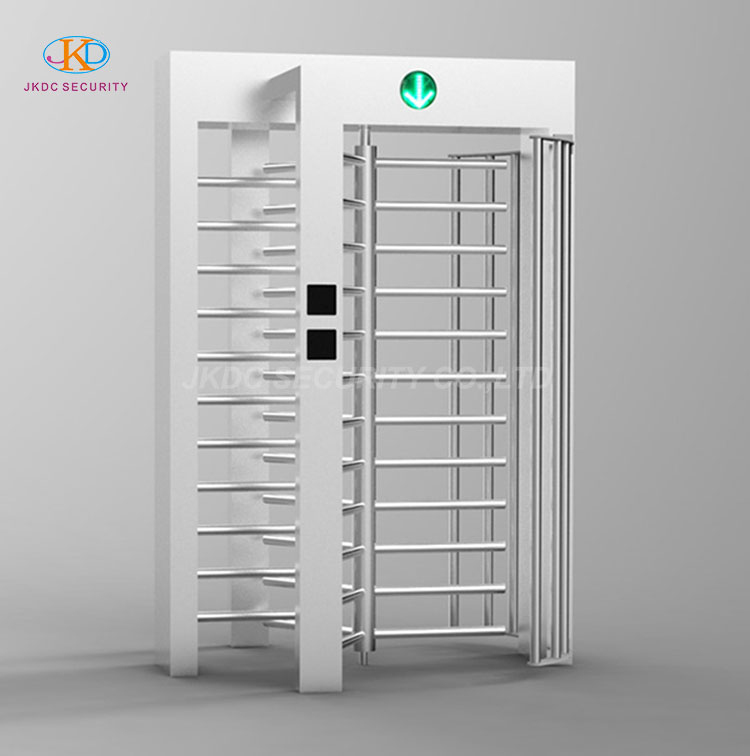

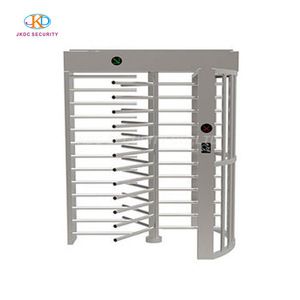

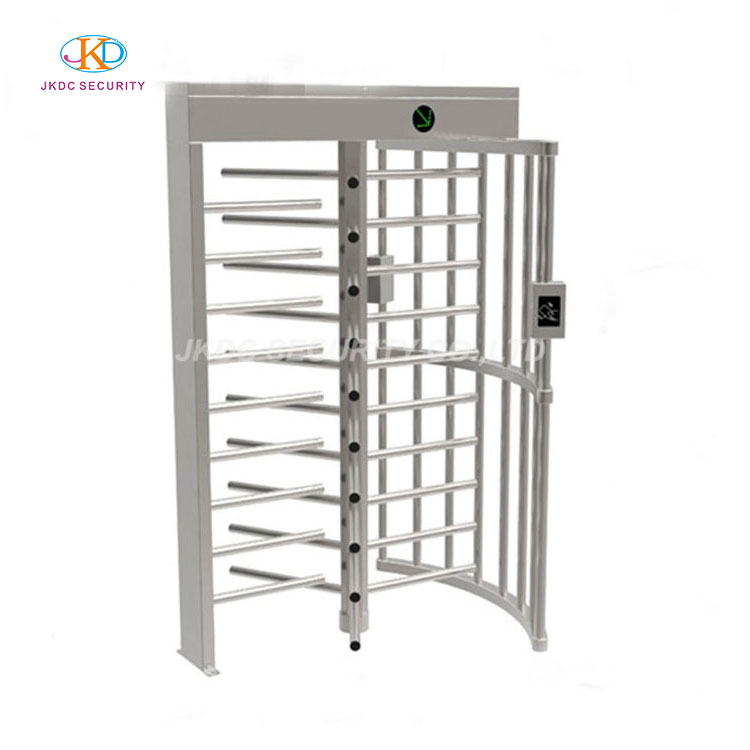

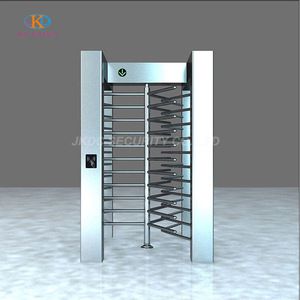

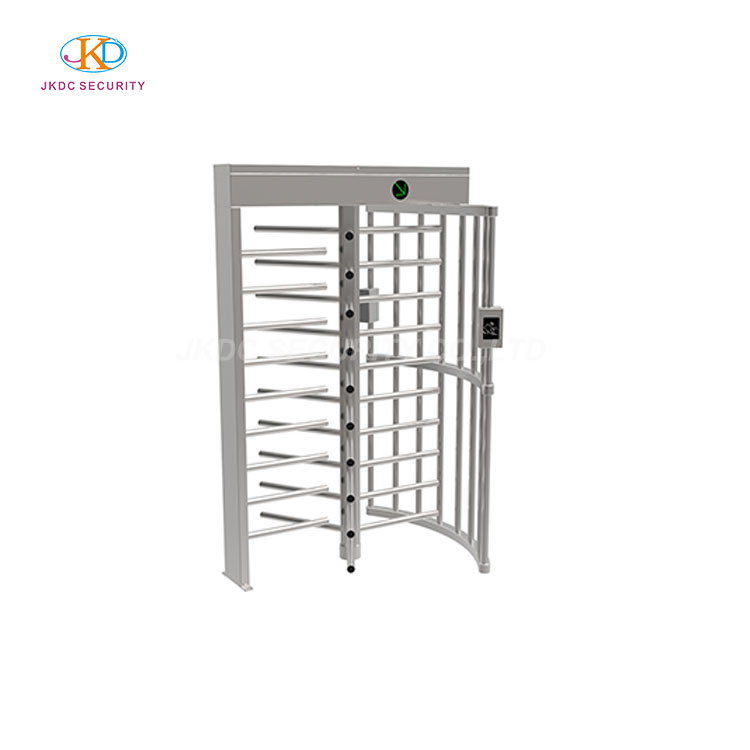

JKDJ-200A Full Height Turnstile automatic Security system turnstile access control system revolving full height turnstiles
Bidirectional Full Height Turnstile
Security Turnstiles Prices
Full Height Turnstile
Automated Full Height Turnstile
Full Height Rotation Turnstile

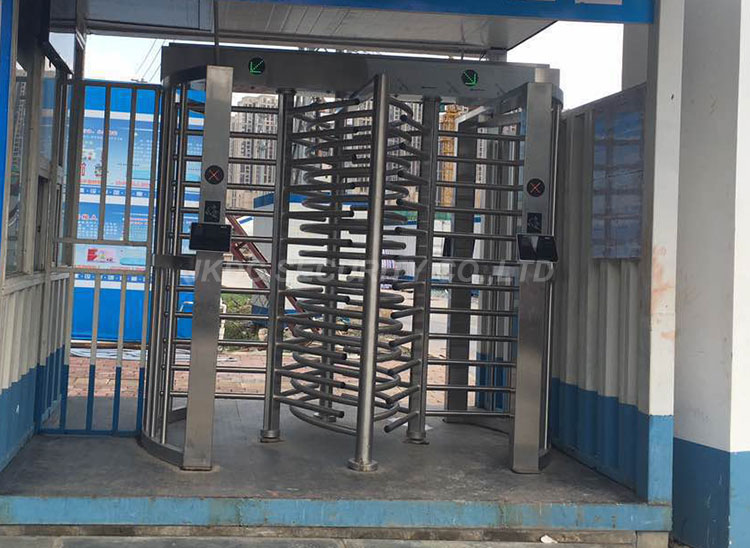

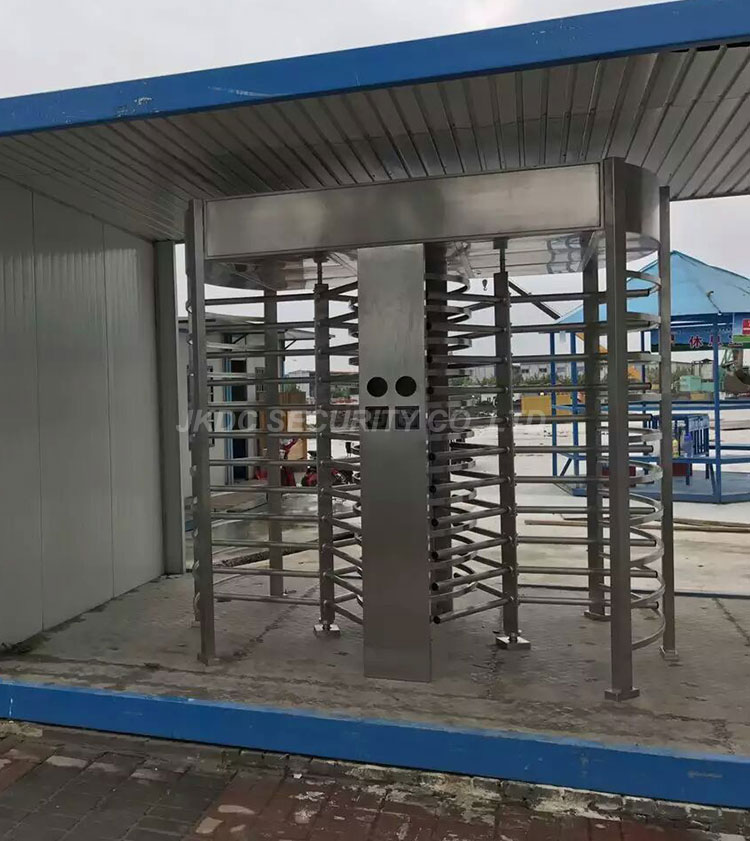

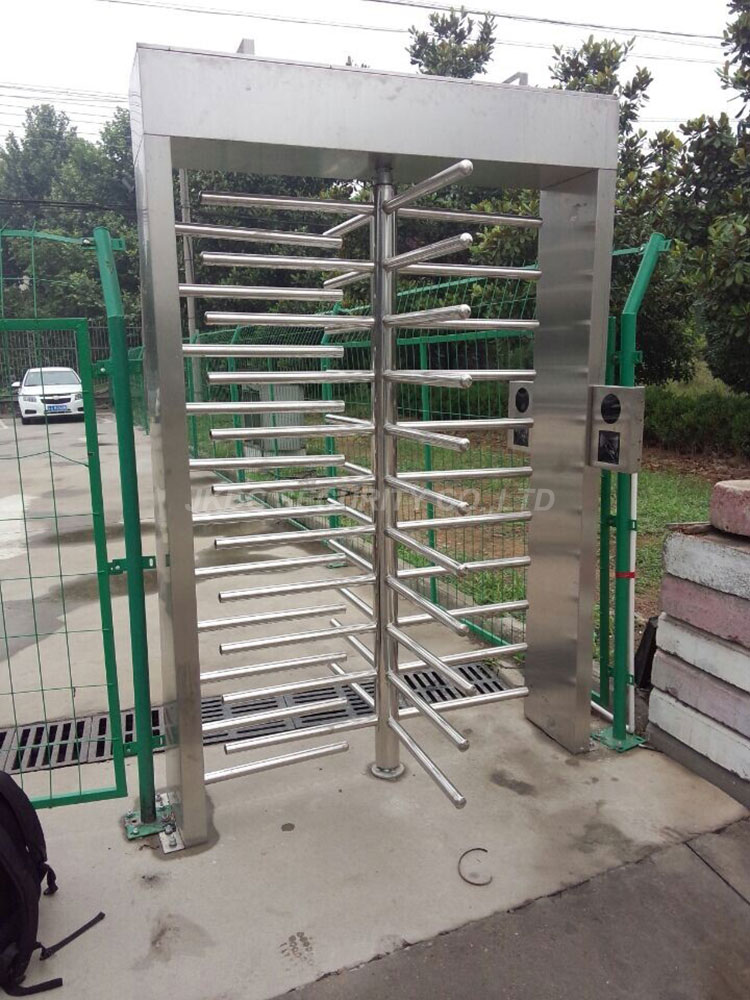

Full Height Turnstile is generally used in simple dissuasion level access control of public passages. It is widely used in work attendance checking systems of factories, consumption systems of public institutions, access control of residential estates, ticket exit systems of scenic, sports and other arenas, handkey management systems of construction sites and so on. The mechanical part of the turnstile contains an emergency control device, which allows free passage in case of power fail. The turnstile has different optional configurations for the applications of all building conditions and for the control of all kinds of passage entrance-exits. Different identification systems (ID card, IC card, bar-code, handkey, fingerprint, iris, etc.) can be configured into the turnstile system. The turnstile can be connected to any kinds of controllers and various consumption devices.
Features and Functions:
1. Rainproof housing, anti-corrosion coating iron or #304 stainless steel
2. CNC stamping and laser drilling, presenting a novel and elegant appearance
3. Innovative and unique mounting surface ensures simple and convenient installation for system integrators;
4. Direction can be set as single-direction or bi-direction
5. Direction indicator
6. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)
7. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically;
8. With backup battery, complying with fire safety requirements.
9. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.
10. Dual-bearing device, keeping the gate in balance when there is external force.
Technical Specifications:
Model | JKDJ-200 |
Voltage | AC 220V/110V±10% |
Frequency | 50/60Hz |
Current | 3A |
Control circuit: | DC24V |
Power consumption | 40W |
Working temperature | -20°C~60°C |
Working humidity | 0~95%RH |
Maximum bearing capacity | 80kgs |
Bar length | 550mm |

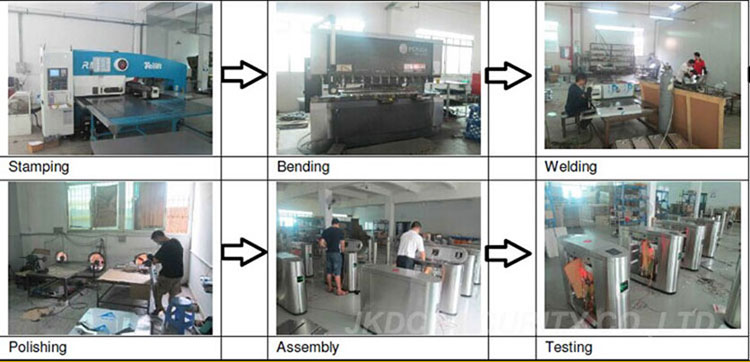

JKDC Security Co. Ltd established in Shenzhen, has been specialized in security equipments since 2002. Through decades of development, we have built a high reputation in Chinese security industry, also we have got many faithful friends as well as customers all over the world.
Most of our customers choose us for certain reasons:
Δ.More than 10 years experience with thousands of stable projects.
Δ.Advanced technology and competitive price.
Δ.Professional production and fast delivery.
Δ.Excellent after sale service.
Standard Export ploy Wooden Case
Delivery detail:
1.When ship by sea, it normally takes 15-60 days depend on different countries.
2. We ship goods by UPS/DHL/FEDEX/TNT express which is door to door, it normally takes 3~ 7 days to arrive;
3. We can also help you ship by air cargo, it takes about 5-7 days to arrive;
No matter what delivery way, depending on your actual requirements.
