Hand Sensor Switch,Switch For Automatic Door Access Control System

The product can be used for the sensing control of non-contact access control at entrance and exit, such operation is convenient, avoiding hand contact pollution.

Technical Feature

  • Zhejiang, China (Mainland)
  • Olide
  • 1-20cm(adjustable)
  • AC/DC 12-36V
  • 55mA
  • 38KHZ
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Zhejiang, China (Mainland)
Brand Name
Olide
Sensing distance
1-20cm(adjustable)
Power supply
AC/DC 12-36V
Action current(when under DC12V)
55mA
Modulation demodulation frequency
38KHZ

DETAIL DESCRIPTION

Door Exit Hand Sensor Switch

Product application

The product can be used for the sensing control of non-contact access control at entrance and exit, such operation is convenient, avoiding hand contact pollution.

General characteristics

1. Imported high sensitivity infrared sensor has timely and convenient sensing ability.

2. It adopts the design of 86-type switch panel, equipped with a special bottom box, convenient for installing in various occasions.

3. The latest magnetic metal panel appearance design is more exquisite and fashionable.

4. It has dry relay contact outputs, convenient for connection with various access controllers.



Technical parameters

Sensing distance:

1-20cm(adjustable)

Power supply:

AC/DC 12-36V

Action current(when under DC12V):

55mA

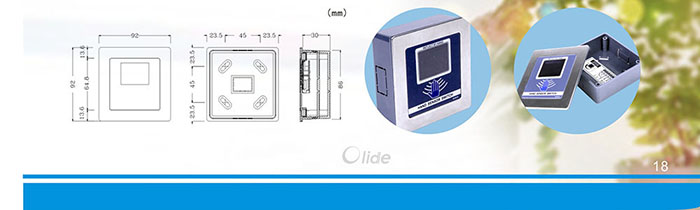

Outline size:

92(L)X92(W)X33(H)mm

Modulation demodulation frequency:

38KHZ

Opening size:

85(L)X85(W)X30(H)mm



Size
