parking access control system rs232 ttl automatic rfid card collection machine
card collection machine model for hot selling

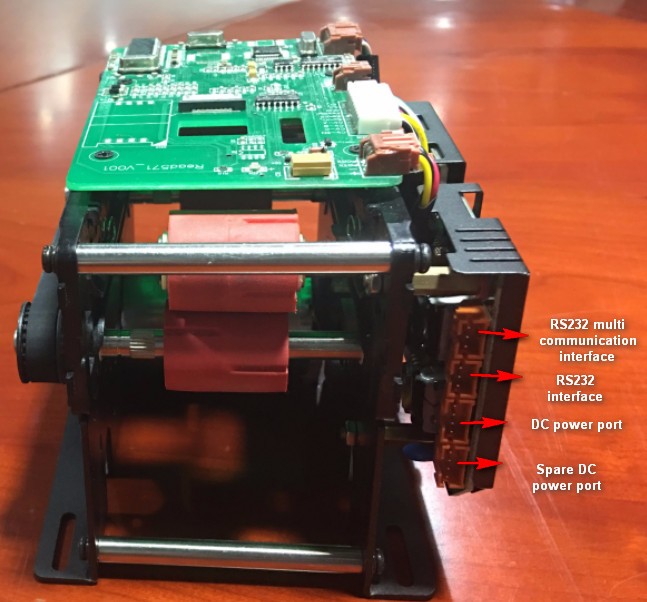

RS232/TTL interface available
Barcode scanning/IC RF reader optional

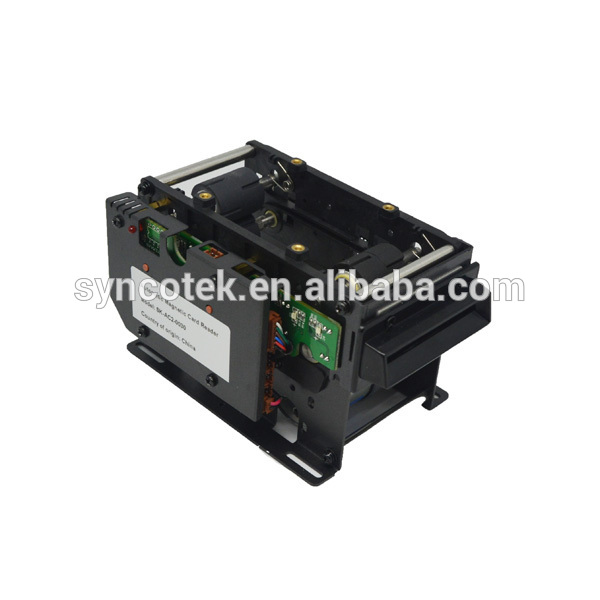

card collection machine Overview:

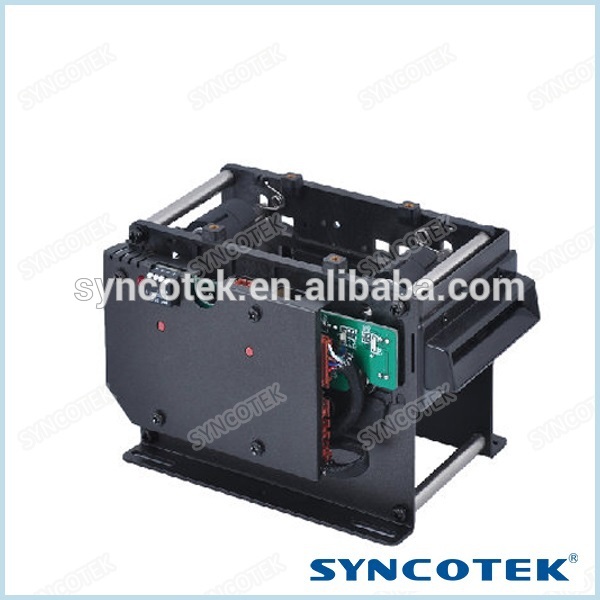

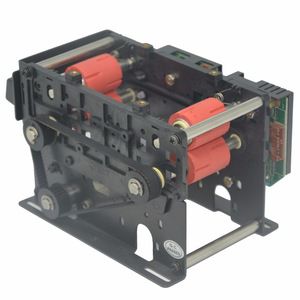

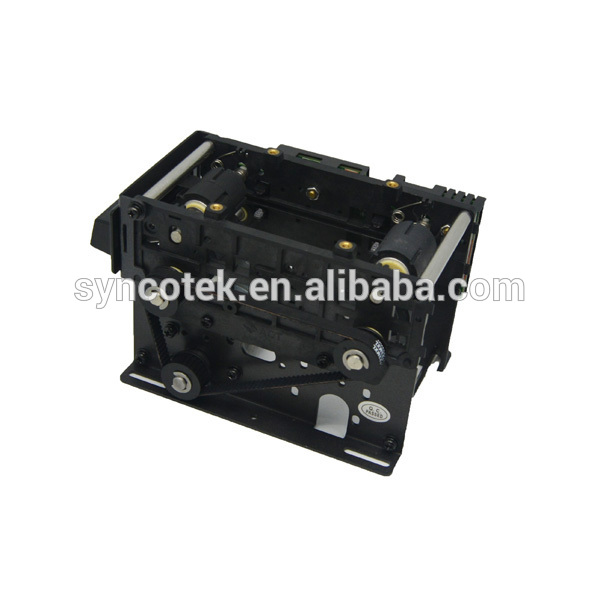

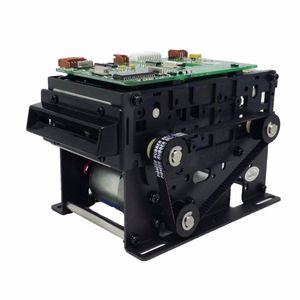

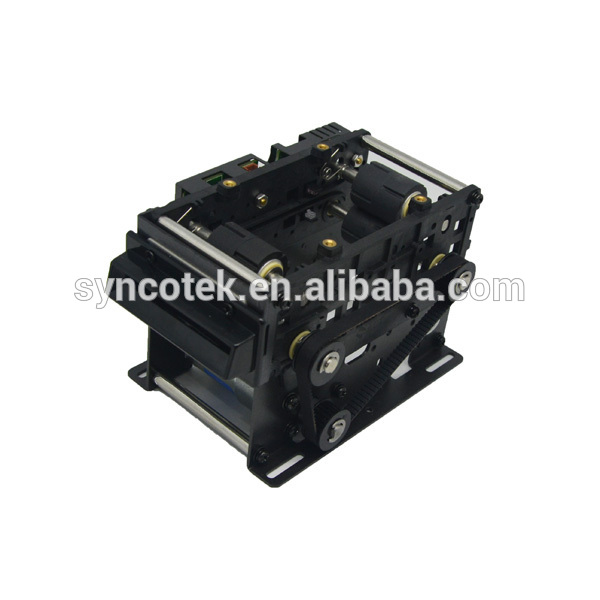

SK-AC2 series card collecting machine reserves installation space for antenna board of RF card reader,
which is capable of extending RF card reading function.
Fine wearable and anti-corrosive rubber material and metal support are adopted,
which can effectively prevent RF module from being interfered by metals.

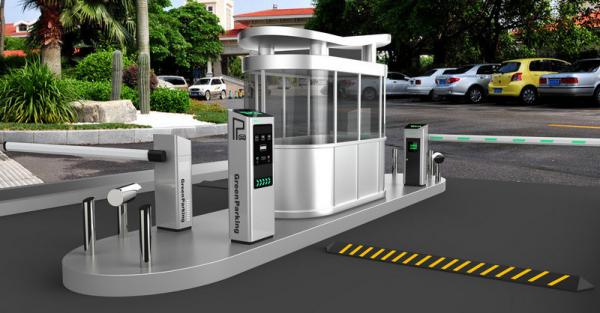

The product is extensively used in parking lot systems and sight spots, etc.
card collection machine functions
* Unique dispensing wheel design: effectively prevents from dust accumulation and it’s capable of self-cleaning.
* Extension-hole positions: are reserved for installation of RF module and scanning module.
* Wearable and anti-corrosive rubber material and metal support: are adopted, which can effectively prevent
RF module from being interfered by metals.
* Multiple levels of sensor circuit protection: prevents optical interference.
* Supports online upgrade program.
Applications for card collection machine
Widely used in Card Park, theatre, and other entertainment places of using member cards.
card collection machine Specification
Electrical | Power Supply | DC24V ± 5%,< 1.5A |
Quiescent Current | 100mA | |
Communication Method | RS232/TTL (optional) | |
Structure | Service Life | ≥ 1,000,000 passes |
Net Weight | Approx.600g (excluding accessories and package) | |
C/D Dimension | 126.7L x 93.8W x 82.3H mm | |
Environmental | Humidity | -10°C to 70°C, 0 to 90% RH without condensation |
Storage Temperature/ Humidity | -25°C to 80°C, 0 to 90% RH without condensation | |
Performance | Cards Supported | 86L x 55W mm(0.2~1.2mm thickness) |
