Automatic electronic parking barrier door access control board system for car parking management system

Product Description:

WS-A12 series access controller is a new generation controller for our door access control and parking barrier access control system, with 4 relay output and 4 Wiegand input interface for working with RFID card reader, electric lock, parking barrier gate and other smart devices, it can also working with door switch, PIR sensor, push button, break glass, and alarm device, to build a completed set of access control system.

We provide Standard English software, manual and protocol, the software support windows XP/7/8 and with access control, time attendance and patrol function.

The controller adopts a powerful processor, and support max 20,000 register card user and 100,000 access records, usually we use for two door access control system or parking barrier gate access control, and automatic gate access control, and other projects.

The device with convent functions such as offline operation, real time supervision, photo display, mass storage, flexible user privilege setup, remote unlocking, multi-user supervision, quick setting, convenient checking and query, revisable and printable report form. In addition, also support report form exported to excel file; card+password unlocking; alarm for long time unclosing; alarm for invalid card swiping; first card unlocking; alarm for illegal break in; unlocking at definite time; anti-pass back, e-map etc.

Specifications:

Mode: WS-A12

Ethernet Two door network access control
Dimension:
160mm (L) x 106mm (W) /without power supply
273mm (L) x 228mm (W) x 65mm (H) /with metal box
Working power: DC12V, 4A to 7A
Circuit board power consumption  less than 100mA
User capacity: 20,000
Record capacity: 100,000
Communication: TCP/IP, RS485
Reader Input: Wiegand 26 bit Compatible with all readers under the agreement, such as 125KHz and 13.56MHz RFID card reader with Wiegand input

Function Description can control one door, enter via card swiping and exit via card swiping or button
Working state: LED indicator & beep
Metal box & switch power supply for optional
Quantity of reader: 4pcs input
Can control the gate output relay  1pair
Open delay time 1-600 seconds adjustable
Maximum number of connections .No limited Operating temperature: -40 to 70 degrees Celsius
Run Humidity 10 to 90% RH, non-condensing
Power failure protection measures  high-speed flash memory design, and never lose data
Max distance between reader to the controller 100 meters, suggest within 80 meters
Max distance for the bus line: Depends on network cover area
Max distance between controller to the PC No limite
SDK available (suit for 32bit/64bit OS)

The Access Control Panel provides the solution for powerful combinations of access control and alarm monitoring within off-line networks.
The user-friendly Access software programs the system within a few minutes, from a non-dedicated PC.
Access Software provides numerous access control and alarm monitoring features: expiry date for clubs, automatic activation, interlock between two doors, time zones, supervision, anti-pass back, activity reports...

Each alarm input is programmable: operating mode (NO or NC), time zones, local reflex (activation of outputs according to input status).
Specific alarms are triggered according to the number of unsuccessful attempts, the time limit for door closing (door alarm), the duress code...
Whenever required, the data stored in the controllers is transferred to the computer and activity reports are printed. Each controller works independently and keeps its own database.

Typical Application:

Door access control

Parking barrier gate access control

Time attendance

Electric lift control

Elevator access control

Walking channel control

E-park management system

Turnstile gate access control

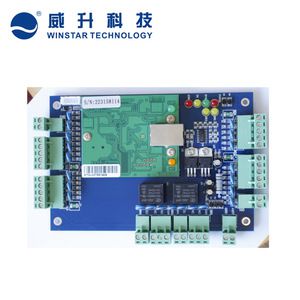

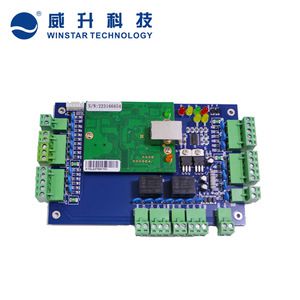

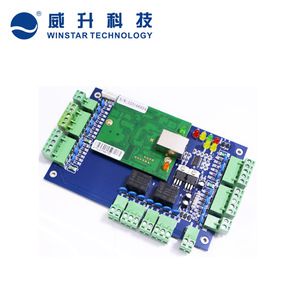

Appearance:

Please refer to these pictures for understand WS-A12 access controller:

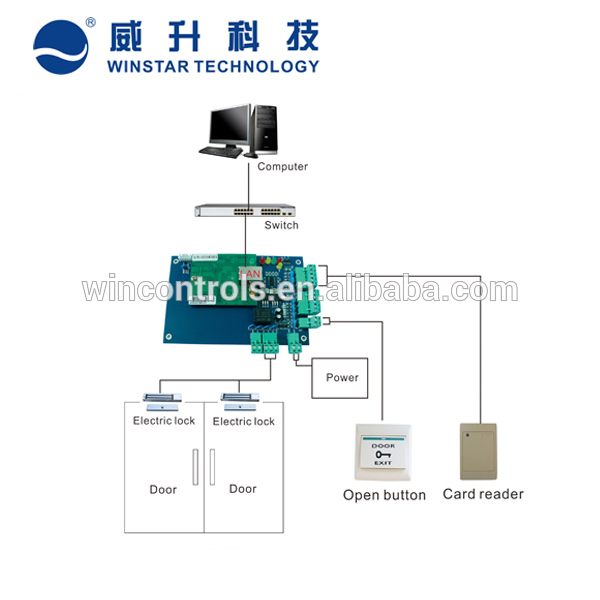

Standard access control structure:

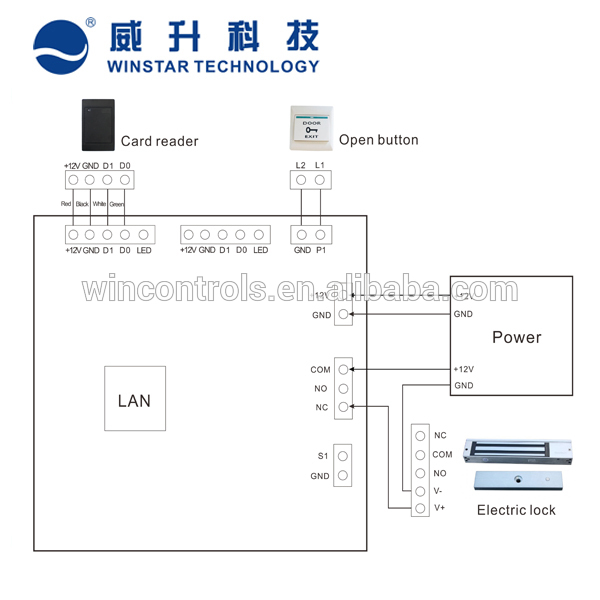

Please refer to below picture:

Why Choose Us?

Our advantages:

1. We are professional access control hardware provider, can based on your project design and integrate a completed set of access control solution.

2. Our factory have strong R&D department, can be offer you the system OEM/ODM service;

3. Our technical team support you solve the testing issue and tell you more information about the operation and installation details by mail or online tools.

4. Winstar Technology provide free training course for sales such as product technique questions and how to running after sales service for your customer.

5. We promise not only good quality, good price and superior service for our long term cooperation partner and agent, but also some special support like free sample, credit, special design, big promotion priority, etc.

Contact us for get more information and support,thanks!
