RFID/Ticket full automatic car parkingaccess control system

1.System characteristics

This system uses the latest programming technology, user-friendly, simple and easy to use.

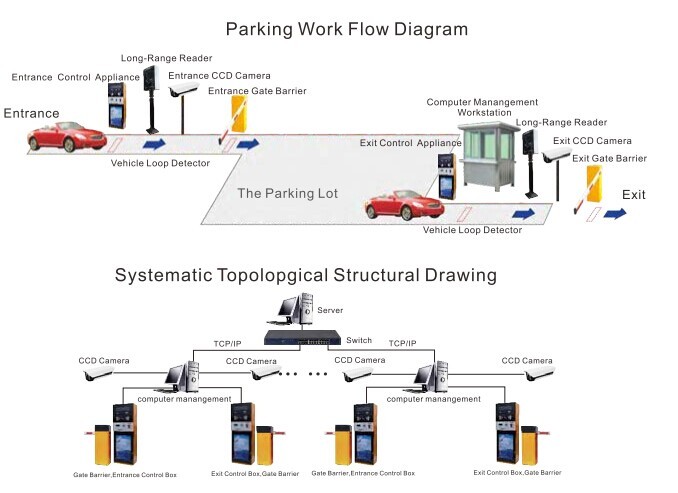

System architecture

Using b/s structure management platform to realize network management parking system at home.

Fully function

Comprehensive car park management capabilities, users can modify configuration files to meet the parking demands.

Graphical Reports

Graphical reports allow users to clearly understand the system.

Integration

One - stop management of the company's various types of parking products, and product records, the log records.

2.Main Products

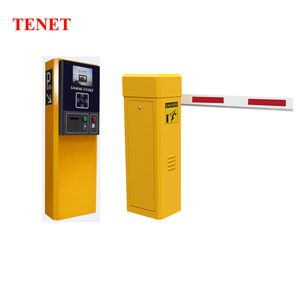

Automatic Entry Terminal

1) Entrance Control unit

2) Single Loop Detector

3) HENGSTLER paper ticket Pirnter

4) IC Card reader for monthly user

5) User info LCD,Power Supply,Thermostat Hydrostat,Circuit breaker

6) Ticket bin

Automatic Exit Terminal

1) Entrance Control unit

2) Single Loop Detector

3) Honeywell paper scanner with paper receiver

4) IC Card reader for monthly user

5) User info LCD,Power Supply,Thermostat Hydrostat,Circuit breaker

5) Ticket bin

6) Borcode Reader

7) Cash Box and Bill Printer

3.Process of Paper Ticket Parking System

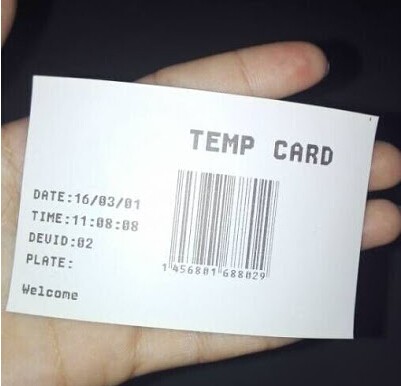

1)In enter,When customers press the ticket button, they get a thermal ticket like this one:

   Barrier gate open,the parker come in the parking lot.

2)When the customer want to leave the parking lot, they could pay with this ticket at the auto pay machine or at the exit to the guard. Today we only talk about pay to the guard.The paper ticket scanned by the barcode reader and led display shows how much customer need to pay.

   Barrier gate open,the parker leave the parking lot.
