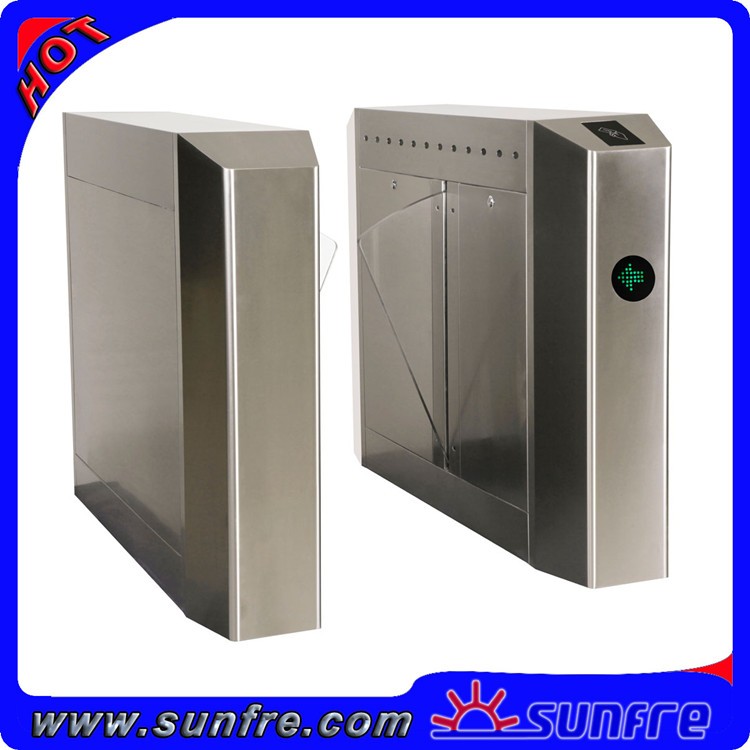

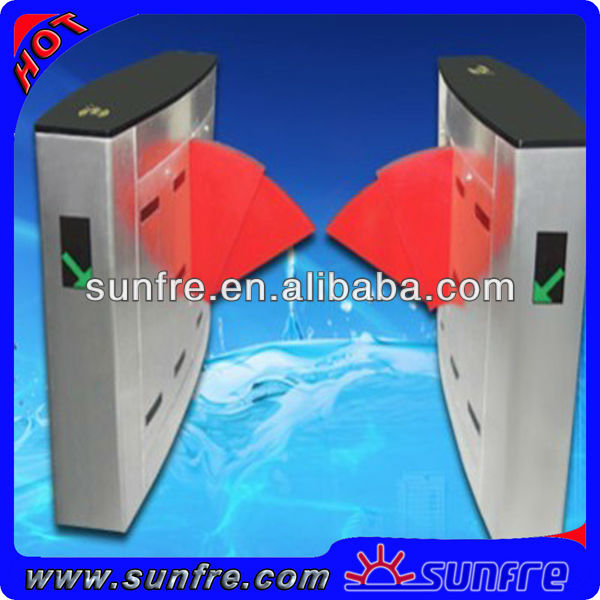

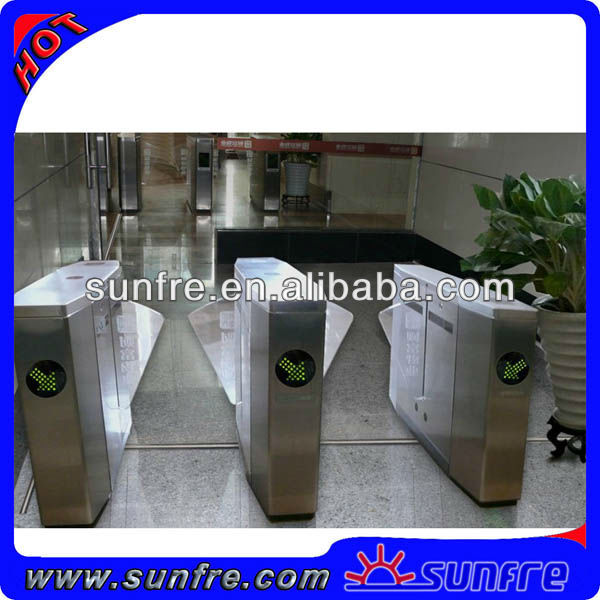

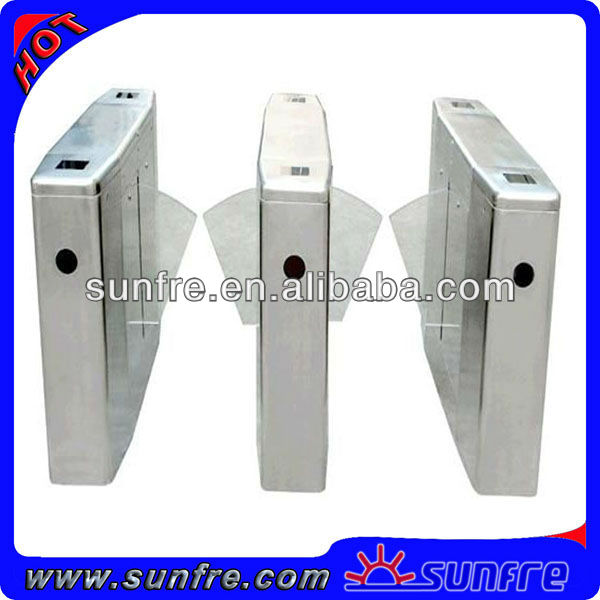

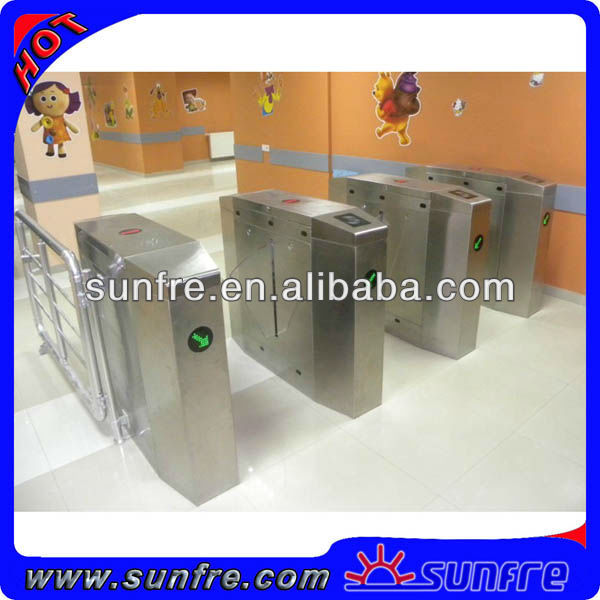

Automatic pedestrian access control system 304 stainless steel waist height flap gate
1. Brief Description
The intelligent flap barrier is one of the serial products of intelligent passage management series from Our Company. It possesses superiority incomparable with the traditional management mode. Whether on the control right of passenger for passing, or on tolling, attendant or counting of the passenger, there will be a great deal of man power and material, a lot of spending, a large amount of work and a very low efficiency resulted with the traditional management mode. However, it is the strong merit point of the intelligent passage management product to solve the problems of this kind. It is the scientific crystallization of the highly development of social civilization and it opens a new era for the scientific management.
The outline of the product is formed after pressing the stainless steel plate. The shape is featured as a pleasing appearance, a good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the product with read/write facilities. A special control system is equipped in the product to meet the requirement of fire control, so that the smooth passage flow is ensured, realizing a timely diverting of passengers. The product is featured as stable in performance, safe and reliable, and can be used widely in the places where passenger flow is great and monitoring is needed such as stations, harbors and guest house.
2. Main Functions and Features of the System
1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
2) DC Brushless Motor, Maintenance Free
3) On-line or off –line mode(optional)
4) Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation
5) With direction indication, guiding passenger to entry and exit.
6) Self automatic locking to prevent forcedly passing without the card
7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000
8) Light and sound alarm indication function, preventing illegal entry or irregular passing
9) Powerful on-line intelligent control mode, facilitating you:
A)To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.
B)To set up operation mode for passage entry and exit.
C)To read card with multiple times, the special function meeting the application requirements of a particular site.
D)To set up the card reading with or without memory.
E)To select a reasonable normally open or close mode, to divert the flow of passengers effectively.
F) Setting function humanized for reset of over time passing.
10)The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.
12) The processing mode in emergency or in special conditions.
13) Having standard input/output port, facilitating the integration of the system and the other equipment, to realize far end control management.
14) Super combination capability, with the combined application of products of different passage types and series, not affecting the system performance.
15) Strong system expending capability, available to add new product at any time
16) Far end control management: function to far end control of barrier mode, meeting the special requirements of the users and the fire protection
17) Resetting automatically. After reading card, if the passer didn’t pass at set time, the system will cancel pass permission automatically, the administrator can set the passing time by himself.
3. Main Technical Specifications
Material: SS304,thickness is no less than 1.5mm
Manufacturing Technique: CNC laser cutting
Barrier Material: Acrylic glass, SS304 and so on
Gate Opening and Closing time: ≤ 0.4S
Passing Speed: Normally open-50persons/min; Normally closed-50persons/min
Communication Connection: RS485 Communication
Power: AC220C±10V,50HZ
Motor: DC Brushless Motor, 140W/24V
Communication Distance: ≤1200M
10) Input Connection: +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma
11) Infrared Sensors: 9 or 10 Pairs
12) Relative Humidity: <95%, No Densation
13) Operating Temperature: -15°C-60°C
14) Working environment: indoor and outdoor(added the rain-shed)
15) Color: SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Color you like
16) Protection Grade: IP54
1. Provide free technical training, guidance and information of our products and accessories.
2. Our technical staff could instruct our customers on the installation of barrier gates, tripod turnstiles, flap barriers, swing barriers, full height turnstiles, parking barrier lock and etc, and deal with technical and quality issues.
3. We guarantee more than 10 years’ service life of our products with 1 years’ warranty and life maintenance.
4. Once receive the customer requirements and complaints, we will response within 24 hours.
5. Free maintenance and replacement will be provided if defects result from quality failure of our product.
6. Our company will provide technical services by phone, fax, e-mail, skype etc., please refer to the contact details.
7. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
8. Our company will provide perfect after-sale services and technical support.
Sunfre International Industrial (Shenzhen) Co., Ltd. is a high-tech enterprise in Shenzhen China, headquartered in Hong Kong, and now a leader in greater China in the research and development, manufacture and distribution of intelligent security and protection products and service. Sunfre products series mainly include automatic barrier gates, car parking facilities and systems, turnstiles (tripod turnstile, swing turnstile, flap turnstile, half height and full height turnstile), electrical folding gate, vehicle loop detectors, sliding gate openers, etc. Products cover a wide range series and models, and with comprehensive functions and high quality, can meet kinds of customers requirements. Sunfre Products passed the CE certification and ROHS certification, and welcome by all our customers.
Sunfre series of products with the innovative design, abundant and comprehensive functions, advanced production technology, steady and trustness quality, on time delivery and thorough service win the domestic and overseas customers highly recognized. Sunfre products sell to more than 50 countries all over the world, mainly in east and south Asia, Euro, north America and south America, Oceania or other areas.
Sunfre apply itself to provide our customers with constant innovative and high quality products, services and solutions, also provides ODM,OEM service to the related products, in order to create long term and steady customer satisfaction and value for our customers.

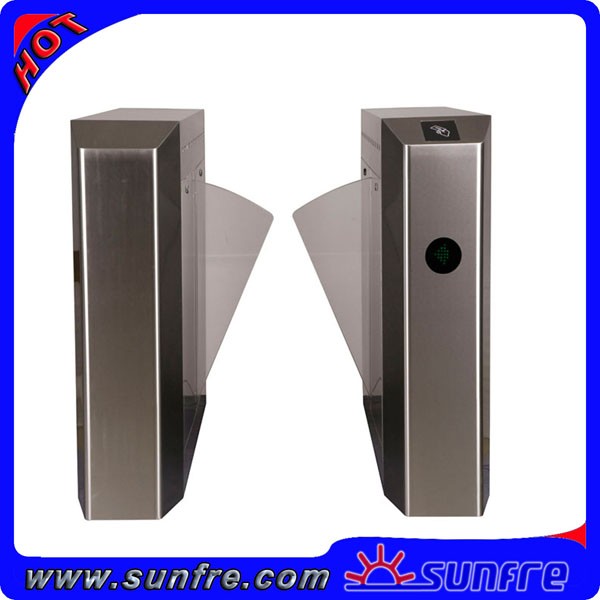

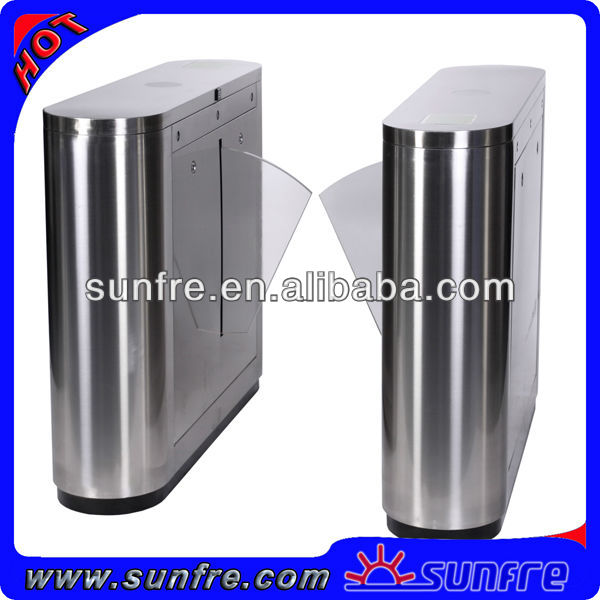

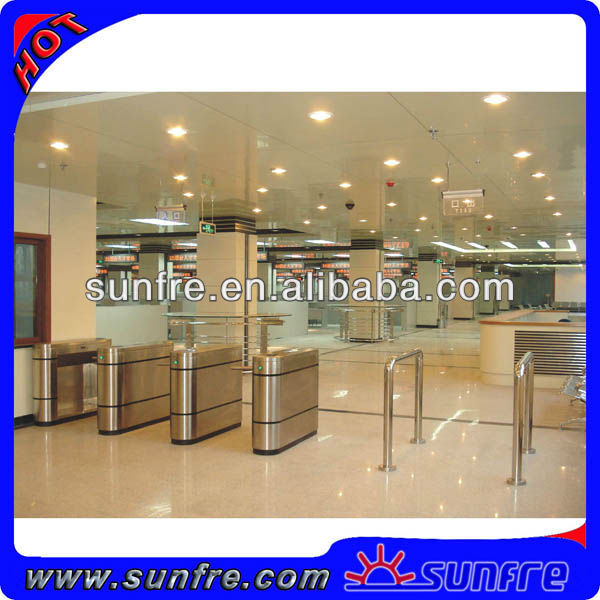

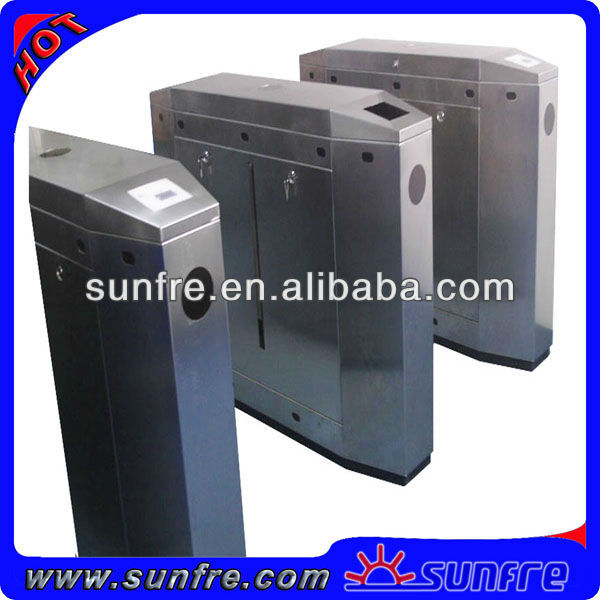

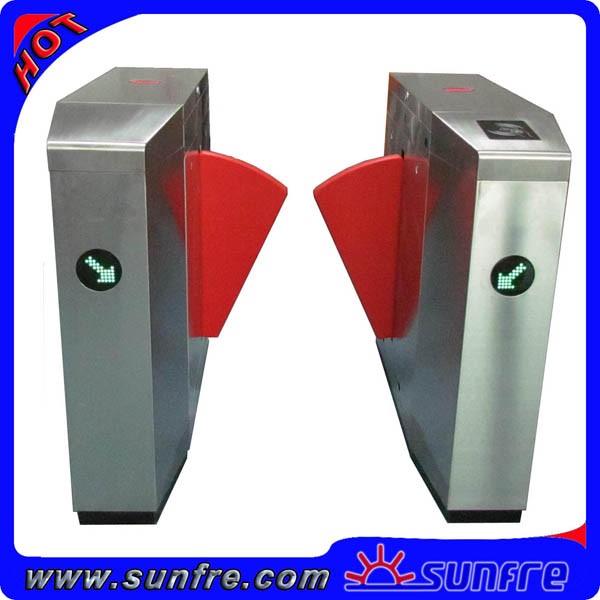

Product Show:

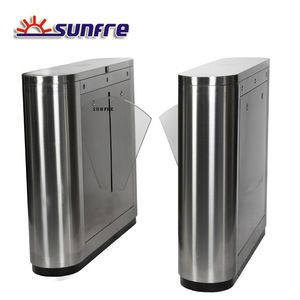

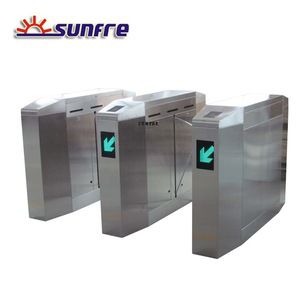

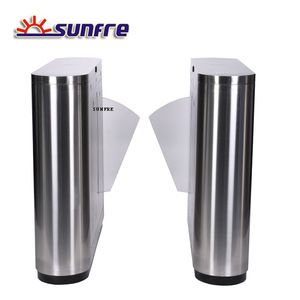

Freeway turnstiles
Freeway turnstiles
Freeway turnstiles
Freeway turnstiles
Freeway turnstiles
Freeway turnstiles
Lead Time: less than 15 days if not custom products
Warranty time: 12 month to 24 month accordingly
