esd access control automatic turnstile system

Test permissions can be tested according to the needs of hands and feet, making 4 combinations.

Technical Feature

  • Guangdong, China (Mainland)
  • NJ
  • NJ F322
  • 304 stainless steel vertical turnstile
  • fully automatic flap turnstile gate
  • 1200*300*980mm
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Guangdong, China (Mainland)
Brand Name
NJ
Model Number
NJ F322
Housing material
304 stainless steel vertical turnstile
Type
fully automatic flap turnstile gate
Product size
1200*300*980mm
channel width
550-600 mm
turnstile gate Driving Part
DC motor (24V)
Work Voltage
AC 220 (110 ) Vu00b110% 50 HZu00b110%
Normal Work Life
3,000,000 times
Communication interface
RS485 Communication Interface/TCP/IP(option)
Stainless thickness
standard 1.5mm,can be thickened
Transit Speed
< 40 person/min

DETAIL DESCRIPTION

Product Description

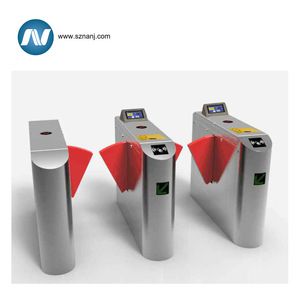

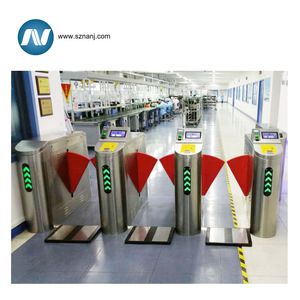

ESD System Flap Gate

F324

Vertical ESD Flap Turnstile

F321

ESD Tester Tripod Turnstile

T614

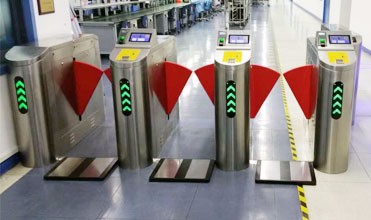

ESD Access Control

Why you need ESD System?


The Integrated Electrostatic testing access control system is an advanced product which combines the electrostatic testing and electronic access control system and computerized management software;


In many places where EPA is installed,the anti-static access control system ensure that the operator is ready to do manual grounding when entering the EPA area



What is ESD system?

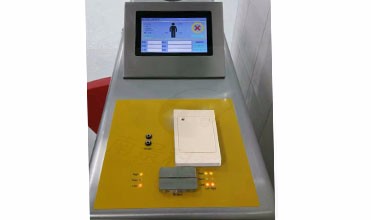

The system mainly consists of turnstile + human body comprehensive tester + reader card ( IC card) or fingerprint identifier, +LCD LCD display (optional) + management software + administrator host (company's existing computer)

ESD System Features

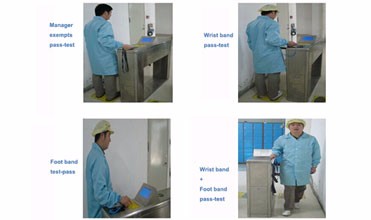

Test permissions can be tested according to the needs of hands and feet, making 4 combinations. And according to individual clearance level set permissions.

L1. VIP, free of test;
L2. IC Card (fingerprint ) + anti-static wrist band;
L3. IC Card (fingerprint ) + anti-static shoes;
L4. IC Card (fingerprint ) + anti-static wrist band + anti-static shoes

Flap Barrier
Technical Parameter
Flap Barrier Composition

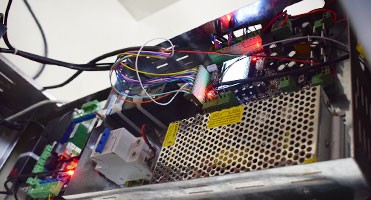

Chassis shell, Flap Arm, DC Motor, turnstile controller, turnstile movement , LED indicator,power supply, etc.
Flap Turnstile Chassis materials

Turnstile Chassis shell made of high quality stainless steel 304 conforming to the National Standard
Turnstile dimension

All turnstiles size can be customized,standard size 1400 * 300 * 1000 mm
Flap Turnstile Gate Channel width

All turnstiles channel width can be customized,standard normal width:600mm.Handicap width:900mm
Service environment

Temperature: -10°C~70°C; humidity: RH≤90% without condensation
Environment

indoor/outdoor (suggest with shed)
Power input

AC 110v / 220v , 50/60HZ
Input interface

Dry contact signal, 12V level signal or DC12V pulse
signal
Turnstile Features

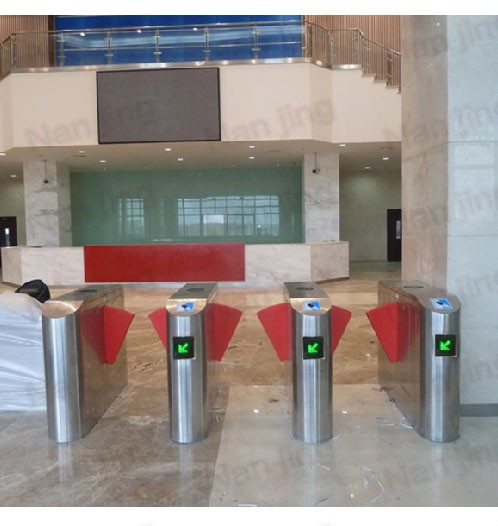

NJ Flap barriers are designed to control pedestrian entering and exiting,easy to integrate with other read/write devices, and widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.


1. Provide normally open / normally close to satisfy management request.

2. Compatible with RF card readers, bar code readers, biometric readers, push button.

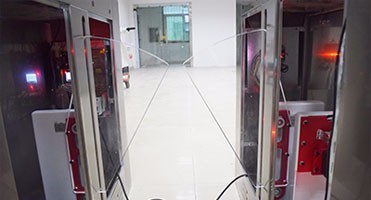

3. Equipped with infrared photocell, alarm while unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian.


4. Expanded to automatic identification system, access control system, Traffic control, attendance check and fare collection system etc.

5. Automatically reset : lock automatically while the pedestrian not pass the lane in the pre-set time after the flap opened. The passing time is adjustable.

6. Equipped with international interface, can be easily integrated with other R/W device and managed through remote supervision computer

Packing & Delivery
