Description for Flanged electric water immersion heater element

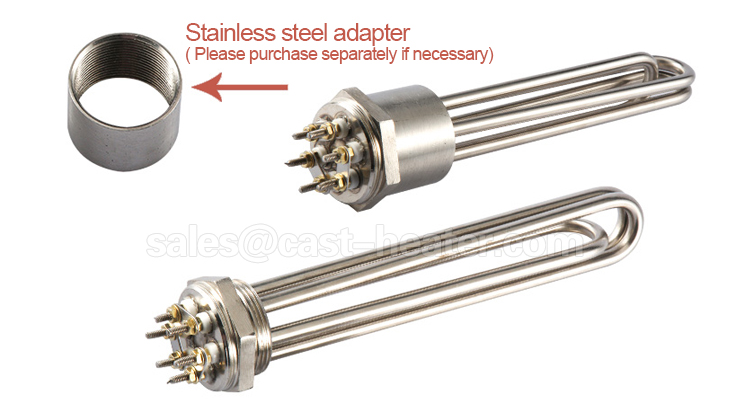

Xuanyuan flange immersion heating tubular are used by the process heat industry for a wide range of applications. This type features a broad selection of screw plug sizes, wattage, materials and junction box types. Screw plug heaters may be threaded directly into a sufficient tank wall or used with a companion coupling
Specifications for Flanged electric water immersion heater element
| Tube Material: SS 304,310S,316,800,840,Copper |
| Voltage:customized |
| Power:customized( (1500W-2500W) |
| Power tolerance:-5%-0% |
| Resistance wire: Ni80Cr20 or Ocr25AI5 |
| Tube diameter:7mm-9mm |

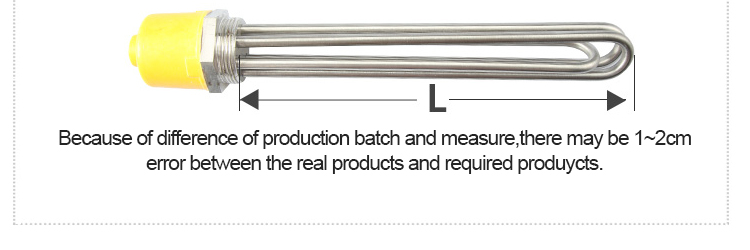

| Shape&Diamension:Customized |
| Leakage current is less than 0.5mA |
| Hi-pot (AC)test:1500V/min,2mA |
| Leakproofness:afford air pressure 1.5 MPa |
| Surface treatment:scale-proof or corrosion-proof |
Material analysis for Flanged electric water immersion heater element
C = Copper Sheath
Hot Water Storage for washrooms, showers, part washing or rinsing, freeze protection of sprinkler systems and cooling towers.
SA = 304 Stainless Steel
Tanks or processes with tar, asphalt, wax, heat transfer fluids, oil and other petroleum products, fuel oil, alcohol, caustic, and other "heavy" mediums.
SB = 316 Stainless Steel
Detergent based cleaning solutions, liquid ammonia, vegetable oil, Deionized water, electroless nickel and other alkaline plating solutions.
T = Titanium
Seawater, brine, chromic acid, Deionized water.
N = Incoloy
Air and many gases, Deionized water and other high temperature processes.
TF = Teflon
Hydrofluoric acid,ammonia bi-fluoride, Deionized water.

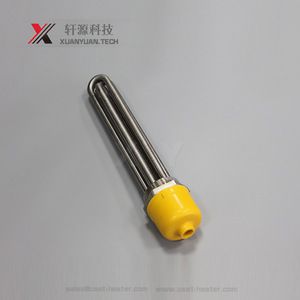

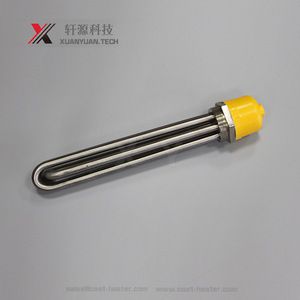

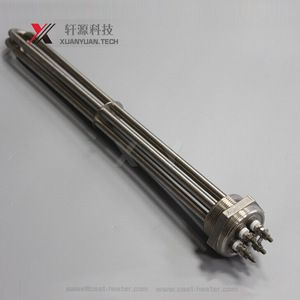

Product Photos of Flanged electric water immersion heater element

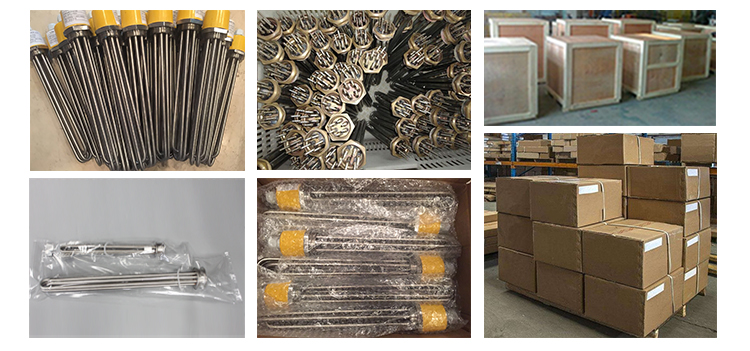

Packaging & Shipping
Packaging: carton box, wooden case or stainless steel immersion heater element with flange for water boiler
Delivery Detail:7-15 working days after CFM payment
Comopany Information
Yancheng Xuanyuan Heating Equipment Technology Co.,ltd are the direct supplier with more than 20 years of manufacturing Cast heaters , 3D pritner cartridge heaters , Mould heater rod ,Flange Heater,tubular heater,stainless steel heater, and so on .

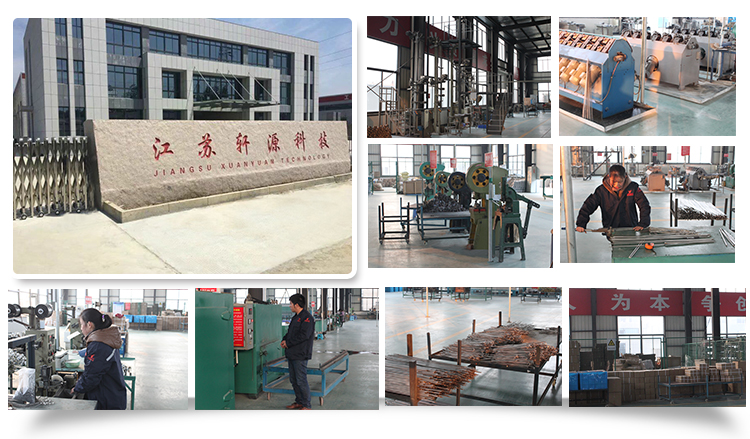

Our company has a modern standard working area of 10000 m2, There are 80 sets of various precision machining and checking facilities. It also has technical talented people over 30%. Our company has an abundant ability to develop new products and perfect checking means.
The company has obtained CE mark and ISO 9001 international quality system certificate. Product coverage nationwide and has entered Western Europe,North Africa, South America and Southeast Asia market.
