Dear Sir or Madam,
We're a manufacturing and trading combo, produce and Specialize in electric heating element for more than 10 years.
As CG Customized Finned Industrial Electric Tubular Air Heater element is customized for different sizes and shapes, we can not put all models on the web page.
Pls kindly contact us for exact quotation:
E-Mail: sales(@)cg-heater.com
WhatsApp/wechat/skype:0086-17372625162

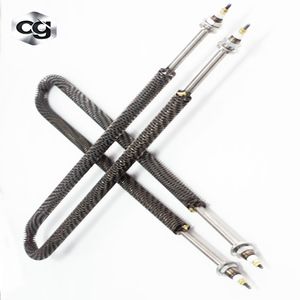

CG Customized Finned Industrial Electric Tubular Air Heater element
Tubular heating elements are constructed from a metal tubular sheath of material selected to suit a given application. This sheath, surrounds a helical coil of nickel-chrome resistance wire, centred and tightly compacted by an electrical insulator and heat transfer medium of magnesium oxide (MgO). This gives a resistance spiral that can be varied in heat concentration and cold length sections, protected from atmospheric corrosion and mechanical abuse. Mounting bushes, header boxes, flanges etc. can be fitted to suit all installation situations.
| CG Customized Finned Industrial Electric Tubular Air Heater element | |
| Sheath Material | Stainless steel/ Iron/ Incoloy 800,840/ Titanium |
| Insulation material | High-purity Mgo |
| Reisistance wire element | Ni-Cr/ FeCr |
| Tube Diameter | 8mm,10mm,12mm or customized |
| Terminations | Threaded stud/ Quick connect/ Flexible lead wires |
| Shape | Customized |
| Fin type | Round fin or square shape fin |
| Roud fin height | 5-10mm available |
| Square shape fin size | 25*50mm or 40*80mm |
| Fin material | Stainless steel/ Iron |
| Product Keywords | Electric finned tubular heater for loading resistor |
| Material | Maximum Sheath Temperature | Application |
| Copper | 350℉（170℃） | Water, Oil, Grease |
| Steel | 750℉（400℃） | Alkaline cleaning solutions, Tars, Asphalt or air heating |
| Stainless Steel | 1200℉（600℃） | Corrosive liquids, food processing equipment, Radiant heating |
| Incoloy | 1500℉（815℃） | Cleaning and degreasing solutions, Corrosive liquids |
Features
1.Precision
Precision is one of the main advantages of tubular heating elements. They allow for advanced temperature controls, better temperature maintenance, and precise heat transfer. Watt densities up to 120 WPSI are available and temperatures up to 750°C (1,382°F) can be reached. They have the flexibility to meet just about any application. The cold sections are also custom made to protect the terminals.Wide range of diameters available
2.Compact Size
The compact size of tubular heating elements holds many advantages. Their smaller, and custom sizes make for easy installation. Their size also makes them easy to clean, maintain or replace. The ability to easily remove and replace these elements means that the production period does not have to be paused for long.
3.Custom
Tubular heating elements are available in different shapes and sizes, designed for optimal durability. The elements are factory-configured to the optimal size and shape for the specific application. Custom bending of diameters and radiuses allow for better performance by meeting the form, fit and functions of applications.
Application
Depending on their rating, sheath and shape,electric tubular heaters are used in a variety of industrial heating applications (conduction, convection, radiation heating) that require process temperatures of up to 750°C (1 382°F) to heat liquids, gases and solids.
Order Guider
When you order the tubular heater, please note the specifications as follows:
1.Drawings preferred
2.Power,voltage,shape
3.Working temperature
4.Material requirement
5.Quantity
6.Other requirement required.
Please kindly note that we could do any customized type for you.
10mm 220v Cartridge Heater

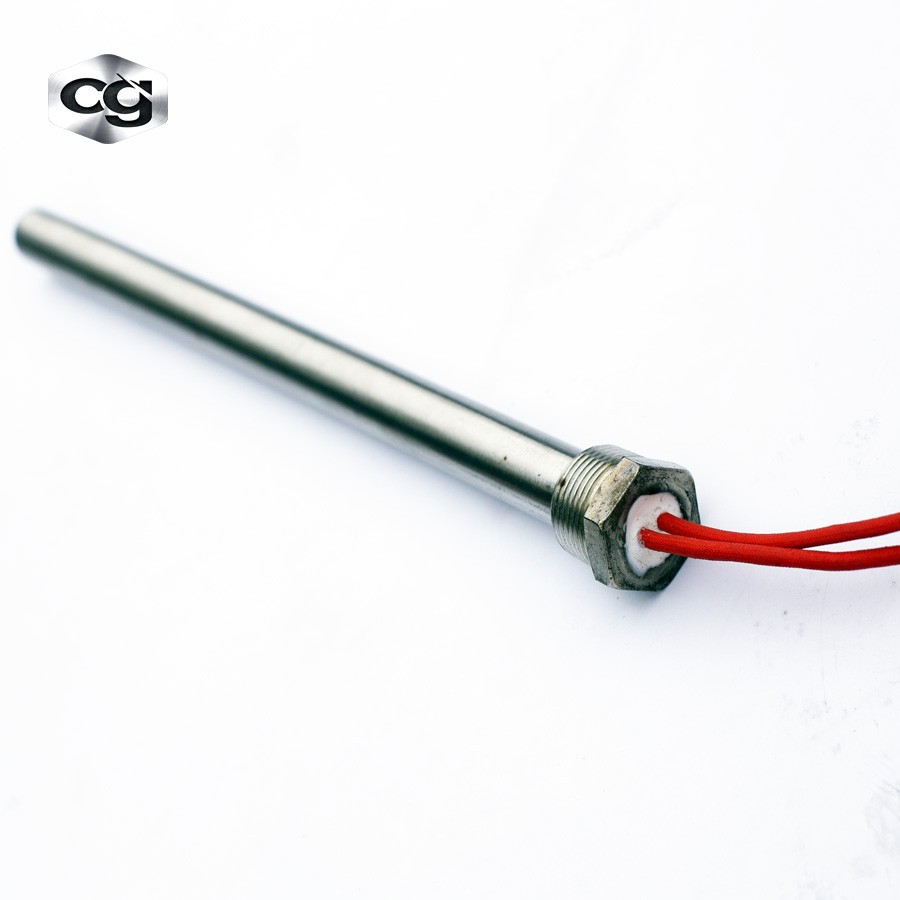

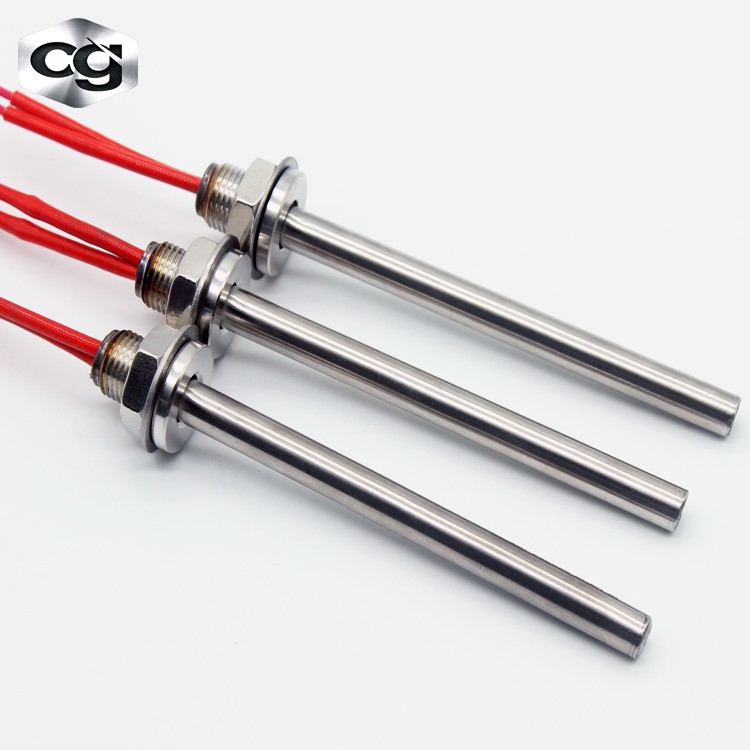

Thread Cartrdige Heater
4mm High Watt Cartridge Heater
Packing Details : Packing, 10pcs/ pp bag
Delivery Details : with 15 working days after receipt of your payment
