110v 220v 380v 480v Industrial Electric Water Heater Heater Element
General Information
AUSTIN industrial electric water heater heaters are easy to install and maintain. Designed for heating liquids and gases in tanks and pressure vessels, electric water heater elements are ideal for applications requiring higher kilowatts.
AUSTIN industrial electric water heater heaters are made with tubular elements brazed or welded to a flange. Stock flange heaters are equipped with a general purpose terminal enclosure.
AUSTIN industrial electric water heater heaters, with tubular elements, also answer the need for liquid immersion heating applications requiring high kilowatts in small water tanks. The tubular element’s unique flat surface geometry packs more power in a smaller bundle, with lower watt density, making it especially well-suited for petroleum-based liquid heating applications.
Characteristics & Properties
- Tube diameter: Φ6mm-Φ30mm
- Tube Material: SS201, SS304, SS316, SS321 and INCOLOY800 etc
- Insulation Material: MgO
- Conductor Material: Nichrome Resistance Wire
- Wattage Density: High/Middle/Low (5-25w/cm2)
- Lead Connection Option: Threaded Stud Terminal or Lead Wire
- Lead Wire Type: 300mm Standard (Teflon/Silicone High Temperature Fiberglass are available for electric water heater element)
Heat intensity | Not exceeding 30w/cm2 (advisable) |
Power | Depends on the dimension |
Exhaust extreme (when cold) | <=0.1mA to 242 v. |
Insulation (when cold) | 5 Min Ohms 500 Watts minimum |
Dielectric strength | 1500v. 1/sec |
Working temperature | 650 Deg C max. |
Length tolerance | +/-1.5% |
Diameter tolerance | -0.02 to -0.06 mm |
Cut off connection tolerance | +/-15 mm |
Power tolerance (w) | +5 % - 10 % |
Cold areas | Depends on length and diameter 5-25mm |
Suggested Applications
- Water Deionized, Demineralized, Clean, Potable, Process
- Industrial Water Rinse Tanks
- Vapor Degreasers
- Hydraulic Oil, Crude, Asphalt
- Lubricating Oils at API Specified Watt Densities
- Air and Gas Flow
- Caustic Solutions
- Chemical Baths
- Process Air Equipment
- Boiler Equipment
To Order
For electric water heater element, Size, Wattage and Voltages are available on request.
Please contact us with your special requirements. We are pleased to contact you if you would like more information or want to discuss custom product availability and pricing.
Welcome to order sample industrial electric water heater element for initial evaluation.

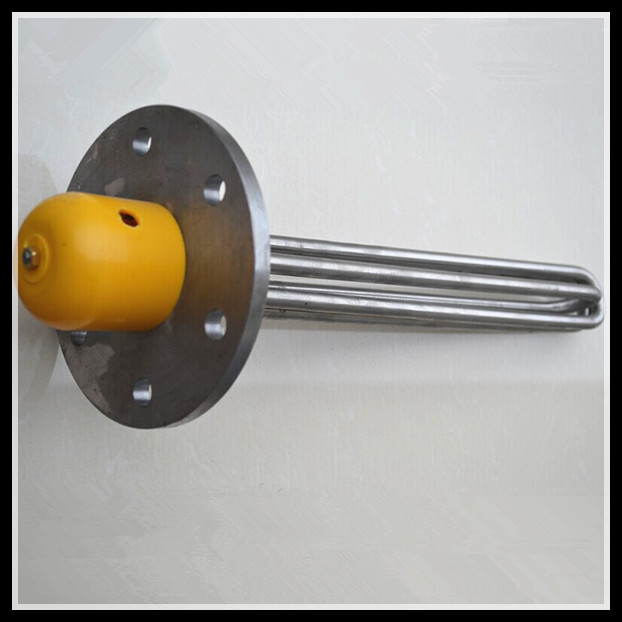

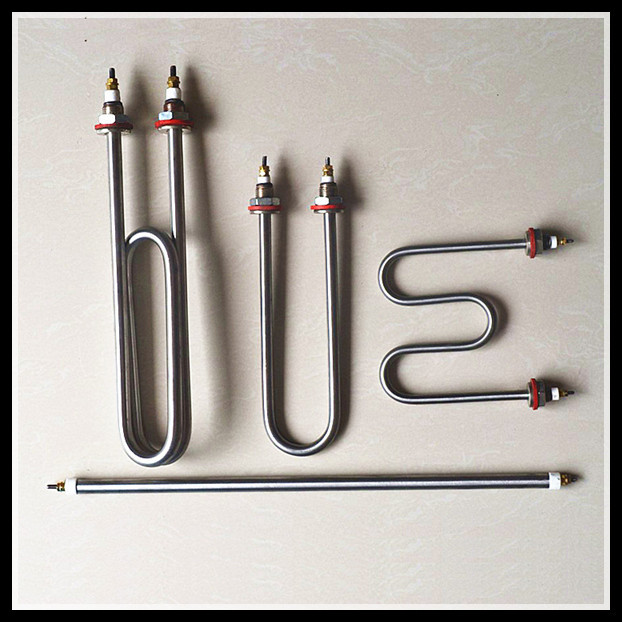

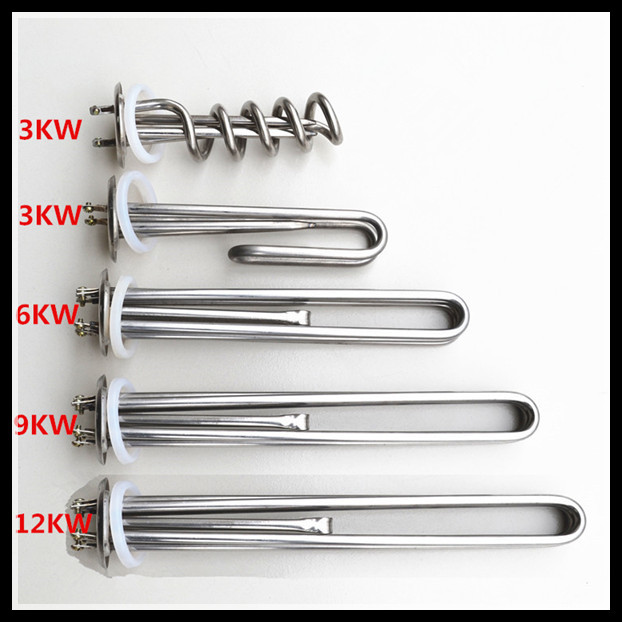

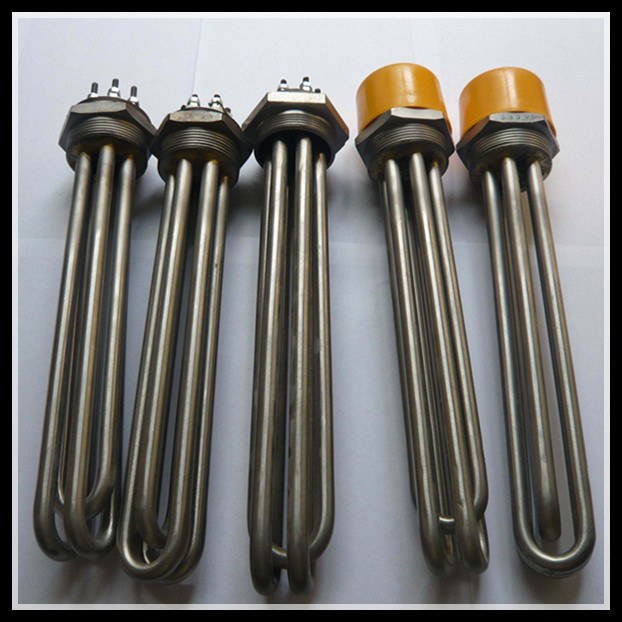

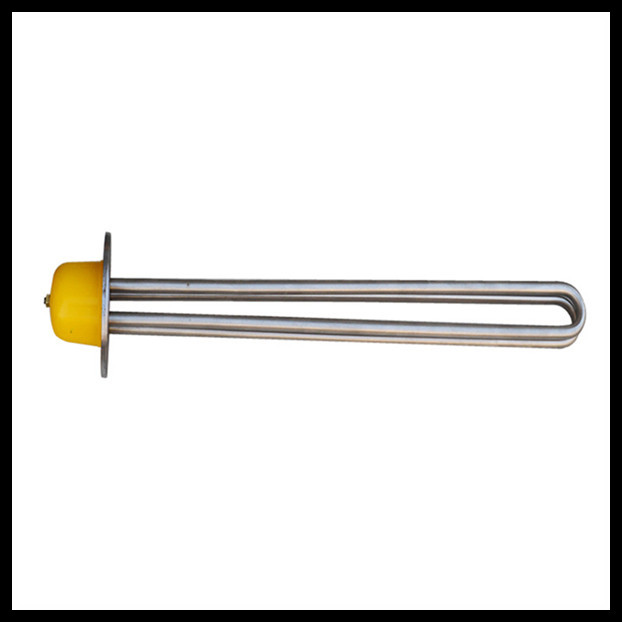

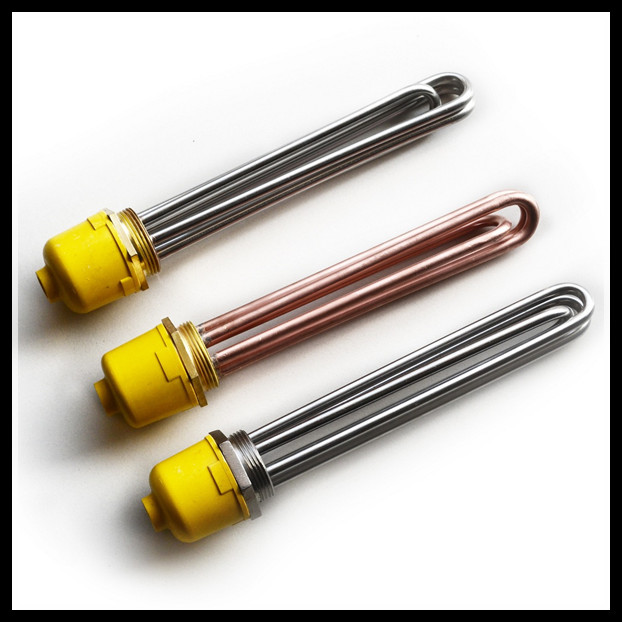

Photos
