Main featuer of cartridge heating electric tubular element:

1.Certificate: CE, ISO, RoHS
3. High Thermal Efficiency
4. Balanced Heating
5. Long lifetime

6. Sample structure

7. Reliable and safe operation

8.High temperature resistance, anti-corrosion

Advantages of cartridge heating electric tubular element:

1. The smallest diameter could be 2 to 3 mm.

2.  Unlimited length, 20 to 2000mm

3. High power density, and the highest power density could be 50W per square centimeter.

The material we used and our quality control:

Resistance wire of our cartridge heater: The standard nickel chromium wire is computer calculated for gauge, length and spacing, wound on a supporting core and precisely centered to guarantee uniform temperatures and long life.

Sheath of our cartridge heater: SUS 304 SUS316 SUS316L stainless steel.

Insulation of our  cartridge heater: We use only high purity agnesium oxide (MgO), compacted to a carefully predetermined and closely monitored density. This assures high dielectric strength and fast heat transfer.

Lead wire of our  cartridge heater: Watlow purchases high temperature, flexible and fray-resistant wire available from certified suppliers.

Application of cartridge heating electric tubular element:

1.Mold heating appliances
2.Tank, oil tank, acid tank
3.Fusible metal melting furnaces
4.Extruders
5.Foundries
6.For Fastening of turbine bolts
7.Soldering pots

Cartridge heater used in showers, drinking fountains, water boilers, dishwashers, etc. The cartridge heater is widely apply to a variety of water tank, oil tank, acid tank, fusible metal melting furnaces, air furnace, oven, and various types of mold heating appliances.

Reference table of cartridge heating electric tubular element:

Note: Other models are available according to your requirements.

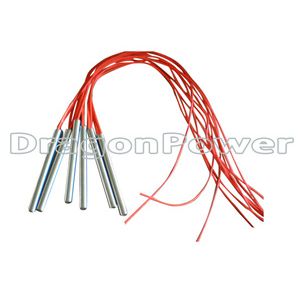

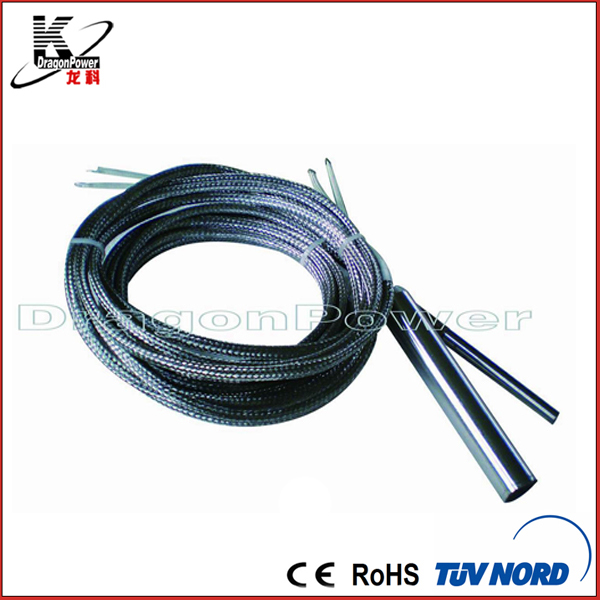

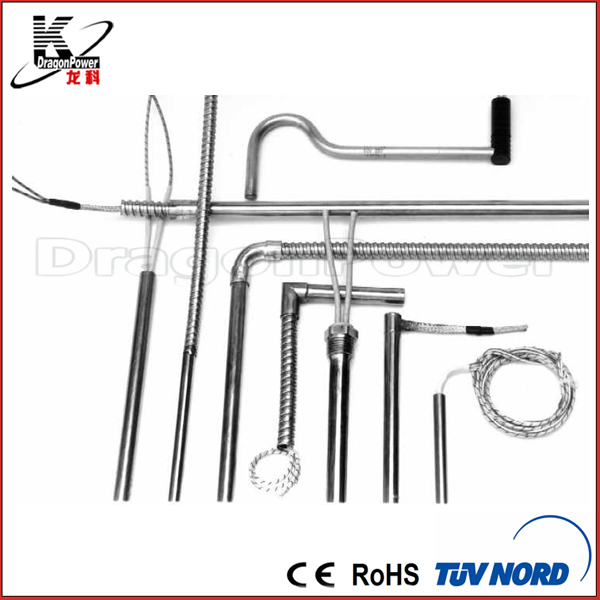

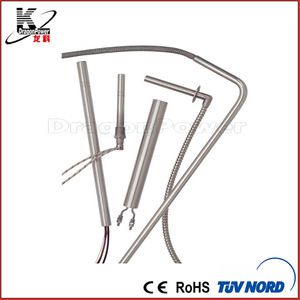

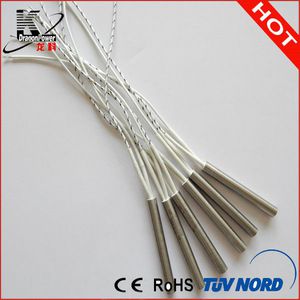

 Reference pictures of cartridge heating electric tubular element:

Customized service

One year warranty period

Professional purchasing guid

Technial support

DragonPower specializes in producing industrial electric heaters with a strength in R&D. Our products include air cooling & heating system, ceramic heaters, cast aluminum/copper heaters, mica heaters, cartridge heaters, infrared heaters, tubular heaters, immersion heaters, thermocouples, high temperature insulated wires & cables, etc. We provide OEM and design services. The other services we are committed to offer include:

1. Flexibility with minimum order requirements
2. On-time delivery
3. Free replacement if any product quality issues within guarantee period
4. Technical support
5. Simple ordering procedure: Email, fax or mail.

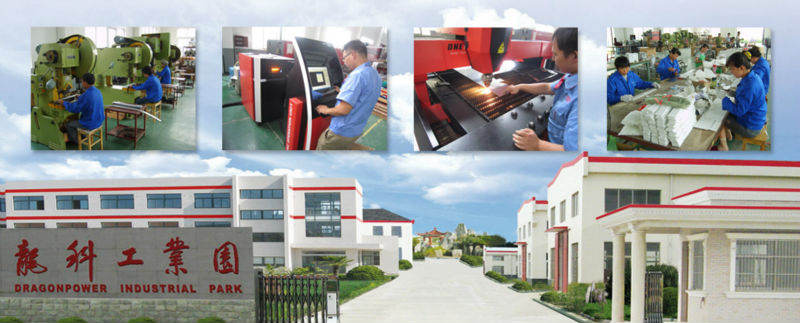

Located in Yancheng, Jiangsu, 3 hour drive away from Shanghai, the company covers an area about 27,000 square meters and has over 30 years of experience in this industry.

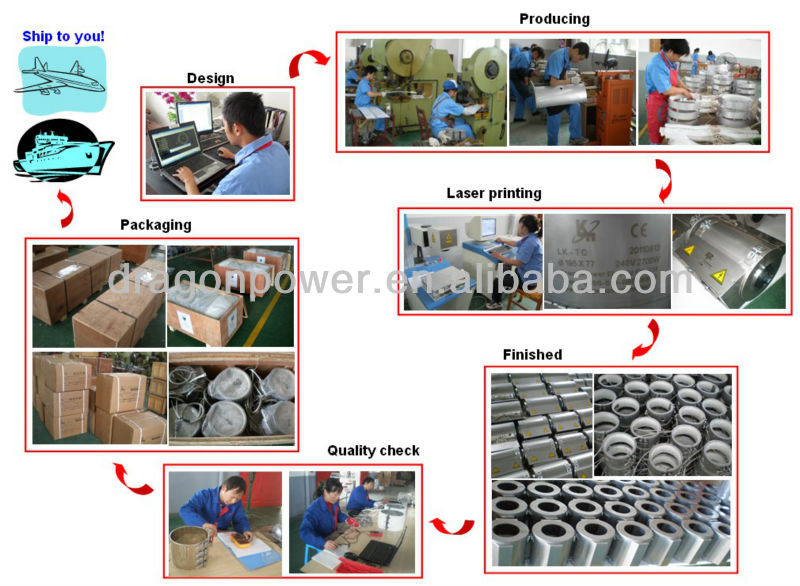

DragonPower had passed ISO9001 and CE certificate. It applies strict test and control over every single part of the products as well as every processing step, ensuring that our products have longer lifetime, better insulation, more even heating and longer thermal inertia.

Our company has been authorized the import and export rights. Our products are sold to Europe, Australia, the US, South East Asia, Taiwan etc. So far, overseas market contributes about 30% of our annual sales. Now we hope to further develop our customer base abroad and continuously maintain win-win relationship with everyone of you.

Order Guide of cartridge heating electric tubular element:

Please specify the following when ordering:

1. The diameter (mm) of heaters (inner diameter for external heating or external diameter for internal heating)
2. Width of heaters
3. Type, length and position of leads
4. The position and size of the hole for connecting thermocouple OR of the incision.
5. Voltage and power density
6. One piece OR two piece
7. Special gap between two pieces
8. Content of the laser stamping on the sheath of heaters if needed
9. Order quantity
10. Delivery date

* It’s better to provide us with the drawings/pictures
