TDB potato conveying pump

TDB type potato conveying pump is single stage and single suction, solid-liquid two-phase flow horizontal centrifugal pump. The pump is mainly used in the starch processing industry for conveying and cleaning potatos and sweet potatos.

Technical Feature

  • Stable performance
  • High efficiency
  • Simple and reasonable structure
  • Stable and reliable operation
  • Strong material passing capacity
  • Long service life
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$200~5000

PRIMARY PARAMETERS

Brand name
AOLIWEI
Application
Potato starch
Process input material
Potato/sweet potato
Process output material
Potato/sweet potato
Place of origin
China
Equipment material
CS
Power (kW)
30-55
Weight (kg)
Depends
Outer dimension (mm)
Depends
Warranty
One year
Delivery
30 days
Main spare parts
-

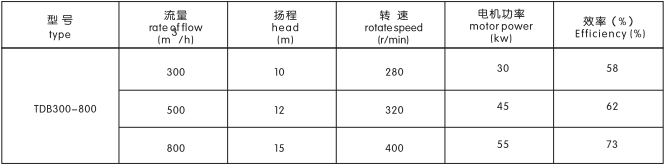

MODEL SPECIFICATIONS

Model TDB300 TDB500 TDB800
Rate of flow(m3/h) 300 500 800
Head(m) 10 12 15
Rotate speed(r/min) 280 320 400
Motor power(kw) 30 45 55
Efficiency(%) 58 62 73

DETAIL DESCRIPTION


TDB potato conveying pump


TDB type potato conveying pump is single stage and single suction, solid-liquid two-phase flow horizontal centrifugal pump. The pump is mainly used in the starch processing industry for conveying and cleaning potatos and sweet potatos.

New products such as beet and other materials are newly improved and optimized.

The utility model has the advantage of stable performance, high efficiency, simple and reasonable structure and stable and reliable operation.

The utility model has the advantages of convenient overhaul and wide flow passage structure, and has the advantages of strong material passing capacity and long service life, etc.
