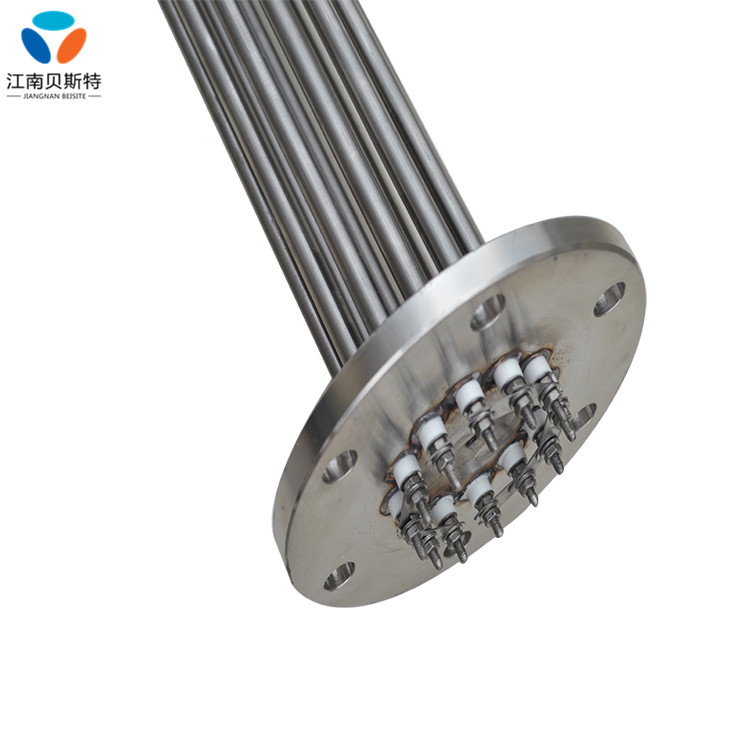

Corrosion resistance electric boiler immersion heating element
1.Basic specifications of heater element with bsp flange
Material: | Stainless steel 304, 316, 321; Incoloy800, 840 |
Pipe diameter: | 8mm-25mm |
Heater length: | Customized/recommended by engineers based on power |
Watt: | 100w-200,000w |
Volt: | 12v-600v |
Flange/thread: | BSP, NPS (1", 1 1/4", 1 1/2", 2", 2 1/4", 2 1/2"),or any customzied size. |
2. Technical datas of heater element with bsp flange
Power tolerance: | +5%, -10% |
Size tolerance: | ± 3mm |
Cold pressure capacity: | 1500v/0.5mA/S |
Hot pressure capacity: | 1250v/0.5mA/S |
Leakage current: | When rated voltage is used, leakage current |
3. Features & benefits
Features | Benefits |
A variety of element sheath and screw plug materials | *Meets your application needs |
Integral thermowells | *Provides convenient temperature sensor insertion and replacement without draining the fluid being heated |
All units are inspected and/or tested | * Ensures element-to-flange pressure seals do not leak |
Direct replacement | * Provides a single source supplier for many OEM applications |
