New IP66 Waterproof electrical DS-AG-0506 switch box
1.Specifications
1. The product weighs approximately 1/4 the weight of an iron box and can be easily installed or moved,The product is free from corrosion, carries superior insulation.
2. The Product has passed waterproof and dustproof carried out under rigid quality standards. (IP 66)
3. The use is also convenient for the installation of Terminal Substitution Rail, Button Box,mall Terminal, Signal , Relay and Sensor , Communication and joint Box etc.
2.Products Detail Information
Solid Cover | Clear Cover | Size |
DS-AG-0506 | DS-AT-0506 | 50*65*55 |
DS-AG-0609 | DS-AT-0609 | 65*95*55 |
DS-AG-0811-S | DS-AT-0811-S | 80*110*45 |
DS-AG-0811 | DS-AT-0811 | 80*110*70 |
DS-AG-0811-1 | DS-AT-0811-1 | 80*110*85 |
DS-AG-0813 | DS-AT-0813 | 80*130*70 |
DS-AG-0813-1 | DS-AT-0813-1 | 80*130*85 |
DS-AG-0816-S | DS-AT-0816-S | 80*160*55 |
DS-AG-0818 | DS-AT-0818 | 80*180*70 |
DS-AG-0825 | DS-AT-0825 | 80*250*70 |
DS-AG-0825-1 | DS-AT-0825-1 | 80*250*85 |
DS-AG-1010 | DS-AT-1010 | 100*100*75 |
DS-AG-1212-S | DS-AT-1212-S | 125*125*75 |
DS-AG-1212 | DS-AT-1212 | 125*125*100 |
DS-AG-1217 | DS-AT-1217 | 125*175*75 |
DS-AG-1217-1 | DS-AT-1217-1 | 125*175*100 |
DS-AG-1417 | DS-AT-1417 | 140*170*95 |
DS-AG-1717-1 | DS-AT-1717-1 | 175*175*110 |
DS-AG-1520 | DS-AT-1520 | 150*200*100 |
DS-AG-1520-1 | DS-AT-1520-1 | 150*200*130 |
DS-AG-1525 | DS-AT-1525 | 150*250*100 |
DS-AG-1525-1 | DS-AT-1525-1 | 150*250*130 |
DS-AG-2020-S | DS-AT-2020-S | 200*200*95 |
DS-AG-2020 | DS-AT-2020 | 200*200*130 |
DS-AG-2819 | DS-AT-2819 | 280*190*130 |
3.Products Picture Show

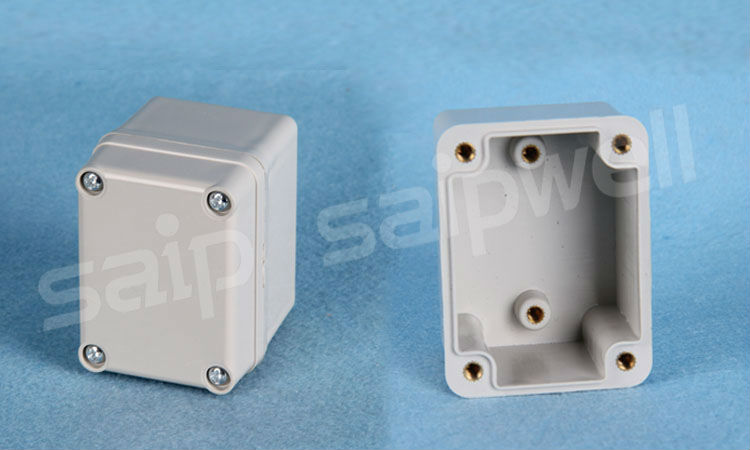

Inside & Accessary
Front & Back
Inside & Accessary
