Product Name:Stainless steel electric control cabinet with white color
It is made from New-style material SMC, the frame is attributed with excellent performance of anti-erosion and anti-aging.
The frame with inner and outside convection passage has funtion of against vapor coagulation.
The rabbit-joint structure and auxiliary air-proof parts are applied on the board of the box door, so the frame is with good airproof performance to defend against rain, dust and worm.

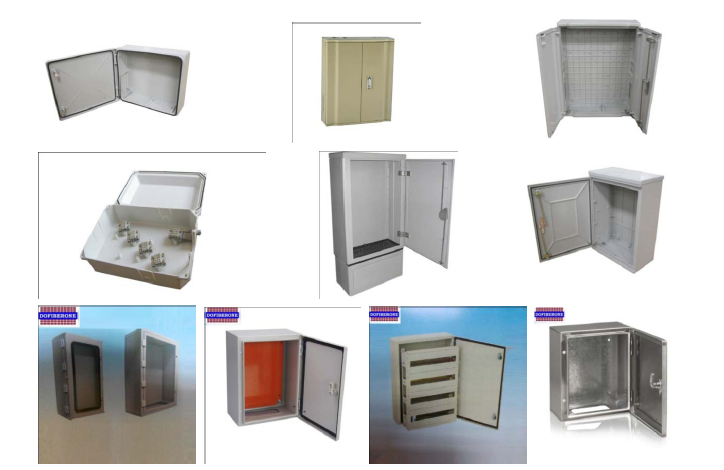

Pictures of ours.

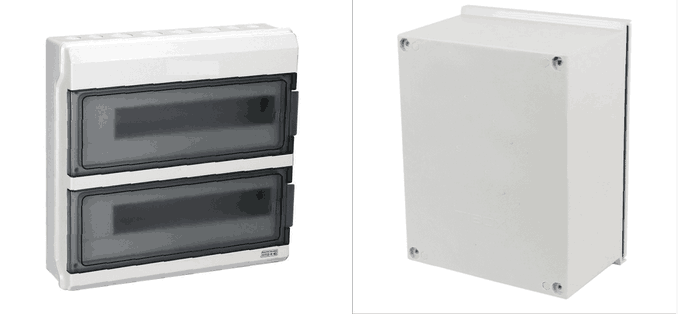

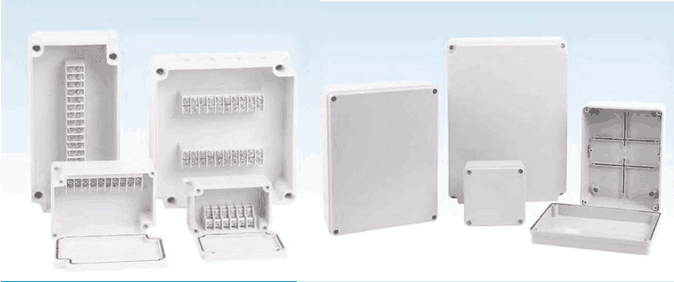

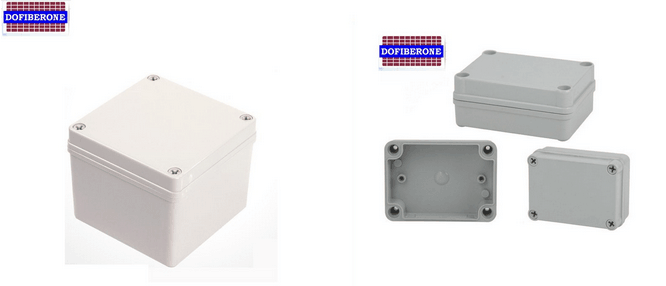

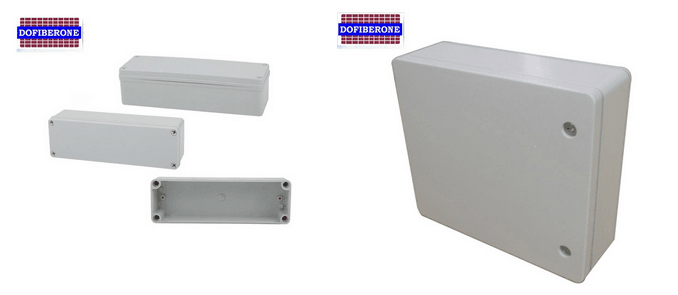

The related items:
| # | Total size (mm) | Top part size (mm) | IP rate | Door Type |
| #9090-1 | H2000W900D900 | 1800X900X900 | 65 | single door |
| #9090-2 | H2200W900D900 | 2000X900X900 | 65 | single door |
| #9090-3 | H2400W900D900 | 2200X900X900 | 65 | single door |
| #1152 | H1559W1463D632 | H1200W1463D630 | 65 | double door |
| #576W | H1552W1450D360 | H1200W1450D360 | 65 | double door |
| #576L-D w/base | 1450X750X600 | 1100X750X600 | 65 | double door |
| #576L-D No base | 1100X750X600 | 1100X750X600 | 65 | double door |
| #576H-D w/base | 1550x750x600 | 1200X750X600 | 65 | double door |
| #576H-D No base | 1200X750X600 | 1200X750X600 | 65 | double door |
| #288H-D w/base | 1550X750X360 | 1200X750X360 | 65 | double door |
| #288H-D no base | 1200X750X360 | 1200X750X360 | 65 | double door |
| #288L-D w/base | 1450X750X360 | 1100X750X360 | 65 | double door |
| #288L-D no base | 1100X750X360 | 1100X750X360 | 65 | double door |
| #288H-S w/base | 1550X750X360 | 1200X750X360 | 65 | single door |
| #288H-S no base | 1200X750X360 | 1200X750X360 | 65 | single door |
| #288L-S w/base | 1450X750X360 | 1100X750X360 | 65 | single door |
| #288L-S no base | 1100X750X360 | 1100X750X360 | 65 | single door |
| #144 w/base | 960X520X288 | 700X520X288 | 65 | single door |
| #144 no base | 700X520X288 | 700X520X288 | 65 | single door |
| #48 | 520X450X170 | 520X450X170 | 65 | single door |
| #8050 | 1300X800X500 | 1300X800X500 | 33 | double door |
| #1200 | 1300X1200X500 | 1300X1200X500 | 33 | double door |
| Multimedia-#520 | H700 W520 D170 | 700X520X170 | 55 | single door |
Technical data as below:
| PROPERTY or TEST
| REGULATION | UNIT | VALUE |
1 | Impact Strength at Break (Reversed Notch Izod)
| ASTM D256 | ft * lbf in. of width | 11 |
2 | Tensile Strength at Break
| ASTM D638
| psi (MPa) | min 9.000 (62)
|
3 | Flexural Strength at Yield
| ASTM D790
| psi (MPa)
| min 20.000 (138)
|
4 | Density | ASTM D792 | gr/cm3 | 1,70 - 1,80 |
5 | Maximum Temperature of Continuous Working | IEC 216 or UL | oC | 80 |
6 | Thermal Strength (Melting) Vicat (Method B) | ASTM D1525 | oC | 130 |
7 | Water Absorption 24h/23oC | ASTM D570 | % | 0,5 |
8 | Chemical Resistance
| ASTM D543 | - | Very Good |
9 | Test in Warm and Dry conditions (Test Bb) | IEC 68-2-2
| oC -hrs | 100-16
|
10 | Test in Temperature Fluctuation (Test Nb) | IEC 68-2-14 | oC | min -25 max +75 |
11 | Impact Strength | NF C 20-010 | J | 20 |
12 | Test in Warm and Moistured Conditions (Test Db) Variation I | IEC 68-2-30 | oC -cycles | 55-8 |
13 | Test in Salty Mist (Test Ka) | IEC 68-2-11 | weeks | 2 |
14 | Dielectrical Strength | IEC 243 | KV/mm | min 12 |
15 | Glow Wire Test | IEC 695-2-1 | oC | 960 |
16 | Test of Needle Fire | IEC 695-2-2 | sec | 30 |
17 | Flammability | IEC 707 | Rating | FH1 |
18 | Color |
|
| White or Light Grey RAL 7035 |

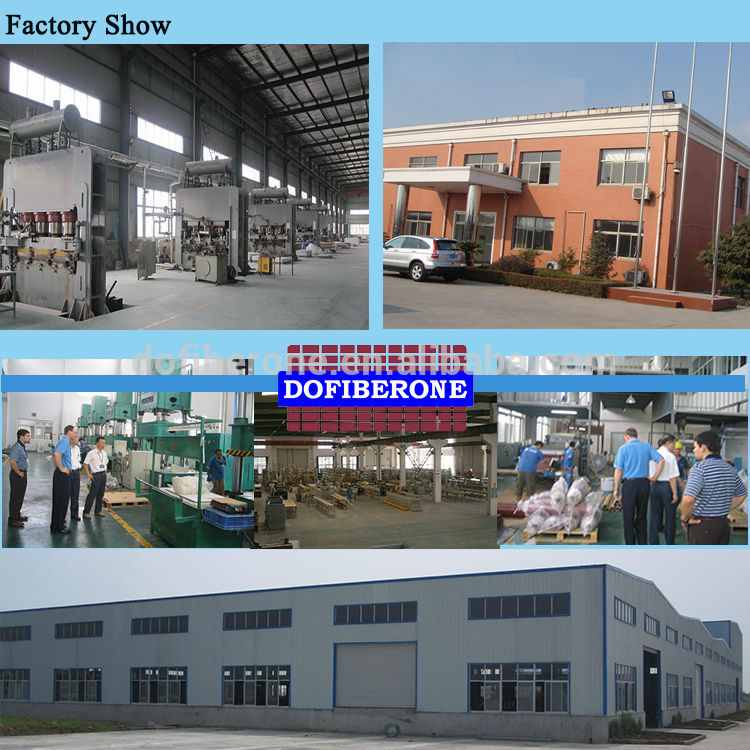

1. About us
Our factory was founded in 1992. After more than 20 years of development, our company has become an expert of Fiberglass/ FRP /GRP raw materials and product in China.
As a FRP/GRP leader in China, we have had fruitful development during the past years.
Our FRP products made from the FRP materials have been widely accepted in the world market. Our FRP materials include fiberglass, SMC, BMC and others.
Our rich experience in Fiberglass/FRP/GRP production and exporting service is our most competitive advantage in China.
Our quality and scale of our factories have been improved and are the top1-2 in China. Our working team can supply you with high quality products and professional design services.
2.Why Choose US
• Has been in terms of size, technology, markets and profitability in a leading position.
• Welcome to visit the factory in anytime.we are try to keep our prices competitive as per market trend.(factory price)
• We are confident that you will be satisfied with our various services and wide range of products with good quality.
• We believe in customer satisfaction, so we offer discounts and incentives to our valued customers frequently throughout year.
3. Certifications
4. Our Markets
China
