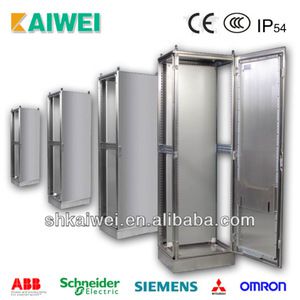

BPS industrical control cabinet
1. Material: SUS304(Other material can be optional)
2. Surface Treatment: Wire Drawing,Mounting Plate is Galvanized
3. Class of Protection: IP54(According to GB4205-1993)
| Item Name: | BPS industrical control cabinet |
| Material: | SUS304(Other material can be optional) |
| Thickness: | Frame:9-fold Sections 1.5mm Door Plate:2.0mm Back Plate and Side Plate:1.5mm Mounting Plate:2.5mm(3.0mm optional) |
| Standard Configuration: | Front Door,Back Plate,Mounting Plate,Cabinet Body,Door Lock,Sealing Strip,Side Plate(optional) |
| Surface Treatment: | Wire Drawing,Mounting Plate is Galvanized |
| Class of Protection: | IP54(According to GB4205-1993) |
| MOQ: | 100 PCS |
| Supply Ability: | 10000 PCS/Month |
| Delivery Time: | 10-15 days |
| Remark: | Special Demands Can Be Customized |
No. | Order number of cabinet body | Order number of side plate | Width | Height | Depth |
| 1 | BPS6018400304 | BPS18400304 | 600 | 1800 | 400 |
| 2 | BPS8018400304 | BPS18400304 | 800 | 1800 | 400 |
| 3 | BPS1018400304 | BPS18400304 | 1000 | 1800 | 400 |
| 4 | BPS1218400304 | BPS18400304 | 1200 | 1800 | 400 |
| 5 | BPS6018500304 | BPS18500304 | 600 | 1800 | 500 |
| 6 | BPS8018500304 | BPS18500304 | 800 | 1800 | 500 |
| 7 | BPS1218500304 | BPS18500304 | 1200 | 1800 | 500 |
| 8 | BPS6018600304 | BPS18600304 | 600 | 1800 | 600 |
| 9 | BPS8018600304 | BPS18600304 | 800 | 1800 | 600 |
| 10 | BPS1218600304 | BPS18600304 | 1200 | 1800 | 600 |
| 11 | BPS6020400304 | BPS20400304 | 600 | 2000 | 400 |
| 12 | BPS8020400304 | BPS20400304 | 800 | 2000 | 400 |
| 13 | BPS1220400304 | BPS20400304 | 1200 | 2000 | 400 |
| 14 | BPS6020500304 | BPS20500304 | 600 | 2000 | 500 |
| 15 | BPS8020500304 | BPS20500304 | 800 | 2000 | 500 |
| 16 | BPS1020500304 | BPS20500304 | 1000 | 2000 | 500 |
| 17 | BPS1220500304 | BPS20500304 | 1200 | 2000 | 500 |
| 18 | BPS6020600304 | BPS20600304 | 600 | 2000 | 600 |
| 19 | BPS8020600304 | BPS20600304 | 800 | 2000 | 600 |
| 20 | BPS1020600304 | BPS20600304 | 1000 | 2000 | 600 |
| 21 | BPS1220600304 | BPS20600304 | 1200 | 2000 | 600 |
| 22 | BPS6020800304 | BPS20800304 | 600 | 2000 | 800 |
| 23 | BPS8020800304 | BPS20800304 | 800 | 2000 | 800 |
| 24 | BPS1220800304 | BPS20800304 | 1200 | 2000 | 800 |
| 25 | BPS6022600304 | BPS22600304 | 600 | 2200 | 600 |
| 26 | BPS8022600304 | BPS22600304 | 800 | 2200 | 600 |
| 27 | BPS1222600304 | BPS22600304 | 1200 | 2200 | 600 |
Details:
Main advantage of BPS industrical control cabinet:
- Combined electric cabinet, suitable for combination.
- The top plate can be removable and the side plate is demountable, make working easier and simpler.
- High door plate (approx 25mm from the ground), to ensure smooth door opening.
- Unique main body frame integrally welded with 5-fold section ensures high strength and IP56 of cabinet body.
- Special door plate square tube reinforcing system can be fixed on door plate by screws for easy disassembly.
- Modular holes with spacing of 25mm on the frame ensure flexibility and universality of installation.
- Optional 3.0mm galvanized mounting plate can be pushed into the cabinet by plastic slide through rail, U flanges on both sides ensure firmer plate and easy transporting.
- Professional stainless steel turnoff lock, stainless steel bearing suspension loops and other accessories having various functions show luxury character of the cabinet box.
