Outdoor insulation cabinet SK-65100/temperature control enclosure with air conditioner/aluminum outdoor rack 19"
| Specification for SK-65100 Outdoor Cabinet | ||
| Cabinet | External dimenison | W650*D820*H1000mm |
| Internal capacity | Battery rack, design based on 8 pcs of 120ah for 2 layer located. (Optional: could customized as equipment rack) | |
| Cooling system | 340W cooling capacity air-conditioner, use 220VAC power supply (Optional: heat exchanger, filter fan, ventilation window without cooling) | |
| Panel structure | sanwitch panel | |
| Panel Material | Galvanizing plate (Optional: aluminum, stainless steel, SPCC). | |
| Color | RAL7035 grey or as as requirement | |
| Protection Level | IP55/IP65/IP66 | |
| Standard | IEC297-2; DIN41491;part1 | |
| Environment | Operating temperature | -10°C ~ + 45 °C |
| Storage temperature | -40°C ~+ 45 °C | |
| operating humilidity | -40°C ~ +45 °C | |
| Transporation temperature | 5% ~95% | |
| Others (optional) | lighting | 48V LED light (based on request) |
| sensors | Door, smoke, temeperature,water, humility (based on request) | |
| cable distribution unit | DDF, ODF | |
| Environment monitor | controller with integrated power. Signal input and alarm output. (Based on request) | |
| Package | Wood case. If the cabinet with air conditioner. The case must be vertically standing loaded |
Advantages of the outdoor cabinet SK-65100:
1. Dust-proof/Waterproof
2. The cabinet is double layer heat insulation structure (the middle of the double layer steel plate is filled with thermal heat insulation material).
3. The cooling system is installed on the door. It is convenience for user maintenance the cooling system.
4. Customized design is acceptable, the Technical solution is provided.
5. Modification fit for telecommunication equipment, battery, server and etc.

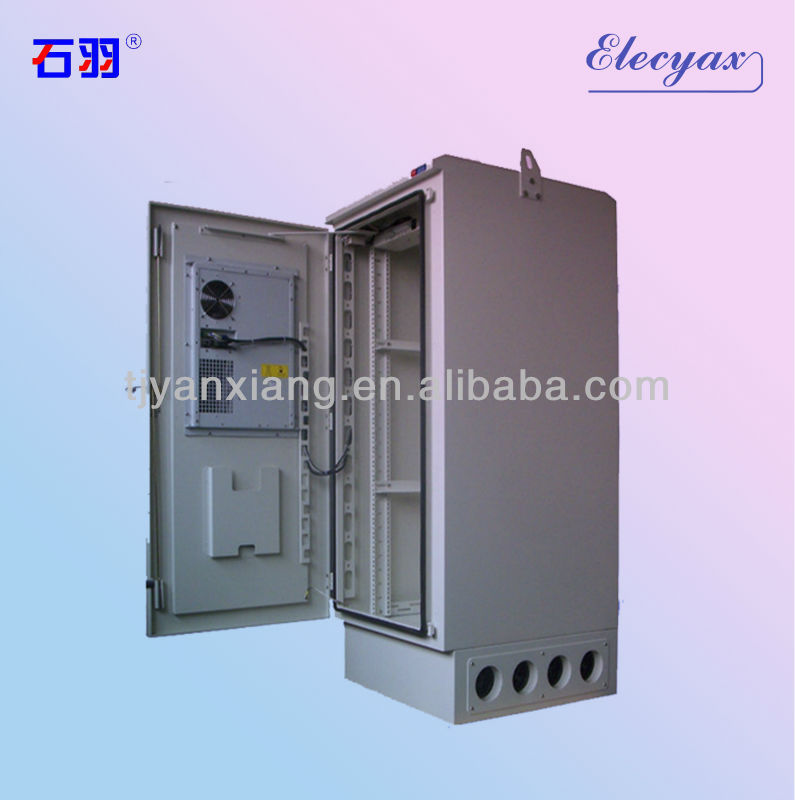

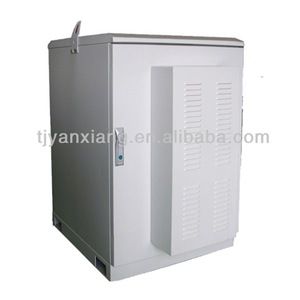

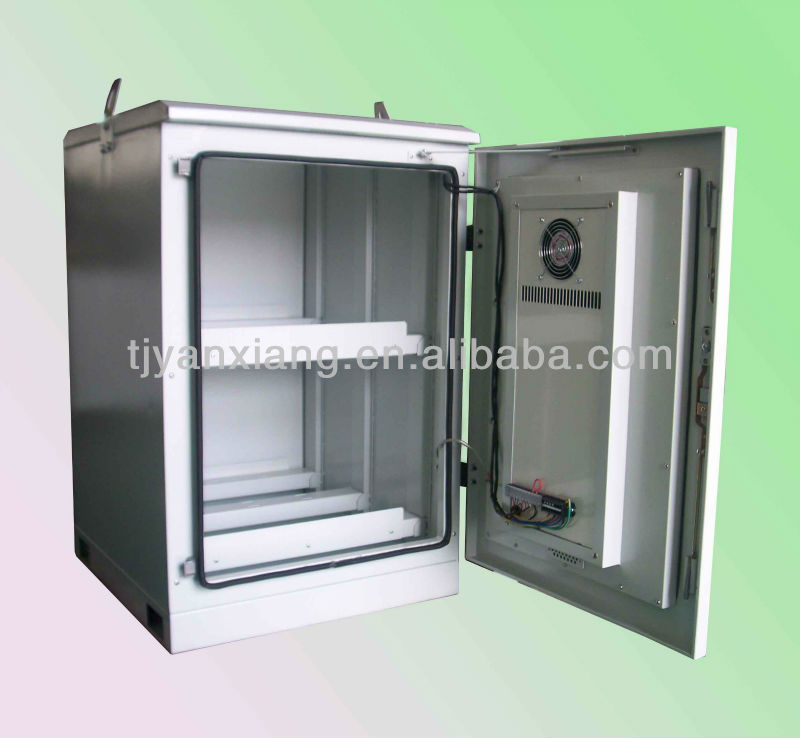

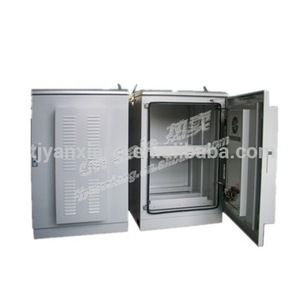

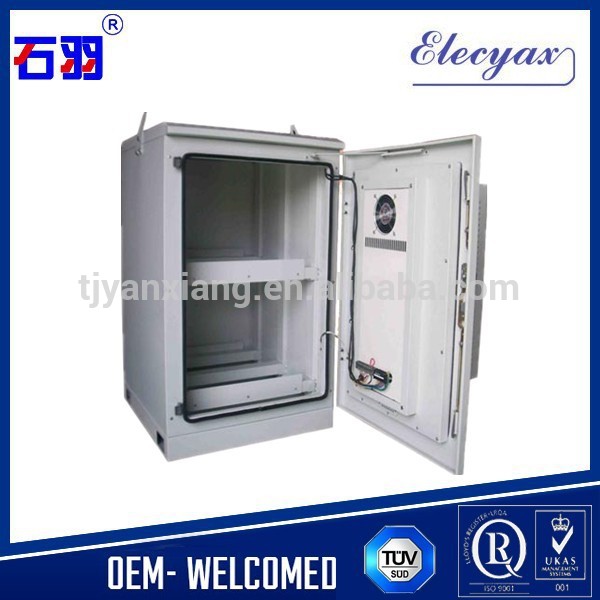

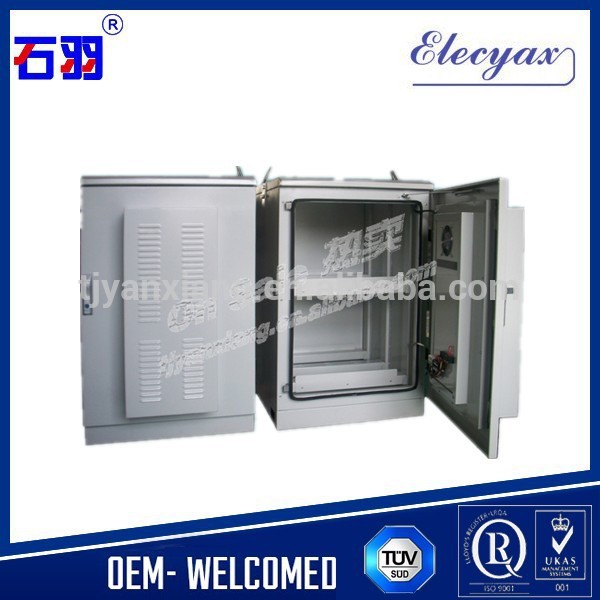

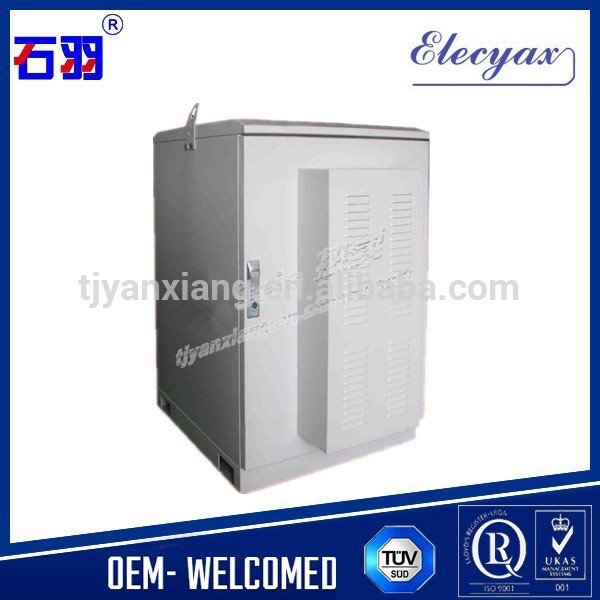

The Photo of the outdoor cabinet SK-65100:

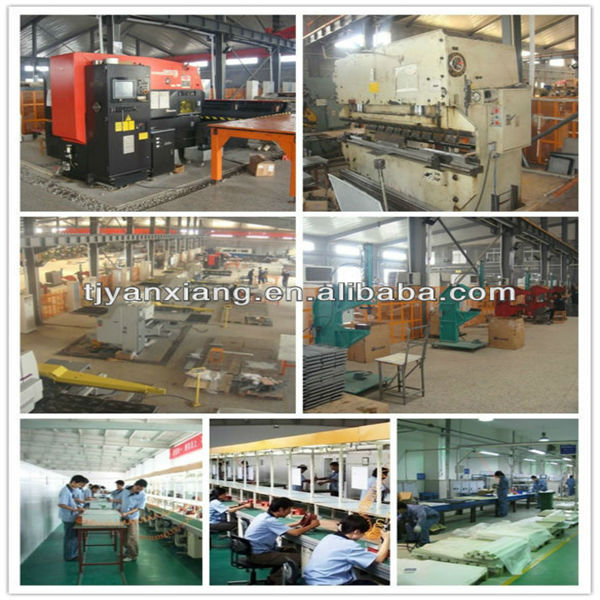

The factory general look:
Certificates and patent

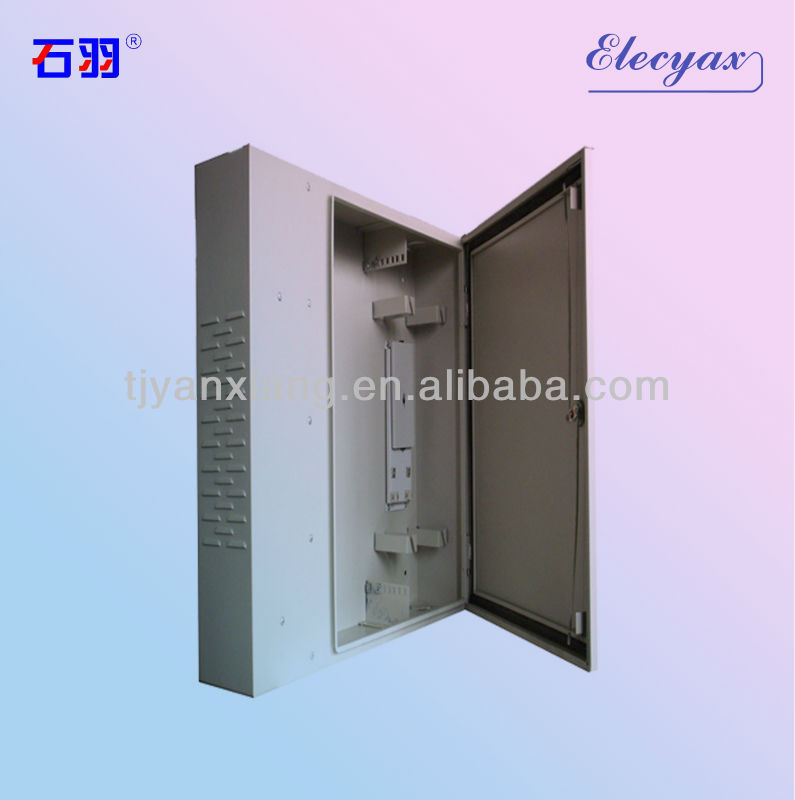

Other products
- Sample: Sample making is available before mass-manufacture.
- Delivery: 20-30 days after receipt the deposit.
- Factory Visit& Inspection: Welcome customer or your agent to visit our factory before order and loading.
Tianjin Yanxiang Electronic Science and Technology Co., Ltd., registered in Tianjin Binhai Hi-Tech industrial Zone.
It is a high-tech company with technology R&D and service combination as well as information and industry.
Meanwhile it is a High State Authenticated and New Technology Enterprise , Excellent Private Enterprise of Tianjin.
The company passed the ISO9001 International Quality System Certification in 2004 January.
We have acquired multiple software copyrights and invention patents.
Several product technologies are listed as National Key and New Product Project , Tianjin Science and Technology Support Plan Project.
1.Are you a manufacturer?
Yes.We have 13 years manufactural experience.
2.Can you ensure quality?
Yes.In the production of each link and before loading do a detailed inspection.
3.Can you keep timely delivery?
Yes.We use short producing time and fast shipping.
