Waterproof metallic keypad rfid reader wiegand 26/34 output for access control system
Functions of metallic keypad rfid reader:
• Reads password and/or 125 KHz EM card;
• Optional to read 13.56MHz Mifare card;
• Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch;
• Supports SRB mini controller by wiegand out;
• Supports switch to Reader Mode and configurable wiegand 26 bit or 34 bit;
• Anti-vandal, waterproof & back-lit keypad with metal key buttons;
• Audible beep and visible indicator provide feedback for users;
• Access control interfaces for electric lock, door sensor, alarm, exit button and doorbell (Optional);
• Lock control delay, Unlock duration, Alarm delay are programmable from 1 to 254 second;
• Optical tamper switch and multiple alarm outputs;
• Robust, flexible and generous elegant design;
Specifications of Access Control Reader Keypad:
LED Indicator | Green, Red |
Keypad | White backlit, Numeric keys 0~9, Function keys*, #Bell (Optional) |
Verification Type | Card, PW, Card/PW, Card+PW |
Built-in Card Reader | 125 KHz EM card (Optional 13.56 MHz Mifare card) |
Card Capacity | 1,000 |
Password Capacity | 1,000 |
Access Control Interface | Electric lock, Door sensor, Alarm, Exit button and Doorbell (Optional) |
| Communication interface | Wiegand 26/34 output |
Auxiliary Interface | 1ea Auxiliary Input for linkage function |
Power Supply | 12V DC |
Operating Temperature | -20°C-50°C |
Operating Humidity | ≤95% |
| Dimension | DF-V1: 135.8*55.7*22.2mm DF-H1: 126.8*79.8*27.0mm |
| Protection | IP65 |

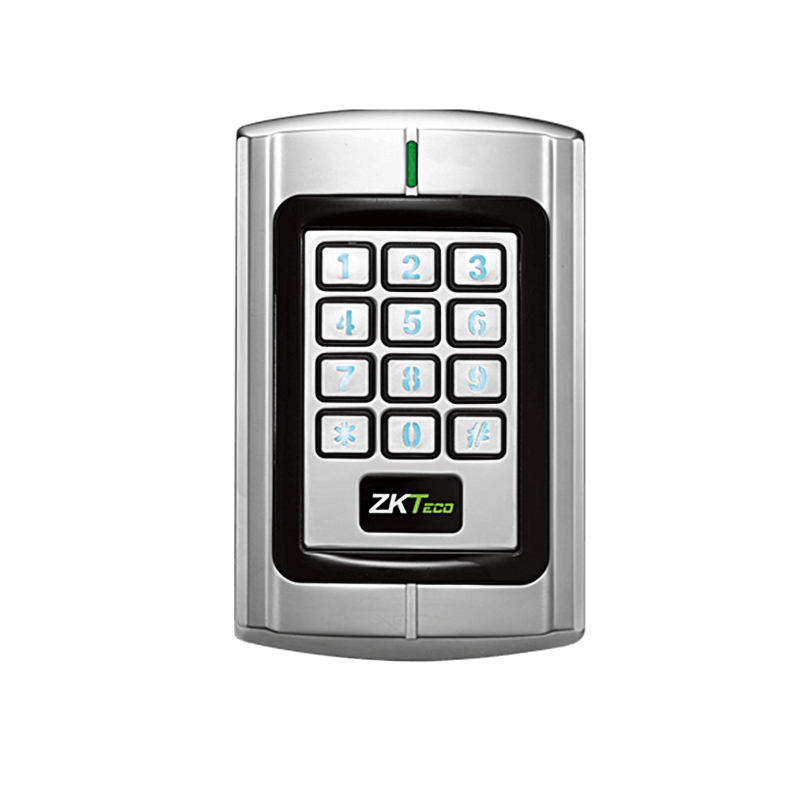

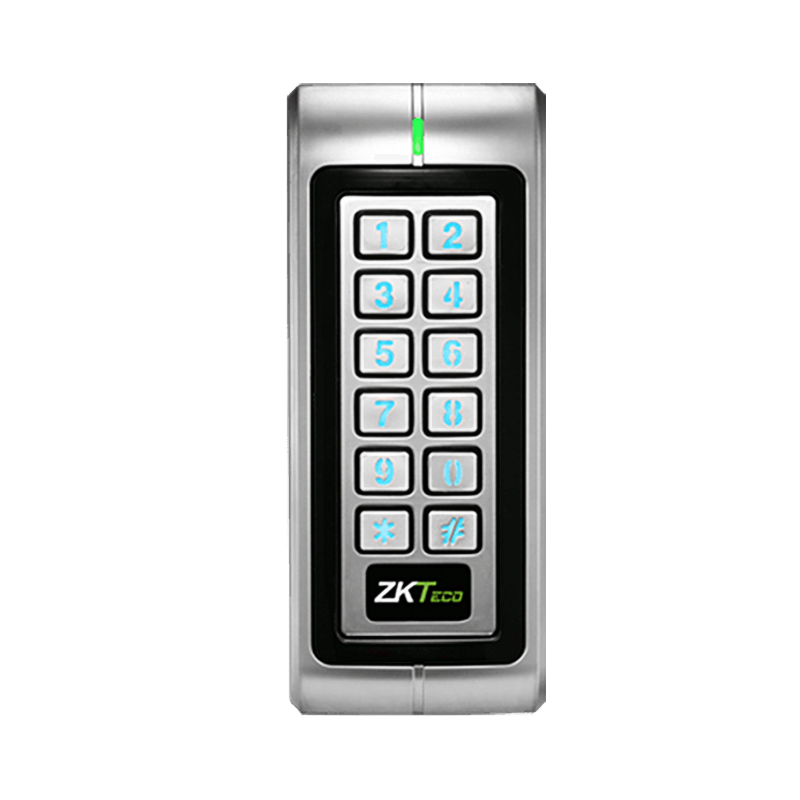

Pictures of Keypad access control reader:
Our Advantage:
1. Professional R&D department, can offer you OEM/ODM services;
2. Professional technique supports and good service;
3. We strictly control the quality and regard it as our base for existence! QC staffs make piece-by-piece checks for all products.
Products are conducted aging test for 72 hours.
4. Our products are chosen high quality materials and ensure the prophase stability.
5. Our products meet ISO, CE, FCC, RoHS certificates;
