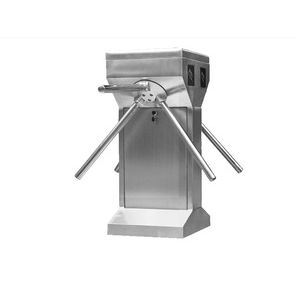

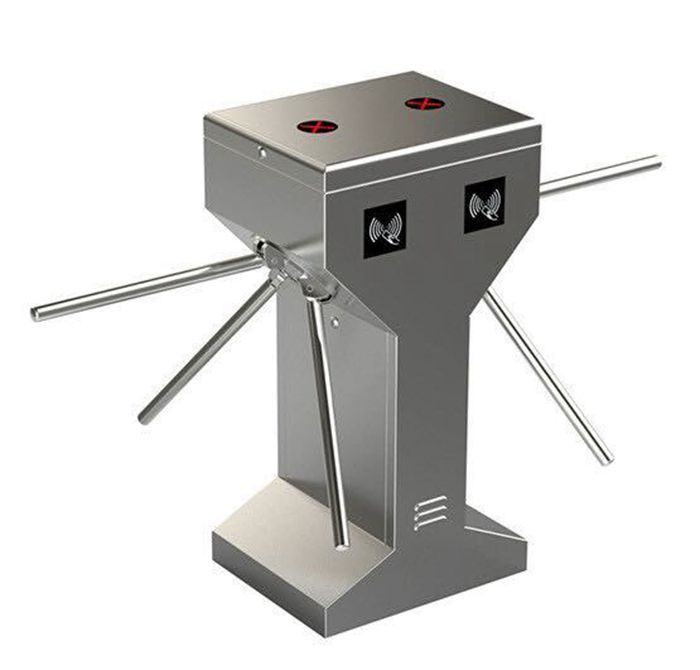

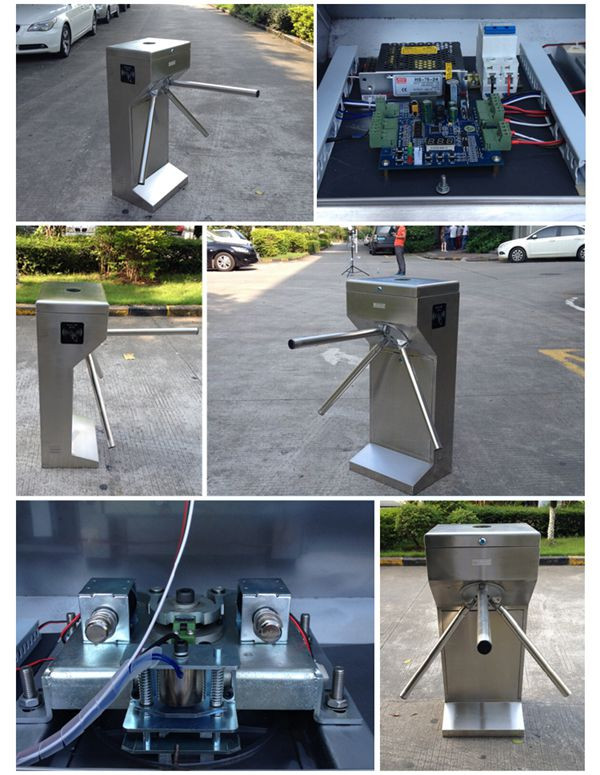

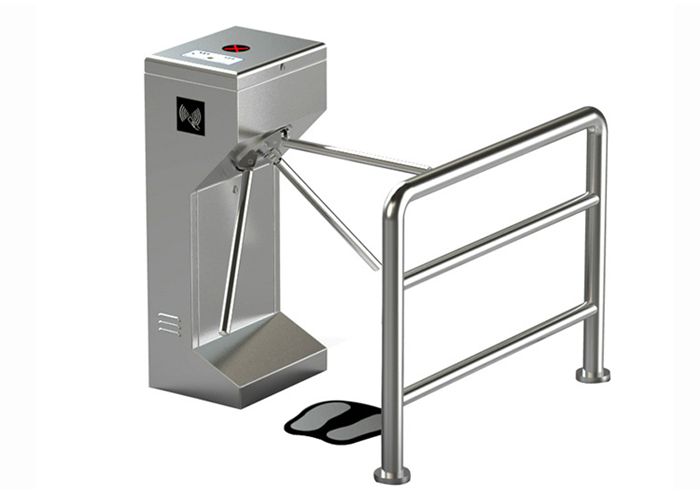

Stainless steel vertical Both side Security access control tripod turnstile
1. GB 304 stainless steel sheet metal forming, beautiful, durable
2. Dimensions : 420 × 450 × 980 (mm)
3. Channel width: less than 550 (mm);
4. Brake lever steering : two-way
5. Control mode: manual/ automatic (optional)

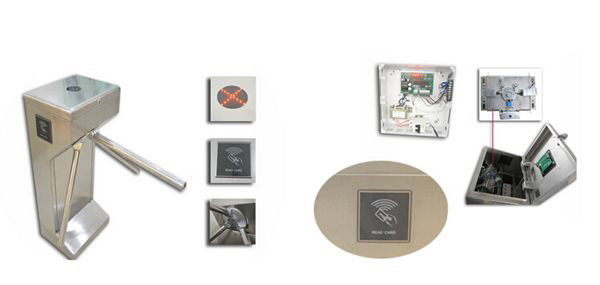

6. Can mount a variety of control devices: metal security gate/ IC card/ ID card/ card/ barcode card, etc.
7. Working environment: indoor(outdoor use shall stand awning)
8. Ultra quiet design: Mechanical design using third-generation silent, smooth operation no noise impact;

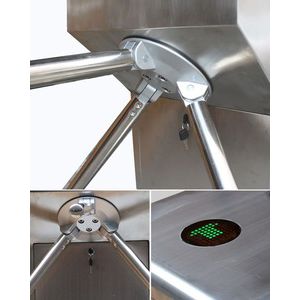

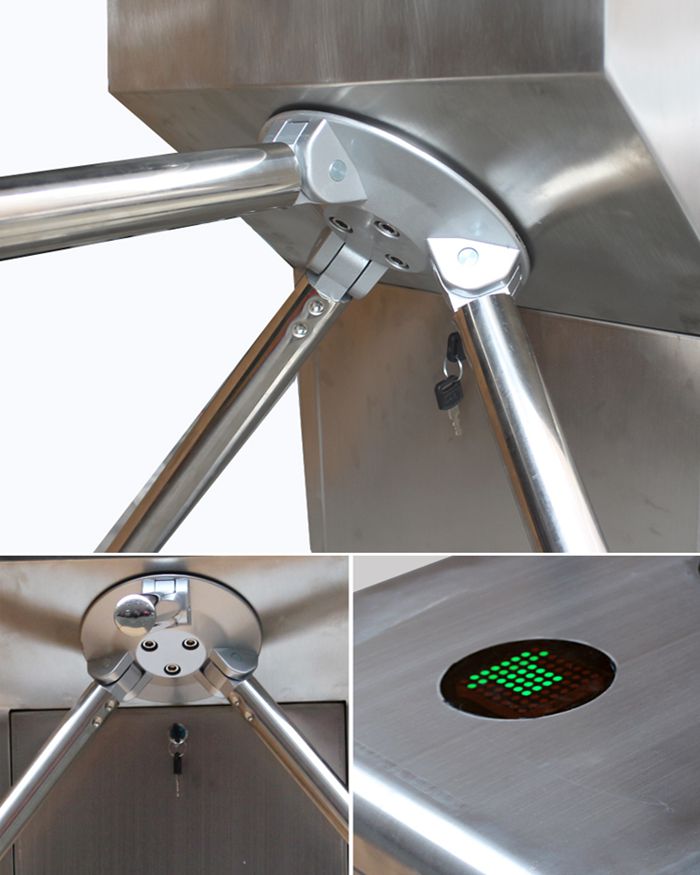

9. Super bright passage indicator: directional design of ultra- bright LED lights to indicate a more eye-catching ;
10. Automatic access function: the reader automatically run after the brake lever to unlock certain angle, automatically bring people through the gates ;
11. Multiple modes of function: by setting the switch can be set to the gates normally open , normally closed two modes of operation ;
12. Access memory function: After several pedestrians card, access gates opportunity to remember the number, until the entire passage of pedestrians closing;
13. Power off the pole, the power from the bar features: gates automatically after power brake lever to facilitate evacuation fall to meet fire safety requirements ; ( automatic type )
14. Anti-collision function: no credit card pedestrian push the brake lever , lock gates ;
15. Remote control: RS485 card can be accessed by computer or TCP to RS485 remote control gates ;
16. Automatic reset function: by credit card is not specified , within the time gates back in situ cancel access .
17. Limit the number of access functions: limit the number of access by software to meet the special circumstances of personnel management ; ( to be customized )
18. Counting function: to increase the number of counter statistics out ; ( to be customized )
19. Anti-reverse pass function: access process, the brake lever has been rotated a certain angle after only forward, to prevent one card too many people; (to be customized)
20. Illegal intrusion alarm function: no credit card when forced through a pedestrian, the pedestrian gate alarm chance to swipe traffic. ( To be customized )
| Power Supply | AC220V |
| Temperature | -15 to 60 degrees |
| Humidity | <95%, without concretion |
| Passage Width | <=600mm |
| Passing Speed | 40 persons/min |
| Power Consumption | 100W |
| Input Interface | +12V electrical signal or impulse signal |
| width | more than 100ms |
| drive current | >10mA |
| Communication Interface | RS485 (Distance:<=1200m) |
| Material | 304 stainless steel |
| Dimension | 420*450*980 mm |
Packaging Detail: Wooden box
Delivery detail: within 10 working days after payment confirmed
Installation and commissioning
The metal tripod turnstile with integrated design, only 10 minutes to complete the installation or dismantling, installation and commissioning were equipped with operating instructions.
Use
1. Office space: commercial buildings, government offices, etc;
2.Science unit: universities, research institutes, libraries, etc;
3. Commercial service establishments: supermarkets, shopping malls, hotels, clubs, banks, etc;
4. Leisure and entertainment: parks, scenic areas, playgrounds, etc;
5. Transportation Sites: bus, train, subway stations, airports and so on.
Service
1. Any inquiries will be replied within 24 hours

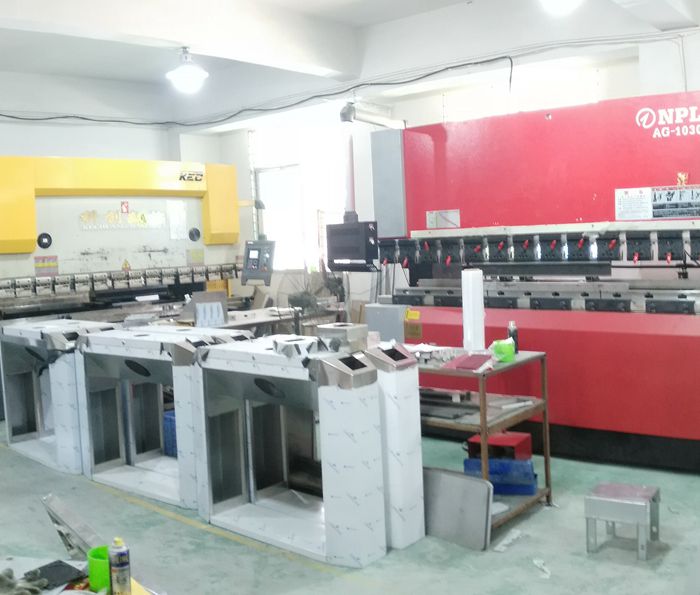

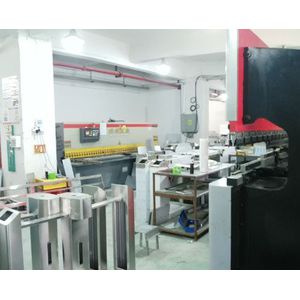

2. Professional maufacturer. Welcome to visit our factory.
3. OEM/ODM available
You can have your own fashionable design at reasonable& competitive price
5. High quality:
1.) All products are stictly checked in warehouse before packing
2.) All products are well-packed before shipping
3.) All products have 2 years warranty
6.Payment:
T/T, Western Union, Paypal, Moneygram can be accepted
7. short lead time:
Sample order in stock, and 3--7 days for bulk production
8. Shipping:
Cooperate well with DHL, EMS, UPS, FEDEX, China Air Post
You can also choose your own shipping forwarder
