Nordson NT-109 Wiegand input DC12V Metal CF Card entry door electrical lock contactless narrow frame rfid reader keypad access control system
Overview

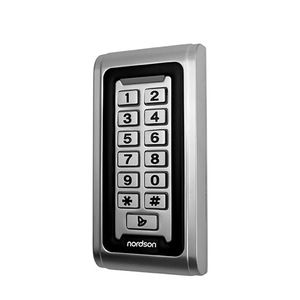

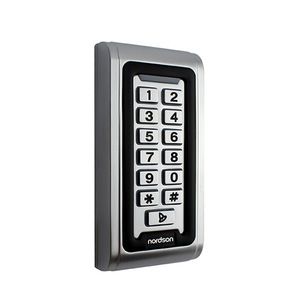

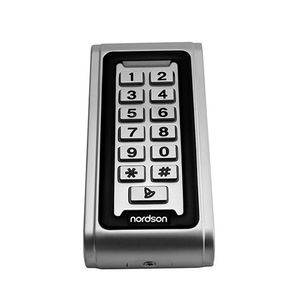

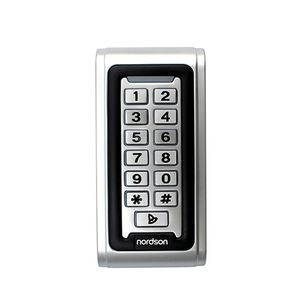

NT-109 Waterproof metal Standalone Access Controller, for single door entrance, with card reader and keyboard input in one function, easy to install, easy to use, stable performance. Support Wiegand output&input, can be used as a card reader. Built-in data memory, quickly identify proximity readers, with short circuit protection, safety interference, to meet a variety of automated office space, industrial and mining enterprises, government agencies, intelligence community, telecom base stations, and other public access entrance access control system application demand.
Specification
| Verification Method | Card,Password,Card+password |
| keyboard | Metal buttons with luminous |
| Capacity Of Cards | 2000 Users |
| Door Open Time | 0-99 seconds |
| Proximity Range | 3-15CM |
| Frequency | EM-ID 125KHz or 13.56MHz |
| Wiegand Signal | Output&Intput (Support external wg26 card reader and can be used as a card reader) |
| Voltage | DC 12V |

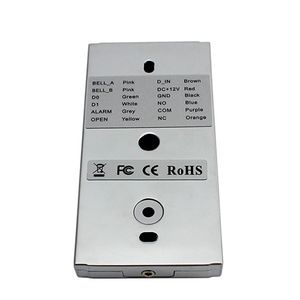

| Access Control Interface | Electric lock, Door sensor, Exit button, alarm, DoorBell |
| Relay output | 2n relay outputs |
| Operating Temperature | 0°C - 45°C |
| Operating Humidity | 20%-80% |

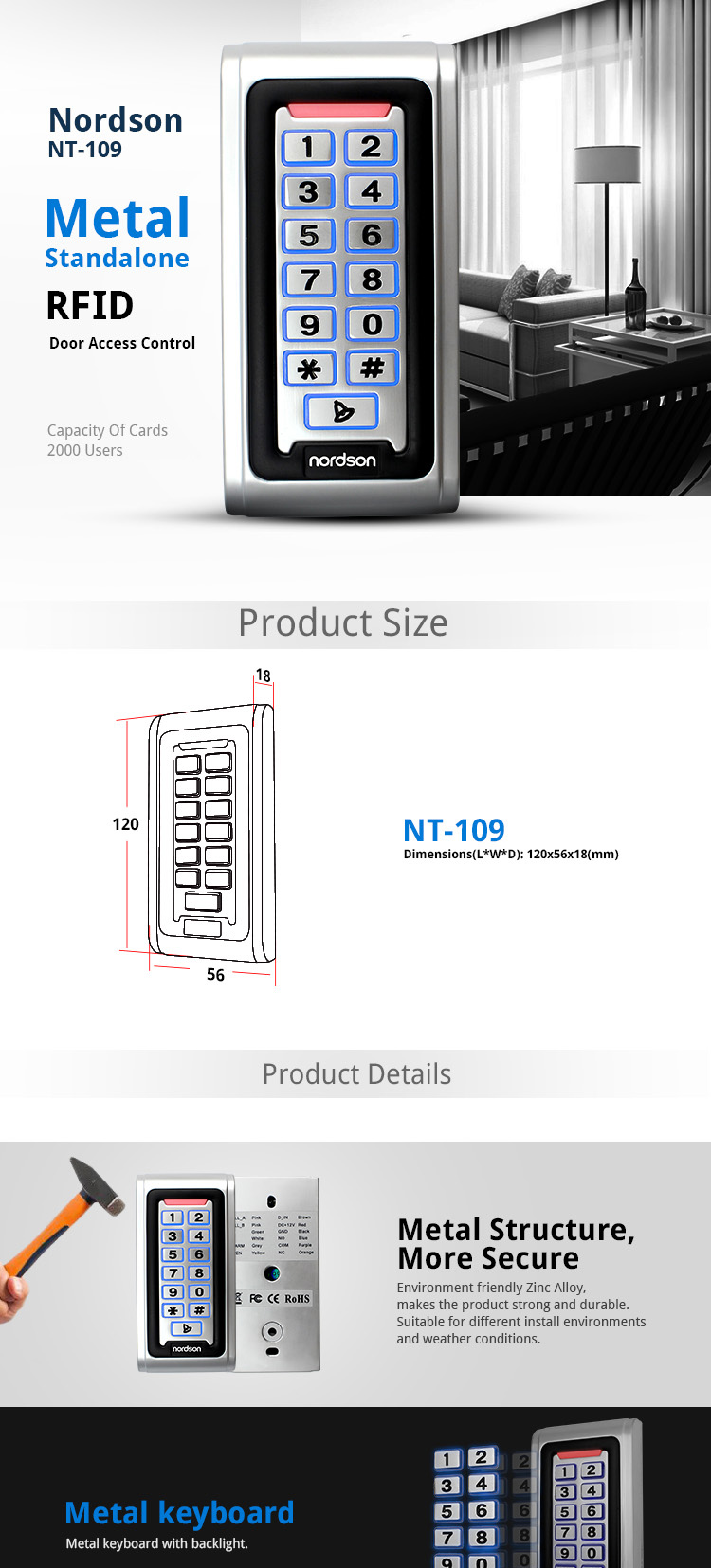

| Dimensions | 120x56x18(mm) (L*W*D) |
| Gross Weight | 0.52kg |
Function
1.completely independent access control, directly through the keyboard to achieve
password, card management and other functions.
2.supports Wiegand 26 output&input, can be used as a card reader.
3.support card, password, card with password three seed certification management.
4.reader sensor with high sensitivity, less than 0.1 seconds.
5.supports a password to open the door, stand-alone card capacity up to 2000.
6.high-quality stainless steel materials, with tamper alarm and door sensor alarm
functions.
7.exit button and doorbell input function.
8.the surge absorption protection.
Good value for money, good material for good quality.
Be your worth trusting business partner.
•Our Vision
To become a respectable company by providing branded products & services of
superior quality that improve the lives of the world’s customers.
•Our Business Philosophy
To create, pass, pursue and realize value.
•Our Management Concept
Result oriented, effort shared, united for progress, and dedicated to performance.
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door service;
2. By Air or by Sea for bulk goods, for FCL; Airport/ Port receiving;
3. Support Customers specifying freight forwarders or selected shipping methods!
Unique Nordson,Extraordinary Nordson!
• We regard quality as life and build our own brand of Made-in-China.
• We Care, 90% Reorders after Trial Order!
• We Care, 80% Performance from Regular Customers!
• We Care, Delivery on time rate above 99%!
• We Care, Strive to Achieve Zero Defect and Zero Complaint!
• We Care, Product Green Design, Protect the environment!

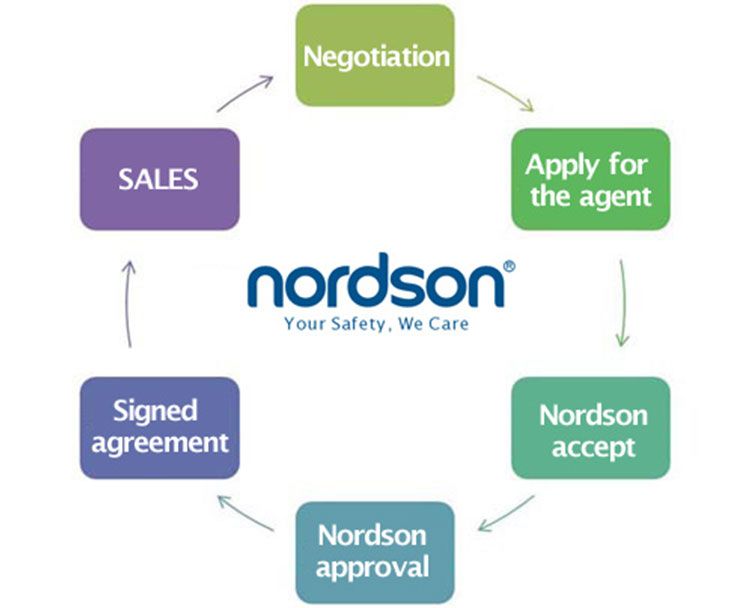

How can become angent of Nordson?
