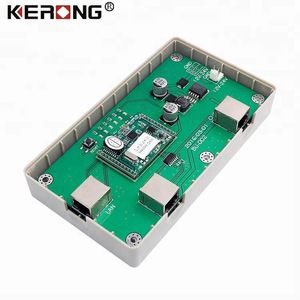

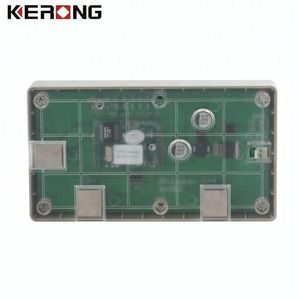

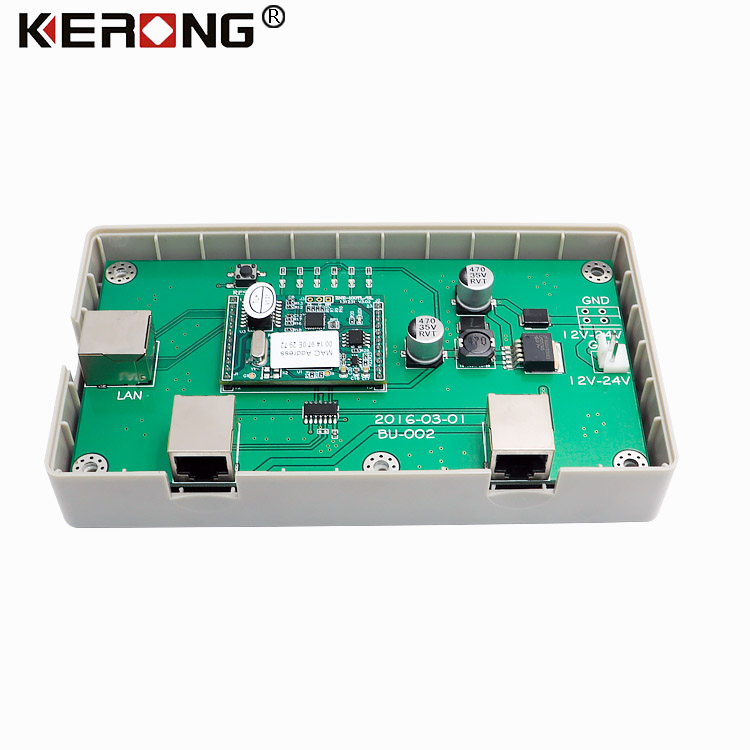

Electric Lock Control Board Access Control System
PRODUCT PARAMETERS | |
Model | KR- BU |
Brand | KERONG |
Definition | Electronic rotary latch controller |
Function | Receive commands to control lock and feedback status |
Dimension | L200*W140*H15mm |

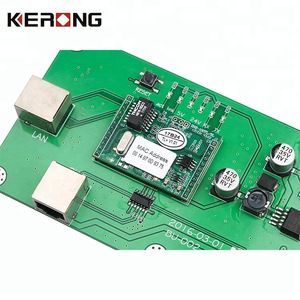

Material | PCB (Printed Circuit Board) |

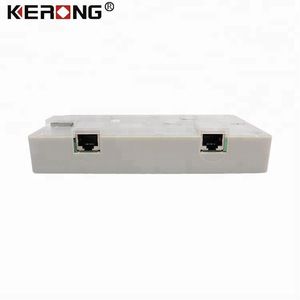

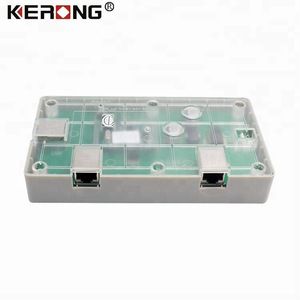

Dimension of protect shell | L210*W150*H35mm |
Material of protect shell | ABS |
Micro processor module | STM8S103K3T6 QFP32(P0.8mmBS7*7mm) |
Connector model | RJ45, 8P8C |
Working voltage | 12V~24V |
Stand-by power consumption | 60mA |
Dynamic power consumption | 200mA~3000mA |
Reaction time | Less than 1s |
Working temperature | -25℃ ~ +65℃ |
Working humidity | 5% ~ 95%RH |
Working life | 500,000 times |
OEM | Accepted |
Certification | CE; FCC; RoHS |
Product features:
1, For network communication. Transfer TCP/IP commands (from PC) to 485 format (to CU).
2, Open developed, you can design software completely as you want.
3, Support networking.
4, Can co-work with computer, pad, Raspberry Pi.
5, Works well on IOS, Windows and Linux.
6, Suit for multiple application: parcel delivery locker, public storage locker etc.
7, High quality modules, working stably.
8, Working temperature: -25℃~65℃.

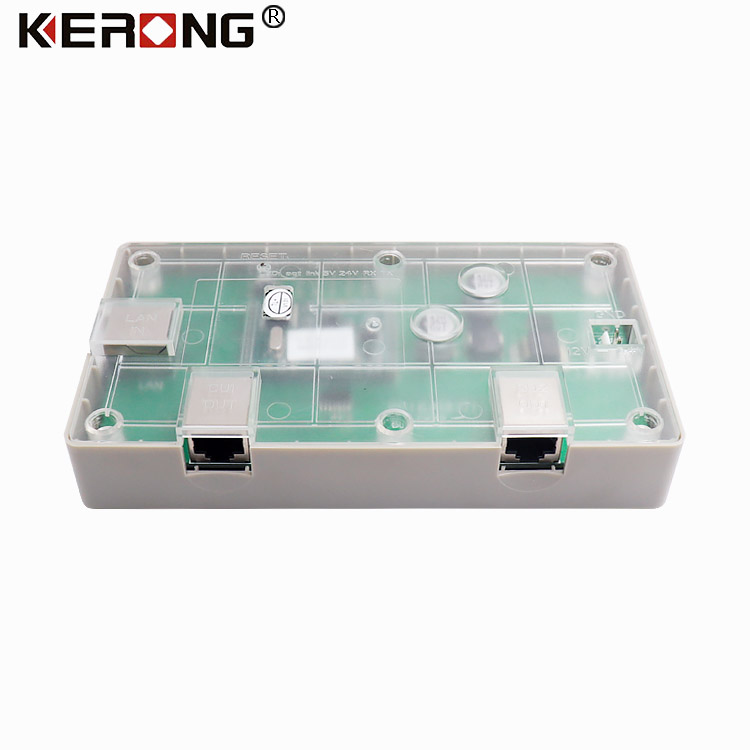

9, With protect box, anti-dust.

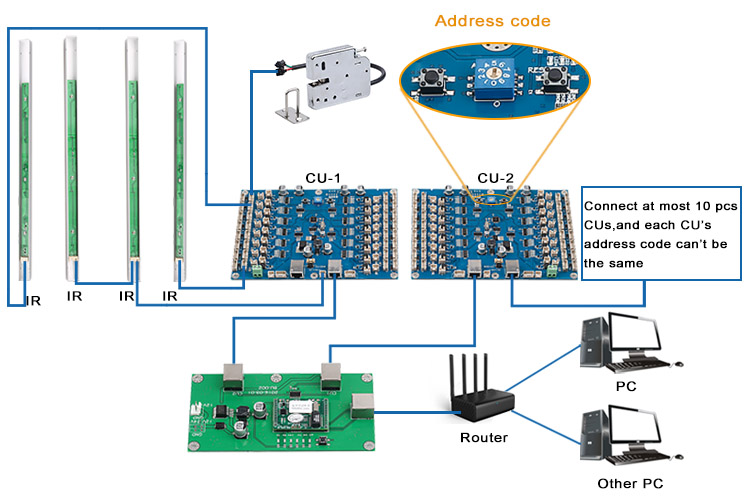

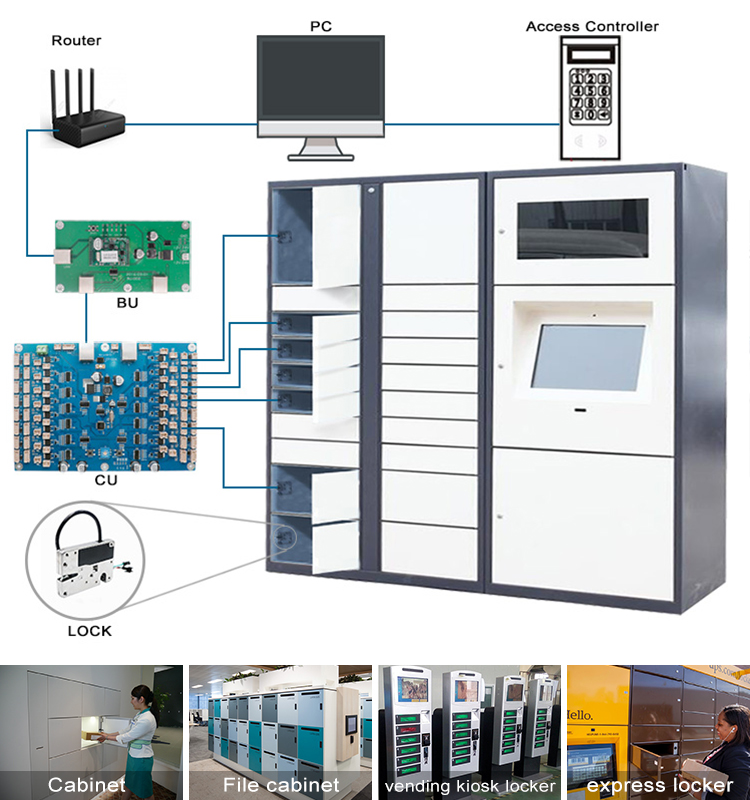

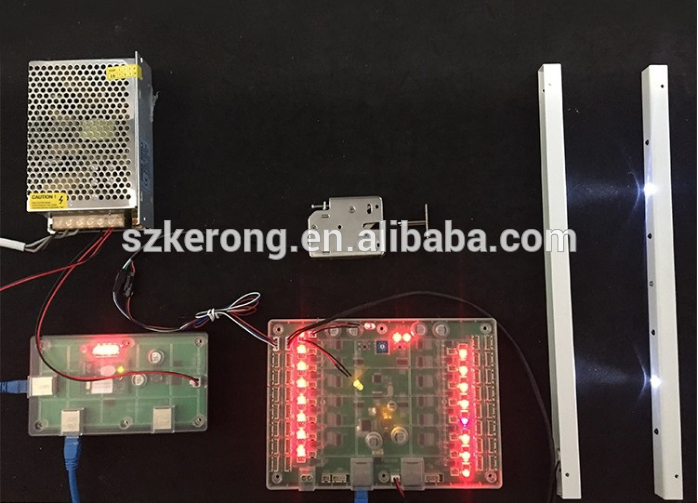

PC: With software to manage all parts.
Router: Providing internet.

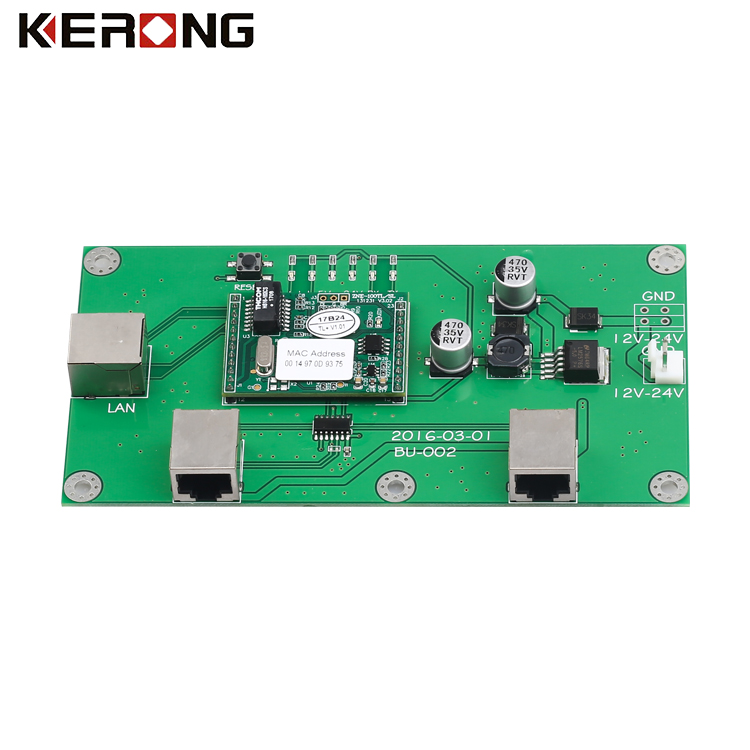

BU: Basic unit. For network communication. And transfer TCP/IP commands (from PC) to 485 format (to CU).
CU: Control unit. Receiving commands from BU/ PC and sending commands to locks. Get feedback from locks and send to BU/PC.
IR: Infrared sensor(optional). Connect to CU. Detecting locker condition(empty or occupied) and feedback to CU. Supply light when locker is open.
Lock: With lock tongue detection. Unlock when received commands from CU. Send lock condition (locked or not) to CU.
Locker Control Board is widely applicated in Cabinets, mailbox, drawers, lockers, deposit lockers, logistics cabinets/lockers, express lockers, parcel lockers, gym lockers, sauna lockers, wardrobe lockers, document cabinets,wardrobes, vending kiosk locker, phone charging cabinets, shoe cabinets,centralized control box ark, etc.
Packaging Details: Carton: 100 pcs/Ctn or coustomize according to customer's
requirement.Electronic drawer lock with digit keypad for
office cabinet.
Delivery Detail: Shipped in 3 days after payment
Kerong Industrial Company Limited was founded in 2002 and specializes in electronic locks, home safes, and other related security products. With our strong R&D capability we currently have a range of over fifty high-tech products of our own design and hold over twenty national utility patents as well as two new product invention patents.
Over the years, KERONG has consistently focused on product development as well as personnel training to ensure quality sales and after-sales service. Continuous investment in cutting-edge foreign technology, equipment and know how to constantly keep our product range up to date. At the same time, our staffs are trained in the latest management techniques. This has enabled us to go from strength to strength, creating a unique business model with a strong and comprehensive marketing and after-sales support network.
We will try our best to serve you and hope to become one of your friends and business partners.
