RFID access control system Factory Price Tripod Turnstile Gate Electric Semi Automatic Tripod Turnstile

Together with intelligent card reader/writer and management software, they are combined as intelligent tripod turnstile management system, can fulfill the functions like entrance control, time attendance, pedestrian volume control and tolling etc.

Technical Feature

  • Guangdong, China (Mainland)
  • FUJICA
  • FJC-Z3148
  • 50W
  • 1300*280*950 mm
  • orange / gray / blue
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Guangdong, China (Mainland)
Brand Name
FUJICA
Model Number
FJC-Z3148
Power
50W
Housing Size
1300*280*950 mm
Housing color
orange / gray / blue
Channel width
550--600mm
Pass speed
Aluminum Aloy
Rai lifting time
25 persons/min.
Communication Interface
RS485
Working environments
indoor,outdoor
railing-off against power off
Yes
Working temperature
minus 30u00b0C to 70 u00b0C

DETAIL DESCRIPTION



RFID access control system Factory Price Tripod Turnstile Gate Electric Semi Automatic Tripod Turnstile

Description

Fujica semi-automatic tripod turnstile consists of casing, magnetic force turn plate, reader module, main controller module, direction guide, limit switch etc., can be used for entrance control, applications like apartment, factory, museum, station and ferry terminal etc.. Together with intelligent card reader/writer and management software, they are combined as intelligent tripod turnstile management system, can fulfill the functions like entrance control, time attendance, pedestrian volume control and tolling etc. The equipment opens half-automatically, Mifare-1, IC, ID and Bluetooth are available to be used with the tripod turnstile.

System function

1. Can open the turnstile by two input signals (signals can be input by access controller, button
    or other equipments)
2. Direction guide function,  when the turnstile is ready to read card, the yellow light in the
    middle will turn one; after reading card and ready for passing, the upper blue light will turn
    on; if try to push the railing without permission, the red light will turn on
3. Single direction or double direction optional
4. Railing will be off when power off
5. Counting function, if read the card for N times, N persons can pass before the railing close,
    N<=8(optional function)
6. Voice prompt and display screen available (optional)
7. External counter can be connected to count number of passed people (optional)
8. RS485communication, PC command through serial port is allowed (optional)
9. Alarming output for pushing the railing without permission(optional)

Technical parameters



Security turnstile gate  Power consumption50W
Security turnstile gate Housing Size1300*280*950 mm
Security turnstile gate Housing material1.5--2mm, 304# stainless steel, corrosion resistant
Security turnstile gate Channel width550--600mm
Security turnstile gate Pass speed25 persons/min.
Security turnstile gate Communication InterfaceRS485
Security turnstile gate Input signal optionalDC12V level signal or DC12V pulse signal
Security turnstile gate railing-off against power offYes
Security turnstile gate Working temperatureminus 30°C to 70 °C
Security turnstile gate Working environmentsindoor,outdoor
Security turnstile gate Relative humidity≤95% coagulation free
Security turnstile gate MCBF2,000,000 cycles

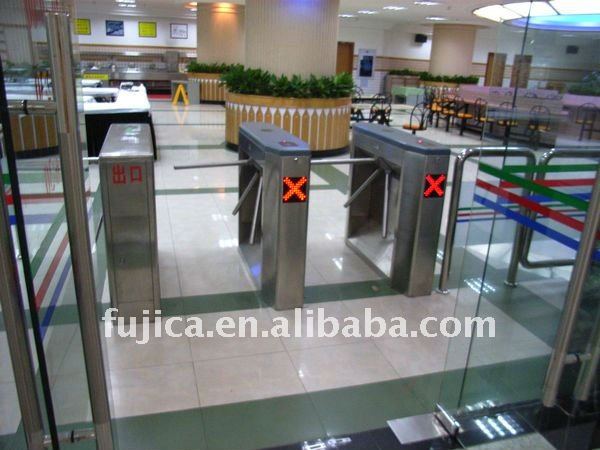

Picture &Aplication


Packaging & Shipping



 Model No.EQ Size(cm)Wooden case size(cm)CBM (m³)NW(kg)GW(kg)
FJC-Z3148    120*28*95128*38*1100.54 68 98






Company Information

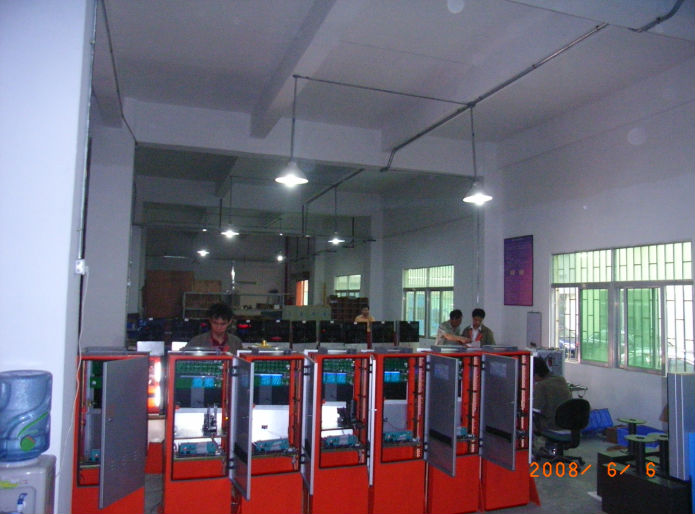

Production Capacity
Product NameMonthly CapacityAnual Capacity
Flap barrier 600sets / month7,000 sets
Swing barrier600 sets / month7,000 sets
Turnstile600 sets / month7,000 sets
Parking barrier gate800 sets / month10,000 sets
parking entrance/exit terminal800 sets / month10,000 sets

Certification




Our Services

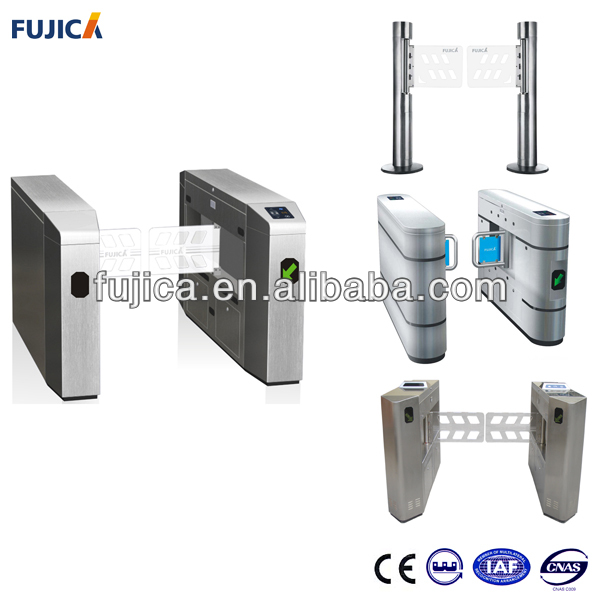

OTHER PRODUCTS & APPLICATION
