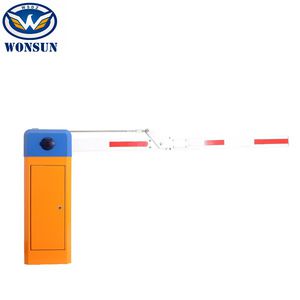

Remote Control Electric Barrier Gate For Entrance Security Systems

we can customized machine case, color, logo for you, which accroding to your detailed requirements.

Technical Feature

  • Guangdong, China (Mainland)
  • wonsun
  • WSTP-115B
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Guangdong, China (Mainland)
Brand Name
wonsun
Model Number
WSTP-115B
Model Number
Name
Speed
Certificate
OEM/ODM
Boom Length
Arm type
Color
Material
Features

DETAIL DESCRIPTION

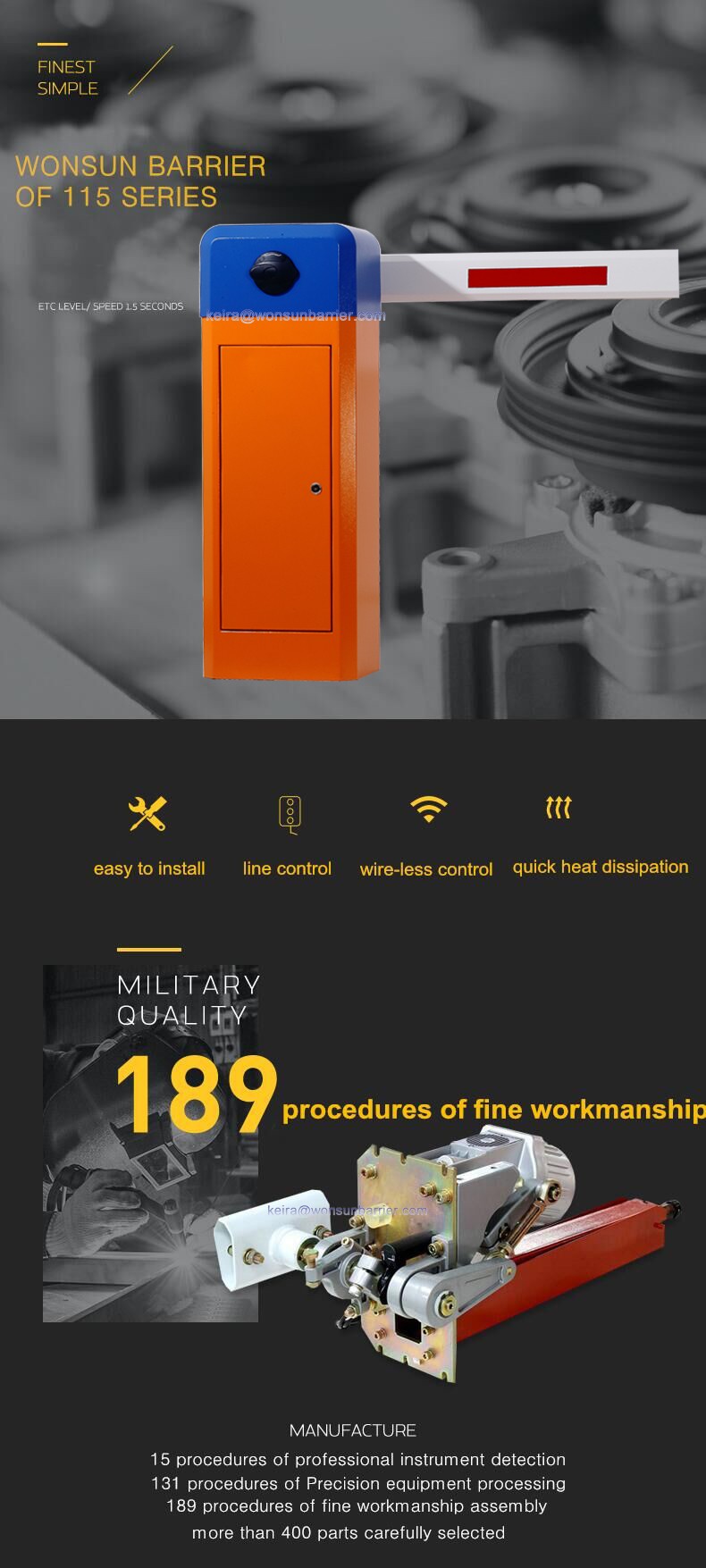

Remote Control Electric Barrier Gate For Entrance Security Systems





Company Information













Product Description

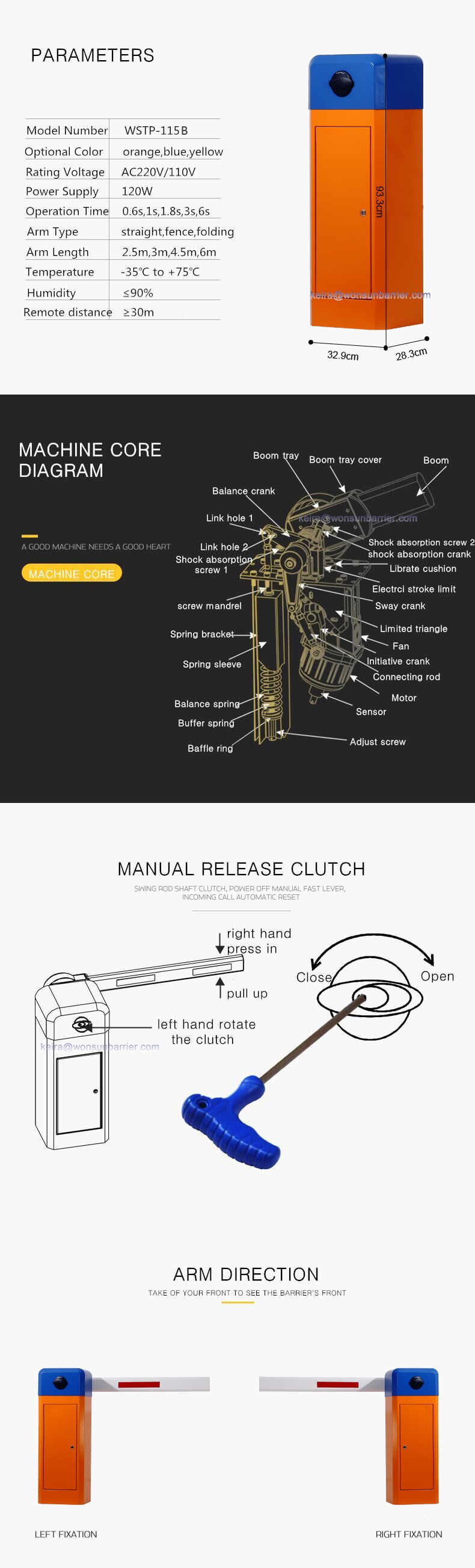

ModelWSTP-115B
Size320*280*935 mm
VoltageAC 220V/110V±10%, 50/60HZ
Rated Power120W
Operation time0.6s, 1s, 1.8s, 3s,4s,6s. Customized
 Working Temperature

-40℃~+75℃

Material

Galvanized plate or Cold roll plate, 2.0mm thickness sheet

3 years without rust, shedding and fading

Spring And BearingHeat Treatment: more durable, more than 5 million times through operation testing
  Remote Control Distance
Usually more than 30 meters, if there is less obstacles, even 50 meters or more
Packing Size1020*375*467mm , with seven layers carton case

inside with air bubble film for protection

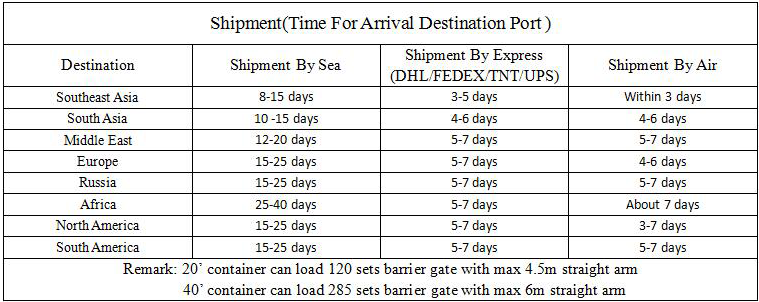

DeliveryBy Sea: big order(more than 100 sets), Cheap, suggested

By Air: small order(1-15 sets), quick and cheap, suggested

Functions and Features

1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)




Our service:

Service for free:
1. One year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.

Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.
