4 Way to 36 Way Circuit Breakers electric plastic cabinet
4, 6, 8, 10, 12, 15, 18,20, 24, 30,36 ways electrical junction box MCB waterproof distribution box
Function:
Application:
This distribution box is widely used in business offices, housing district hotel and government offices building to distribute power via wiring.

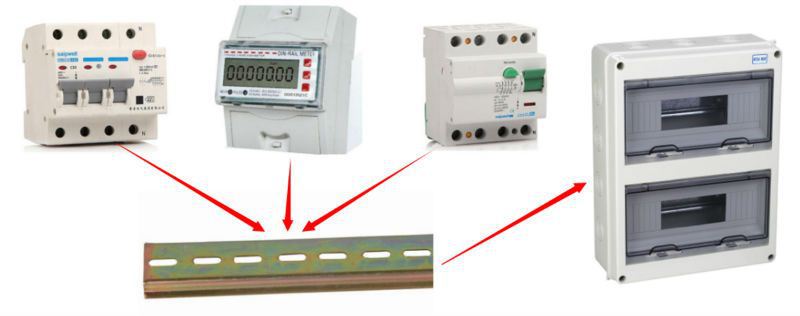

Products are available for the installation of terminal substitution rail, button box, small terminal, sigal, relay and sensor, communication and joint box etc. electric plastic cabinet
Specifications:
1.Flush and Surface type
2.ABS plastic body
3.V0 flame retardant UV
4.IP40
5.easy for installation
electric plastic cabinet

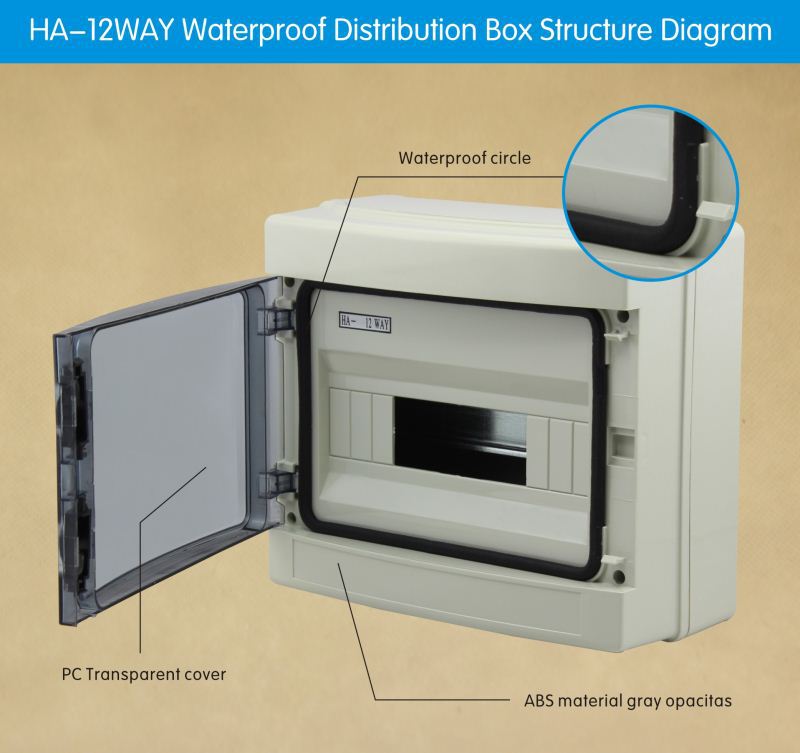

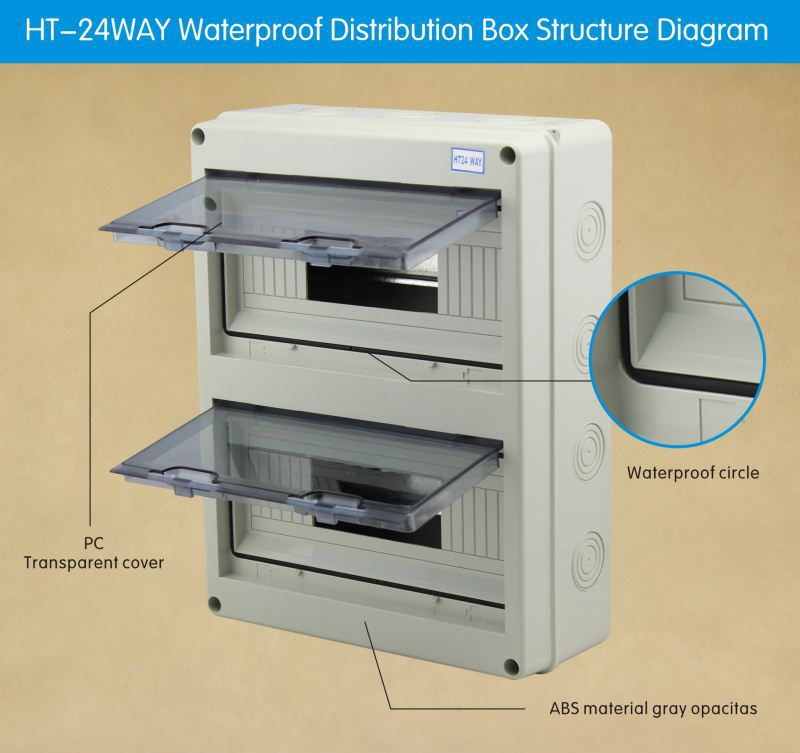

Product Description:
Specifications and features of distribution box:
1) High impact resistance material
2) Transparent covering
3) Surface and flush mountings available
4) Plenty of space for smooth and easy wiring
5)Single or double row of copper
6) Range: 4, 6, 8, 10, 12, 15, 18,20, 24, 30,36 ways electric plastic cabinet
Technical Data:
Type | Dimension:L*W*H(mm) | MCB number | Material |
GDB-06/1506 | 200*165*100 | 6ways | pc |
GDB-08/1508 | 200*219*100 | 8ways | |
GDB-12/1512 | 230*273*110 | 12ways | |
GDB-18/1518 | 230*381*110 | 18ways | |
GDB24/1524 | 380*273*110 | 24ways | |
GDB-36/1536 | 380*381*110 | 32ways | |
HA2-5 | 208*140*95 | 2-5ways | Body: ABS upper cover: PC |
HA-8 | 212*208*95 | 8ways | |
HA-12 | 295*255*130 | 12ways | |
HA-18 | 410*280*130 | 18ways | |
HA-24 | 420*295*130 | 24ways | |
HT-5 | 150*110*90 | 2--5w | Body: ABS upper cover: PC |
HT-8 | 195*145*90 | 8ways | |
HT-12 | 250*195*90 | 12ways | |
HT-15 | 300*190*105 | 15ways | |
HT-18 | 195*365*70 | 18ways | |
HT-24 | 270*350*70 | 24ways | |
SPS-2ways | 120*55*90 | 1-2ways | Body: ABS upper cover: PC |
SPS-3ways | 175*85*100 | 1-3ways | |
SPS-4ways 56CB4N | 200*100*100 | 4ways | |
HK2-5 | 140*140*105 | 2-5ways | Body: ABS upper cover: PC |
HK-8 | 185*185*105 | 8ways | |
HK-12 | 270*195*105 | 12ways | |
HK-18 | 370*195*105 | 18ways |

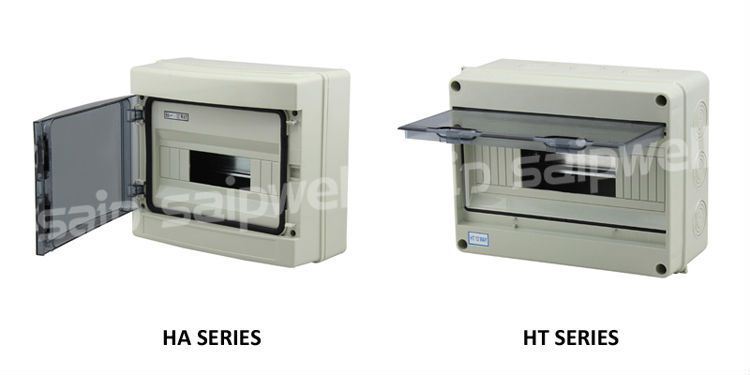

Product Show:
distribution box

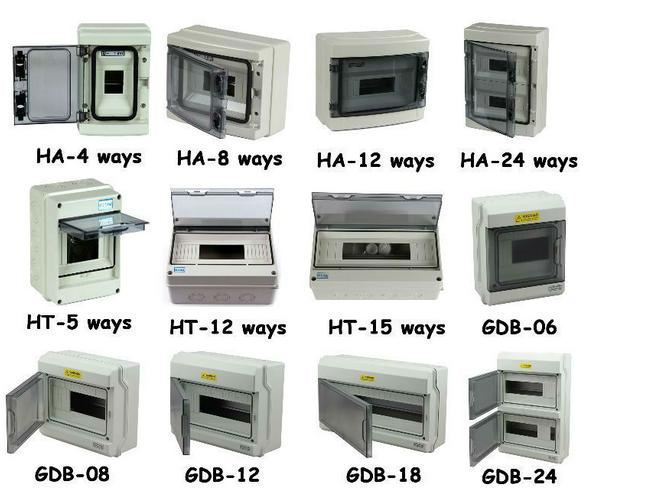

Other types:
Others (price,package and service):
1. The quoted price is always valid for 15 days due to the fluctuation of raw material cost.
Please feel free to contact us for the catalog or prices.
2. Please kindly inform us which items you are interested & the best price will be provided you upon receipt of your new inquiry asap.
3. Samples will be offered to you for our future cooperation. electric plastic cabinet
Our company :
SAIP, as a professional manufacturer and supplier, is specialized in developing, producing electric equipments fitting all over the world.
Please kindly contact with us freely. High quality,reasonable price,best service is offered to you. electric plastic cabinet
Contact information:
When you send the inquiry,please kindly advise the distribution box:
1.How many ways of your circuit breaker? 4, 6, 8, 10, 12, 15, 18,20, 24, 30,36 ways ?
2.The mounting type? Surface type or Flush type?
....
