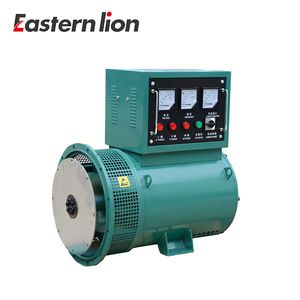

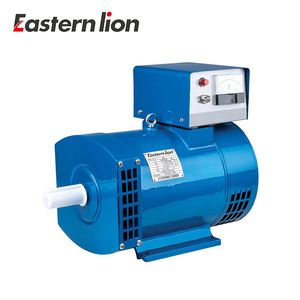

Three phase electric dynamo generator 20kw 30kw 40kw 50kw specifications

We can make troic type alternators which Enviropmetal temp is 50°C according to your request.

Technical Feature

  • Fujian, China (Mainland)
  • Eastern Lion
  • STC
  • AC Three Phase
  • 1500/1800RPM
  • 50/60HZ
Send Project Inquiry Add Inquiry List

0 Add Favorite

DESIGN SERVICE OVERVIEW

Project Design Scope

Project Service Scope

PRIMARY PARAMETERS

Place of Origin
Fujian, China (Mainland)
Brand Name
Eastern Lion
Model Number
STC
Output Type
AC Three Phase
Speed
1500/1800RPM
Frequency
50/60HZ
Rated Power
3KW-50KW
Rated Voltage
400/230V
Rated Current
5A-90A
Product Name
three phase electric dynamo generator
Color
Blue,Greay,Black,Red,Orange,green
Pole
4
Insulation Level
F
Type
Three Phase Alternator
Excitation type
Self-exited
Options
Control panel
Power factor
0.8Lagged
Keyword
STC Alternator
Warranty
12 Months/1000 Hours

DETAIL DESCRIPTION

Product Description

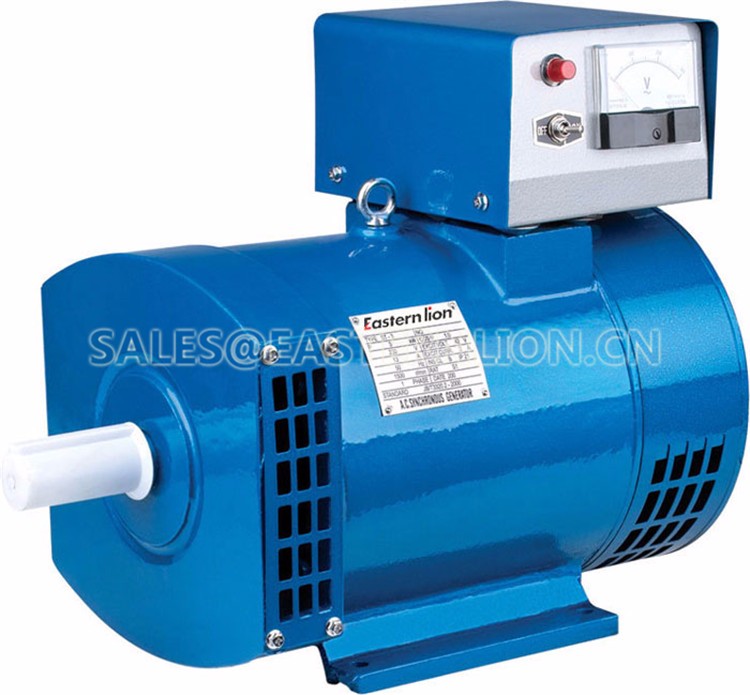

 Eastern Lion STC Series Three Phase Brush alternator are mainly design to serve as small capacity power generating unit which supply for lighting purpose and electrical source for Vallages, Towns, Workshop, household electric devices, ect…The capacity is 3KW-50KW



Working Condiction

1. Altitude: <=1000 m
2. Enviroment degree: <=40°C
3. Air Humidity: <=90%

4. We can make troic type alternators which Enviropmetal temp is 50°C according to your request.



three phase electric dynamo generator 20kw 30kw 40kw 50kw specifications

MODEL

RATED POWER

RATED CURRENT

(KW)

(KVA)

(A)

STC-3

3

53.75

5.4

STC-5

5

6.25

9

STC-8

8

10

14.4

STC-10

10

12.5

18.1

STC-12

12

15

21.7

STC-15

15

18.75

27.1

STC-20

20

25

36.1

STC-24

24

30

43.2

STC-30

30

37.5

54

STC-40

40

50

72.1

STC-50

50

62.5

90.1



Advantage

Eastern Lions STC series alternators have the advantage of excellent dynamic performance, can directly start 0.7 times capacity of squirrel cage induction motor, without any additional boot device.

Elegant appearance, strong and durable structure, easy to maintain. The installation size are suitable for International Electrotechnical Commission (IEC) standards, such as the use of B type end cover, also can meet the requirements of Australia,Europe and other regions supporting.



Main Features

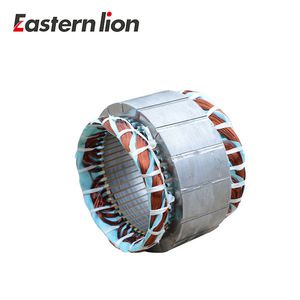

The magnet limbs rotating field and free running constant voltage mould type.Using quality electromagnetic and electric material.The insulation class of stator is E or B, rotor is B.Using harmonic excitation, there is another set of harmonic winding which enter to magnetic field after rectification through three- phase Bridge rectifirer.



Please contact us

Please contact us

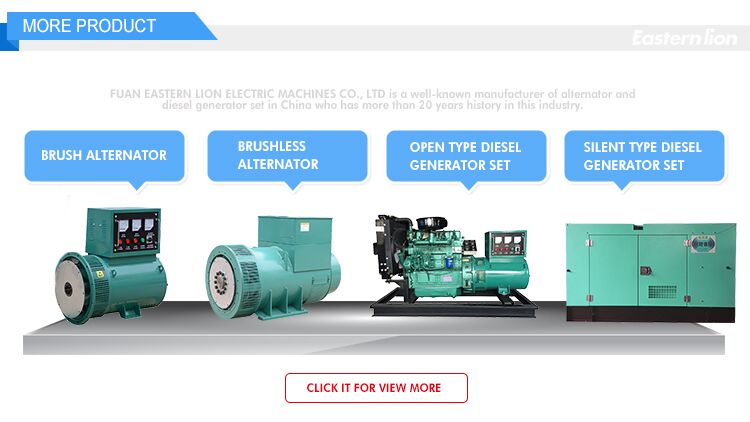

More product
