Oil and Gas Platform Electric Power Silent 400kva Diesel Generator Price

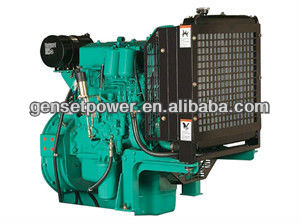

1, engine series
Inc., a global power leader, is a corporation of complementary business units that design, manufacture, distribute and service engines and related technologies, including fuel systems, controls, air handling, filtration, emission solutions and electrical power generation systems. Headquartered in Columbus, Indiana (USA), Cummins serves customers in approximately 190 countries and territories through a network of more than 500 Company-owned and independent distributor locations and approximately 5,200 dealer locations.

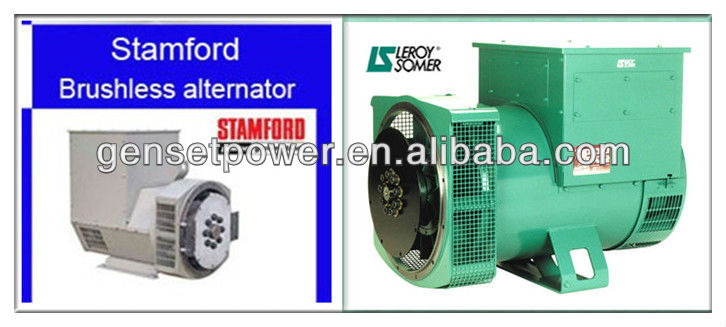

2,Alternator
1)Optional Brand: Engga, Stamford, Marathon,leroy somer …
2)The standard generator set matches with Engga brand alternator, and customer also can choose other brands.
3)Standard AVR, AC three phase, 12 reconnect copper leads, single bearing or double bearing, self-exciting system and permanent magnet generator.
4)IP21-23 protection grade, insulation system is H class, and stators are wound to 2/3 pitch.
5)Manufacture standards: GB755, BS5000,VDE0530,NEMAMG1-22,IEC34,and ASB59

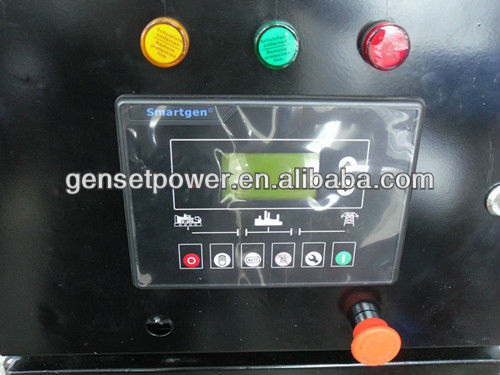

3,Digital Control Panel
Controller Brand: Smartgen
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.
4.Technical data of 400kva engine generator
| MODEL | GNRC400 |
| Standby Power(50HZ ) | 360KW / 450KVA |
| Prime Power(50HZ ) | 320KW / 400KVA |
| ENGINE DATA | |
| Manufacturer/Model: | CCEC NTAA855-G7,4-cycle |
| Air Intake System: | Turbo,Air/Air Cooling |
| Fuel System: | PT type fuel pump,EFC |
| Cylinder Arrangement: | 6 in line |
| Displacement: | 14L |
| Bore and Stroke: | 140×152(mm) |
| Compression Ratio: | 14.0:1 |
| Rated RPM: | 1500rpm |
| Max.Standby Power at Rated RPM: | 377KW / 513HP |
| Governor Type: | Electronic |
| Exhaust System | |
| Exhaust Gas Flow: | 1150L/S |
| Exhaust Temperature: | 451°C |
| Max Back Pressure: | 10kPa |
| Air Intake System | |
| Max Intake Restriction: | 6.22kPa |
| Buring Capacity: | 510L/S |
| Intake Flow: | 8180L/S |
| Fuel System | |
| 100%(Prime Power) Load: | 206.7 g/Kw.h |
| 75%(Prime Power) Load: | 208.7g/Kw.h |
| 75%(Prime Power) Load: | 215.7 g/Kw.h |
| Oil System | |
| Total Oil Capacity: | 38.6L |
| Oil Consumption: | 0.24L/H |
| Engine Oil Tank Capacity: | 36L |
| Oil Pressure at Rated RPM: | 241-345kPa |
| Cooling System | |
| Total Coolant Capacity: | 63.9L |
| Thermostat: | 82-94°C |
| Max Water Temperature: | 96°C |
| Open Type | Soundproof Type |
| Overall Size:3250(mm)×1100(mm)×1850(mm) | Overall Size:4235(mm)×1460(mm)×2150(mm) |
| Weight:3200kg | Weight:4250kg |
5.Standard Supply Scope
| Exhaust silencer | Flexi pipes | AVR | Base frame |
| Starting battery | Battery wires | Battery charger | Main circuit breaker |
| Cooling radiator | Wire diagram | Manual books | Auto control panel |
6.Optional Supply Scopy
| Water preheater | PMG | ATS | External daily fuel tank | Silent canopy |
| Lube oil preheater | Spare parts | Parallel droop | Anti-condensation heater | ABB breaker |
| Automatic fuel pump | Oil drain pump | Mobile trailer | Weatherproof canopy | Synchronization panel |
7.Quality Standard:
All Models are tested with 25degree centigrade air inlet temperature,150m(500ft),A.S.L 60% relative humidity.The genset coincident to the standard of GB2820,GB1105,ISO8528,ISO3046,IEC60034,SAEJ1394,BS5000,NEMA MG-1/22,DIN6271,DIN6280,VDE0530 and ISO9001,ISO14001
8.Warranty and Maintenance
1) Do the full power load test for five hours before package.
2) One year or 1000 working hours, whichever comes first, global warranty for Cummins.
3) After expiration, we provide spare parts maintenance with low price

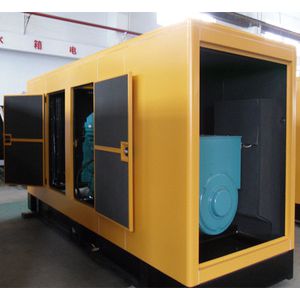

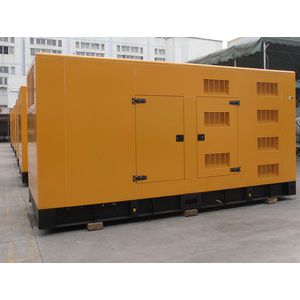

Silent Type Generator
1. what is the warranty ?
the standard warranty is 12months or 1000 running hours, subject to the earlier mature term.
but we will offer life-time and free technological support and problem solutions.
During warranty , if any problem , the spare parts supplying will be free .
2. how do we install the generator in our place ?
before delivering the generators , our engineers have installed and checked everyhing well.
when you receive the generator , you just need to fill the cooling water ,lube oil and fuel ,
then you just push the start button ,the generator will be running automatically. your local technician also know it well .
3. What is the generator maintenance period ?
you should do the maintenances according to the manual book , your local technician can do it easily .
4.What is your MOQ, payment method, delivery time?
Our MOQ is only 1 set.
Payment method usually is 30% T/T as deposit, 70% balance T/T before delivering. Or 100% L/C.
Welcome to place the order through the trade assurance of Alibaba.
Delivery period normally will be 15~20 days after receiving customers' deposit.
5. Can you offer OEM service and print our logo in your genertator ?
Yes. Please inform us formally before our production.
